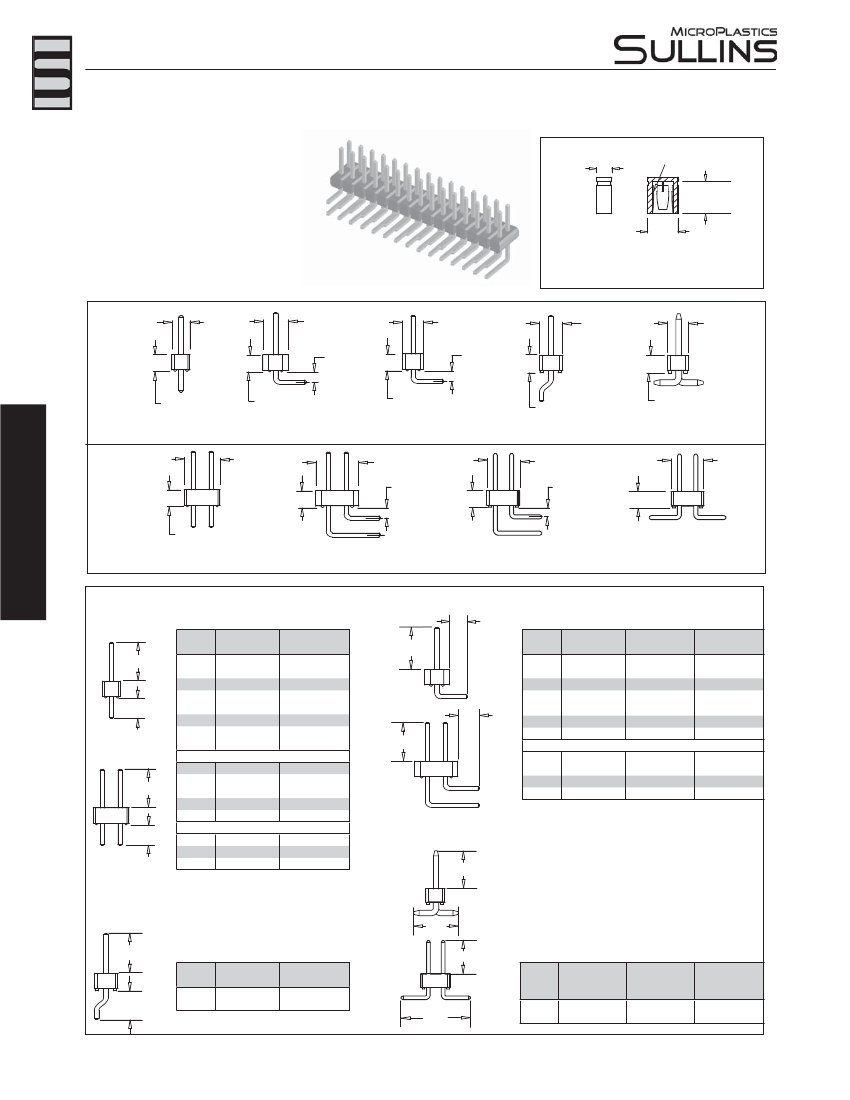

Sullins Headers
.100”[2.54mm] Contact Centers, Male Breakaway Header
Dip Solder/Right Angle/SMT
SPECIFICATIONS
•
•
•
•
3 amp current rating per contact
UL Flammability Rating: 94V-O
Insulator: Polyester, PA9T
Contact Material: Copper Alloy
JUMPERS
.100
[2.54]
DUAL BEAM CONTACTS
.226[5.74]
INSERTION
DEPTH
.200
[5.08]
PART NUMBER:
STC02SYAN (TIN PLATE)
SPC02SYAN (GOLD FLASH)
SSC02SYAN (0.000010" GOLD PLATE)
READOUT
SINGLE
ROW
(S)
.100
[2.54]
.140
[3.56]
.060
[1.52]
.100
[2.54]
.060
[1.52]
.100[2.54]
RIGHT ANGLE (Narrow)
-M71 Modification Code
.240
[6.10]
.060
[1.52]
.140
[3.56]
.100
[2.54]
.100[2.54]
STRAIGHT
.100[2.54]
RIGHT ANGLE
(Standard)
.200
[5.08]
.100[2.54]
.100[2.54]
SMT, -M89
Modification Code
.100[2.54]
SMT, -M30
Modification Code
.200
[5.08]
.100[2.54]
Sullins Headers
DUAL
ROW
(D)
.100[2.54]
STRAIGHT
.200
[5.08]
.100[2.54]
.060
[1.52]
RIGHT ANGLE
(Standard)
RIGHT ANGLE (Narrow)
-M71 Modification Code
SMT, -M30
Modification Code
TERMINATION TYPE
STRAIGHT TERMINATIONS
HEAD
P/N
HEAD
TAIL
CODE DIMENSION DIMENSION
AA
.230 [5.84] .120 [3.05]
AB
.230 [5.84] .230 [5.84]
AC
.230 [5.84] .320 [8.13]
AD
.230 [5.84] .420 [10.67]
AE
.230 [5.84] .520 [13.21]
AF
.230 [5.84] .620 [15.75]
AG
.230 [5.84] .720 [18.29]
AH
.230 [5.84] .820 [20.83]
FA
FB
FC
FD
FE
ZA
ZC
ZD
.318
.318
.318
.318
.318
[8.08]
[8.08]
[8.08]
[8.08]
[8.08]
.120
.220
.320
.420
.520
[3.05]
[5.59]
[8.13]
[10.67]
[13.21]
TAIL
HEAD
RIGHT ANGLE BEND
TERMINATIONS
P/N
HEAD
TAIL
CODE DIMENSION DIMENSION
BA
.230 [5.84] .100 [2.54]
BB
.230 [5.84] .200 [5.08]
BC
.230 [5.84] .300 [7.62]
BD
.230 [5.84] .400 [10.16]
BE
.230 [5.84] .500 [12.70]
BF**
.230 [5.84] .600 [15.24]
BG**
.230 [5.84] .700 [17.78]
GA
GB
GC**
GD**
.318
.318
.318
.318
[8.08]
[8.08]
[8.08]
[8.08]
.100
.200
.300
.400
[2.54]
[5.08]
[7.62]
[10.16]
-M71 TAIL
DIMENSION
.120 [3.05]
.220 [5.59]
.320 [8.13]
.420 10.67]
.520 [12.21]
TAIL
TAIL
HEAD
.120 [3.05]
.220 [5.59]
HEAD
**Consult Factory for availability in Dual Readout.
TAIL
.120 [3.05]
.120 [3.05]
.120 [3.05]
.120 [3.05]
.260 [6.60]
.610 [15.49]
HEAD
HEAD
SMT TERMINATIONS,
Single Row with
-M89 Modification Code,
(‘G’ Material Only)
P/N
HEAD
TAIL
CODE DIMENSION DIMENSION
BS
.230 [5.84] .180 [4.57]
GS
.318 [8.08] .180 [4.57]
TAIL
HEAD
P/N
CODE
SMT TERMINATIONS,
Single or Dual Row with
-M30 Modification Code,
(‘G’ Material Only)
HEAD
DIMENSION
.230 [5.84]
.318 [8.08]
SINGLE
ROW TAIL
DIMENSION
.320 [8.13]
.300 [7.62]
DUAL ROW
TAIL
DIMENSION
.420 [10.67]
.400 [10.16]
TAIL
TAIL
AB
FB
78
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
Sullins Headers
.100”[2.54mm] Contact Centers, Male Breakaway Header
Dip Solder/Right Angle/SMT

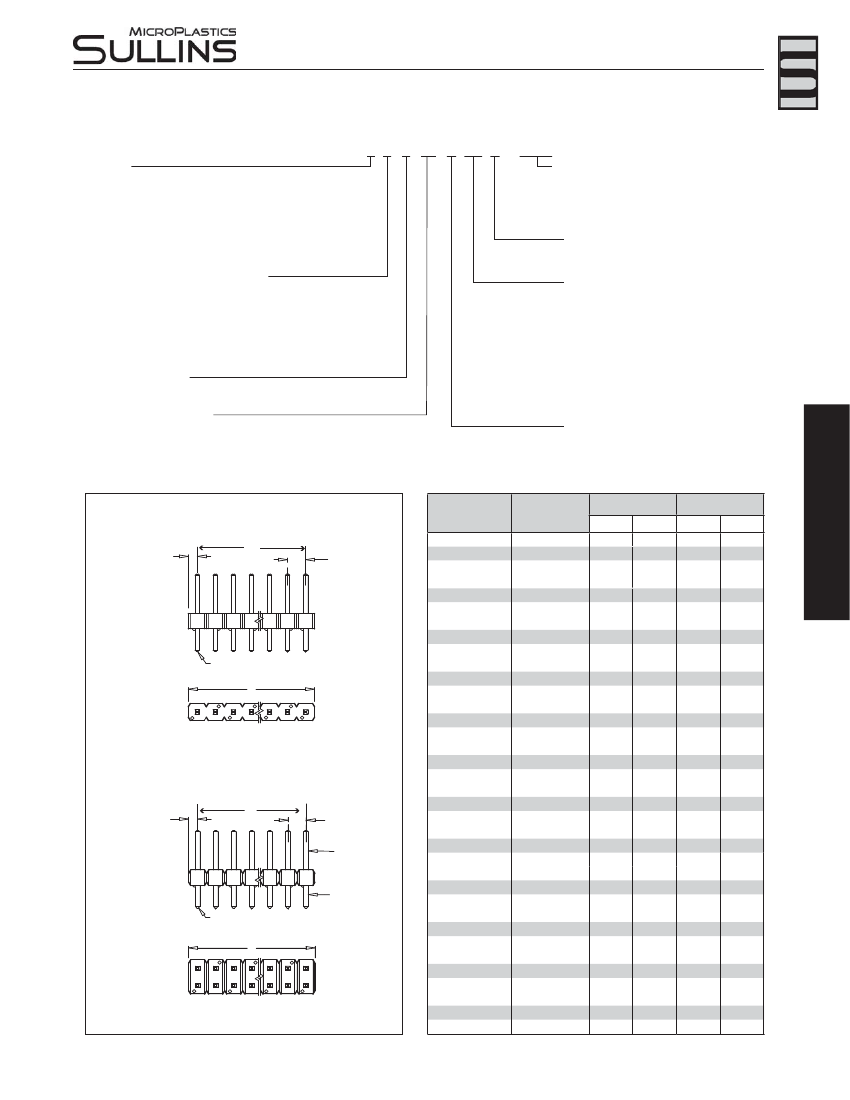

PART NUMBER CODING
P B C 36 D AA N - Mxxx
SERIES
P = PBT/Phosphor Bronze
Operating Temperature:
-65°C to + 125°C
MODIFICATION CODE
(Consult Factory)
OMIT FOR STANDARD
-M30 = SMT (‘G’ Material Only)
-M89 = SMT (‘G’ Material Only)
-M71 = Narrow Body (Right Angle Only)
MOUNTING STYLE
N =No Mounting
R =Retent Lead (Consult Factory)
TERMINATION TYPE (Opposite Page)
Straight
= AA, AB, AC, AD, AE, AF, AG, AH,
FA, FB, FC, FD, FE, ZA, ZC, ZD
Right Angle
= BA, BB, BC, BD, BE, BF, BG,
GA, GB, GC, GD, GS
Right Angle with -M71 Modification Code
= BA, BB, BC, BD, BE, GA, GB
SMT with -M89 Modification Code
= BS, GS
(‘G’ Material Only)
SMT with -M30 Modification Code
= AB, FB
(‘G’ Material Only)
READOUT (Opposite Page)
S = Single
D = Dual
Processing Temperature: 260° for 10 sec. Max.
G = PA9T/Phosphor Bronze
Operating Temperature:
-65°C to + 125°C
Processing Temperature: 260° for 120 sec. Max.
CONTACT FINISH - RoHS Compliant
All platings are Lead Free and have .000050” Nickel underplate
Contact Surface
Termination
B = .000010” Gold
.000100” Pure Tin, Matte
C = .000030” Gold
.000100” Pure Tin, Matte
Contact Surface
Overall Plating
E = .000010” Pure Tin, Matte
.000100” Pure Tin, Matte
CONTACT CENTERS
C = .100” [2.54mm]
NUMBER OF POSITIONS
01 Thru 36 (eg. 32 Dual = 64 Contacts)
Sullins Headers
DIMENSIONS
Dimensions in [ ] are in millimeters, all others are in inches.
A
.100 TYP.
[2.54]
.050, 2 PLS.
[1.27]
PART NUMBER
P _ C01 _ _ N
P _ C02 _ _ N
P _ C03 _ _ N
P _ C04 _ _ N
P _ C05 _ _ N
P _ C06 _ _ N
P _ C07 _ _ N
P _ C08 _ _ N
P _ C09 _ _ N
P _ C10 _ _ N
P _ C11 _ _ N
P _ C12 _ _ N
P _ C13 _ _ N
P _ C14 _ _ N
P _ C15 _ _ N
P _ C16 _ _ N
P _ C17 _ _ N
P _ C18 _ _ N
P _ C19 _ _ N
P _ C20 _ _ N
P _ C21 _ _ N
P _ C22 _ _ N
P _ C23 _ _ N
P _ C24 _ _ N
P _ C25 _ _ N
P _ C26 _ _ N
P _ C27 _ _ N
P _ C28 _ _ N
P _ C29 _ _ N
P _ C30 _ _ N
P _ C31 _ _ N
P _ C32 _ _ N
P _ C33 _ _ N
P _ C34 _ _ N
P _ C35 _ _ N
P _ C36 _ _ N
.025 [.64] SQUARE POST
FITS Ø.040 MINIMUM
B
SINGLE READOUT,
STRAIGHT TAIL SHOWN
.050, 2 PLS.
[1.27]
A
.100 TYP.
[2.54]
HEAD
TAIL
.025 [.64] SQUARE POST
FITS Ø.040 MINIMUM
B
DUAL READOUT,
STRAIGHT TAIL SHOWN
NUMBER OF
CONTACTS
SINGLE/DUAL
01/02
02/04
03/06
04/08
05/10
06/12
07/14
08/16
09/18
10/20
11/22
12/24
13/26
14/28
15/30
16/32
17/34
18/36
19/38
20/40
21/42
22/44
23/46
24/48
25/50
26/52
27/54
28/56
29/58
30/60
31/62
32/64
33/66
34/68
35/70
36/72
A
Inches
N/A
0.100
0.200
0.300
0.400
0.500
0.600
0.700
0.800
0.900
1.000
1.100
1.200
1.300
1.400
1.500
1.600
1.700
1.800
1.900
2.000
2.100
2.200
2.300
2.400
2.500
2.600
2.700
2.800
2.900
3.000
3.100
3.200
3.300
3.400
3.500
[MM]
N/A
2.54
5.08
7.62
10.16
12.70
15.24
17.78
20.32
22.86
25.40
27.94
30.48
33.02
35.56
38.10
40.64
43.18
45.72
48.26
50.80
53.34
55.88
58.42
60.96
63.50
66.04
68.58
71.12
73.66
76.20
78.74
81.28
83.82
86.36
88.90
Inches
0.100
0.200
0.300
0.400
0.500
0.600
0.700
0.800
0.900
1.000
1.100
1.200
1.300
1.400
1.500
1.600
1.700
1.800
1.900
2.000
2.100
2.200
2.300
2.400
2.500
2.600
2.700
2.800
2.900
3.000
3.100
3.200
3.300
3.400
3.500
3.600
B
[MM]
2.54
5.08
7.62
10.16
12.70
15.24
17.78
20.32
22.86
25.40
27.94
30.48
33.02
35.56
38.10
40.64
43.18
45.72
48.26
50.80
53.34
55.88
58.42
60.96
63.50
66.04
68.58
71.12
73.66
76.20
78.74
81.28
83.82
86.36
88.90
91.44
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
79
