BD021-04A-A2-0350-0200-0550-LB datasheet, PDF

Datasheet> All Categories > The connector> The connector> BD021-04A-A2-0350-0200-0550-LB

BD021-04A-A2-0350-0200-0550-LB: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle,; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD021-04A-A2-0350-0200-0550-LB Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle,

BD021-04A-A2-0350-0200-0550-LB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1274881676
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.079 inch
body length	0.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
Manufacturer's serial number	BD021
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	4

Preview

Download Datasheet

View All

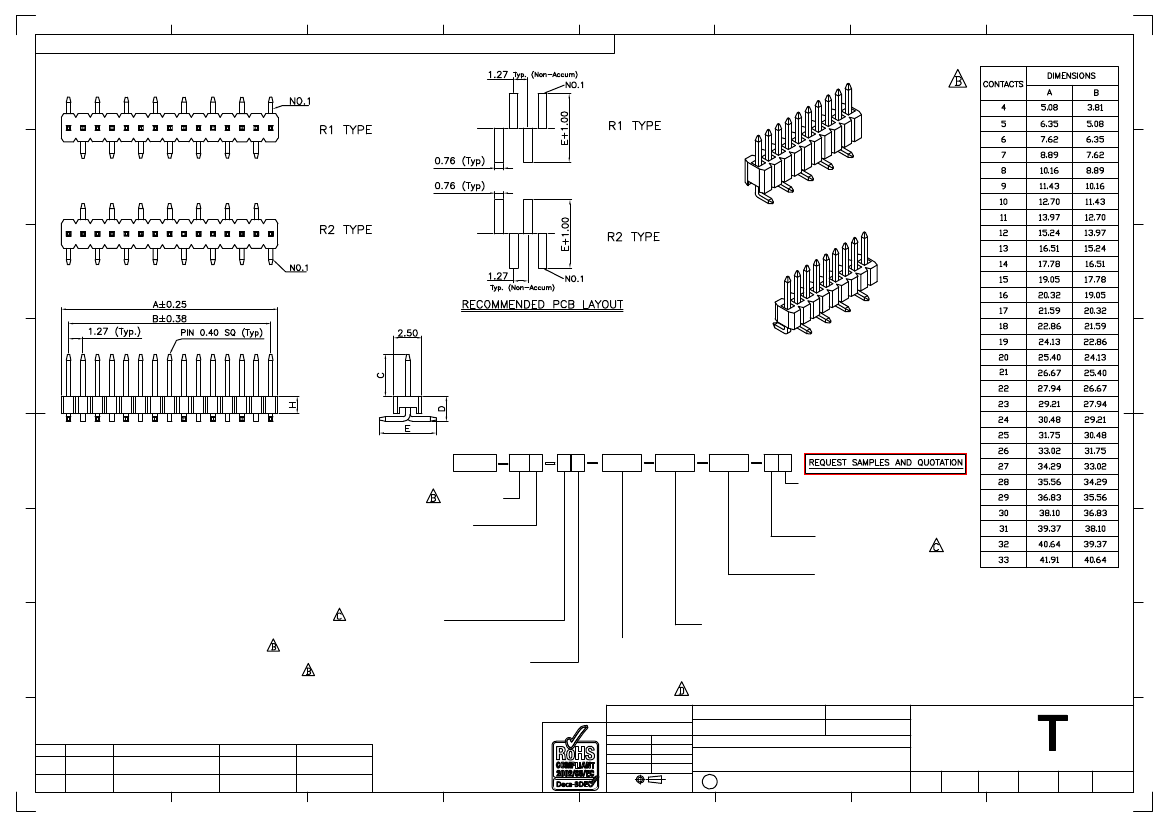

Global Connector Technology Ltd. - BD021: 1.27mm PITCH PIN HEADER, SINGLE ROW, SURFACE MOUNT, VERTICAL

Ordering Grid

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 1 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压

: AC 300 V

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

OPTIONS

可选物料

: POLYESTER

聚酯

LCP, UL 94-V0 (INSULATOR HEIGHT/

塑胶高度

H = A, B)

OPTIONS

可选物料

: POLYAMIDE

聚醯胺

NYLON 6T, UL 94-V0 (INSULATOR HEIGHT/

塑胶高度

H = K)

SOLDERING PROCESS

可焊性

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

NYLON 6T (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BD074

BD075

BD080

BD090

BD021

No. of Contacts

04 to 33

XX X

XXXX

Packing Options

B = Tape and Reel with Cap (Standard)

D = Tube

E = Tube with Cap

Insulator Material

L = LCP (Insulator H = A, B)

N = Nylon 6T (Insulator H = K)

Dimension E (1/100mm)

(Footprint Width)

Standard - 5.50mm = 0550

or specify Dimension E

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Contact Plating

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

Insulator

Height 'H'

K = 1.00mm

A = 1.50mm

B = 2.00mm

Standard = 1.50mm

Type

1 = R1 Type

2 = R2 Type

Dimension C (1/100mm)

(Post Height)

Standard - 3.50mm = 0350

or specify Dimension C

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Tolerances

(Except as noted)

Dimension D (1/100mm)

(PCB to Top of Insulator)

Standard for 'H' - 1.00mm = 0150 (1.50mm)

Standard for 'H' - 1.50mm = 0200 (2.00mm)

Standard for 'H' - 2.00mm = 0240 (2.40mm)

or specify Dimension D

e.g. 2.80mm = 0280

Tol +/- 0.2mm

Part Number:-

Date:-

Dimensions in mm

X.X ± 0.38

X.XX ± 0.25

X.XXX ± 0.13

X.°±5°

.X°±2°

.XX°±1°

.XXX°±0.5°

BD021

Description:-

27 MAR 08

DETAIL

REV

DATE

DRAWING

RELEASE

27/03/08

AMENDMENT TO

STANDARD DIMENSIONS

SOLDER TEMP, NO. OF CONTACTS

INSULATOR MATERIAL

UPDATED FOR SPECIFIC

& MATES WITH INFO. UPDATED

INSULATOR HEIGHTS

1.27mm PITCH PIN HEADER, SINGLE ROW,

SURFACE MOUNT, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

27/07/09

07/08/09

08/12/09

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

E & OE

Sheet No.

1/1
