BD030-34-A-A-0350-0300-L-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> BD030-34-A-A-0350-0300-L-G

BD030-34-A-A-0350-0300-L-G: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking,; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD030-34-A-A-0350-0300-L-G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD030-34-A-A-0350-0300-L-G	-	-	View	Buy Now

BD030-34-A-A-0350-0300-L-G Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking,

BD030-34-A-A-0350-0300-L-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	316071401
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.134 inch
subject depth	0.059 inch
body length	0.85 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	BD030
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	34

Preview

Download Datasheet

View All

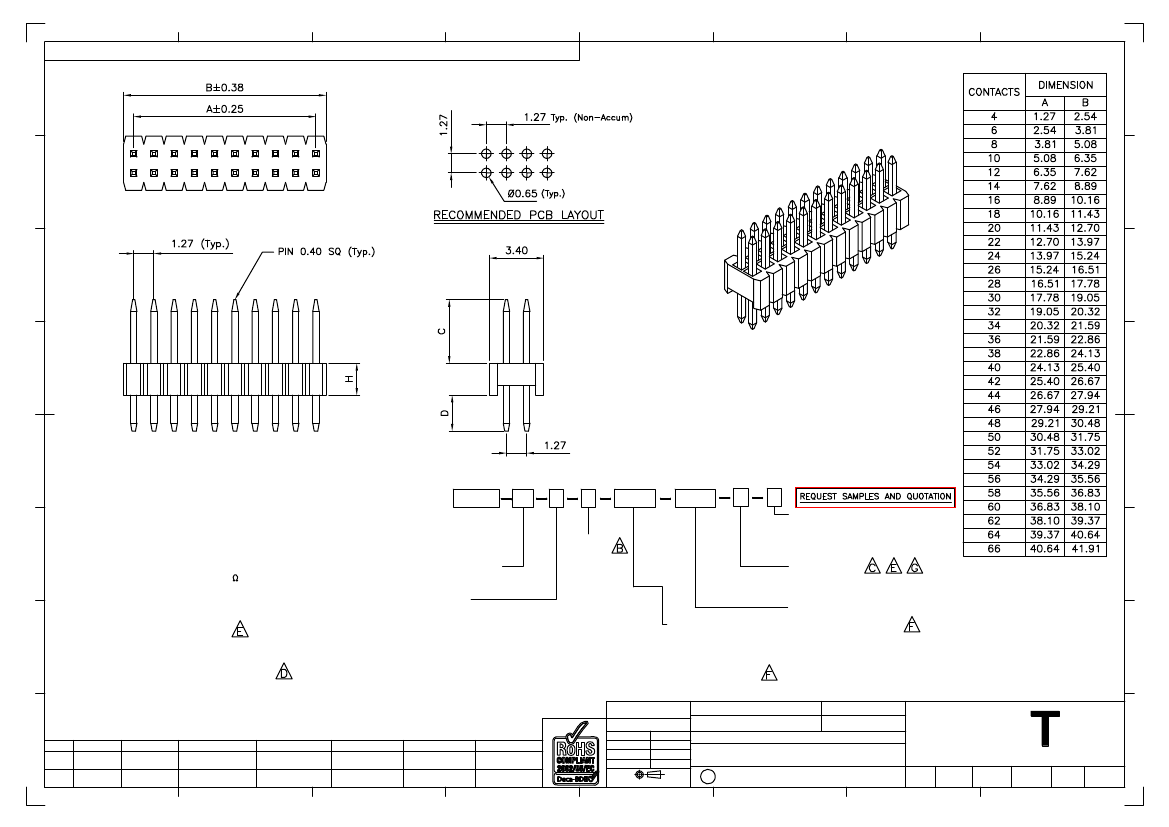

Global Connector Technology Ltd. - BD030: 1.27mm PITCH PIN HEADER, DUAL ROW, THROUGH HOLE, VERTICAL

Ordering Grid

BD030

SPECIFICATIONS:

XXXX

Packing Options

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

Insulator Material

L = LCP

Dimension D (1/100mm)

(Tail Length)

Standard - 3.00mm = 0300

or specify Dimension D

e.g. 2.50mm = 0250

Tol +/- 0.2mm

CURRENT RATING

电流额定值：

1 AMP

INSULATOR RESISTANCE

绝缘电阻值：

1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

CONTACT RESISTANCE

接触电阻值：

20m Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

LCP -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BD050

BD055

BD057

BD060

BD064

BD065

BD067

BD091

BD092

BD093

Insulator

Height 'H'

K = 1.0mm

No. of Contacts

A = 1.5mm

04 to 66

G = 1.7mm

B = 2.0mm

Contact Plating

L = 2.5mm

A = Gold Flash All Over (Standard)

F = 3.0mm

B = Selective Gold Flash Contact Area/

Standard = 1.5mm

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Dimension C (1/100mm)

(Post Height)

Standard - 2.00mm = 0200

Standard - 3.50mm = 0350

or specify Dimension C

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Part Number:-

Tolerances

(Except as noted)

Date:-

Dimensions in mm

BD030

Description:-

21 DEC 07

DETAIL

REV

DATE

DRAWING

RELEASE

21/12/07

ORDER GRID

AMENDMENT

17/04/09

STANDARD INSULATOR

MATERIAL CHANGED

AJO

INSULATOR MATERIAL

NYLON 6T REMOVED

AMENDMENT TO

SOLDER TEMP & MATES

INSULATOR MATERIAL

UPDATED FOR SPECIFIC

STANDARD DIMENSIONS

WITH INFO. UPDATED

INSULATOR HEIGHTS

X.°±5°

X.X ± 0.20

.X°±2°

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

Third Angle Projection

X. ± 0.30

1.27mm PITCH PIN HEADER, DUAL ROW,

THROUGH HOLE, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

27/04/09

27/07/09

07/08/09

08/12/09

06/07/12

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

E & OE

Sheet No.

1/1
