22-680-191TL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 22-680-191TL

22-680-191TL: DescriptionIC Socket, DIP22, 22 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size191KB，1 Pages; ManufacturerAries Electronics

Download Datasheet Parametric View All

22-680-191TL Overview

IC Socket, DIP22, 22 Contact(s), ROHS COMPLIANT

22-680-191TL Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
Contact to complete cooperation	TIN LEAD (150) OVER NICKEL
Contact completed and terminated	TIN LEAD (150) OVER NICKEL
Device slot type	IC SOCKET
Type of equipment used	DIP22
Shell material	NYLON46
JESD-609 code	e0
Number of contacts	22
Base Number Matches	1

Preview

Download Datasheet

View All

Series 680

Program Headers and Covers

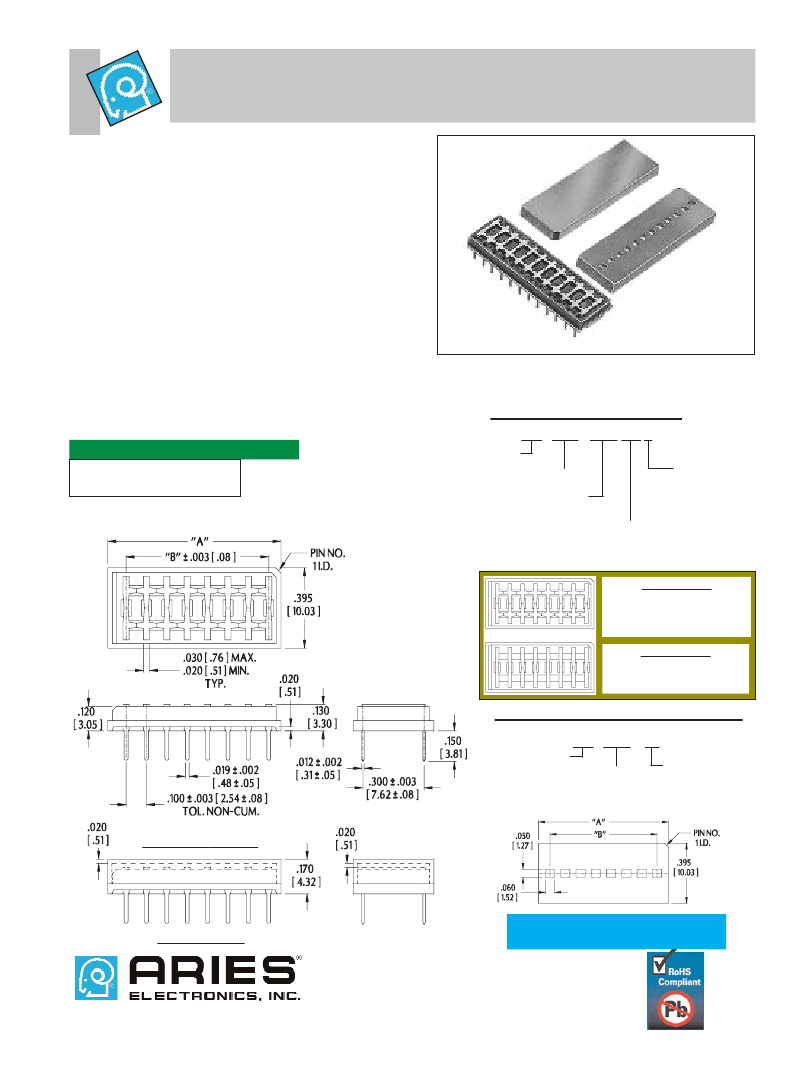

FEATURES:

• Complete versatility for programming within the unit itself...thus eliminat-

ing the need for DIP switches in many situations.

• Available pre-programmed from Aries, or do it yourself using Aries’ hand

tool No. T-680. Consult Data Sheet No. 22002 for programming tool

information.

• Available with plain (solid) or “top-slot” press-on covers. Plain covers

protect programs while “top-slot” covers allow programming of opposing

pins through square openings on top.

SPECIFICATIONS:

• Standard body and cover are black UL 94V-0 Glass Filled 4/6 Nylon.

• Pins are Brass Alloy, 3/4 hard.

• Pin plating:

-T=

50-150μ”min Matte Tin Per ASTM B545-97 over 50μ” min. Nickel

per SAE-AMS-QQ-N-290.

-TL=

50-150μ” [1.27 - 3.81μm] min. 60/40 Tin/Lead per SAE-AMS-P-

81728 over 50μ” [1.27μm] min. Nickel per SAE-AMS-QQ-N-290.

• Current rating=1 Amp.

• Operating temperature=221°F [105°C].

MOUNTING CONSIDERATIONS:

•Suggested PCB hole size=.032 ± .002 [.81± .05] dia.

Note: Aries specializes in custom design and production. In addition to the

standard products shown on this page, special materials, platings, sizes, and

configurations can be furnished, depending on quantities. Aries reserves the

right to change product specifications without notice.

ORDERING INFORMATION

XX-680-19XXXX

No. of pins:

4 thru 24

Series

Optional Suffix:

C=”Top-slot”

pre-assembled to header

(style 191 only)

LL DIMENSIONS

INCHES

[

MILLIMETERS

]

All tolerances ± .005 [.13]

unless otherwise specified

“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]

“B”=(NO. OF PINS PER ROW -1) X .100 [2.54]

Interconnection style

(see below)

Plating:

T=Tin

TL=Tin/Lead

STYLE 190

All pins interconnected,

both adjacent and

opposing

STYLE 191

Opposing pins

interconnected only.

COVER ORDERING INFORMATION

XX-65X-10

No. of pins:

4 thru 24 Cover series:

655=plain

658=top-slot

Cover number

WITHOUT COVER

WITH COVER

Choose between plain (solid) and

“top-slot” cover styles.

16005

REV.C

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

http://www.arieselec.com • info@arieselec.com

Frenchtown, NJ USA

TEL: (908) 996-6841

FAX: (908) 996-3891
