Sensors
Limit temperature sensors, probe assemblies
Applications
Limit temperature sensor
Features
Sensor with epoxy resin coating
Tinned leads
Metal tag for easy mounting
Characteristics for sensing temperatures
T
sense
= 90 to 130
°C
conform with DIN 44081
Metal tag permits good thermal coupling and
thus short response time
RoHS-compatible
Delivery mode
Cardboard strips in cardboard box
Dimensions in mm
General technical data
Max. operating voltage
Max. measuring voltage
Rated resistance
Insulating test voltage
Thermal threshold time
Operating temperature range
Operating temperature range
(T
A
= 0 ... 40
°C)
(T
A
= 25
°C
... T
sense
+23 K)
(V
PTC
≤
2.5 V)
(between tag and leads)
(V
≤
V
meas,max
)
(V = V
max
)
V
max
V
meas,max
R
R
V
ins
t
a
T
op
T
op
30
7.5
≤
100
500
< 20
40/ T
sense
+23
0/+40
V DC
V DC
Ω
V AC
s
°C
°C
D901
Dimensional drawing

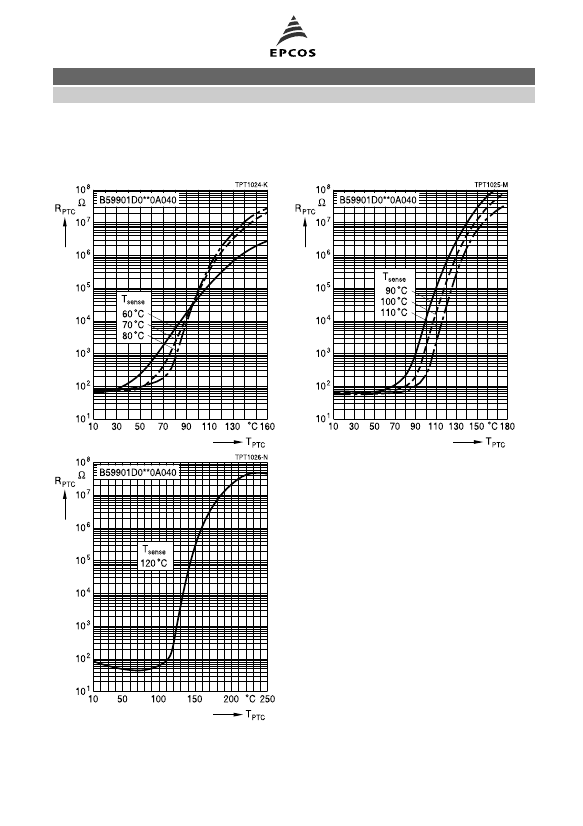

Electrical specifications and ordering codes
T
sense
R
(T
sense
5 K)
(V
PTC
≤
2.5 V)
Ω
≤
570
≤
570
≤
570
≤
550
≤
550
≤
550
≤
550
R
(T
sense
+ 5 K)
(V
PTC
≤
2.5 V)
Ω
≥
570
≥
570
≥
570
≥
1330
≥
1330
≥
1330
≥
1330
R
(T
sense
+ 15 K)
(V
PTC
≤
7.5 V)
Ω
-
-
≥
4k
≥
4k
≥
4k
≥
4k
R
(T
sense
+ 23 K)
(V
PTC
≤
2.5 V)
Ω
≥
10 k
≥
10 k
≥
10 k
-
-
-
-
Stamp Ordering code
code
°C
60
70
80
90
100
110
120
331
341
351
361
371
381
391
B59901D0060A040
B59901D0070A040
B59901D0080A040
B59901D0090A040
B59901D0100A040
B59901D0110A040
B59901D0120A040
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 9
Sensors
Limit temperature sensors, probe assemblies
Reliability data
Test
Electrical endurance,
constant
Damp heat
Standard
IEC 60738-1
IEC 60738-1
Test conditions
Storage at V
max
/T
op,max
(V
max
)
Test duration: 1000 h
Temperature of air: 40
°C
Relative humidity of air: 93%
Duration: 56 days
Test according to IEC 60068-2-78
T
1
= T
op,min
(0 V), T
2
= T
op,max
(0 V)
Number of cycles: 5
Test duration: 30 min
Test according to IEC 60068-2-14, test Na
Frequency range: 10 to 55 Hz
Displacement amplitude: 0.75 mm
Test duration: 3
×
2 h
Test according to IEC 60068-2-6, test Fc
∆R
25
/R
25
< 25%
< 10%
D901
Rapid change
of temperature
IEC 60738-1
< 25%
Vibration
IEC 60738-1
< 5%
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 9
Sensors
Limit temperature sensors, probe assemblies
Cautions and warnings
General
EPCOS thermistors are designed for specific applications and should not be used for purposes
not identified in our specifications, application notes and data books unless otherwise agreed
with EPCOS during the design-in-phase.
Ensure suitability of thermistor through reliability testing during the design-in phase. The ther-
mistors should be evaluated taking into consideration worst-case conditions.
Storage
Store thermistors only in original packaging. Do not open the package before storage.
Storage conditions in original packaging: storage temperature 25
°C
... +45
°C,
relative hu-
midity
≤75%
annual mean, maximum 95%, dew precipitation is inadmissible.
Avoid contamination of thermistors surface during storage, handling and processing.
Avoid storage of thermistor in harmful environment with effect on function on long-term opera-
tion (examples given under operation precautions).
Use thermistor within the following period after delivery:
Through-hole devices (housed and leaded PTCs): 24 months
Motor protection sensors, glass-encapsulated sensors and probe assemblies: 24 months
Telecom pair and quattro protectors (TPP, TQP): 24 months
Leadless PTC thermistors for pressure contacting: 12 months
Leadless PTC thermistors for soldering: 6 months
SMDs in EIA sizes 3225 and 4032, and for PTCs with metal tags: 24 months
SMDs in EIA sizes 0402, 0603, 0805 and 1210: 12 months
Handling
PTCs must not be dropped. Chip-offs must not be caused during handling of PTCs.
Components must not be touched with bare hands. Gloves are recommended.
Avoid contamination of thermistor surface during handling.
Soldering (where applicable)
Use rosin-type flux or non-activated flux.
Insufficient preheating may cause ceramic cracks.
Rapid cooling by dipping in solvent is not recommended.
Complete removal of flux is recommended.
Standard PTC heaters are not suitable for soldering.
D901
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 9
