824-C0116F

Description
Datacom Transformer,
CategoryPower management    transformer
File Size113KB,2 Pages
ManufacturerElec & Eltek
Websitehttp://www.eleceltek.com
Download Datasheet Parametric View All

824-C0116F Overview

Datacom Transformer,

824-C0116F Parametric

Parameter NameAttribute value
Objectid7193210424
Reach Compliance Codeunknown
ECCN codeEAR99
Transformer typeDATACOM TRANSFORMER
E & E Magnetic Products Limited
100BASE-T QUAD PORT
MAGNETIC MODULE
Compliant
S

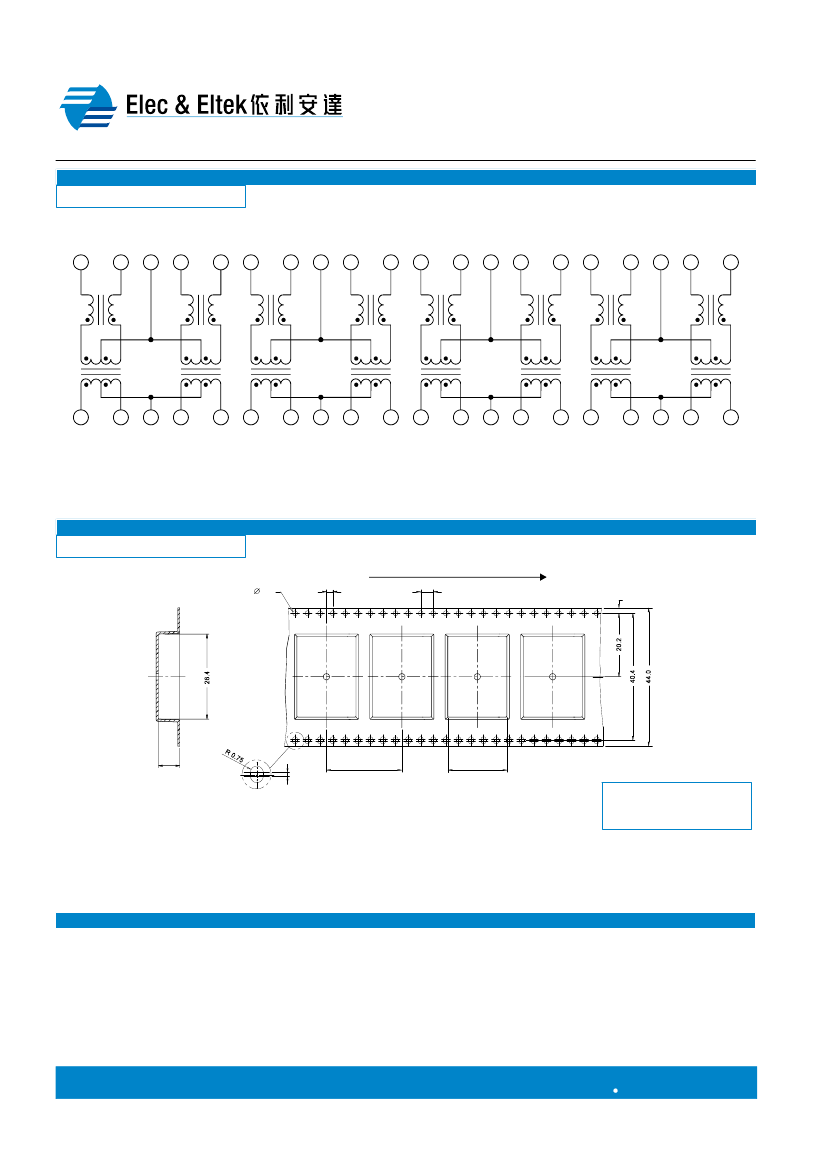

CHEMATICS
with IEEE802.3 standard including 350uH
OCL with 8mA DC Bias
Operating temperature 0
°
C to +70
°
C
RoHS compliant
E
LECTRICAL
S
PECIFICATION
@ 25
o
C
Part
Number
Insertion Loss
(dB Max)
0.1-100MHz
824-C0116-1F
1.0
Return Loss
(dB Min)
CMRR
(dB Min)
Crosstalk
(dB Min)
Hipot
(Vrms)
2-30MHz 40MHz 50MHz 60-80MHz 1-60MHz 60-200MHz 1MHz 30MHz 60MHz 100MHz
18
14.4
13.1
12
37
25
55
45
40
33
1500
E
LECTRICAL
S
PECIFICATION
@ 25
o
C
Part
Number
1
Insertion Loss
(dB Max)
0.1-100MHz
Return Loss
(dB Min)
DM-CMRR
(dB Min)
Crosstalk
(dB Min)
Hipot
(Vrms)
2-30MHz 40MHz 50MHz 60-80MHz 1-60MHz 60-200MHz 1MHz 30MHz 60MHz 100MHz
18
14.4
13.1
12
37
25
55
45
40
33
1500
824-C0313F
1.4
Notes:
1. Operating temperature range: -40°C to +85°C.
S
CHEMATICS
M
ECHANICAL
D
IMENSIONS

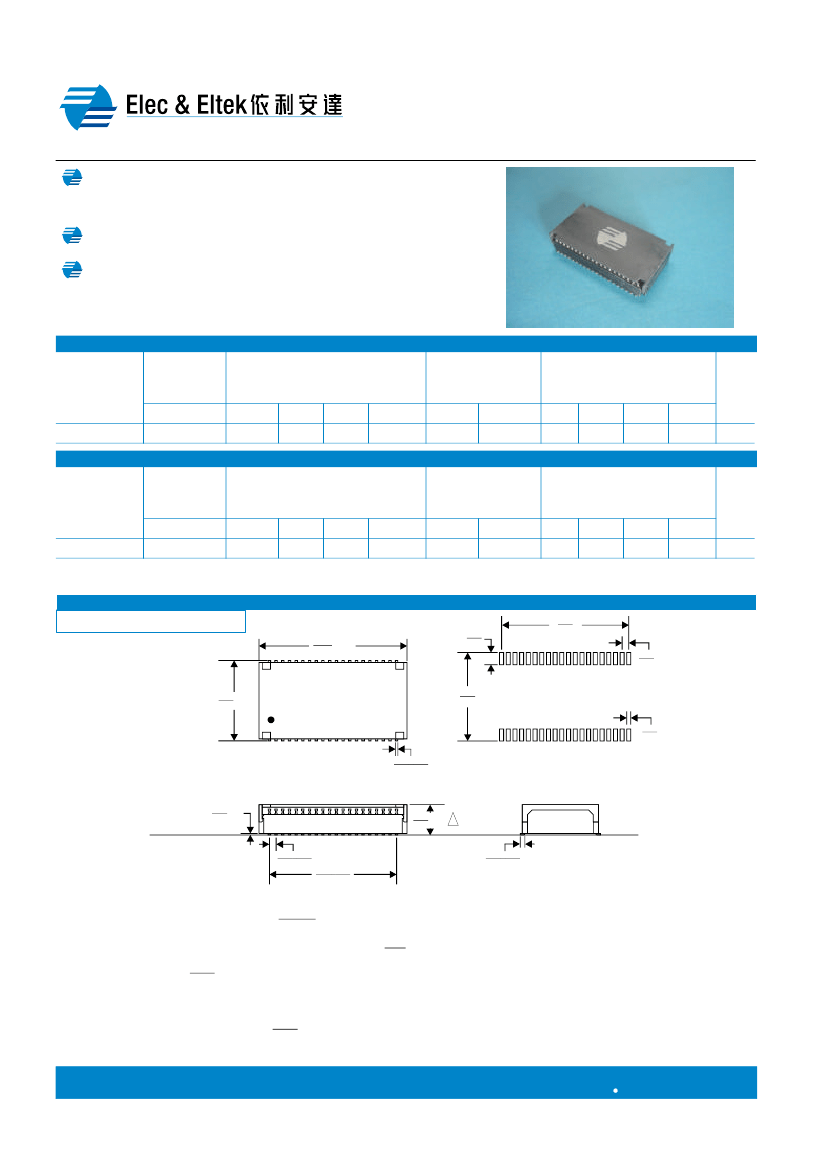

824-C0116-1F / 824-C0313F
1.112
28.24 MAX
.090
2.29
.950
24.13
.050
1.27
.640
16.26 MAX
EE
Part no.
(DATE)
.660
16.76
.030
0.76
.018±.003
0.46±0.08
Recommended
Pad Layout
.002
0.05
MIN
REFERENCE OR
GAUGE PLANE
.050±.005
1.27±0.127
.950±.010
24.13±0.25
.238
6.05 MAX
6
.045±.010
1.14 ±0.25
Notes:
2. Dimensions are specified in inches with higher precedence in inches.
mm
3. Unless otherwise specified, all tolerance are
±
.010 .
0.25
.004 max.
4. Coplanarity:
0.10
5. "(DATE)" includes at least the manufacturing date code(in YYWW format) plus two character country code.
6. For 824-C0313F, height is .275 Max.
6.99
7. When ordering, please add suffix “T” to the part number for tape & reel packaging (330mm reel).
