BY500-1000

Description
SOFT RECOVERY FAST SWITCHING PLASTIC RECTIFIER
CategoryDiscrete semiconductor    diode
File Size139KB,2 Pages
ManufacturerSEMIKRON
Websitehttp://www.semikron.com
Environmental Compliance
Download Datasheet Parametric Compare View All

BY500-1000 Online Shopping

Suppliers Part Number Price MOQ In stock
BY500-1000 - - View Buy Now

BY500-1000 Overview

SOFT RECOVERY FAST SWITCHING PLASTIC RECTIFIER

BY500-1000 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSEMIKRON
package instructionO-PALF-W2
Contacts2
Reach Compliance Codeunknow
ECCN codeEAR99
applicationFAST RECOVERY
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeO-PALF-W2
JESD-609 codee2
Maximum non-repetitive peak forward current200 A
Number of components1
Phase1
Number of terminals2
Maximum output current5 A
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage1000 V
Maximum reverse recovery time0.2 µs
surface mountNO
Terminal surfaceTin/Silver (Sn/Ag)
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED

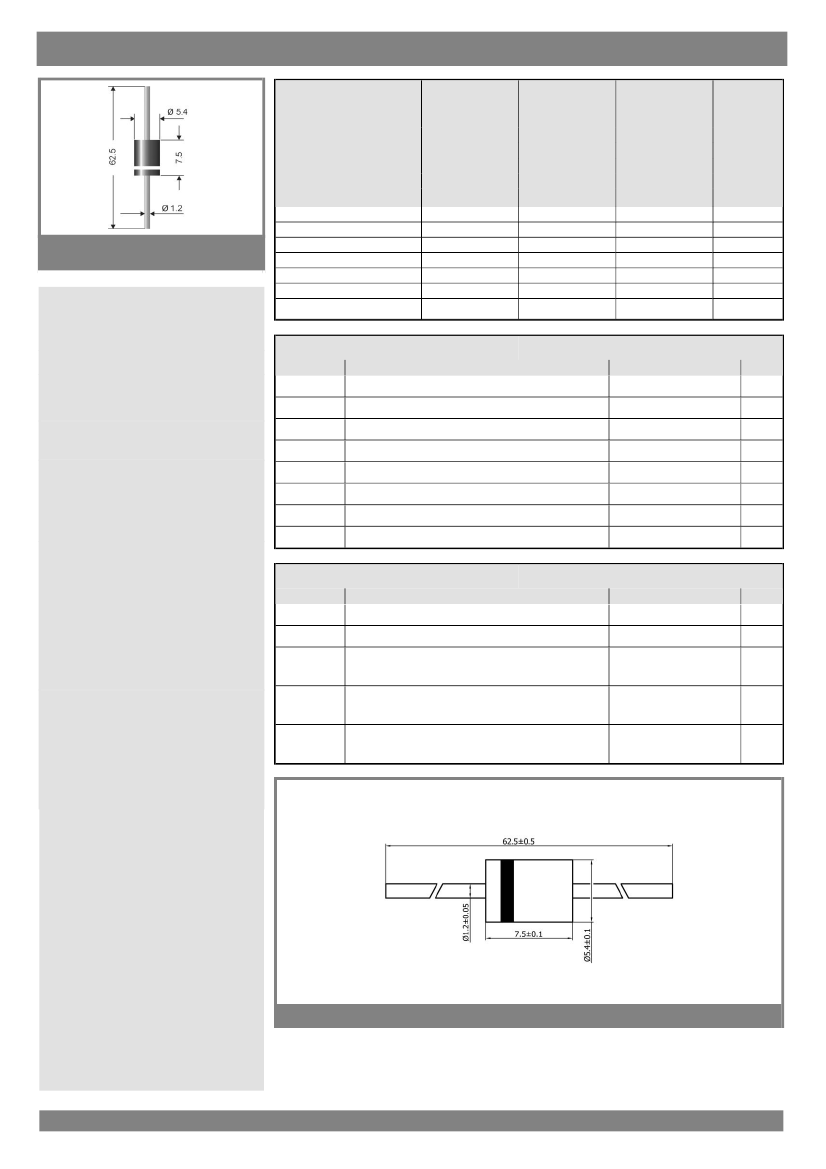

BY 500-50...BY 500-1000
Axial lead diode
Fast silicon rectifier
diodes
BY 500-50...BY 500-1000
Forward Current: 5 A
Reverse Voltage: 50 to 1000 V
Absolute Maximum Ratings
Symbol Conditions
Values
Units
Features
Mechanical Data

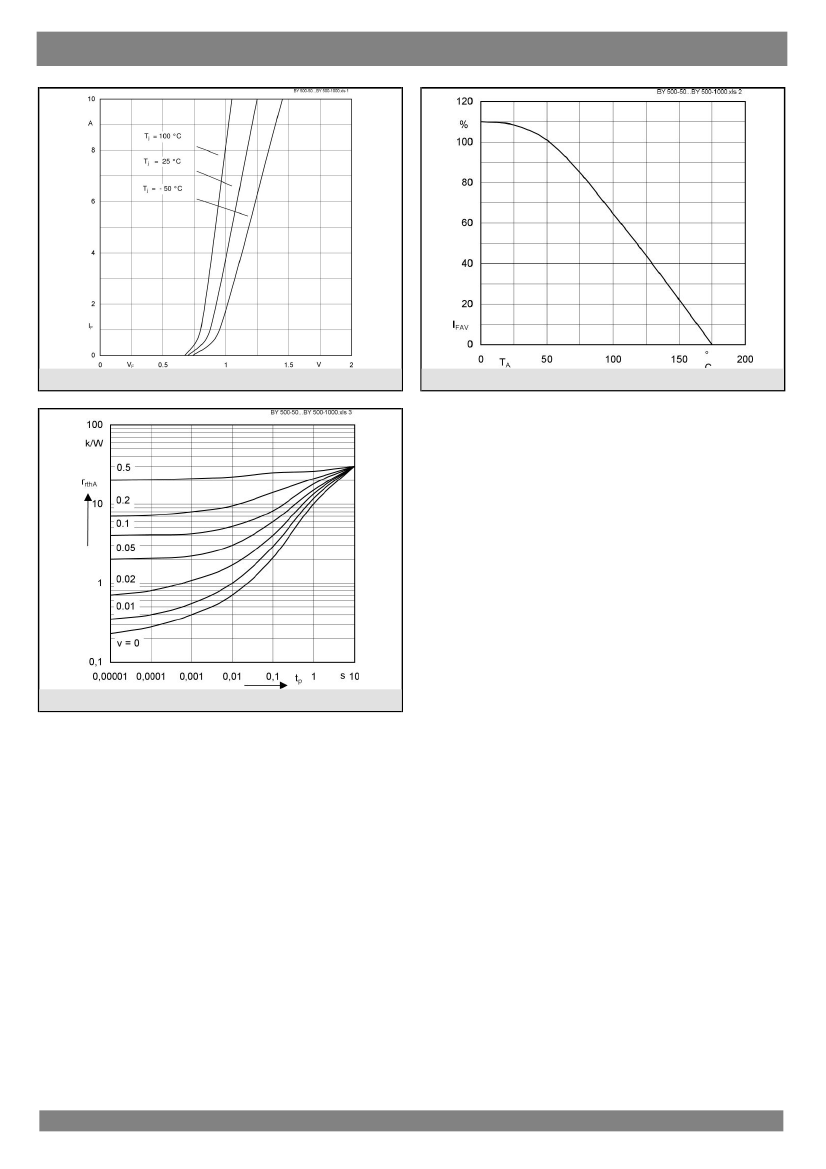

Characteristics
Symbol Conditions
Values
Units
1)
2)
3)
Dimensions in mm
1
01-04-2004 SCT
© by SEMIKRON

BY500-1000 Related Products

BY500-1000 BY500-100 BY500-200 BY500-400 BY500-50 BY500-600 BY500-800
Description SOFT RECOVERY FAST SWITCHING PLASTIC RECTIFIER 5 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD 5 A, 200 V, SILICON, RECTIFIER DIODE, DO-201AD 5 A, 400 V, SILICON, RECTIFIER DIODE, DO-201AD SOFT RECOVERY FAST SWITCHING PLASTIC RECTIFIER 5 A, 600 V, SILICON, RECTIFIER DIODE, DO-201AD 5 A, 800 V, SILICON, RECTIFIER DIODE, DO-201AD
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to
package instruction O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2
Contacts 2 2 2 2 2 2 2
Reach Compliance Code unknow unknow unknown unknow unknow unknown unknow
application FAST RECOVERY FAST RECOVERY FAST RECOVERY FAST RECOVERY FAST RECOVERY FAST RECOVERY FAST RECOVERY
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
JESD-30 code O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2
JESD-609 code e2 e2 e2 e2 e2 e3 e2
Maximum non-repetitive peak forward current 200 A 200 A 200 A 200 A 200 A 200 A 200 A
Number of components 1 1 1 1 1 1 1
Phase 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2
Maximum output current 5 A 5 A 5 A 5 A 5 A 5 A 5 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND ROUND ROUND ROUND ROUND ROUND ROUND
Package form LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT APPLICABLE NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 1000 V 100 V 200 V 400 V 50 V 600 V 800 V
Maximum reverse recovery time 0.2 µs 0.2 µs 0.2 µs 0.2 µs 0.2 µs 0.2 µs 0.2 µs
surface mount NO NO NO NO NO NO NO
Terminal surface Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin (Sn) Tin/Silver (Sn/Ag)
Terminal form WIRE WIRE WIRE WIRE WIRE WIRE WIRE
Terminal location AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT APPLICABLE NOT SPECIFIED
Maker SEMIKRON SEMIKRON SEMIKRON SEMIKRON SEMIKRON SEMIKRON -
ECCN code EAR99 - EAR99 EAR99 EAR99 - -
