MPAS156-15-RB datasheet, PDF - EEWORLD Datasheet

MPAS156-15-RB: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, White Insulator, Receptacle,; CategoryThe connector The connector; File Size244KB，2 Pages; ManufacturerPANCON CONNECTORS

Download Datasheet Parametric View All

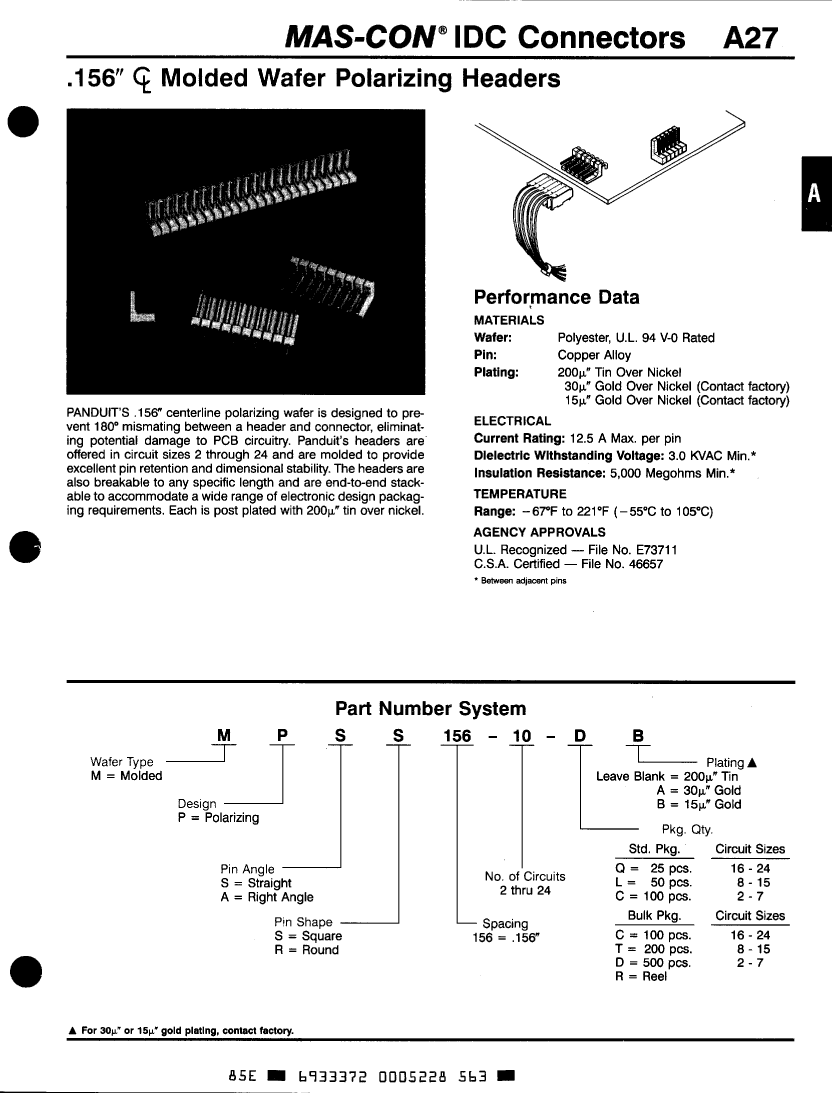

MPAS156-15-RB Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, White Insulator, Receptacle,

Parameter Name	Attribute value
Objectid	1153273993
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TAPE & REEL

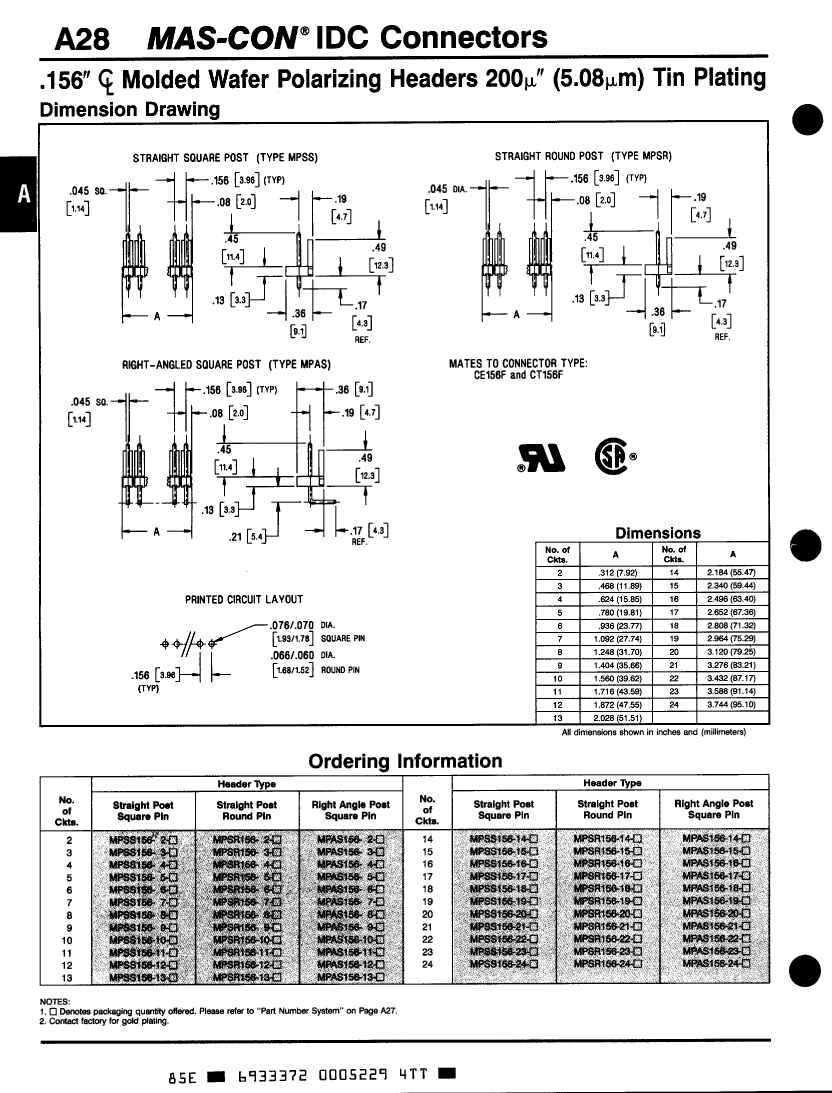

body width	0.36 inch
subject depth	0.34 inch
body length	2.34 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	3000VAC V
Insulation resistance	5000000000 Ω
Insulator color	WHITE
insulator material	POLYESTER
JESD-609 code	e4
Plug contact pitch	0.156 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	HOUSING SIDE
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.17 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	15
