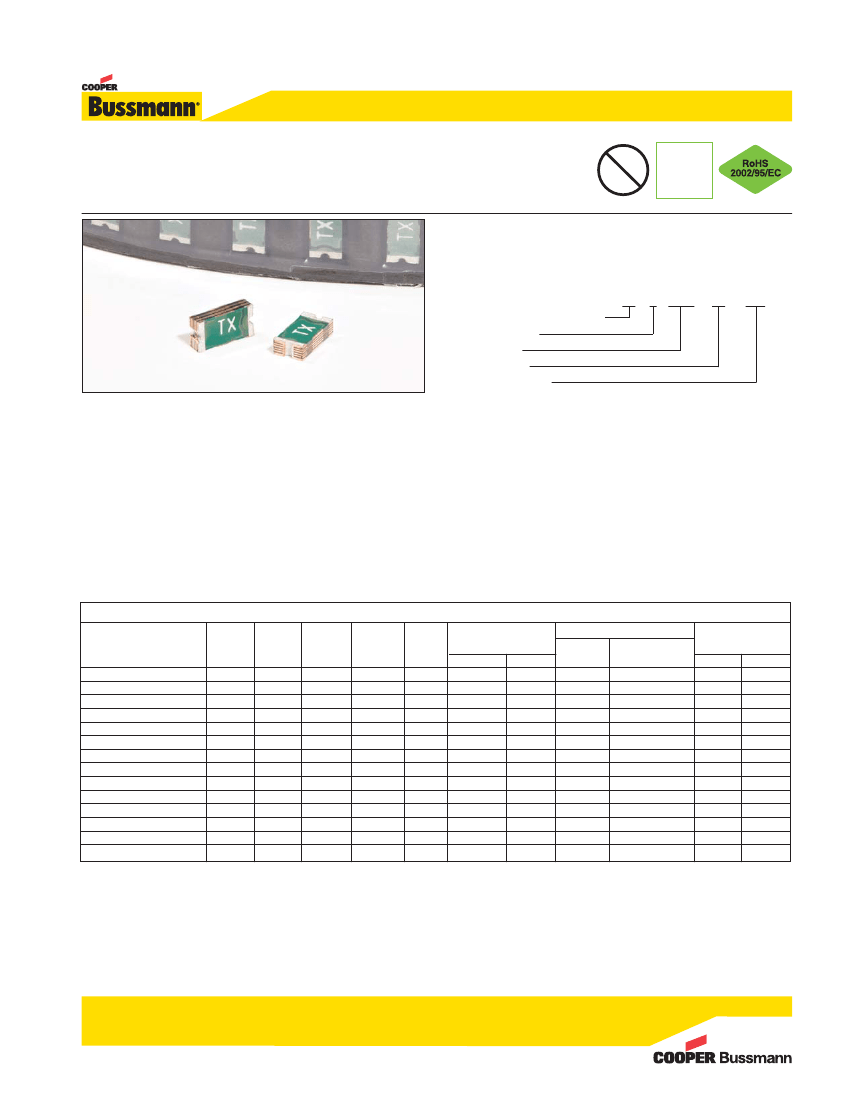

Ihold – Hold current: Maximum current device will pass without interruption in 23°C still air.
Itrip – Trip current: Minimum current that will switch the device from low resistance to high resistance in 23°C still air.
Vmax: Maximum continuous voltage device can withstand without damage at rated current.
Imax: Maximum fault current device can withstand without damage at rated voltage.
Pd: Power dissipated from device when in the tripped state in 23°C still air.
Ri (min.): Minimum resistance of device as supplied at 23°C unless otherwise specified.
Ri (max.): Maximum resistance of device as supplied at 23°C unless otherwise specified.
R1(max.): Maximum resistance of device when measured one hour post reflow (SMD) or one hour post trip (radial-leaded device) at 23C unless otherwise specified.
0111
BU-SB11016
Page 1 of 4
Data Sheet 4397
Dimensions - mm
A
Part Number
PTS120660V005
PTS120660V010
PTS120630V012
PTS120630V016
PTS120624V020
PTS120616V025
PTS120616V035
PTS12066V050
PTS120615V050
PTS12066V075
PTS12066V100
PTS12066V110
PTS12066V150
PTS12066V200
Min.
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
Max.
3.50
3.50
3.50
3.50
3.50
3.50
3.50
3.50
3.50
3.50
3.50
3.50
3.50
3.50
Min.
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
B
Max.
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.80
Min.
0.50
0.50
0.35
0.28
0.28
0.28
0.28
0.28
0.28
0.28
0.40
0.40
0.55
0.55
C
Max.
0.90
0.90
0.90
0.68
0.68
0.68
0.68
0.68
1.06
0.85
0.88
0.88
1.15
1.15
D
Min.
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
E
Min.
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
Max.
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
1206 Package

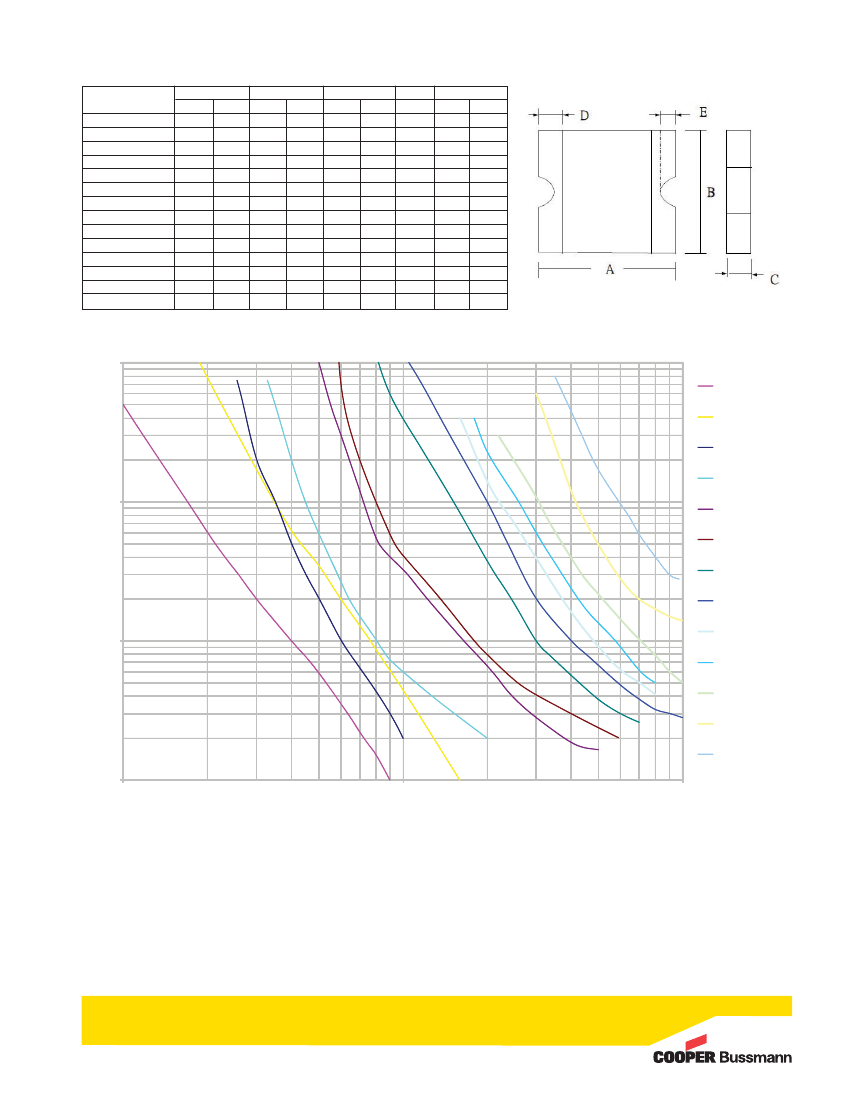

Time-to-Trip Curves at 23°C
10
E
B
C
F
A : PTS120660V005
H
D
G
I
J
K
L
M
B: PTS120660V010
A
C : PTS120630V012
D : PTS120630V016
1
E: PTS120624V020
T IM E IN SEC O N D S
F : PTS120616V025
G : PTS120616V035
H : PTS12066V050
PTS120615V050
I: PTS12066V075
0.1
J : PTS12066V100
K: PTS12066V110
L: PTS12066V150
M : PTS12066V200
0.01
0.1
F au lt C u rre n t (A)
1
10
0111
BU-SB11016
Page 2 of 4
Data Sheet 4397

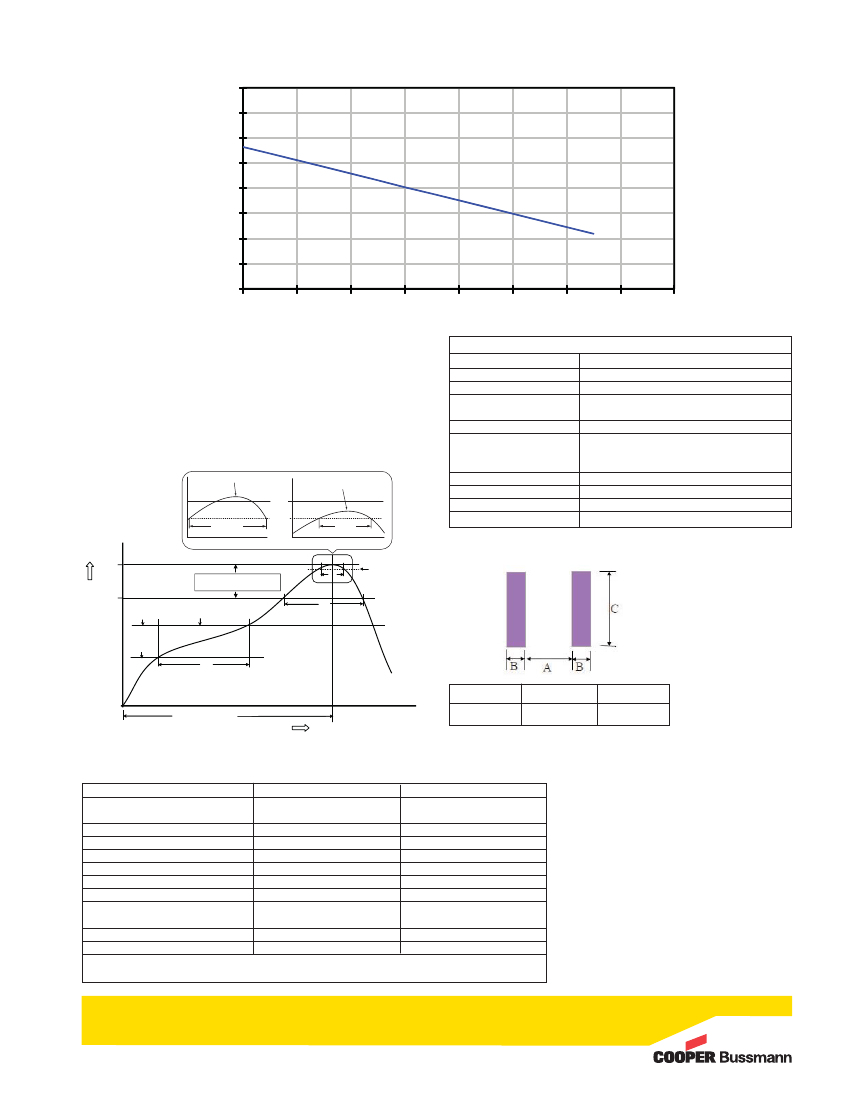

Thermal Derating Curve
2 0 0 .0
Pe rce n tag e o f D e rate d C u rre n t
1 7 5 .0
1 5 0 .0
1 2 5 .0
1 0 0 .0
7 5 .0
5 0 .0
2 5 .0
0 .0
-4 0
-2 0
0
20
40
60
T e m p e ratu re (°C)
80
100
120
Soldering Methods
• Wave Solder
- Reservoir Temperature: 260°C (500°F)
- Recommended time in reservoir: 10 seconds.
• Infrared Reflow
- Temperature: 260°C
- Time: 10 seconds maximum at peak temperature.
Environmental Specifications
Characteristic
Operating Temperature Range
Surface Temperature Trip State
Thermal Shock
Solvent Resistance
Humidity Age Test
Value
-40°C to +85°C
125°C max.
+85°C to -40°C , 10 cycles,
5% typical resistance change
MIL-STD-202 Method 215, no change
+85°C, 85% RH, 1000 hours
±5% typical resistance change.
Specified temperature (23°C ± 3°C)
-10°C to +40°C
One year
<75%
_
Keep away from corrosive atmosphere and sunlight
Recommended Wave Solder Profile
Supplier Tp > Tc
-
User Tp < Tc
Tc
Tc -5°C
-
Storage Temperature Range
Storage Duration
Storage Relative Humidity
Storage Conditions
Supplier tp
User tp
Recommended Land Pattern - mm (in)
T
p
Te m p e r a t u r e
Max. Ramp Up Rate = 3°C/s
Max. Ramp Down Rate = 6°C/s
t
p
t
T
c
-5°C
T
L
T
smax
Preheat Area
T
smin
t
s
25
Time 25°C to Peak
A
2.0 (0.079)
Time
B
1.0 (0.039)
C
1.9 (0.075)
Material Composition
• Terminal material: Nickel/tin-plated copper
Profile Feature
Sn-Pb Eutectic Assembly
Pb-Free Assembly
Preheat & Soak
Temperature min (T
smin
)
100°C
150°C
Temperature max (T
smax
)
150°C
200°C
Time (T
smin
to T
smax
) (ts)
60-120 seconds
60-120 seconds
Average ramp-up rate (T
smax
to T
p
)
3°C/second max.
3°C/second max.
Liquidous temperature (T
L
)
183°C
217°C
Time at liquidous (t
L
)
60-150 seconds
60-150 seconds
Peak package body temperature (T
p
)*
See classification temp in Table 4.1 See classification temp in Table 4.2
Time (t
p
)** within 5°C of the specified
20** seconds
30** seconds
classification temperature (T
c
)
Average ramp-down rate (T
p
to T
smax
)
6°C/second max.
6°C/second max.
Time 25°C to peak temperature
6 minutes max.
8 minutes max.
* Tolerance for peak profile temperature (T
p
) is defined as a supplier minimum and a user maximum.
** Tolerance for time at peak profile temperature (t
p
) is defined as a supplier minimum and a user maximum.
0111
BU-SB11016
Page 3 of 4
Data Sheet 4397

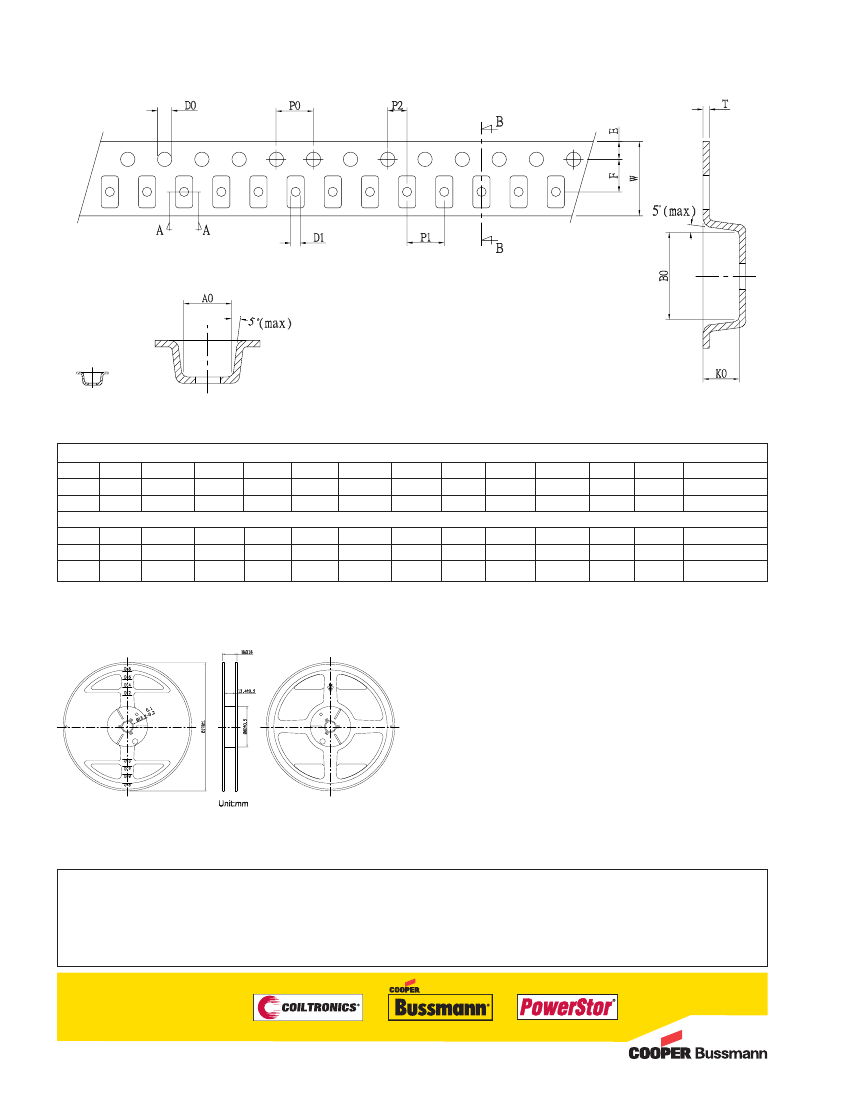

Packaging Specifications
A-A SECTION
B-B SECTION
For PTS120660V005, PTS120660V010, PTS120615V050, PTS12066V100, PTS12066V110, PTS12066V150, PTS12066V200
Index
A0
B0
K0
P0
P1
P2
T
E
F
D0
D1
W
10P0
Type
±0.1
±0.1
±0.1
±0.1
±0.1
±0.05 ±0.05 ±0.1
±0.05 +0.1/-0 Min.
±0.1
±0.2
1206 1.95
3.55
1.35
4.0
4.0
2.0
0.25
1.75
3.5
1.5
1.0
8.1
40.0
For PTS120630V012, PTS120630V016, PTS120624V020, PTS120616V025, PTS120616V035, PTS12066V050, PTS12066V075
Index
A0
B0
K0
P0
P1
P2
T
E
F
D0
D1
W
10P0
Type
±0.1
±0.1
±0.1
±0.1
±0.1
±0.05
±0.1
±0.1
±0.05 ±0.05
Min.
±0.3
±0.2
1206 1.85
3.45
0.74
4.0
4.0
2.0
0.25
1.75
3.5
1.55
1.0
8.0
40.0
Reel Specifications
S3 Reel
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life sup-
port systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result
