Part Number

Search

BY550-1000

Description
5.0 AMP.SILICON RECTIFIERS
CategoryDiscrete semiconductor    diode
File Size126KB,2 Pages
ManufacturerJGD(Jinan Gude Electronic Device)
Websitehttp://www.jgd.com.cn/
Download Datasheet Parametric Compare View All

BY550-1000 Online Shopping

Suppliers Part Number Price MOQ In stock
BY550-1000 - - View Buy Now

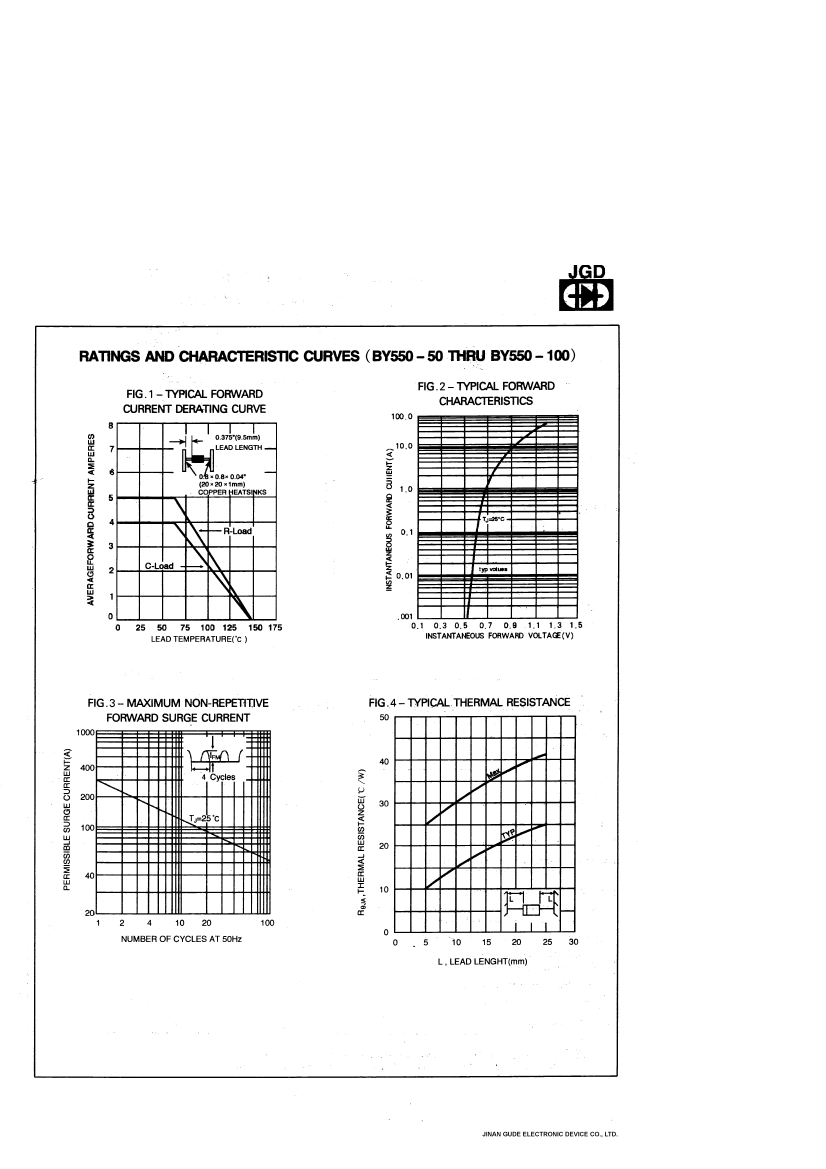

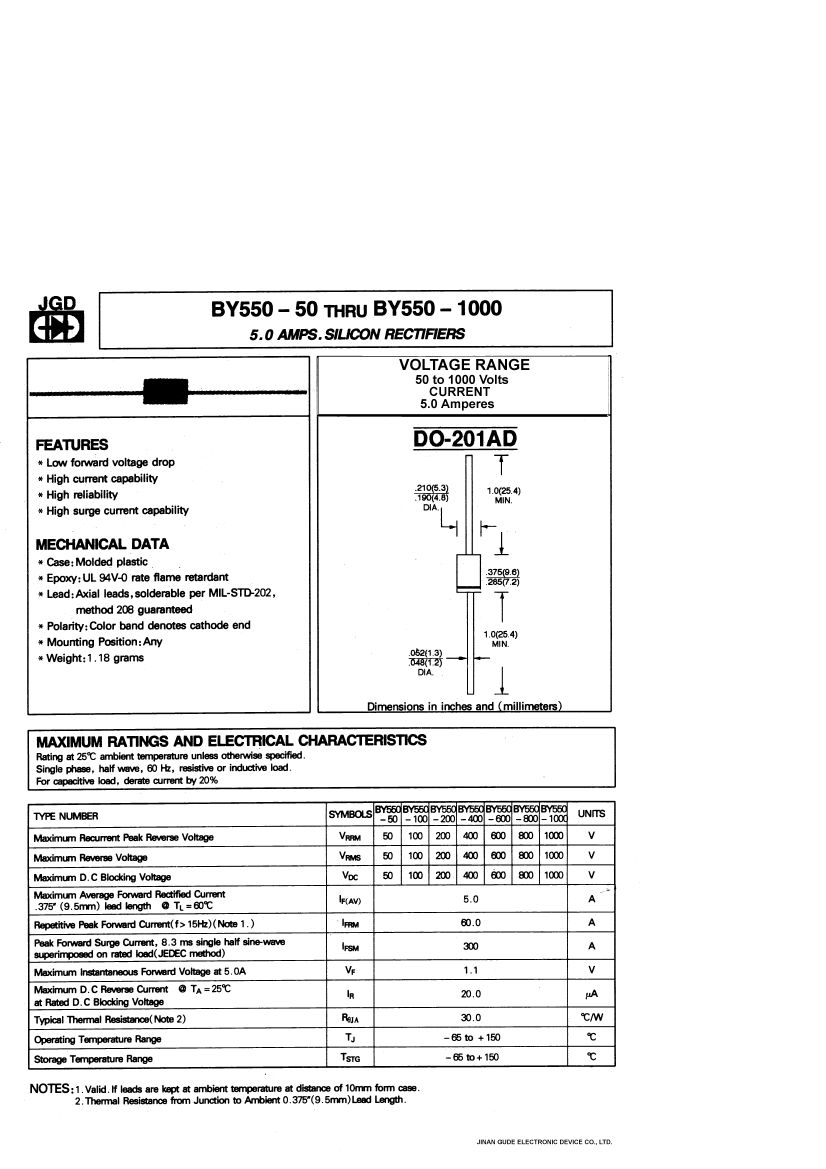

BY550-1000 Overview

5.0 AMP.SILICON RECTIFIERS

BY550-1000 Parametric

Parameter NameAttribute value
MakerJGD(Jinan Gude Electronic Device)
package instructionO-PALF-W2
Reach Compliance Codeunknow
Other featuresHIGH RELIABILITY
applicationGENERAL PURPOSE
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.1 V
JEDEC-95 codeDO-201AD
JESD-30 codeO-PALF-W2
Maximum non-repetitive peak forward current300 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Maximum output current5 A
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Maximum repetitive peak reverse voltage1000 V
Maximum reverse current20 µA
surface mountNO
Terminal formWIRE
Terminal locationAXIAL

BY550-1000 Related Products

BY550-1000 BY550 BY550-100 BY550-200 BY550-400 BY550-50 BY550-600 BY550-800
Description 5.0 AMP.SILICON RECTIFIERS  5.0 AMP.SILICON RECTIFIERS  5.0 AMP.SILICON RECTIFIERS  5.0 AMP.SILICON RECTIFIERS  5.0 AMP.SILICON RECTIFIERS  5.0 AMP.SILICON RECTIFIERS  5.0 AMP.SILICON RECTIFIERS  5.0 AMP.SILICON RECTIFIERS
Maker JGD(Jinan Gude Electronic Device) - JGD(Jinan Gude Electronic Device) JGD(Jinan Gude Electronic Device) JGD(Jinan Gude Electronic Device) JGD(Jinan Gude Electronic Device) JGD(Jinan Gude Electronic Device) JGD(Jinan Gude Electronic Device)
package instruction O-PALF-W2 - O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2
Reach Compliance Code unknow - unknow unknow unknow unknown unknown unknow
Other features HIGH RELIABILITY - HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY
application GENERAL PURPOSE - GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell connection ISOLATED - ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Configuration SINGLE - SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON - SILICON SILICON SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE - RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.1 V - 1.1 V 1.1 V 1.1 V 1.1 V 1.1 V 1.1 V
JEDEC-95 code DO-201AD - DO-201AD DO-201AD DO-201AD DO-201AD DO-201AD DO-201AD
JESD-30 code O-PALF-W2 - O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2
Maximum non-repetitive peak forward current 300 A - 300 A 300 A 300 A 300 A 300 A 300 A
Number of components 1 - 1 1 1 1 1 1
Phase 1 - 1 1 1 1 1 1
Number of terminals 2 - 2 2 2 2 2 2
Maximum operating temperature 150 °C - 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature -65 °C - -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C
Maximum output current 5 A - 5 A 5 A 5 A 5 A 5 A 5 A
Package body material PLASTIC/EPOXY - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND - ROUND ROUND ROUND ROUND ROUND ROUND
Package form LONG FORM - LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM
Maximum repetitive peak reverse voltage 1000 V - 100 V 200 V 400 V 50 V 600 V 800 V
Maximum reverse current 20 µA - 20 µA 20 µA 20 µA 20 µA 20 µA 20 µA
surface mount NO - NO NO NO NO NO NO
Terminal form WIRE - WIRE WIRE WIRE WIRE WIRE WIRE
Terminal location AXIAL - AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL
