100124FS124G505QA

Description
Card Edge Connector, 124 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Solder Terminal, Brown Insulator, Receptacle
CategoryThe connector    The connector
File Size589KB,1 Pages
ManufacturerSUYIN-USA
Websitehttp://www.suyinusa.com
Download Datasheet Parametric View All

100124FS124G505QA Overview

Card Edge Connector, 124 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Solder Terminal, Brown Insulator, Receptacle

100124FS124G505QA Parametric

Parameter NameAttribute value
MakerSUYIN-USA
Reach Compliance Codeunknow
Other featuresNONE
body width0.366 inch
subject depth0.61 inch
body length2.907 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU ON NI
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleBELLOWED TYPE
Dielectric withstand voltage1500VAC V
Insulator colorBROWN
Manufacturer's serial number100124
Plug contact pitch0.039 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.0066 mm
Plating thickness30u inch
Rated current (signal)0.3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts124
Base Number Matches1

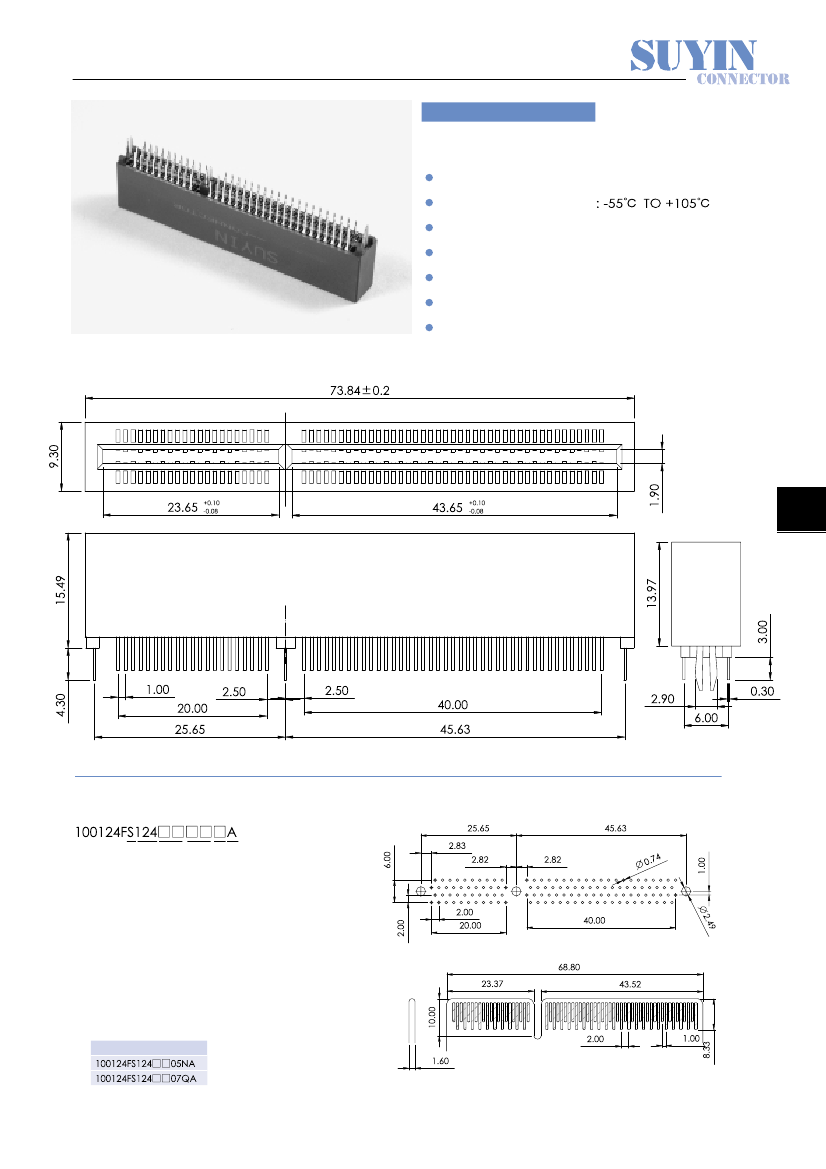

A.G.P CONNECTOR 124 PINS
100124FS Series
Specifications:
Insulator material
Operating Type Range
Terminal Material
Platings
Max. Current Rating
Max. Voltage Rating
Dielectric Strength
: Phos. Bronze
: Gold Plated Over Nickel
: 0.3A
: 150V AC
: 1500V AC For 60 Seconds
: Black High Temp. Plastic
Desk
Top
Order Information
1 2
2. No. of Pins
3. Plating
4. Color
'N'
:
White
'Q'
:
Brown
5. Package
'A'
:
Tray Package Without Cap
6. Similar Type
SUYIN P/NO.
Recommended P.C.B Layout
3
6 45
1. 'S'
:
Straight DIP Type
Reference Port II
181
