Wide Flange Printed Circuit Board Connectors
Save Space On Your Circuit Board
– These Micro-D connectors
feature .075 inch row spacing. The board footprint is reduced to
match the size of the connector body.
Solder-Dipped
– Terminals are coated with Sn60/Pb40 tin-lead
solder for best solderability. Optional gold-plated terminals are
available for RoHS compliance.
High Performance
– These connectors meet the demanding
requirements of MIL-DTL-83513.

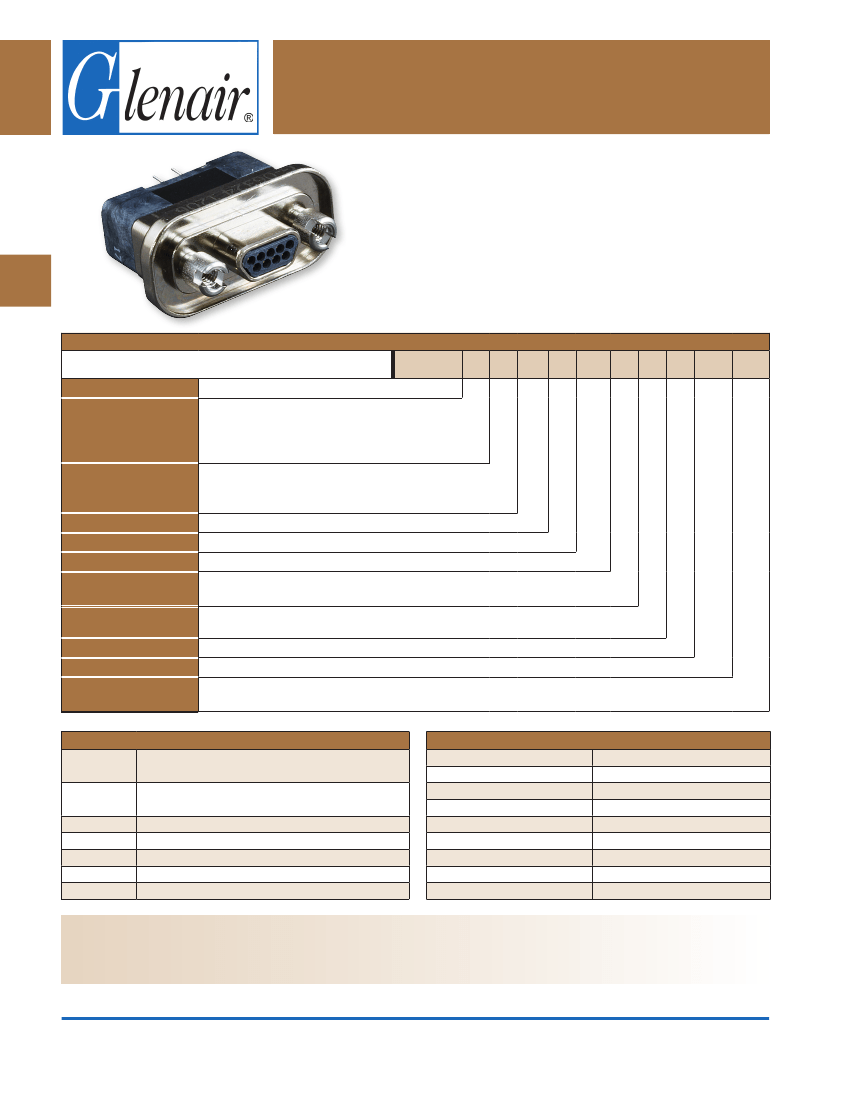

How To Order GRPM Condensed Vertical Connector
Sample Part Number
Series
Shell Material
and Finish
GRPM
Glenair Rear Panel Mount
Aluminum Shell
1
- Cadmium
2
- Nickel
4
- Black Anodize
5
- Gold
6
- Chem Film
Stainless Steel Shell
3
- Passivated

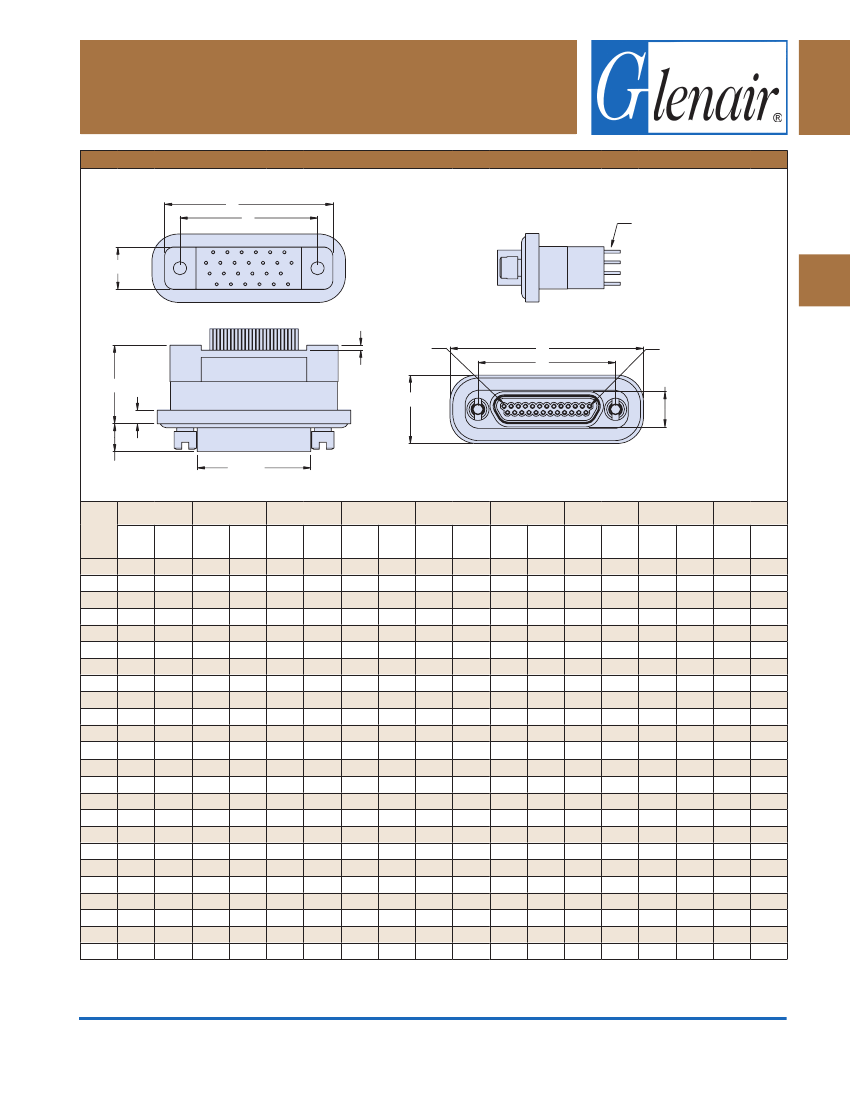

MIcro-D GRPM-CBS
Condensed Vertical Rear Panel Mount
C
Micro-D PCB
Insulator Material
Contact Layout
Contact Type
Termination Type
Rear Panel Mount
Hardware Option
Threaded Insert Option
O-Ring
Lead Length
Gold-Plated
Terminal Mod Code
P
– Pin
S
– Socket
B
- No hardware
R3
- .062 panel
C
- Conductive
GRPM
2
L-
15
P
CBS
R3
T
N
-.110
513
L
- LCP or PPS
LCP - 30% Glass-Filled Liquid Crystal Polymer
PPS - 40% Glass Filled Polyphenylene Sulfide
9, 15, 21, 25, 31, 37, 51-2, 51, 69, 75, 100, 130
(See Table I)
CBS
- Condensed Board Straight
R1
- .032 panel
R4
- .093 panel
R2
- .047 panel
R5
- .125 panel
R6
- .080 panel
T
- Threaded Insert in Board Mount Hole
Omit
for none
9-69 Contacts -
2-56
75-130 Contacts -
4-40
N
- Non–Conductive (Nitrile)
.080, .110, .125, .140, .150, .172, .190, .250
These connectors are solder-dipped in 60/40 tin-lead solder.
To delete the solder dip and change to gold-plated terminals, add code
513
Materials and Finishes
Connector
Shell
Insulator
Interfacial Seal
Pin Contact
Socket Contact
Hardware
Encapsulant
Aluminum Alloy 6061 or Stainless Steel, 300 Series,
passivated. See Ordering Info for Plating Options
Liquid Crystal Polymer (LCP) or Polyphenylene Sulffide (PPS)
Fluorosilicone Rubber, Blue
Beryllium Copper Gold over Nickel Plating
Copper Alloy Gold Over Nickel Plating
300 Series Stainless Steel
Epoxy Resin Hysol EE4215
Current Rating
DWV
Performance Specifications
3 AMP
600 VAC Sea level
5000 Megohms Minimum
8 Milliohms Maximum
32 Milliohms Maximum
2
µ
Maximum
-55° C. to +150° C.
50 g., 20g.
(10 Ounces) X (# of Contacts)
Insulation Resistance
Contact Resistance
Low Level Contact Resistance
Magnetic Permeability
Operating Temperature
Shock, Vibration
Mating Force
Notes:
1. Performance data per MIL-DTL-83513
2. Interface dimensions per MIL-DTL-83513
© 2013 Glenair, Inc.
3. PCB layout per Glenair MWDMCBS catalog data. See Section C
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-2
E-Mail: sales@glenair.com
