4 Pad Ceramic Package Quartz Crystal, 1.6mm x 1.2mm
Product Features:
AEC – Q200 qualified
TS16949 certified production lines
RoHS and REACH compliant
Suitable for use in harsh environments
Extended operating temperature range: -40°C to +125°C
IXA10 Series
Applications:
Navigation, GPS
Infotainment System
Instrument Panel, Ethernet
ADAS Radar, Camera, Engine Control Units
Lidar Systems, TPMS
Electrical Specifications
Frequency
Equivalent Series Resistance
24MHz – 39.999999MHz
40MHz – 50MHz
Shunt Capacitance (C0)
Frequency Tolerance (at 25°C)
Frequency Stability (over Temperature)
Mode of Operation
Crystal Cut
Load Capacitance
Drive Level
Aging
Operating Temperature Range
Storage Temperature Range
24MHz to 50MHz
150 Ohms Maximum
100 Ohms Maximum
5pF Maximum
±50ppm, ±30ppm, ±25ppm, ±20ppm, ±15ppm, or ±10ppm
±100ppm, ±50ppm, ±30ppm, or ±20ppm
Fundamental
AT Cut
8pF to 32pF or Specify
100µW Maximum
3ppm/Year
Maximum
-40°C to +85°C, -40°C to +105°C, or -40°C to +125°C
-50°C to +150°C

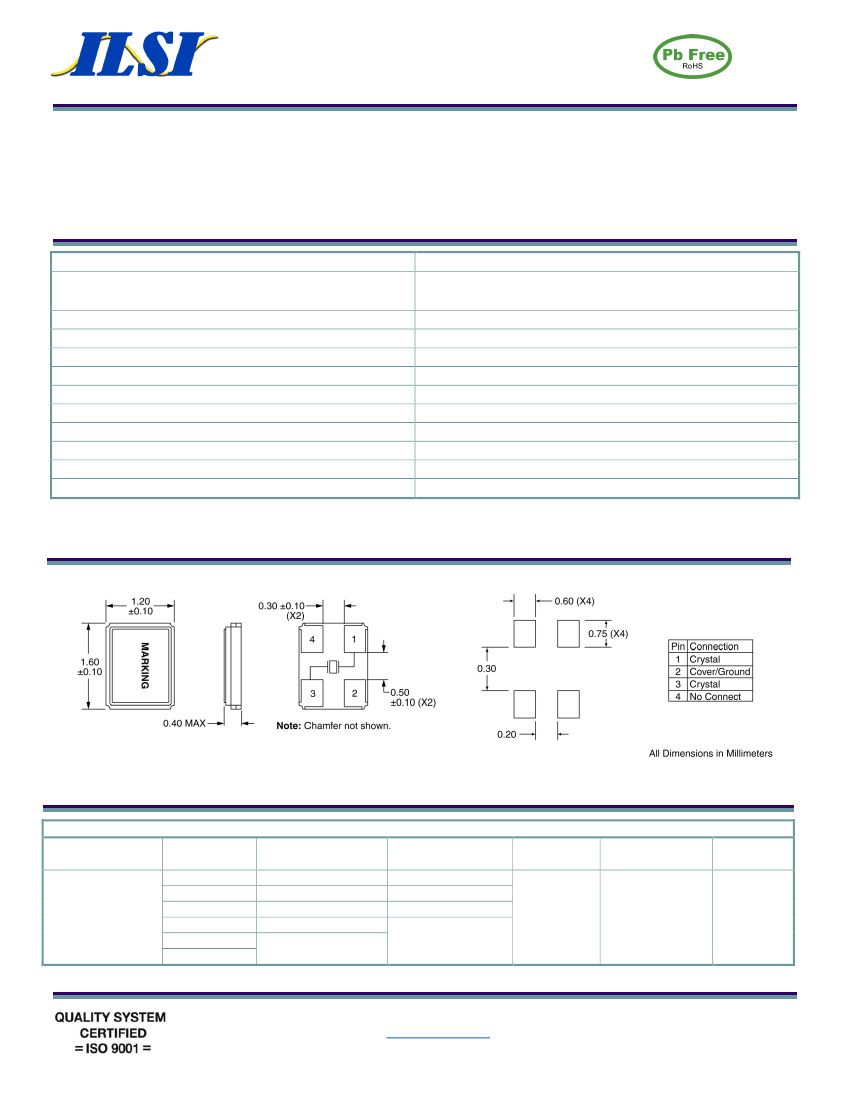

Mechanical and Solder Pad Dimensions
Part Number Guide
Sample Part Number: IXA10 – FBDF18 - 32.000 MHz
Package
Frequency
Tolerance
B = ±50ppm
F = ±30ppm
IXA10 -
G = ±25ppm
H = ±20ppm
I = ±15ppm
J = ±10ppm
Frequency
Stability
A = ±100ppm
B = ±50ppm
F = ±30ppm*, **
H = ±20ppm*, **
Operating
Temperature Range
5 = -40°C to +85°C
D = -40°C to +105°C
F = -40°C to +125°C
Mode of
Operations
Load Capacitance
Frequency
F = Fundamental
8pF to 32pF or
Specify
- 32.000 MHz
* Not available at all frequencies. ** Not available for all temperature ranges.
ILSI America Phone 775-851-8880 ● Fax 775-851-8882 ●email: e-mail@ilsiamerica.com ●
www.ilsiamerica.com
Specifications subject to change without notice
Rev: 02/09/18_A
Page 1 of 2
4 Pad Ceramic Package Quartz Crystal, 1.6mm x 1.2mm

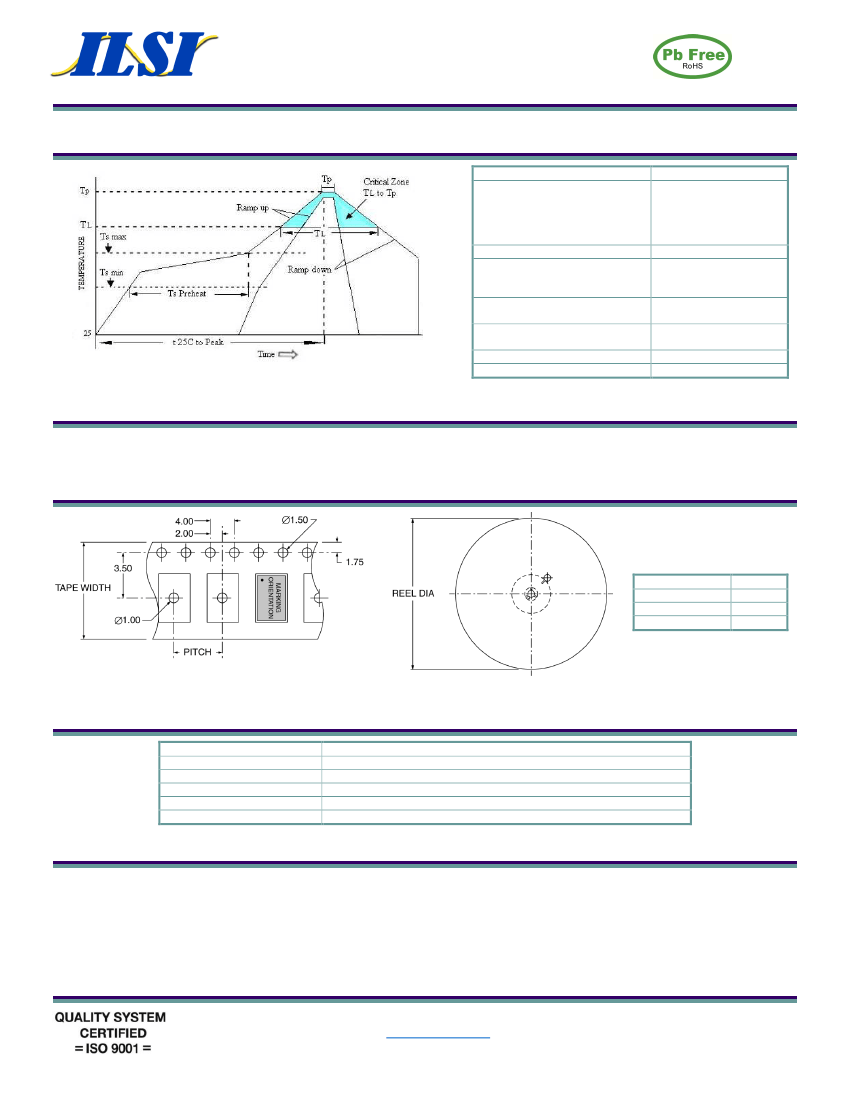

Pb Free Solder Reflow Profile:
Ts max to T
L
(Ramp-up Rate)
Preheat
Temperature min (Ts min)
Temperature typ (Ts typ)
Temperature max (Ts max)
Time (Ts)
Ramp-up Tate (T
L
to Tp
Time Maintained Above
Temperature (T
L
)
Time (T
L)
Peak Temperature (Tp)
Time within 5ºC to Peak
Temperature (Tp)
Ramp-down Rate
Tune 25ºC to Peak Temperature
IXA10 Series
3ºC / second max
150ºC
175ºC
200ºC
60 to180 seconds
3ºC / second max
217ºC
60 to 150 seconds
260ºC max for 10
seconds
20 to 40 seconds
6ºC / second max
8 minutes max
Units are backward compatible with +240°C reflow processes
Package Information:
MSL = 1 (package does not contain plastic, storage life is unlimited under normal room conditions)
Termination = e4 (Au over Ni over W base metallization)
Tape and Reel Information:
PITCH
TAPE WIDTH
REEL DIA
QTY PER REEL
4.00
8.00
180
3,000
Environmental Specifications:
Mechanical Shock
Vibration
Resistance to Soldering Heat
Solderability
Gross Leak
Fine Leak
MIL-STD-202, Method 213
MIL-STD-202, Method 204
MIL-STD-202, Method 210
J-STD-002
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 1014, Condition A2
Marking:
Line 1: Frequency (XX.XX)
Line 2: Date Code (YWW)
ILSI America Phone 775-851-8880 ● Fax 775-851-8882 ●email: e-mail@ilsiamerica.com ●
www.ilsiamerica.com
Specifications subject to change without notice
Rev: 02/09/18_A
Page 2 of 2
