C2225C124J1RAL7800: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.12uF, 2225,; CategoryPassive components capacitor; File Size51KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C2225C124J1RAL7800 Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.12uF, 2225,

C2225C124J1RAL7800 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	968189708
package instruction	, 2225
Reach Compliance Code	not_compliant
ECCN code	EAR99
capacitance	0.12 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.1 mm
JESD-609 code	e0
length	5.6 mm
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Embossed Plastic, 7 Inch
positive tolerance	5%
Rated (DC) voltage (URdc)	100 V
series	C(SIZE)C(X7R)-L TERM
size code	2225
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier
width	6.3 mm

Preview

Download Datasheet

View All

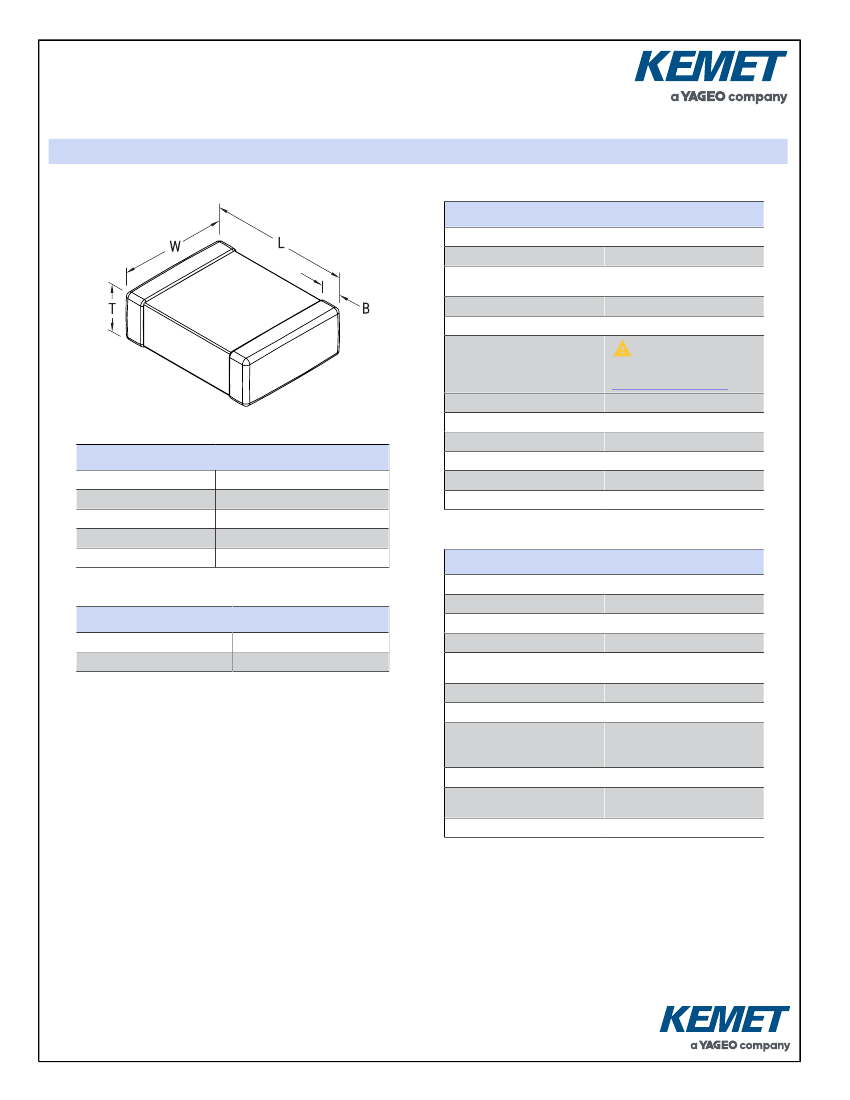

KEMET Part Number: C2225C124J1RALTU

(C2225C124J1RAL7800)

SMD Comm X7R SnPb, Ceramic, 0.12 uF, 5%, 100 VDC, X7R, SMD, MLCC, Temperature Stable, SnPb Termination, 2225

General Information

Series:

Style:

Description:

Features:

RoHS:

Prop 65:

Termination:

Marking:

AEC-Q200:

Component Weight:

2225

5.6mm +/-0.4mm

6.4mm +/-0.4mm

1.1mm +/-0.15mm

0.6mm +/-0.35mm

Shelf Life:

MSL:

SMD Comm X7R SnPb

SMD Chip

SMD, MLCC, Temperature

Stable, SnPb Termination

SnPb Termination

No

WARNING:

Cancer

and reproductive harm -

www.p65warnings.ca.gov.

Lead (SnPb)

No

310 mg

78 Weeks

1

Dimensions

Chip Size

L

W

T

B

Specifications

Capacitance:

0.12 uF

1 kHz 1.0Vrms

5%

100 VDC

250 VDC

-55/+125°C

X7R

15%, 1kHz 1.0Vrms

2.5% 1 kHz 1.0Vrms

3% Loss/Decade Hour: Referee

Time is 1000 Hours

8.3333 GOhms

Measurement Condition:

Capacitance Tolerance:

Voltage DC:

Dielectric Withstanding

Voltage:

Temperature Range:

Temperature Coefficient:

Capacitance Change with

Reference to +25°C and 0 VDC

Applied (TCC):

Dissipation Factor:

Aging Rate:

Insulation Resistance:

Packaging Specifications

Packaging:

Packaging Quantity:

T&R, 180mm, Plastic Tape

1000

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 7/21/2022 - 788e3306-0f55-4631-9306-1f7e6a075767
