Sensor/actuator cable - SAC-3P- 3,0-PVC/M12FR - 1414553
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

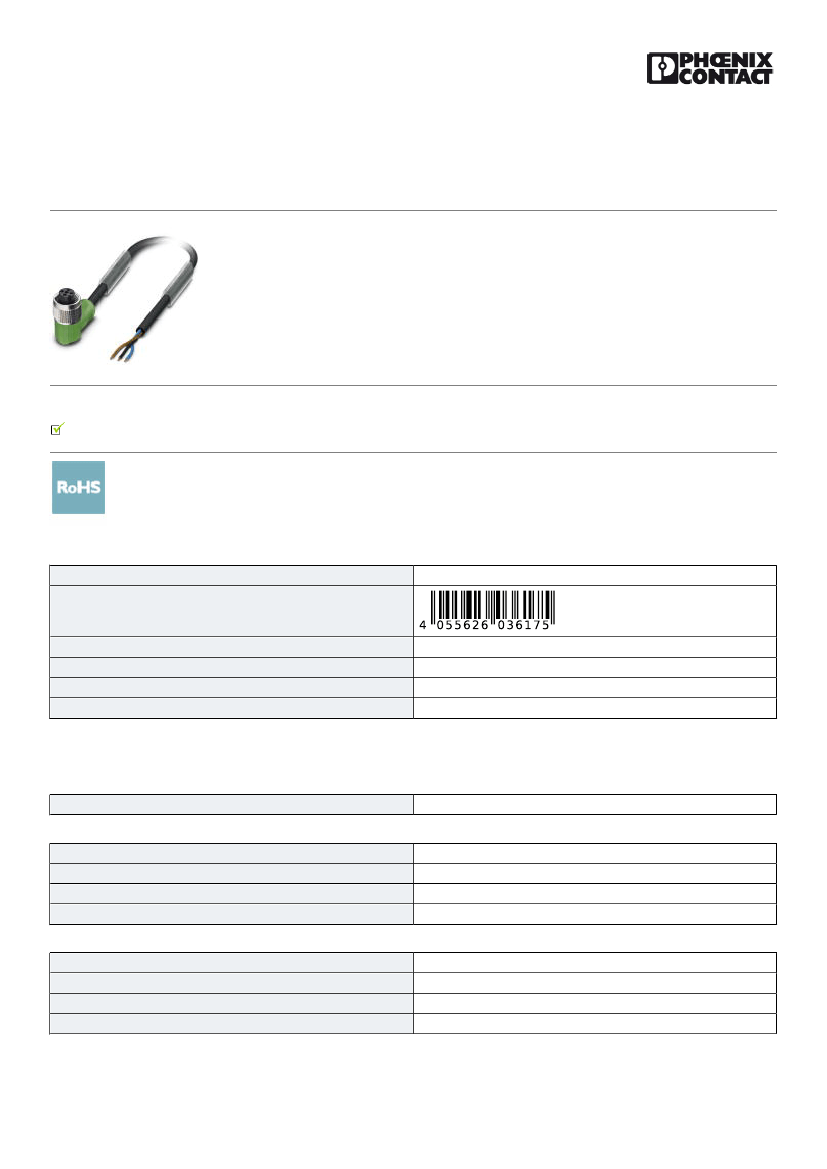

Sensor/actuator cable, 3-position, PVC, black RAL 9005, free cable end, on Socket angled M12, A-coded,
cable length: 3 m
Your advantages
Easy and safe: 100% electrically tested plug-in components
Key Commercial Data
Packing unit
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4055626036175
90.160 g
85444290
India
1 pc
Technical data
Dimensions
Length of cable
3m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
4A
250 V AC
250 V DC
3
01/24/2019 Page 1 / 9
https://www.phoenixcontact.com/in/products/1414553
Sensor/actuator cable - SAC-3P- 3,0-PVC/M12FR - 1414553
Technical data
General
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
unwired
II
3
≥ 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Cable weight
Outer sheath, material
PVC black
PVC
LiYY
2464 / 1729 (80°C/300 V)
3x 0.34 mm² (Signal line)
22
19x 0.15 mm
1.26 mm ±0.05 mm
≥ 0.23 mm (Core insulation)
brown, blue, black
3 wires, twisted
black RAL 9005
≥ 0.76 mm
4.3 mm ±0.2 mm
5xD
10 x D
40 kg/km
PVC
01/24/2019 Page 2 / 9
https://www.phoenixcontact.com/in/products/1414553
Sensor/actuator cable - SAC-3P- 3,0-PVC/M12FR - 1414553
Technical data
Cable
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
Ambient temperature (operation)
PVC
Bare Cu litz wires
≥ 100 MΩ*km (at 20 °C)
max. 57 Ω/km (at 20 °C)
≤ 300 V
≥ 2500 V
As per UL-Style 2464
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

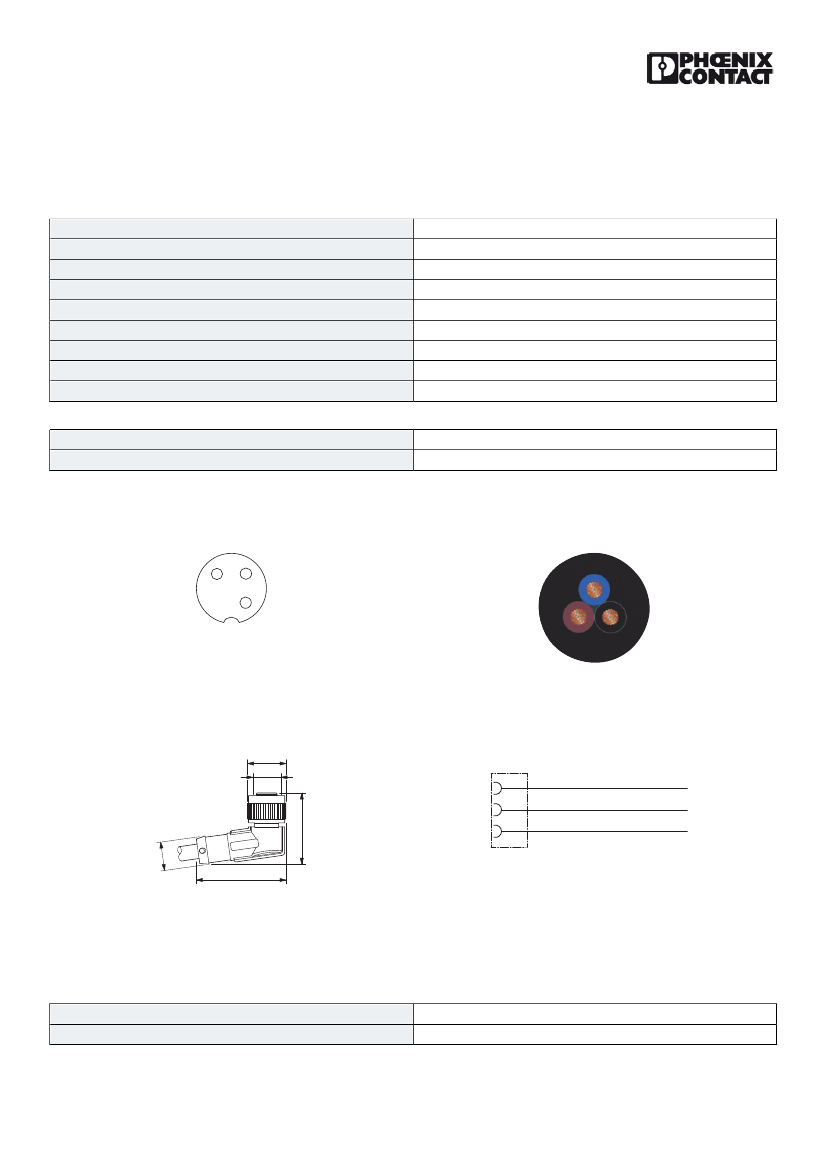

Drawings
Schematic diagram
3
4
Cable cross section
1
Pin assignment M12 socket, 3-pos., A-coded, view female side
PVC black [PVC]
Dimensional drawing
Ø14,8
M12
1
4
Circuit diagram
BN
BK
BU
27,4
3
M12 x 1 socket, angled
Ø11
34,5
Contact assignment of the M12 socket
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
27061800
27279200
01/24/2019 Page 3 / 9
https://www.phoenixcontact.com/in/products/1414553
Sensor/actuator cable - SAC-3P- 3,0-PVC/M12FR - 1414553
Classifications
eCl@ss
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27279218
27279218
27060311
ETIM
ETIM 5.0
ETIM 6.0
EC001855
EC001855
UNSPSC
UNSPSC 13.2
31251501
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / cULus Listed
Ex Approvals
Approval details
UL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
300 V
4A
FILE E 221474
cUL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
300 V
4A
FILE E 221474
EAC
RU C-
DE.AI30.B.01102
01/24/2019 Page 4 / 9
https://www.phoenixcontact.com/in/products/1414553
Sensor/actuator cable - SAC-3P- 3,0-PVC/M12FR - 1414553
Approvals
cULus Listed

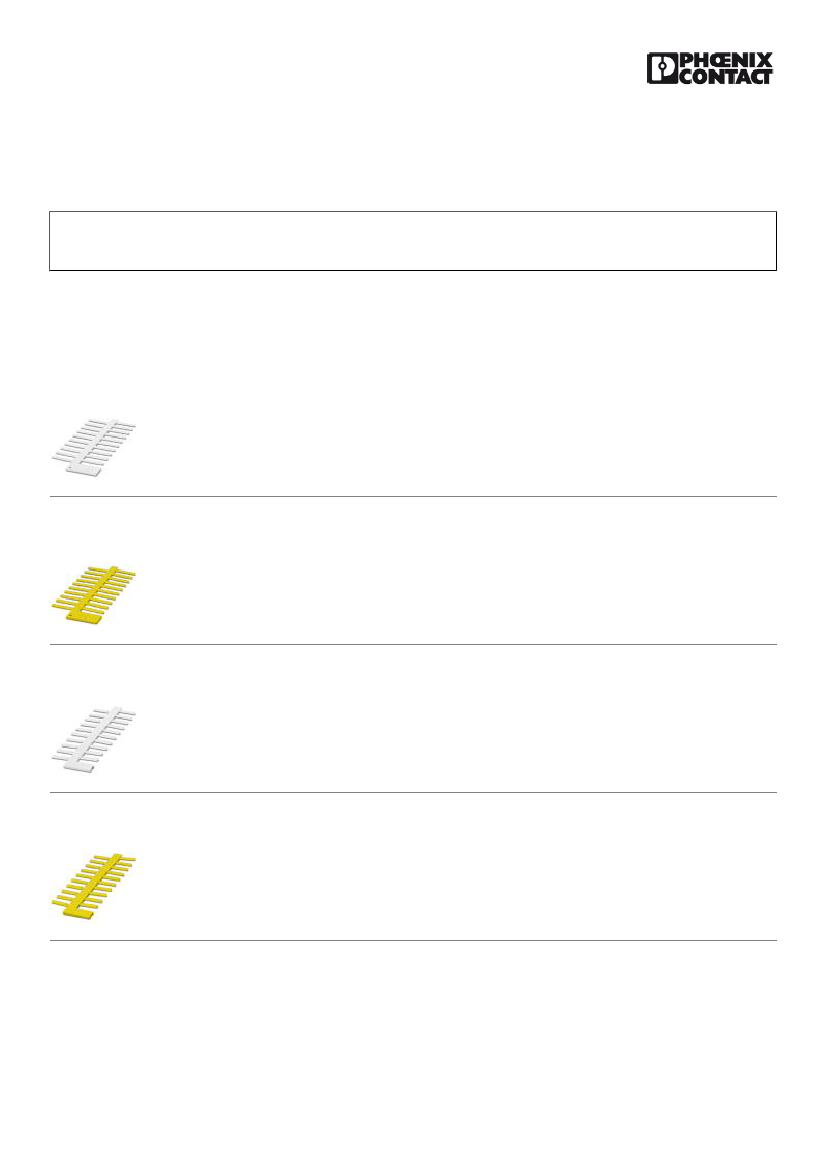

Accessories
