1N4728G-1N4758G
Pb
RoHS
COMPLIANCE
1W DO-41 Zener Voltage Regulators
DO-41
Features
Zener Voltage Range 3.3. to 56Volts.
DO-41 Package (JEDEC)
Through-Hole Device Type Mounting
Hermetically Sealed Glass
Compression Bonded Construction
All External Suface Are Corrosion Resistant And
Terminals Are Readily Solderable
Solder Hot Dip Tin(Sn) Lead Finish
RoHS Compliant
Dimension
Millimeters
Min
Max
0.81
4.25
---
2.60
Inches
Min
Max
A
0.68
3.70
25.40
2.10
0.027 0.032
0.146 0.167
1.000
---
0.083 0.102
Mechanical Data
Lead: Pure tin plated , lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity : Color band denotes cathode
High temperature soldering guaranteed:
260oC//10 seconds
Weight : 0.270~0.290 grams
Marking code : 1N47XXG for ± 5% Vz
1N47XXC for ± 2% Vz
B
C
D
Cathode
Anode
ELECTRICAL SYMBOL
Maximum Ratings and Electrical Characteristics
Rating at 25℃ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Power Dissipation
Thermal Resistance Junction to Lead
Thermal Resistance Junction to Ambient
Operating Temperature Range
Storage Temperature Range
Symbol
P
D
Rjl
Rja
T
OPR
T
STG
Value
1
53.5
100
-65 to +200
-65 to +200
Units
W
°C / W
°C / W
°C
°C
Notes: These ratings are limiting values above which the serviceability of the diode may be impaired
1 of 2
Version : C12

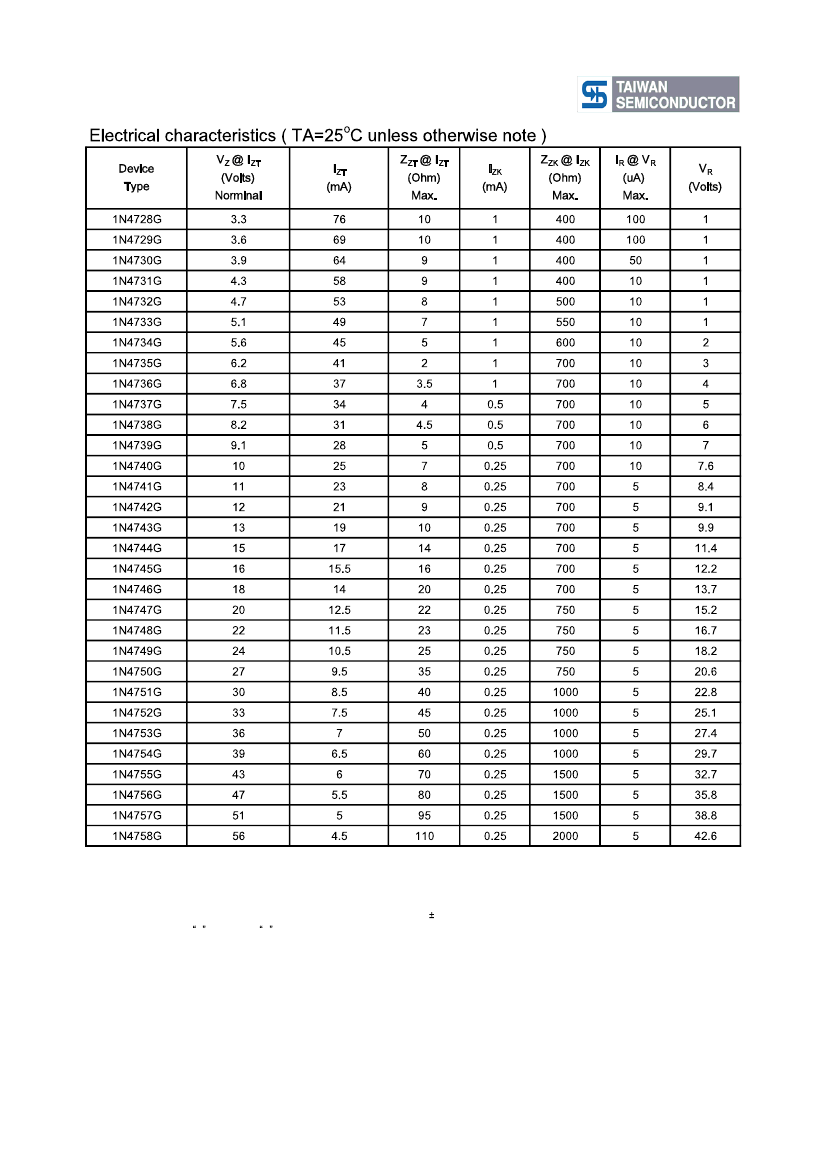

VF Forward Voltage = 1.2 V Maximum @ IF = 200 mA for all types
Notes :
1.
TOLERANCE AND TYPE NUMBER DESIGNATION (VZ)
The type numbers listed have a standard tolerance on the nominal zener voltage of
2% is indicated by a C instead of an G
2.
SPECIALS AVAILABLE INCLUDE
Nominal zener voltages between the voltages shown and tighter voltage, for detailed information on price,
availability and delivery, contact you nearest
TAIWAN SEMICONDUCTOR CO
ZENER VOLTAGE (VZ) MEASUREMENT
The zener voltage (VZ) is tested under pulse condition. The measured VZ is guaranteed to be within specification
with device junction in thermal equilibrium.
ZENER IMPEDANCE (ZZ) DERIVATION
The zener impedance is derived from the 60 cycle AC voltage, which results when an AC current having
an RMS value equal to 10% of the DC zener current (IZT or IZK) is superimposed on IZT or IZK.
5%. Device tolerance of
3.
4.
2 of 2
Version : C12
