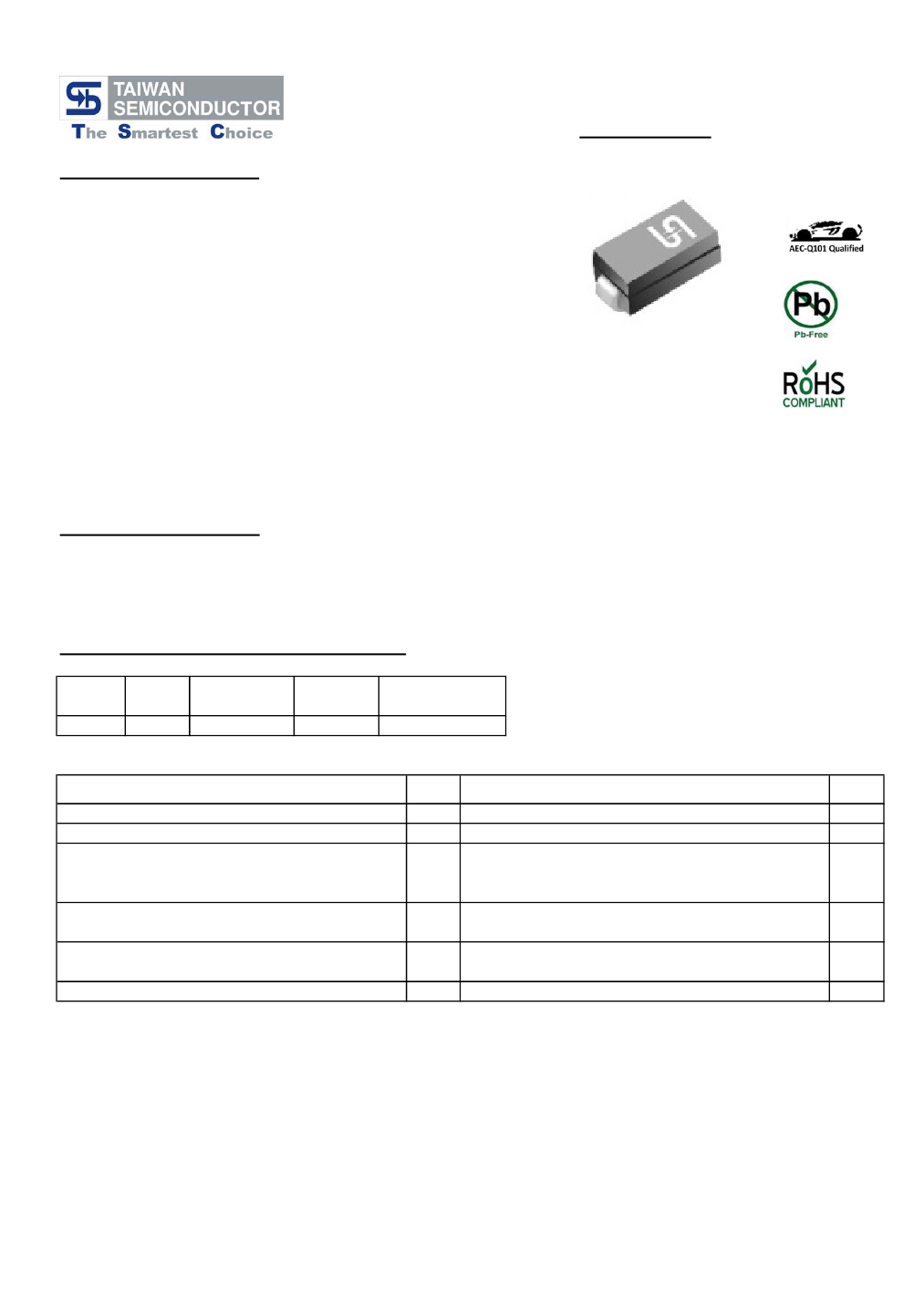

P6SMB SERIES
600 Watts Suface Mount Transient Voltage Suppressor
SMB/DO-214AA
Features
For surface mounted application in order to
optimize board space
Low profile package
Built-in strain relief
Glass passivated junction
Excellent clamping capability
Fast response time: Typically less than 1.0ps
from 0 volt to BV min
Typical I
R
less than 1uA above 10V
High temperature soldering guaranteed:
260℃ / 10 seconds at terminals
Plastic material used carried Underwriters
Laboratory Flammability Classification 94V-0
600 watts peak pulse power capability with a
10 / 1000 us waveform
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Case: Molded plastic
Terminals: Pure tin plated, lead free
Polarity: Indicated by cathode band

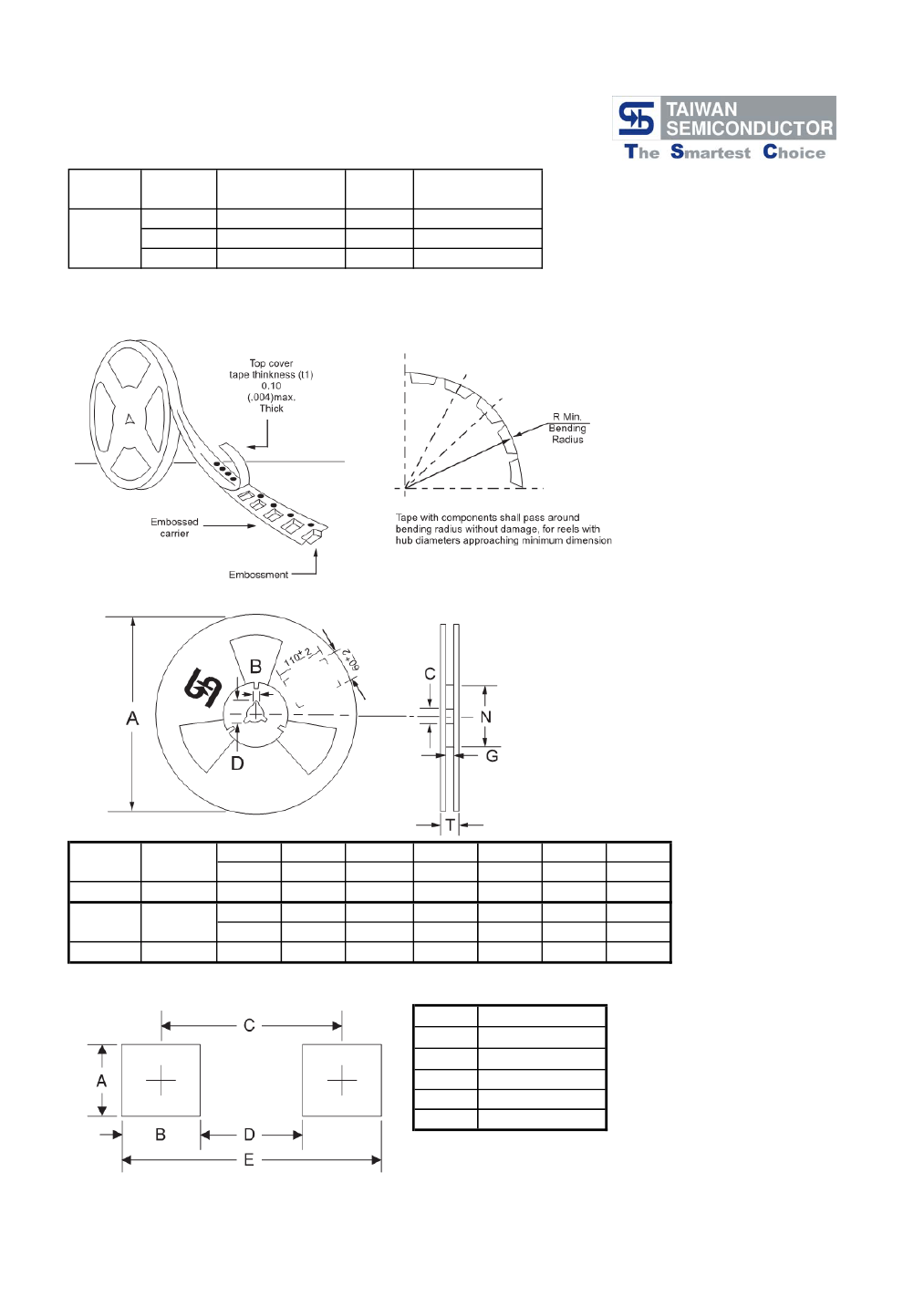

Packaging: 12mm tape per EIA Std RS-481
Weight: 0.093 gram
Ordering Information (example)
Part No.
P6SMB6.8
Package
SMB
Packing
850 / 7" REEL
Packing
code
R5
Packing code
(Green)
R5G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Type Number
Peak Power Dissipation at T
A
=25℃, Tp=1ms(Note 1)
Steady State Power Dissipation
Peak Forward Surge Current, 8.3ms Single Half
Sine-wave Superimposed on Rated Load
(JEDEC method)(Note 2) - Unidirectional Only
Maximum Instantaneous Forward Voltage at 50 A for
Unidirectional Only (Note 3)
Typical Thermal Resistance
Operating and Storage Temperature Range
Symbol
P
PK
P
D
I
FSM
Value
600
3
100
Unit
Watts
Watts
Amps
V
F
R
θJC
R
θJA
T
J
, T
STG
3.5 / 5.0
10
55
-65 to +150
Volts
℃/W
℃
Note 1: Non-repetitive Current Pulse Per Fig. 3 and Derated above T
A
=25℃ Per Fig. 2
Note 2: Mounted on 10 x 10mm Copper Pads to Each Terminal
Note 3: V
F
=3.5V on P6SMB6.8 thru P6SMB91 Devices and V
F
=5.0V on P6SMB100 thru P6SMB220 Device.
Devices for Bipolar Applications
1. For Bidrectional Use C or CA Suffix for Types P6SMB6.8 through Types P6SMB220A
2. Electrical Characterstics Apply in Both Directions
Version:H13

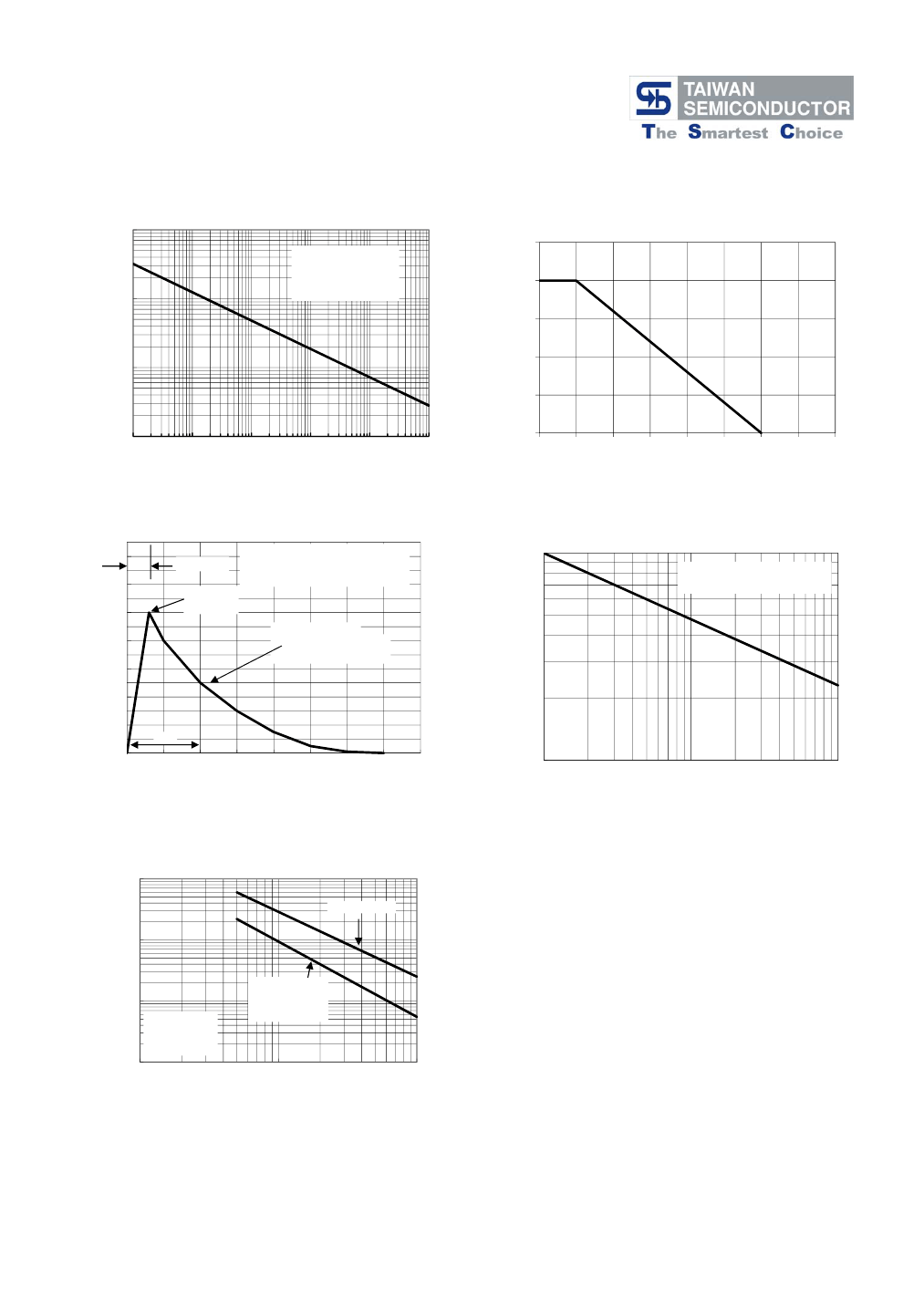

RATINGS AND CHARACTERISTIC CURVES (P6SMB SERIES)
FIG. 1 PEAK PULSE POWER RATING CURVE
100
NON-REPETITIVE
PULSE WAVEFORM
SHOWN in FIG.3
TA = 25℃
125
PEAK PULSE POWER(P
PP
) OR CURRENT (I
PP
)
A
DERATING IN PERCENTAGE (%)
FIG.2 PULSE DERATING CURVE
P
PPM
, PEAK PULSE POWER, KW
100
75
50
25
0
0
25
50
75
100
125
150
175
200
10
1
0.1
0.1
1
10
100
1000
10000
tp, PULSE WIDTH, (uS)
T
A
, AMBIENT TEMPERATURE (
o
C)
FIG. 3 CLAMPING POWER PULSE WAVEFORM
IFSM, PEAK FORWARD SURGE CURRENT (A)
140
120
100
80
60
40
20
0
0
td
0.5
1
1.5
2
t, TIME ms
2.5
3
3.5
4
PULSE WIDTH(td) is DEFINED
as the POINT WHERE the PEAK
CURRENT DECAYS to 50% OF
100
FIG. 4 MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT UNIDIRECTIONAL ONLY
8.3mS Single Half Sine Wave
JEDEC Method
tr=10usec
Peak
Value
PEAK PULSE CURRENT (%)
Half Value-IPPM/2
10/1000usec,
WAVEFORM
10
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 5 TYPICAL JUNCTION CAPACITANCE
10000
CJ, JUNCTION CAPACITANCE (pF)
A
VR=0
1000
100
TA=25℃
f=1.0MHz
Vsig=50mVp-p
10
1
MEASURED at
STAND-OFF
VOLTAGE,Vwm
10
V(
BR
), BREAKDOWN VOLTAGE (V)
100
Version:H13
ELECTRICAL CHARACTERISTICS (TA=25℃ unless otherwise noted)
Device
Device
Marking
Code
MQJ
MRJ
MSJ
MTJ
MUJ
MVJ
MWJ
MXJ
MYJ
MZJ
NDJ
NEJ
NFJ
NGJ
NHJ
NKJ
NLJ
NMJ
NNJ
NPJ
NQJ
NRJ
NSJ
NTJ
NUJ
NVJ
Breakdown Voltage
VBR (V)
(Note 1)
Min
P6SMB75
P6SMB75A
P6SMB82
P6SMB82A
P6SMB91
P6SMB91A
P6SMB100
P6SMB100A
P6SMB110
P6SMB110A
P6SMB120
P6SMB120A
P6SMB130
P6SMB130A
P6SMB150
P6SMB150A
P6SMB160
P6SMB160A
P6SMB170
P6SMB170A
P6SMB180
P6SMB180A
P6SMB200
P6SMB200A
P6SMB220
P6SMB220A
67.5
71.3
73.8
77.9
81.9
86.5
90
95
99
105
108
114
117
124
135
143
144
152
153
162
162
171
180
190
198
209
Max
82.5
78.8
90.2
86.1
100
95.5
110
105
121
116
132
126
143
137
165
158
176
168
187
179
198
189
220
210
242
231
Test
Current
IT
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Stand-Off
Voltage
V
WM
(V)
60.7
64.1
66.4
70.1
73.7
77.8
81.0
85.5
89.2
94.0
97.2
102.0
105.0
111.0
121.0
128.0
130.0
136.0
138.0
145.0
146.0
154.0
162.0
171.0
175.0
185.0
Maximum
@ V
WM
ID (uA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Current I
RSM
(A) (Note 2)
5.8
6.1
5.3
5.5
4.8
5.0
4.3
4.5
3.9
4.1
3.6
3.8
3.3
3.5
2.9
3.0
2.7
2.8
2.5
2.6
2.4
2.5
2.1
2.2
1.8
1.9
Maximum
@ IPPM
Vc(V)
108
103
118
113
131
125
144
137
158
152
173
165
187
179
215
207
230
219
244
234
258
246
287
274
342
328
Maximum
Coefficient
of VBR(%/℃)
0.105
0.105
0.105
0.105
0.106
0.106
0.106
0.106
0.107
0.107
0.107
0.107
0.107
0.107
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
Reverse Leakage Peak Pulse Clamping Voltage Temperature
Notes:
1. V
BR
measure after I
T
applied for 300us, I
T
=square wave pulse or equivalent.
2. Surge current waveform per Figure. 3 and derate per Figure. 2.
3. For bipolar types having V
WM
of 10 volts and under, the I
D
limit is doubled.
4. For bidirectional use C or CA suffix for types P6SMB6.8 through P6SMB220A.
5. All terms and symbols are consistent with ANSI/IEEE C62.35.
Version:H13
