L Series
•
Low Profile
•

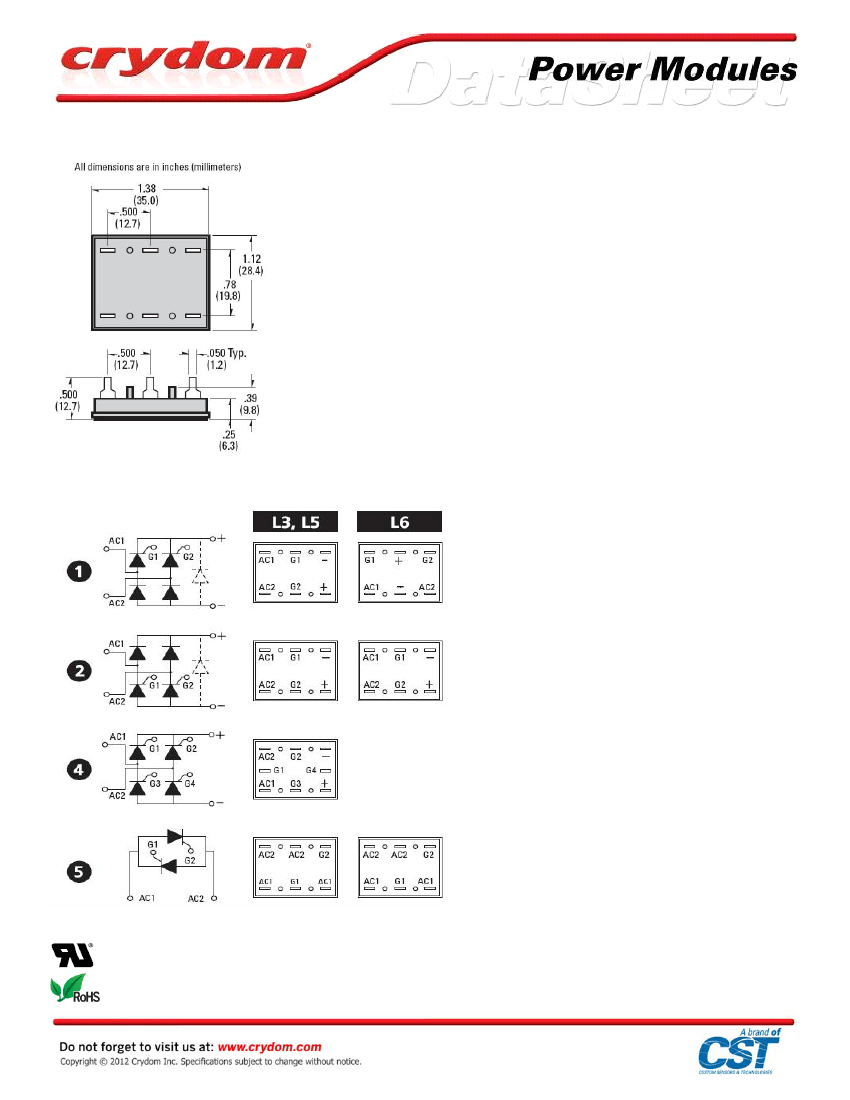

7 Different Circuits to Choose from
• Designed for Printed Circuit Board Connections
• UL Recognized E72445

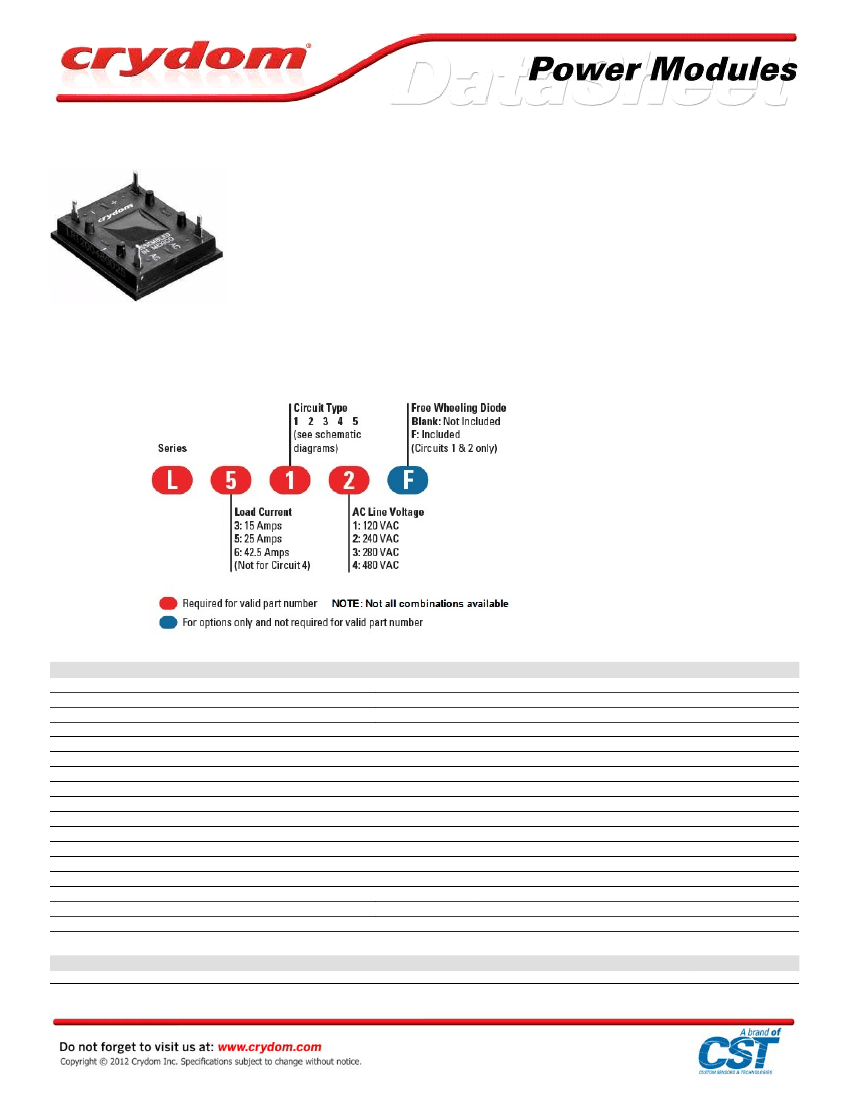

AVAILABLE OPTIONS
ELECTRICAL SPECIFICATIONS
Description
Maximum DC Output Current (Tc = 85°C)
Maximum Voltage Drop @ Amps Peak
Operating Junction Temperature Range
Critical Rate of Rise of On-State Current @ TJ=125°C
Critical Rate of Rise of Off-State Voltage [V/µs]
Symbol
I
D
V
F
T
J
di/dt
dv/dt
L3
15 A
2.2V @ 15A
L5
25 A
1.65V @ 25A
-40 - 125°C
100A/µs
500A/µs
120 (400V
RRM)
240 (600V
RRM)
L6
42.5 A
1.6V @ 42.5A
AC Line Input Voltage (Repetitive Peak Reverse Voltage)
Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz) [A]
Maximum I²T for Fusing (t=8.3ms) [A²sec]
Maximum Required Gate Current to Trigger @ 25°C [mA]
Maximum Required Gate Voltage to Trigger @ 25°C [V]
Average Gate Power [W]
Maximum Peak Reverse Gate Voltage [V]
Maximum Thermal Resistance, Junction to Ceramic Base per Chip [°C/W]
Isolation Voltage [Vrms]
V
RMS
I
TSM
IT
I
GT
V
GT
P
G(AV)
V
GM
R
JC
V
ISOL
2
280(800V
RRM)
225
210
60
2.5
0.5
5.0
1.25°C/W
480(1200V
RRM)
300
375
60
2.5
0.5
5.0
0.9°C/W
2500
600
1500
80
3.0
0.5
5.0
0.7°C/W
GENERAL SPECIFICATIONS
Description
Weight (typical)
.5 oz (14.4g)
