SS8PH9, SS8PH10
www.vishay.com
Vishay General Semiconductor
High Current Density Surface Mount
High Voltage Schottky Rectifier
eSMP
®
Series
K
FEATURES
• Very low profile - typical height of 1.1 mm
• Ideal for automated placement
• Guardring for overvoltage protection
• High barrier technology, T
J
= 175 °C maximum
1
2
Available
• Low leakage current
• Meets MSL level 1, per
LF maximum peak of 260 °C
J-STD-020,
TO-277A (SMPC)
K
Cathode
Anode 1
Anode 2
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
E
AS
V
F
at I
F
= 8.0 A
I
R
T
J
max.
Package
Diode variations
8.0 A
90 V, 100 V
150 A
20 mJ
0.720 V
0.18 μA
175 °C
TO-277A (SMPC)
Single
TYPICAL APPLICATIONS
For use in high frequency rectifier of switching mode power
supplies, freewheeling diodes, DC/DC converters, or
polarity protection application.
MECHANICAL DATA
Case:
TO-277A (SMPC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Base P/NHM3 - halogen-free, RoHS-compliant, and
AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant, and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, .....)
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 2 whisker test, HM3 suffix
meets JESD 201 class 2 whisker test
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum average forward rectified current (fig. 1)
Peak forward surge current 10 ms single half sine-wave
superimposed on rated load
Non-repetitive avalanche energy
at I
AS
= 2.0 A, T
J
= 25 °C
Operating junction and storage temperature range
V
RRM
I
F(AV)
I
FSM
E
AS
T
J
, T
STG
SYMBOL
SS8PH9
8H9
90
8.0
150
20
-55 to +175
SS8PH10
8H10
100
V
A
A
mJ
°C
UNIT
Revision: 23-Dec-14
Document Number: 88989
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS8PH9, SS8PH10
www.vishay.com
Vishay General Semiconductor
TEST CONDITIONS
I
F
= 4.0 A
I
F
= 8.0 A
I
F
= 4.0 A
I
F
= 8.0 A
T
A
= 25 °C
V
F (1)
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
I
R (2)
C
J
SYMBOL
TYP.
0.769
0.850
0.634
0.720
0.18
110
140
MAX.
-
0.90
-
0.76
2.0
300
-
μA
pF
V
UNIT
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Instantaneous forward voltage
Reverse current
Typical junction capacitance
Rated V
R
4.0 V, 1 MHz
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise specified)
PARAMETER
Typical thermal resistance
Note
(1)
Units mounted on recommended PCB 1 oz. pad layout
SYMBOL
R
JA
R
JL
(1)
SS8PH9
65
3
SS8PH10
UNIT
°C/W
ORDERING INFORMATION
(Example)
PREFERRED P/N
SS8PH10-M3/86A
SS8PH10-M3/87A
SS8PH10HM3/86A
(1)
SS8PH10HM3/87A
(1)
SS8PH10HM3_A/H
(1)
UNIT WEIGHT (g)
0.10
0.10
0.10
0.10
0.10
0.10
PACKAGE CODE
86A
87A
86A
87A
H
I
BASE QUANTITY
1500
6500
1500
6500
1500
6500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
SS8PH10HM3_A/I
(1)
(1)
Note
AEC-Q101 qualified
Revision: 23-Dec-14
Document Number: 88989
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS8PH9, SS8PH10
www.vishay.com
Vishay General Semiconductor

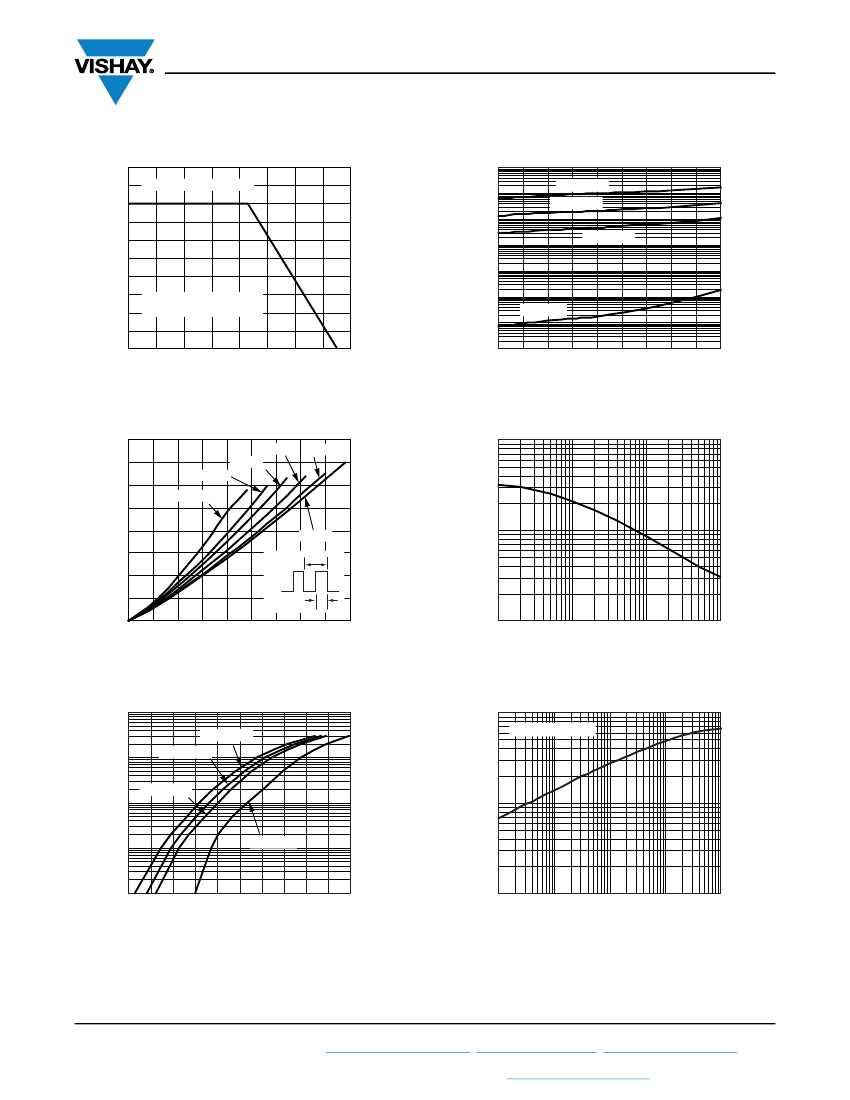

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25
C
unless otherwise noted)
10
9
Resistive or Inductive Load
10 000
Instantaneous Reverse Current (µA)
Average Forward Current (A)
1000
100
10
1
0.1
T
A
= 175 °C
T
A
= 150 °C
8
7
6
5
4
3
2
1
0
100
110
120
130
140
150
160
170
180
T
L
measured
at the Cathode Band Terminal
T
A
= 125 °C
T
A
= 25 °C
0.01
0.001
10
20
30
40
50
60
70
80
90
100
Lead Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 4 - Typical Reverse Characteristics
8.0
D = 0.5
7.0
D = 0.3
D = 0.2
6.0
D = 0.1
5.0
4.0
3.0
2.0
1.0
0
0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
D = t
p
/T
t
p
D = 1.0
T
D = 0.8
1000
Junction Capacitance (pF)
Average Power Loss (W)
100
10
0.1
1
10
100
Average Forward Current (A)
Reverse Voltage (V)
Fig. 2 - Forward Power Loss Characteristics
Fig. 5 - Typical Junction Capacitance
100
100
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
T
A
= 175 °C
10
T
A
= 150 °C
Junction to Ambient
T
A
= 125 °C
1
10
0.1
T
A
= 25 °C
0.01
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1
0.01
0.1
1
10
100
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Transient Thermal Impedance
Revision: 23-Dec-14
Document Number: 88989
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS8PH9, SS8PH10
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-277A (SMPC)
0.187 (4.75)
0.175 (4.45)
K
0.016 (0.40)
0.006 (0.15)
Vishay General Semiconductor
0.262 (6.65)
0.250 (6.35)
0.242 (6.15)
0.238 (6.05)
2
1
0.171 (4.35)
0.167 (4.25)
0.146 (3.70)
0.134 (3.40)
0.087 (2.20)
0.075 (1.90)
0.047 (1.20)
0.039 (1.00)
Mounting Pad Layout
0.189 (4.80)
MIN.
0.189 (4.80)
0.173 (4.40)
0.155 (3.94)
NOM.
0.030 (0.75) NOM.
0.268
(6.80)
0.186 (4.72)
MIN.
0.049 (1.24)
0.037 (0.94)
0.084 (2.13) NOM.
0.053 (1.35)
0.041 (1.05)
Conform to JEDEC
®
TO-277A
0.050 (1.27)
MIN.
0.041
(1.04)
0.055 (1.40)
MIN.
Revision: 23-Dec-14
Document Number: 88989
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 08-Feb-17
1
