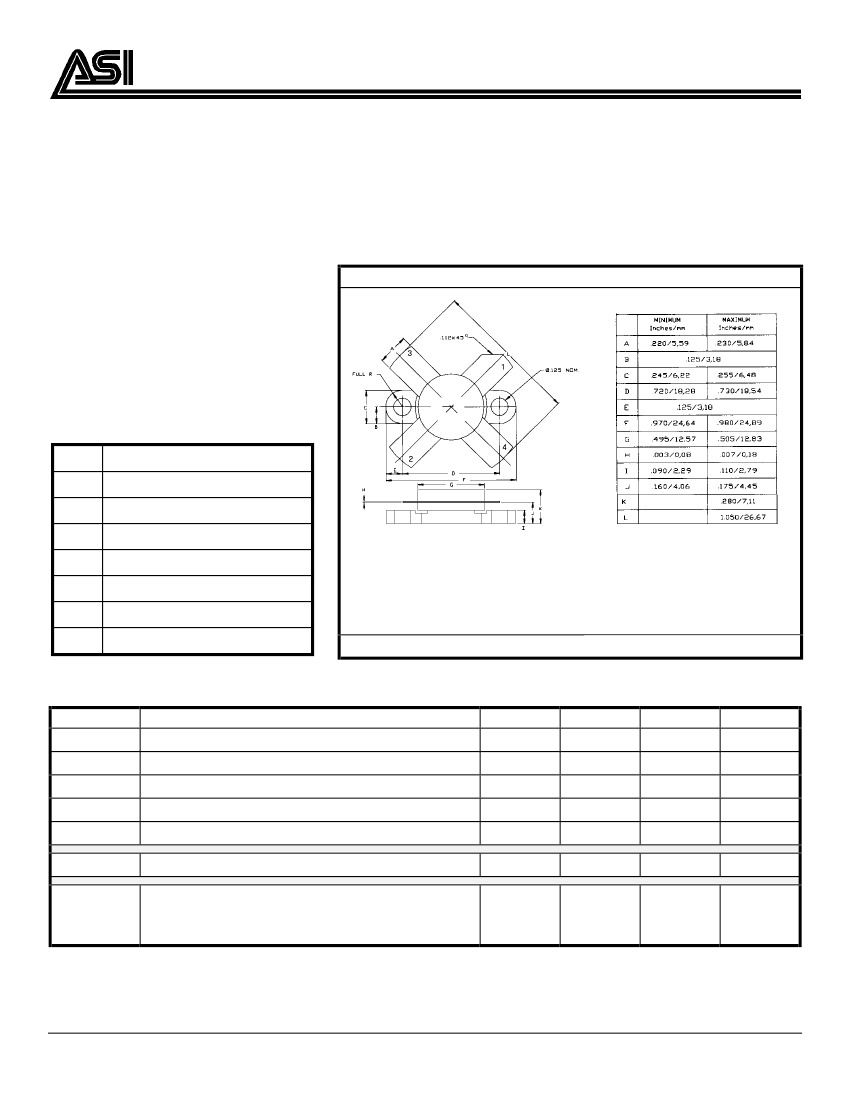

BLW50F

NPN SILICON RF POWER TRANSISTOR

DESCRIPTION:

The

ASI BLW50F

is Designed for

use in transmitters in the HF and VHF

band applications up tp 30 MHz.

PACKAGE STYLE .500 4L FLG

FEATURES:

•

P

G

= 14 dB min. at 75 W/30 MHz

•

IMD

3

= 50 dBc max. at 75 W

(PEP)

•

Omnigold™

Metalization System

MAXIMUM RATINGS

I

C

V

CBO

V

CEO

V

EBO

P

DISS

T

J

T

STG

θ

JC

3.25 A

110 V

55 V

4.0 V

87 W @ T

C

= 25 °C

-65 °C to +200 °C

-65 °C to +150 °C

2.0 °C/W

1 = COLLECTOR 2 = BASE

3 & 4 = EMITTER

ORDER CODE: ASI10834

O

CHARACTERISTICS

SYMBOL

BV

CES

BV

CE0

BV

EBO

I

CES

h

FE

C

ob

G

P

IMD

3

η

C

T

C

= 25 C

NONETEST

CONDITIONS

I

C

= 100 mA

I

C

= 200 mA

I

E

= 10 mA

V

CE

= 55 V

V

CE

= 6.0 V

V

CB

= 50 V

I

C

= 1.4 A

f = 1.0 MHz

MINIMUM TYPICAL MAXIMUM

110

55

4.0

10

19

---

50

100

14

---

37

---

-30

UNITS

V

mA

---

pF

dB

dBc

%

V

CE

= 50 V

P

OUT

= 75 W

(PEP)

A D V A N C E D S E M I C O N D U C T O R, I N C.

7525 ETHEL AVENUE

•

NORTH HOLLYWOOD, CA 91605

•

(818) 982-1200

•

FAX (818) 765-3004

Specifications are subject to change without notice.

REV. A

1/1
