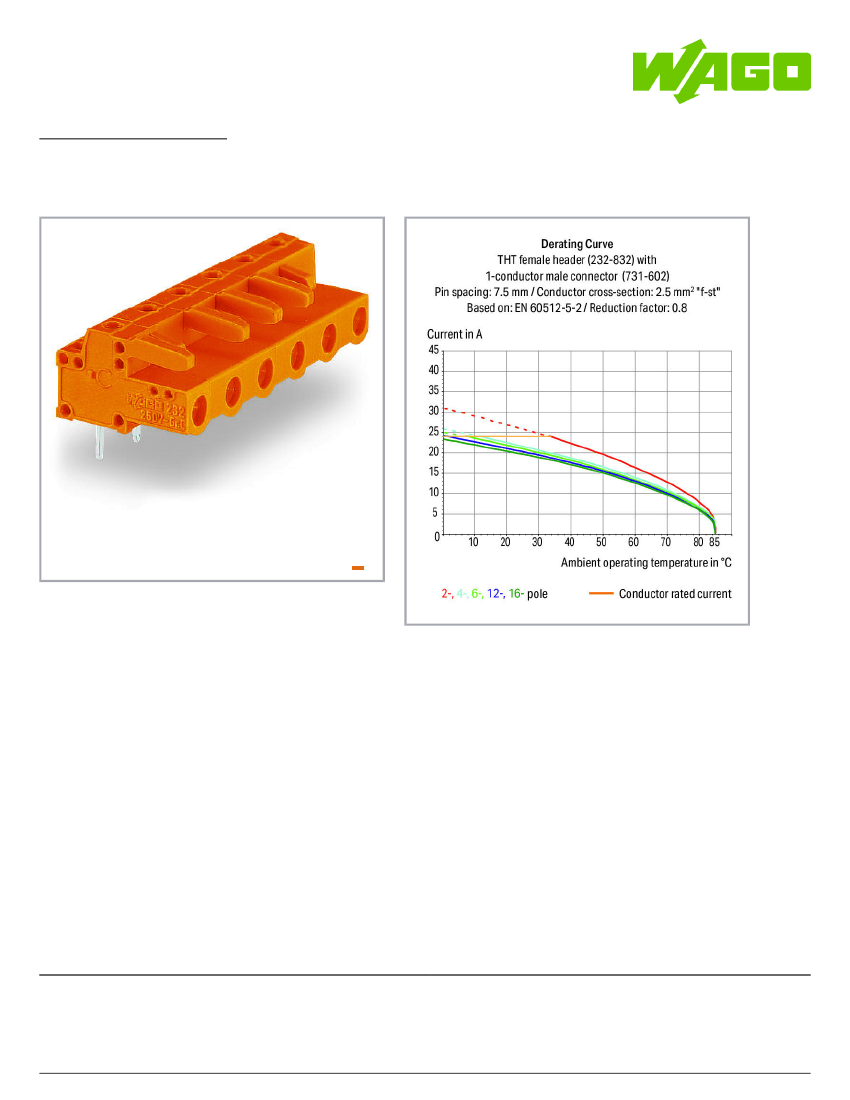

Data sheet | Item number: 232-866/045-000
THT female header; 0.6 x 1.0 mm solder pin; angled; 2.5 mm²; Pin spacing
7.62 mm; 6-pole; orange
www.wago.com/232-866_045-000
Color:
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
02.04.2021 Page 1/7
Data sheet | Item number: 232-866/045-000
www.wago.com/232-866_045-000

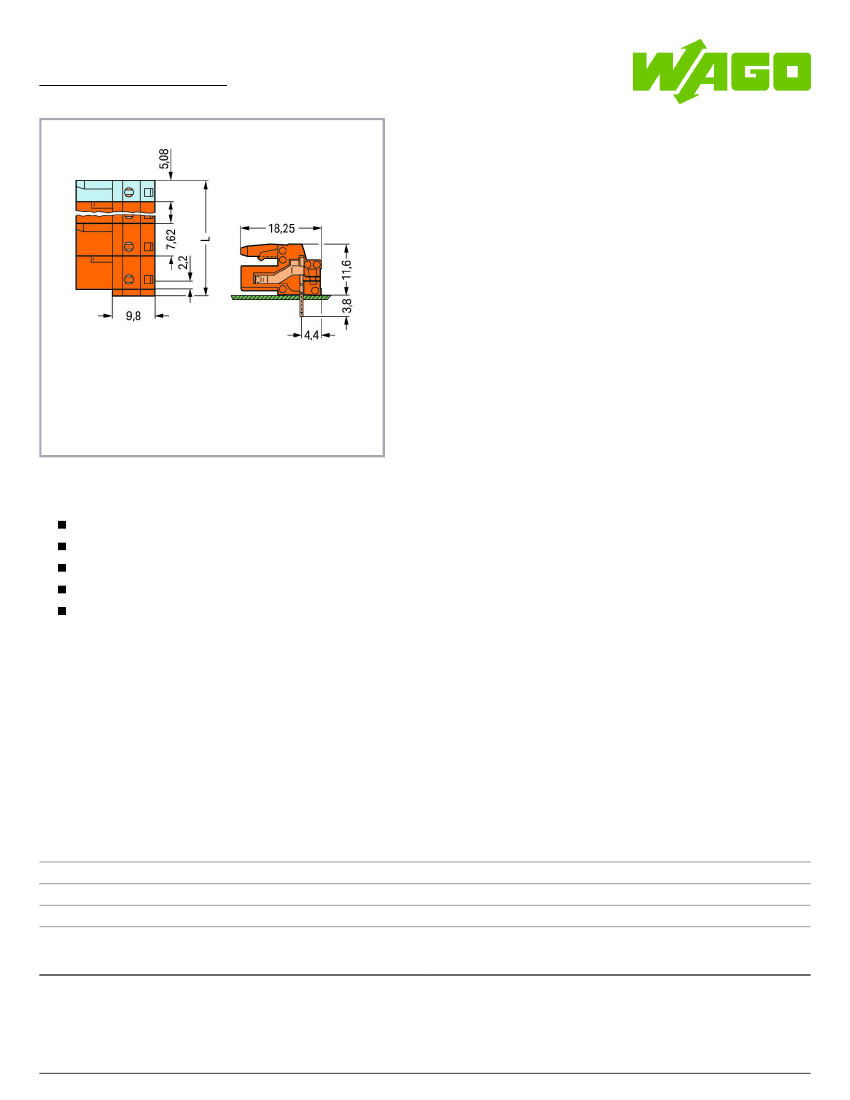

L = (pole no. − 1) x pin spacing + 5.08 mm + 1.5 mm
2- to 3-pole female connectors – one latch only
Item description
Horizontal or vertical PCB mounting via straight or angled solder pins
For board-to-board and board-to-wire connections
Touch-proof PCB outputs
Easy-to-identify PCB inputs and outputs
With coding fingers
Safety information 1:
The
MCS – MULTI CONNECTION SYSTEM
includes connectors without breaking capacity in accordance with DIN EN 61984. When used as
intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can
be touched, are not live when unmated.
Data
Electrical data
Ratings per IEC/EN
Ratings per
Nominal voltage (III/3)
Rated surge voltage (III/3)
Rated voltage (III/2)
IEC/EN 60664-1
500
V
6
kV
630
V
Rated surge voltage (III/2)
6
kV
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
02.04.2021 Page 2/7
Data sheet | Item number: 232-866/045-000
www.wago.com/232-866_045-000
Rated surge voltage (III/2)
Nominal voltage (II/2)
Rated surge voltage (II/2)
Rated current
Legend (ratings)
6
kV
1000
V
6
kV
12
A
(III / 2) ≙ Overvoltage category III / Pollution degree 2
Ratings per UL
Approvals per
Rated voltage UL (Use Group B)
Rated current UL (Use Group B)
Rated voltage UL (Use Group D)
Rated current UL (Use Group D)
UL 1059
300
V
15
A
300
V
10
A
Ratings per UL
Rated voltage UL 1977
Rated current UL 1977
600
V
15
A
Ratings per CSA
Approvals per
Rated voltage CSA (Use Group B)
Rated current CSA (Use Group B)
Rated voltage CSA (Use Group D)
Rated current CSA (Use Group D)
CSA
300
V
15
A
300
V
10
A
Connection data
Pole No.
Total number of potentials
Number of connection types
Number of levels
6
6
1
1
Physical data
Pin spacing
Width
Height
Height from the surface
Depth
7.62 mm / 0.3 inch
44.68 mm / 1.759 inch
15.4 mm / 0.606 inch
11.6 mm / 0.457 inch
18.25 mm / 0.719 inch
Solder pin length
3.8
mm
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
02.04.2021 Page 3/7
Data sheet | Item number: 232-866/045-000
www.wago.com/232-866_045-000
Solder pin length
Solder pin dimensions
Drilled hole diameter with tolerance
3.8
mm
0.6 x 1 mm
1.3
(+0.1)
mm
Plug-in connection
Contact type (pluggable connector)
Connector (connection type)
Mismating protection
Mating direction to the PCB
Female connector/socket
for PCB
No
0
°
PCB contact
PCB Contact
Solder pin arrangement
Number of solder pins per potential
THT
over the entire female connector (in-line)
1
Material data
Color
Material group
Insulation material
Flammability class per UL94
Contact material
Contact plating
Fire load
Weight
orange
I
Polyamide (PA66)
V0
Copper alloy
tin-plated
0.127
MJ
6.5
g
Environmental requirements
Limit temperature range
-60 … +85 °C
Commercial data
Packaging type
Country of origin
GTIN
Customs tariff number
BOX
DE
4055143034326
85366990990
Approvals / Certificates
UL-Approvals
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Certificate
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
02.04.2021 Page 4/7
Data sheet | Item number: 232-866/045-000
www.wago.com/232-866_045-000
UL-Approvals
Logo
Approval
UR
Underwriters Laboratories Inc.
Additional Approval Text
UL 1059
Certificate
name
E45172
UR
Underwriters Laboratories Inc.
UL 1977
20130906-
E45171
Counterpart
Item no.731-636
1-conductor male connector; 2.5 mm²; Pin spacing 7.62 mm; 6-pole; 2,50 mm²; orange
www.wago.com/731-636
Compatible products
check
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable; red
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable; yellow
Item no.: 231-662
Test plugs for female connectors; for 7.5 mm and 7.62 mm pin spacing; 2,50 mm²; light gray
Marking accessories
Item no.: 210-833
Marking strips; on reel; 6 mm wide; plain; Self-adhesive; white
Item no.: 210-834
Marking strips; on reel; 5 mm wide; plain; Self-adhesive; white
www.wago.com/210-833
www.wago.com/210-136
www.wago.com/210-137
www.wago.com/231-662
www.wago.com/210-834
Downloads
Documentation
Additional Information
Technical explanations
2019 Apr 3
pdf
2.0 MB
Download
CAD/CAE-Data
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
