2SA1812T100Q: Descriptiontransistors bipolar - bjt pnp 400v 0.5A; CategoryDiscrete semiconductor The transistor; File Size27KB，1 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2SA1812T100Q Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2SA1812T100Q	-	-	View	Buy Now

2SA1812T100Q Overview

transistors bipolar - bjt pnp 400v 0.5A

2SA1812T100Q Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Maximum collector current (IC)	0.5 A
Configuration	SINGLE
Minimum DC current gain (hFE)	82
JESD-30 code	R-PSSO-F3
JESD-609 code	e2
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Maximum power dissipation(Abs)	2 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN COPPER
Terminal form	FLAT
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

Transistors

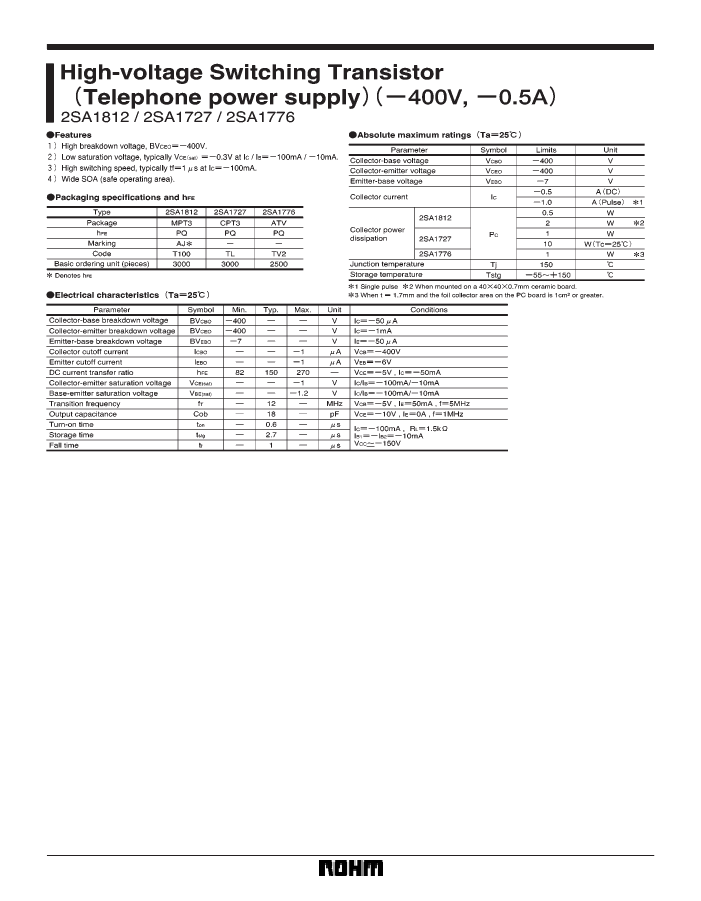

2SA1812 / 2SA1727 / 2SA1776

(96-609-A313)

320

2SA1812T100Q Related Products

	2SA1812T100Q	2SA1727TLP	2SA1776TV2Q	2SA1776TV2P
Description	transistors bipolar - bjt pnp 400v 0.5A	transistors bipolar - bjt pnp 400v 0.5A	transistor pnp 400v 0.5A atv	transistor pnp 400v 0.5A atv
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	_compli	compli	compli
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A	0.5 A
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	82	82	120	82
JESD-30 code	R-PSSO-F3	R-PSSO-G2	R-PSIP-T3	R-PSIP-T3
JESD-609 code	e2	e2	e1	e1
Number of components	1	1	1	1
Number of terminals	3	2	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	260	260	260
Polarity/channel type	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	2 W	10 W	1 W	1 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	NO	NO
Terminal surface	TIN COPPER	Tin/Copper (Sn98Cu2)	TIN SILVER COPPER	TIN SILVER COPPER
Terminal form	FLAT	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	10	10	10	10
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Base Number Matches	1	1	1	1
package instruction	-	CPT3, 3 PIN	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3
Contacts	-	3	3	3
ECCN code	-	EAR99	EAR99	EAR99
Collector-emitter maximum voltage	-	400 V	400 V	400 V
Nominal transition frequency (fT)	-	12 MHz	12 MHz	12 MHz
