2217-3643 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2217-3643

2217-3643: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Locking; CategoryThe connector The connector; File Size195KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

2217-3643 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Locking

2217-3643 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.339 inch
subject depth	0.457 inch
body length	3.74 inch
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
Contact style	RND PIN-SKT
DIN compliance	YES
Durability	200 Cycles
Manufacturer's serial number	2217
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	8u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	64
Base Number Matches	1

Preview

Download Datasheet

View All

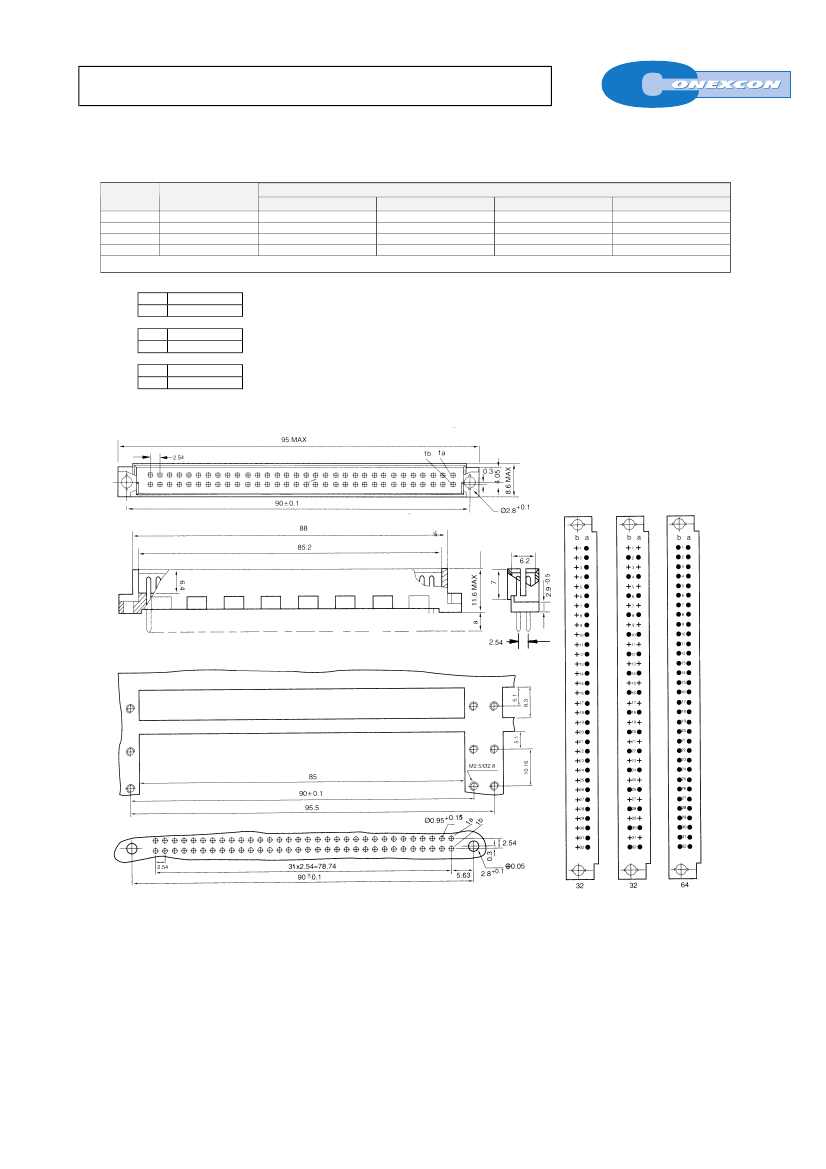

DIN 41612 EUROCARD CONNECTORS

SERIES.

2217 SERIES.

Vertical Male Type Q Connectors

Circuit Size

Configuration

a+b

Part Number

PCB Solder 4 mm

2217 –

T161

2217 –

T021

2217 –

T321

2217 –

T641

Wrap post tail length 13mm Wrap post tail length 17mm

2217 –

T163

2217 –

T167

2217 –

T023

2217 –

T027

2217 –

T323

2217 –

T327

2217 –

T643

2217 –

T647

Available with press-in contacts (Consult with the Sales Office)

0.30 x 0.63

PCB Solder

0.60 x 0.69

Wrap post

0.60 x 0.69

Wrap post

T = Plating and class connector

T =

0.20µ” over 1.27µ” Ni. 200 cycles class 2B

T =

0.38µ” over 1.27µ” Ni. 400 cycles class 2

T =

0.76µ” over 1.27µ” Ni. 500 cycles class 1

Unit: mm.

CONTACT ARRANGEMENT

RECOMMENDED HOLE PATTERN

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation

2217-3643 Related Products

	2217-3643	2217-3323
Description	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Locking	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.2 inch Pitch, Wire Wrap Terminal, Locking
Reach Compliance Code	unknow	unknown
body width	0.339 inch	0.339 inch
subject depth	0.457 inch	0.457 inch
body length	3.74 inch	3.74 inch
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	MALE
Contact style	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES
Durability	200 Cycles	200 Cycles
Manufacturer's serial number	2217	2217
Plug contact pitch	0.1 inch	0.2 inch
Match contact row spacing	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Loaded row name	A,B	A,B
PCB row number	2	2
Number of rows loaded	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm
Plating thickness	8u inch	8u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.512 inch	0.512 inch
Terminal pitch	2.54 mm	5.08 mm
Termination type	WIRE WRAP	WIRE WRAP
Total number of contacts	64	32
