2665S400000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2665S400000

2665S400000: DescriptionBoard Connector, 40 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket; CategoryThe connector The connector; File Size116KB，3 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric Compare View All

2665S400000 Overview

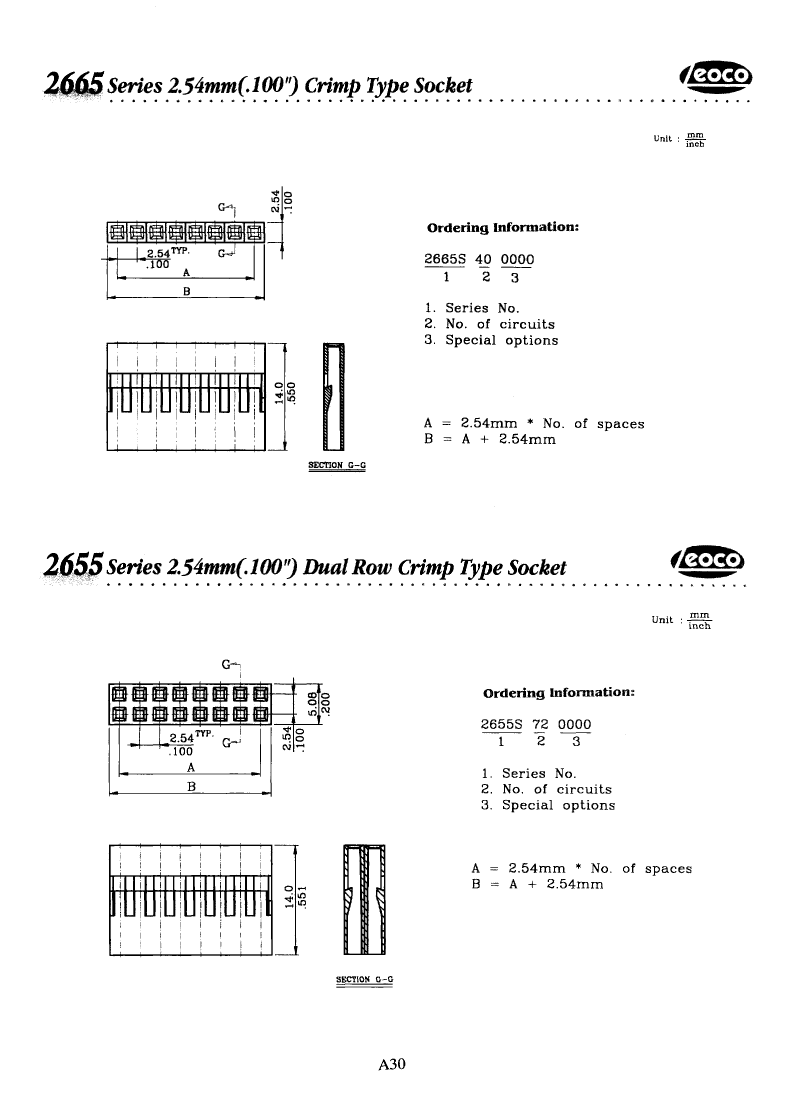

Board Connector, 40 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket

2665S400000 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99

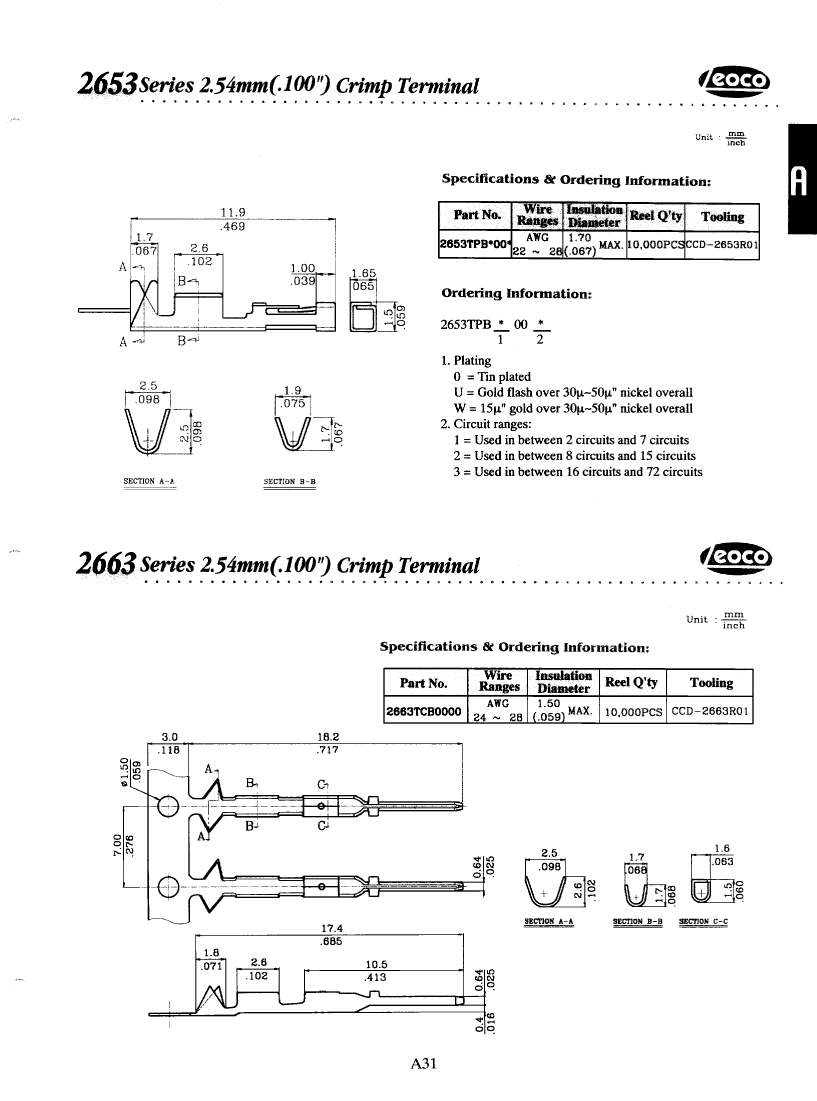

Other features	COMPATIBLE CONTACTS: 2663TCB0000; 2653TPB0001; 2653TPBU001; 2653TPBW001, POLARIZED
body width	0.1 inch
subject depth	0.55 inch
body length	4 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	60 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE OXIDE
MIL compliance	NO
Manufacturer's serial number	2665
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	40
UL Flammability Code	94V-1
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

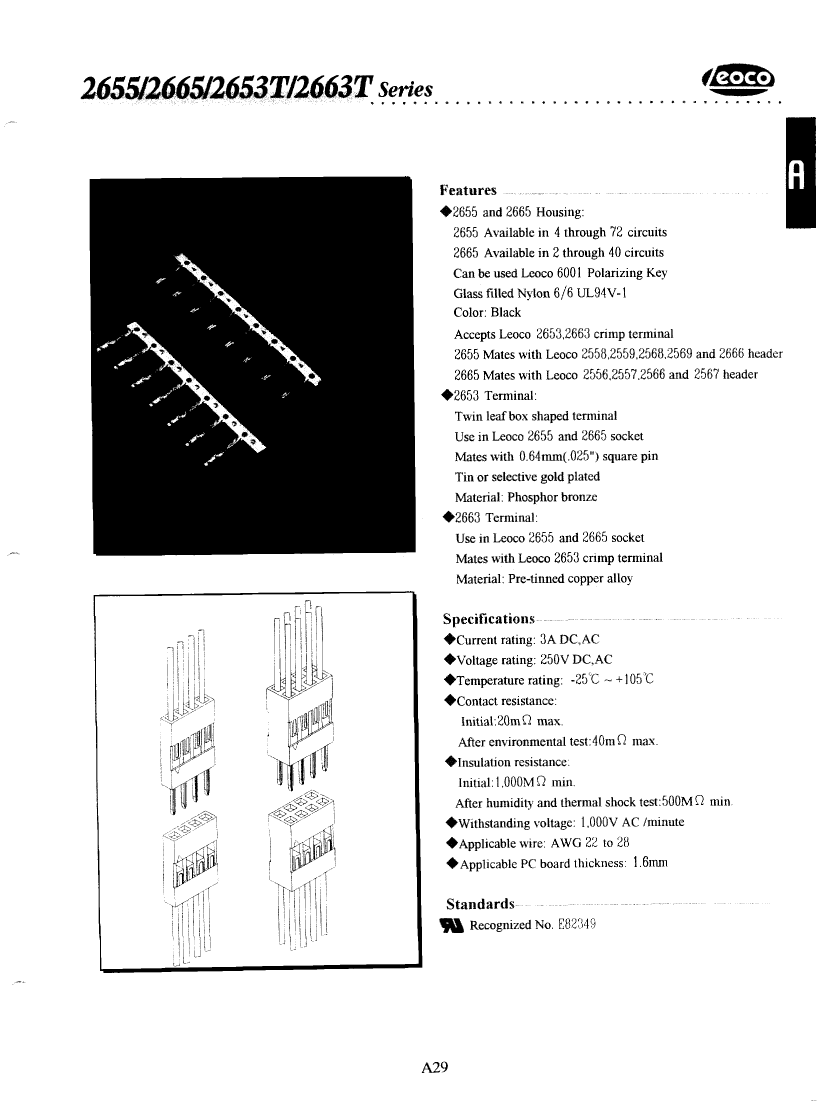

Preview

Download Datasheet

View All

2665S400000 Related Products

	2665S400000	2655S720000
Description	Board Connector, 40 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket	Board Connector, 72 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Black Insulator, Socket
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	COMPATIBLE CONTACTS: 2663TCB0000; 2653TPB0001; 2653TPBU001; 2653TPBW001, POLARIZED	COMPATIBLE CONTACTS: 2663TCB0000; 2653TPB0001; 2653TPBU001; 2653TPBW001, POLARIZED
body width	0.1 inch	0.2 inch
subject depth	0.55 inch	0.551 inch
body length	4 inch	3.598 inch
Body/casing type	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact point gender	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V
Durability	60 Cycles	100 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK
insulator material	POLYPHENYLENE OXIDE	POLYPHENYLENE OXIDE
MIL compliance	NO	NO
Manufacturer's serial number	2665	2655
Plug contact pitch	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation type	CABLE	CABLE
Number of rows loaded	1	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	3 A	3 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP
Total number of contacts	40	72
UL Flammability Code	94V-1	94V-1
Maximum wire diameter	22 AWG	22 AWG
Minimum wire diameter	28 AWG	28 AWG
Base Number Matches	1	1
