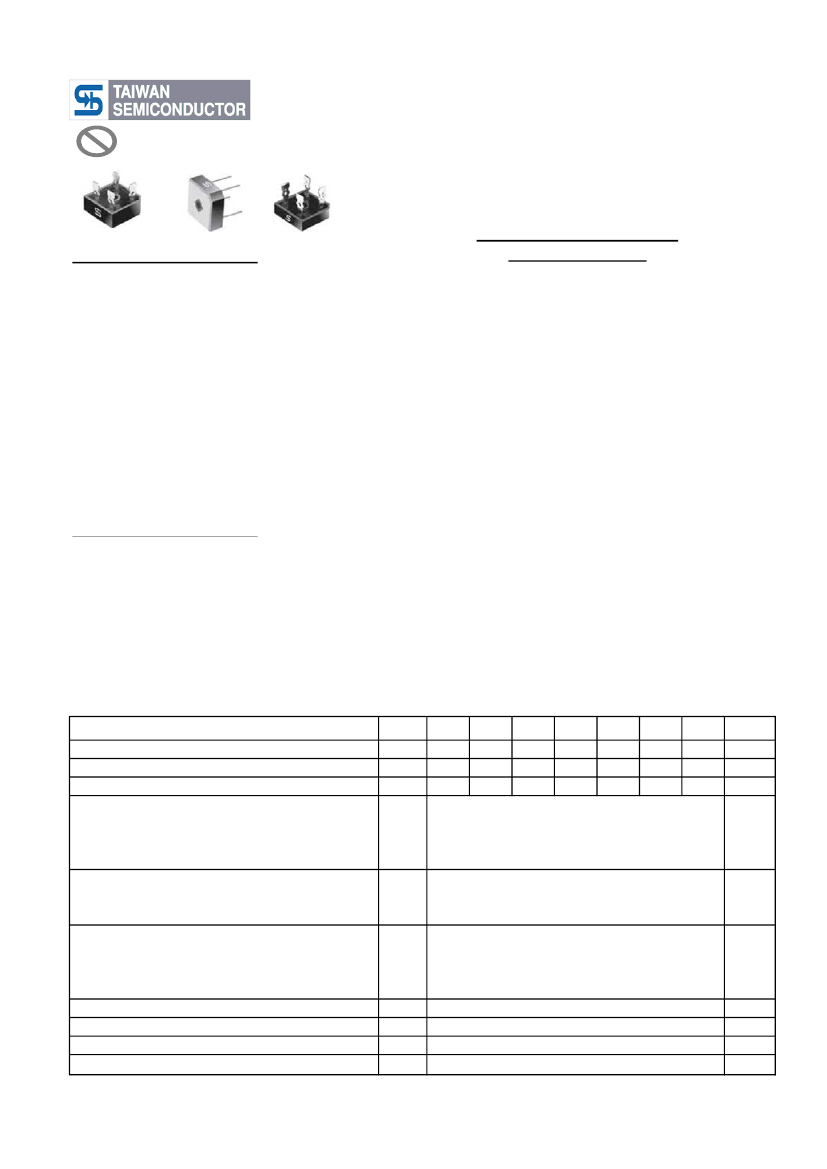

GBPC 15, 25, 35 SERIES
High Current 15, 25, 35 AMPS. Single Phase
Glass Passivated Bridge Rectifiers
Pb
RoHS
COMPLIANCE
GBPC, GBPC-W, GBPC-M
Features
UL Recoganized File # E-326243
The plastic material used carries Underwriters
Laboratory Flammability Classification 94V-0
Integrally molded heatsink provide very low
thermal resistance for maximum heat
dissipation
Surge overload ratings from 300 amperes to
400 amperes
Typical IR less than 0.2 uA
High temperature soldering guaranteed:
260℃/10 seconds at 5 lbs.,(2.3kg) tension
Green compound with suffix "G" on packing
code & prefix "G" on datecode

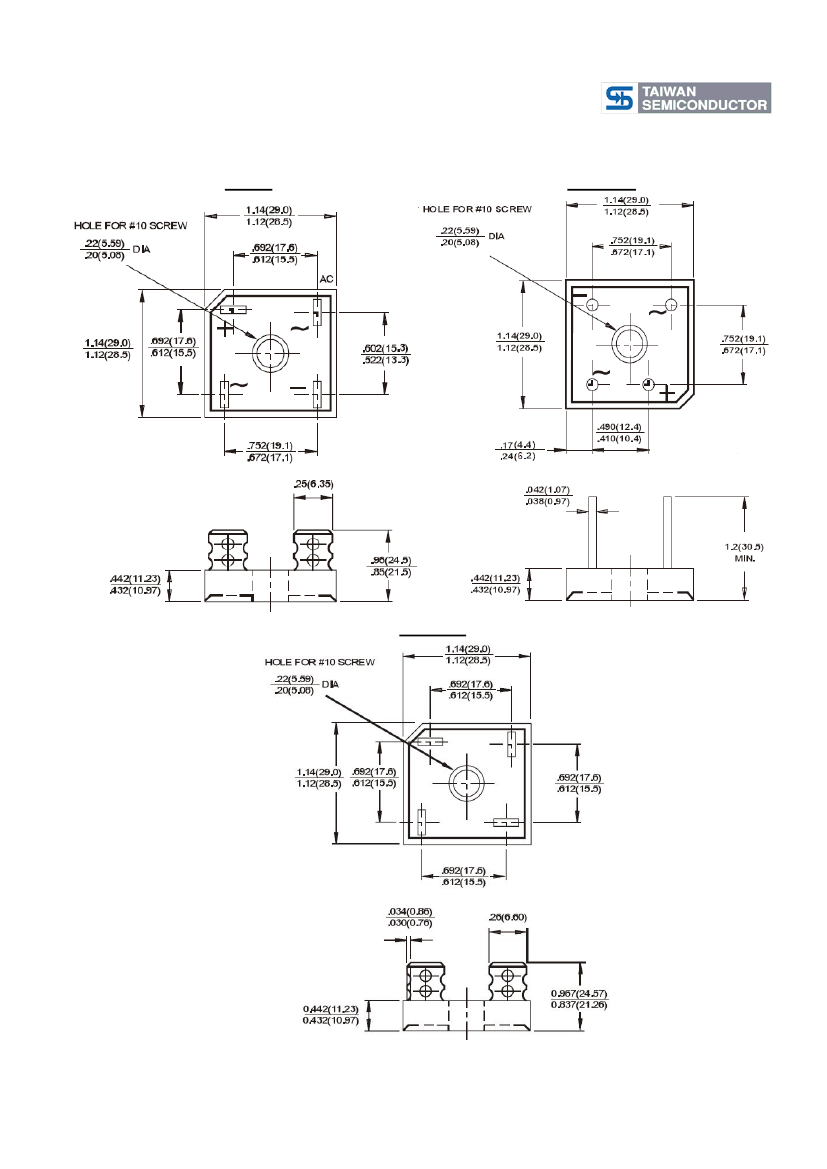

Dimensions in Page. 3
Mechanical Data
Case: Molded plastic body
Terminals: Pure tin plate, Lead free, leads
solderable per MIL-STD-202, Method 208
Weight: 16.95 grams
Mounting Torque : 20 in-lbs Max.
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current @T
C
=55℃
GBPC15
GBPC25
GBPC35
Peak Forward Surge Current,8.3 ms
Single Half Sine-wave Superimposed
on Rated Load (JEDEC method)
Maximum Instantaneous
Forward Voltage Drop Per
Element at Specified Current
(Note 1)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1 : Pulse Test with PW=300 usec, 1% Duty Cycle
GBPC15
GBPC25
GBPC35
Symbol
V
RRM
V
RMS
V
DC
-005
50
35
50
-01
100
70
100
-02
200
140
200
-04
400
280
400
15
25
35
300
-06
600
420
600
-08
800
560
800
-10
1000
700
1000
Unit
V
V
V
I
F(AV)
A
I
FSM
300
400
A
GBPC15 7.5A
GBPC25 12.5A
GBPC35 17.5A
V
F
1.1
V
Maximum Reverse Current @ Rated VR
I
R
R
θjC
T
J
T
STG
5
1.5
- 55 to + 150
- 55 to + 150
O
uA
C/W
O
O
C
C
Note 2 : Suffix "W" - Wire Lead Structure/"M" - Terminal Location Face to Face
Version:H11
(GBPC15005 THRU GBPC1510)

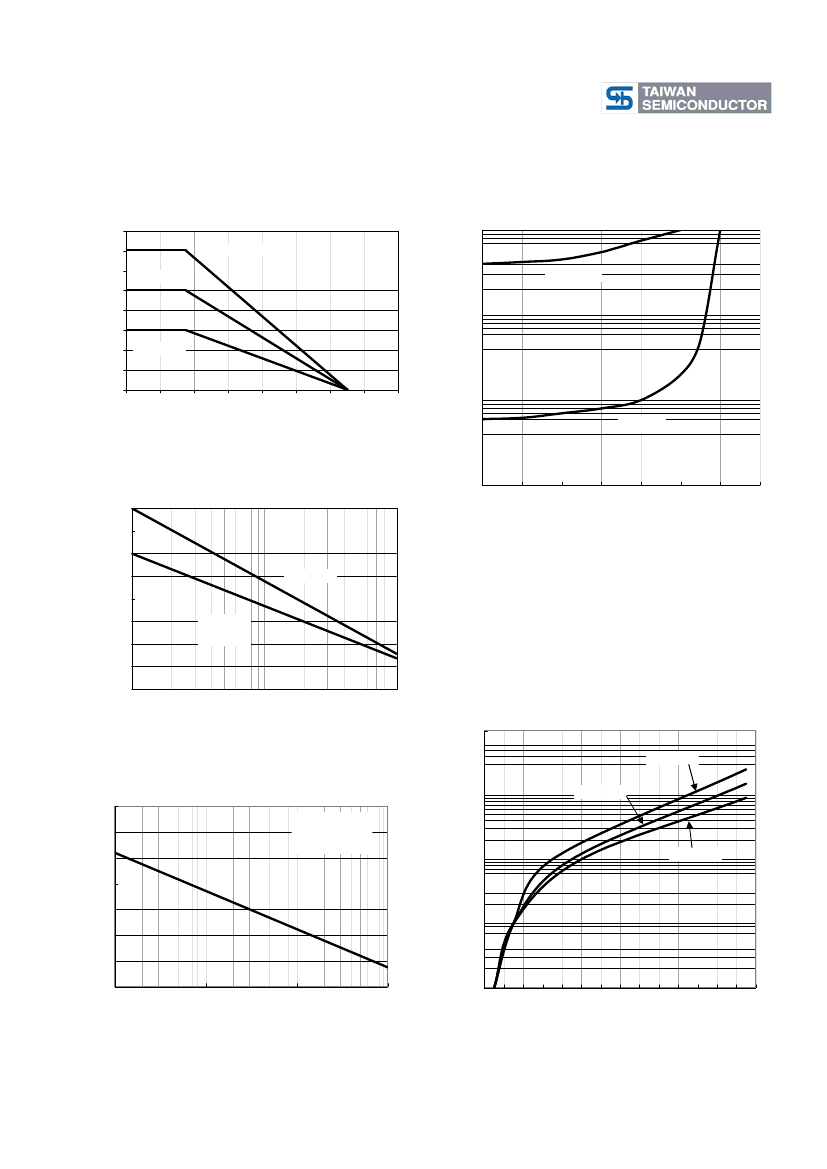

RATINGS AND CHARACTERISTIC CURVES (GBPC25005 THRU GBPC2510)
(GBPC35005 THRU GBPC3510)
FIG.1 FORWARD CURRENT DERATING CURVE
40
AVERAGE FORWARD CURRENT
(A)
35
30
25
20
15
10
5
0
20
40
60
80
100
120
140
o
CASE TEMPERATURE ( C)
160
180
GBPC15
GBPC25
GBPC35
INSTANTANEOUS REVERSE CURRENT (uA)
TA=125℃
100
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
PER BRIDGE ELEMENT
10
1
TA=25℃
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT PER BRIDGE ELEMENT
400
PEAK FORWARD SURGE CURRENT
(A)
350
300
250
200
150
100
50
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
GBPC15
GBPC25
GBPC35
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 5 TYPICAL FORWARD CHARACTERISRICS
PER BRIDGE ELEMENT
1000
INSTANTANEOUS FORWARD CURRENT (A)
GBPC35
GBPC25
FIG. 4 TYPICAL JUNCTION CAPACITANCE
700
J UNCTION CAPACITANCE (pF)
A
600
500
400
300
200
100
0
0.1
1
10
100
REVERSE VOLTAGE (V)
TA=25℃
f=1.0MHz
Vsig=50mVp-p
100
10
GBPC15
1
0.1
0.6 0.7 0.8 0.9
1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9
FORWARD VOLTAGE (V)
2
