2M6.8Z - 2M200Z
2.0 Watts Glass Passivated Junction
Silicon Zener Diodes
DO-15
Pb
RoHS
COMPLIANCE
Features
Plastic package has Underwriters
Laboratory Flammability Classification 94V-0
Typical I
R
less than 1uA
High temperature soldering guaranteed:
260℃ / 10 seconds/ .375", (9.5mm) lead length
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Case: DO-15
Terminals: Pure tin plated, lead free,
solderable per MIL-STD-750, method 2026
Polarity: Indicated by cathode band
Weight: 0.4 grams

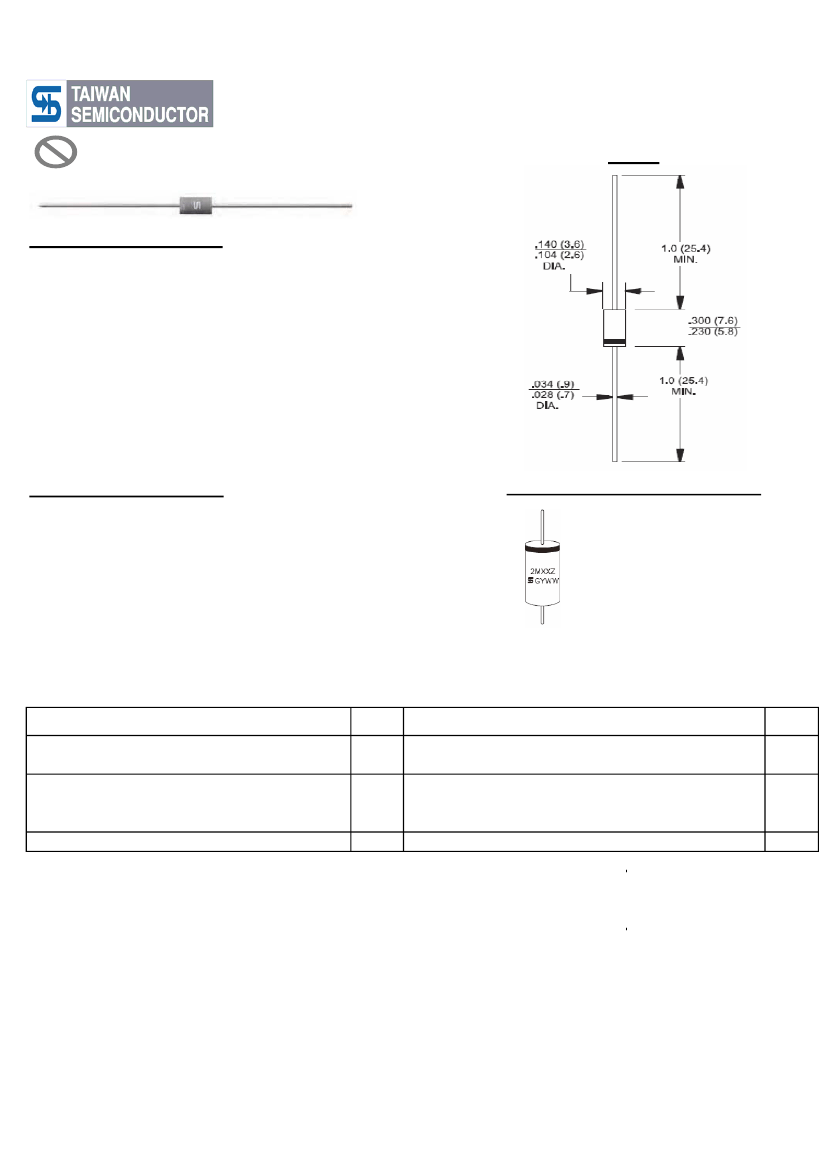

Dimensions in inches and (millimeters)
Marking Diagram
2MXXZ = Specific Device Code
G
Y
WW
= Green Compound
= Year
= Work Week
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Steady State Power Dissipation at T
L
=75℃
Lead Lengths .375", 9.55mm (Note 1)
Peak Forward Surge Current, 8.3ms Single Half
Sine-wave Superimposed on Rated Load
(JEDEC method) (Note 2)
Operating and Storage Temperature Range
Symbol
P
D
Value
2.0
Units
Watts
I
FSM
T
J
, T
STG
15
-55 to +175
Amps
℃
Note 1: Mount on Cu-Pad size 10mm x 10mm x 1.6mm on PCB
Note 2: Measured on 8.3ms Single half Sine-Wave of equivalent square wave, duty cycle= 4 pulse per minute maximum
Version:G10
ELECTRICAL CHARACTERISTICS (TA=25℃ unless otherwise noted)
Device
(Notes 1)
2M6.8Z
2M11Z
2M12Z
2M13Z
2M14Z
2M15Z
2M16Z
2M17Z
2M18Z
2M19Z
2M20Z
2M22Z
2M24Z
2M27Z
2M30Z
2M33Z
2M36Z
2M39Z
2M43Z
2M47Z
2M51Z
2M56Z
2M62Z
2M68Z
2M75Z
2M82Z
2M91Z
2M100Z
2M110Z
2M120Z
2M130Z
2M140Z
2M150Z
2M160Z
2M170Z
2M180Z
2M190Z
2M200Z
Nominal Zener
Voltage (Notes 2)
V
Z
@ I
ZT
V
6.8
11
12
13
14
15
16
17
18
19
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
140
150
160
170
180
190
200
Test
Current
I
ZT
mA
100
45.5
41.5
38.5
35.7
33.4
31.2
29.4
27.8
26.3
25.0
22.8
20.8
18.5
16.6
15.1
13.9
12.8
11.6
10.6
9.8
9.0
8.1
7.4
6.7
6.1
5.5
5.0
4.5
4.2
3.8
3.6
3.3
3.1
2.9
2.8
2.6
2.5
Maximum Zener Impedance (Notes 3)
Z
ZT
@ I
ZT
Ω
1.5
4.0
4.5
5.0
5.5
7.0
8.0
9.0
10
11
11
12
13
18
20
23
25
30
35
40
48
55
60
75
90
100
125
175
250
325
400
500
575
650
675
725
825
900
Z
ZK
@ I
ZK
Ω
200
700
700
700
700
700
700
750
750
750
750
750
750
750
1000
1000
1000
1000
1500
1500
1500
2000
2000
2000
2000
3000
3000
3000
4000
4500
5000
5500
6000
6500
7000
7000
8000
8000
I
ZK
mA
1.00
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
uA
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Leakage Current
I
R
@ V
R
V
5.5
8.4
9.1
9.9
10.6
11.4
12.2
13.0
13.7
14.4
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56.0
62.2
69.2
76.0
83.6
91.2
98.8
106.4
114.0
121.6
130.4
136.8
144.8
152.0
Maximum Zener
Current
I
ZM
mA
246
166
152
138
130
122
114
107
100
95
90
82
76
68
60
55
50
47
43
39
36
32
29
27
24
22
20
18
17
15
14
13
12
11
11
10
10
9
Notes:
1. TOLERANCES - Standard Voltage tolerance = ±5%, tolerances may be considered as a special device
2. ZENER VOLTAGE(V
Z
) MEASUREMENT - Zener voltage guaranteed when measured at 0.375"(9.5mm) from the
body under 40ms ±10ms current pulse and ambient temperature of 25℃
3. ZENER IMPEDANCE (Z
Z
) DERIVATION - The zener impedance is derived from 60 cycles AC voltage, which results when
an current having an rms value eqal to 10% of the DC zener current (I
T
or I
ZK
) is superimposed on I
ZT
or I
ZK
Z
4. MAXIMUM ZENER CURRENT (I
ZM
) NON-REPETITIVE - The rating listed in the electrical characteristics table is maximum peak
non - repetitive reverse surge current of 1/2 sine wave of 1/120 second duration or equivalent square wave, superimposed
on the test current I
ZT
, per JEDEC standard.
Version:G10

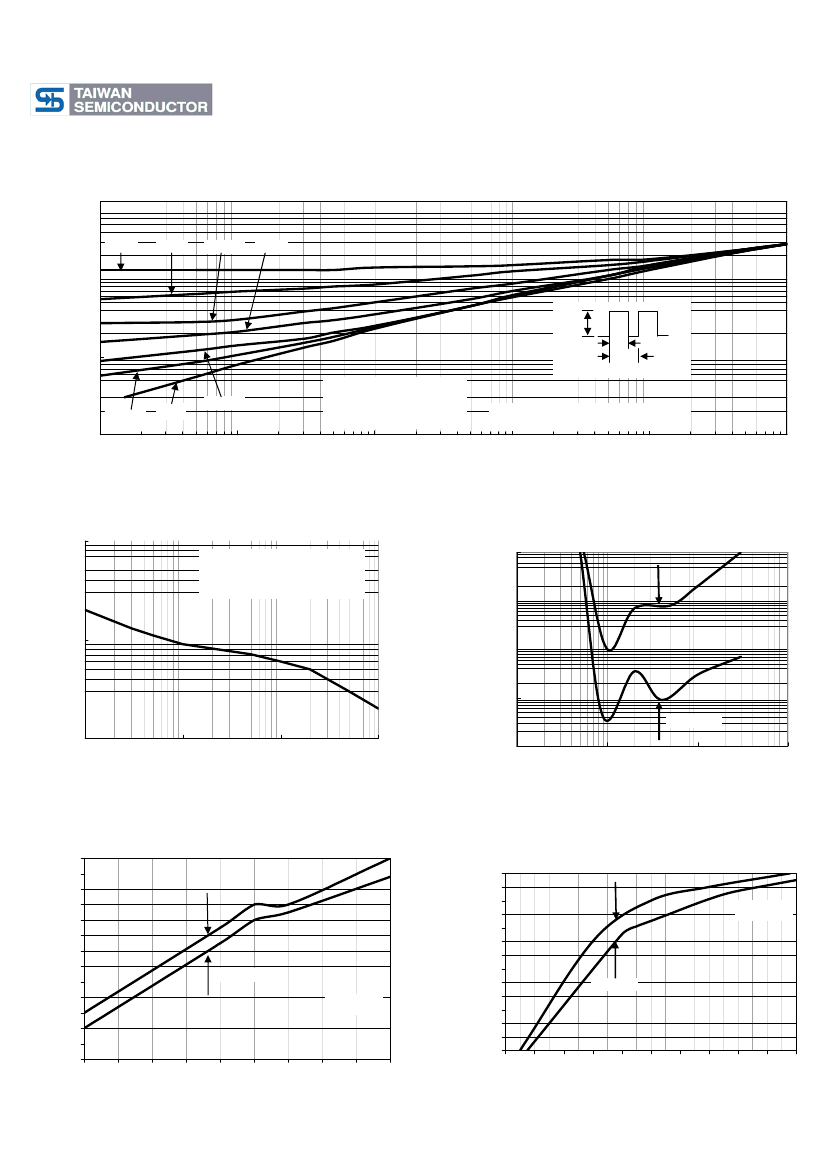

RATINGS AND CHARACTERISTIC CURVES (2M6.8Z THRU 2M200Z)
FIG. 1- TYPICAL THERMAL RESPONSE
100
ΘJL(t,D)TRANSIENT
THERMAL RESISTANCE
JUNCTION-TO-LEAD(
℃
/W)
D=0.5
D=0.2
D=0.05
D=0.1
10
PPK
1
NOTE BELOW 0.1 SECOND,
THERMAL RESPONSE
CURVE IS APPLICABLE TO
ANY LEAD LENGTH(L)
t1
t2
DUTY CYCLE D=t1/t2
D=0.01
D=0
D=0.02
0.1
0.01
0.1
1
PW, PULSE WIDTH, (mS)
SINGLE PULSE
△TJL=ΘJL(1)PPK
REPETITIVE PULSE
△TJL=ΘJL(1,D)PPK
10
100
1000
FIG. 2- MAXIMUM SURGE POWER
RECTANGULAR NONREPETITIVE
WAVEFORM T
A
=25℃ PRIOR TO
INITIAL PULSE
IR, REVERSE LEAKAGE (uAdc)
@VR AS SPECIFIED IN ELEC.CHAR, TABLE
A
FIG. 3- TYPICAL REVERSE LEAKAGE
1
1000
Ppk, PEAKSURGE POWER(WATTS)
0.1
100
0.01
0.001
RANGE
10
0.1
1
10
100
0.0001
1
10
100
1000
NORMAL Vz (VOLTS)
PW, PULSE WIDTH (ms)
FIG.4- UNIT 6.8 TO 12 VOLTS
8
FIG.5 UNIT 13 TO 200 VOLTS
8
7
6
5
4
3
2
1
0
-1
-2
-3
-4
-5
0
20
40
60
Vz, TEMPERATURE COEFFICIENT
(mC/
℃
) @Izt
Vz, TEMPERATURE COEFFICIENT
(mC/
℃
) @Izt
7
6
5
4
3
2
1
0
-1
-2
-3
-4
-5
3
4
5
6
7
8
9
10
V
z
, ZENER VOLTAGE @IZT (VOLTS)
11
12
RANGE
V
Z
@ I
ZT
V
Z
@ I
ZT
RANGE
80
100
120
140
160
180
200
V
z
, ZENER VOLTAGE @IZT (VOLTS)
Version:G10

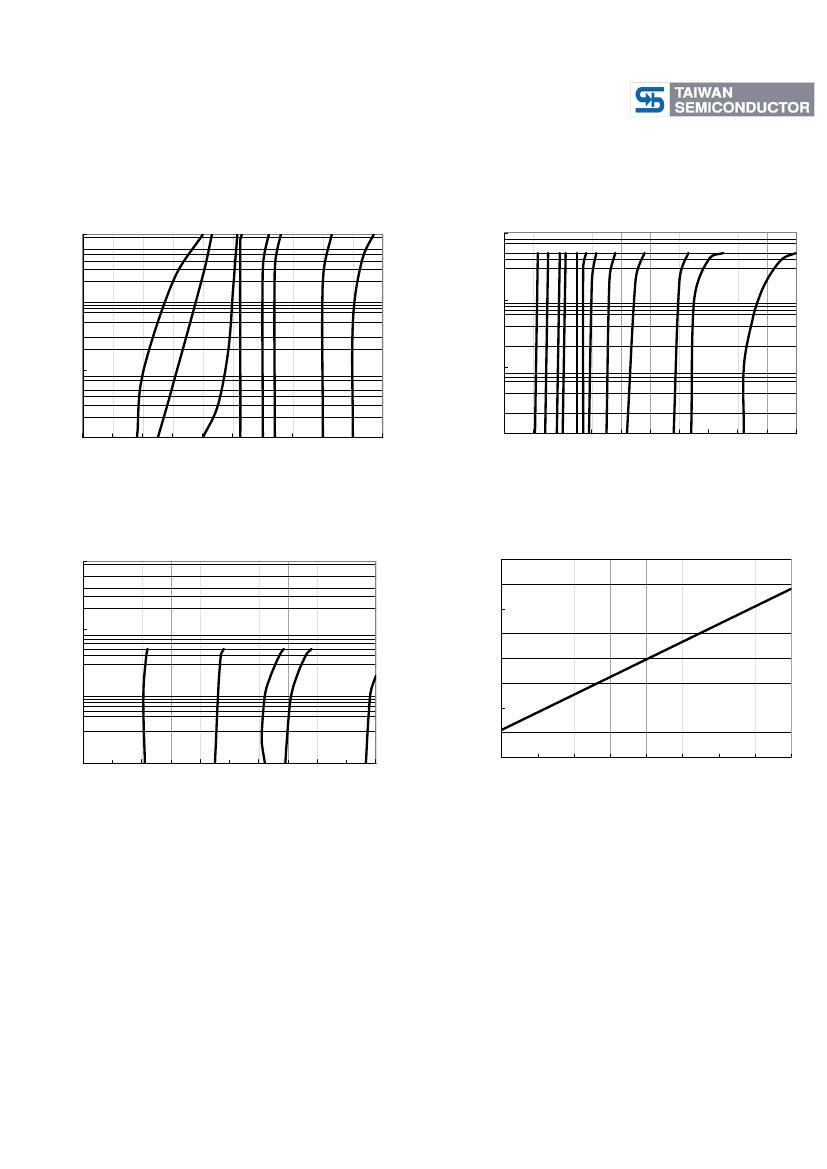

RATINGS AND CHARACTERISTIC CURVES (2M6.8Z THRU 2M200Z)
FIG. 6- Vz = 6.8 THRU 10 VOLTS
100
100
FIG. 7- Vz = 11 THRU 91 VOLTS
I
Z
, ZENER CURRENT (mA)
I
Z
, ZENER CURRENT (mA)
10
10
1
1
0.1
0
1
2
3
4
5
6
7
8
9
10
Vz, ZENER VOLTAGE (VOLTS)
0.1
0
10
20
30
40
50
60
70
80
90
100
Vz, ZENER VOLTAGE (VOLTS)
FIG. 8- Vz = 100 THRU 200 VOLTS
100
80
70
JL, JUNCTION-LEAD THERMAL
RESISTANCE(
℃
/W)
I
Z
, ZENER CURRENT (mA)
60
50
40
30
20
10
0
100
120
140
160
180
200
0
0.125
FIG. 9- TYPICAL THERMAL RESISTANCE
10
1
0.1
Vz, ZENER VOLTAGE (VOLTS)
0.25
0.375
0.5
0.625
0.75
0.875
1
L, LEAD LENGTH TO HEAT SINK (INCH)
Version:G10
