2SC2712-GR(TE85L,F

Description
transistors bipolar - bjt 150ma 50v
CategoryDiscrete semiconductor    The transistor
File Size262KB,6 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Environmental Compliance
Download Datasheet Parametric View All

2SC2712-GR(TE85L,F Overview

transistors bipolar - bjt 150ma 50v

2SC2712-GR(TE85L,F Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionSMALL OUTLINE, R-PDSO-G3
Reach Compliance Codeunknow
Other featuresLOW NOISE
Maximum collector current (IC)0.15 A
Collector-emitter maximum voltage50 V
ConfigurationSINGLE
Minimum DC current gain (hFE)200
JESD-30 codeR-PDSO-G3
Number of components1
Number of terminals3
Maximum operating temperature125 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Maximum power dissipation(Abs)0.15 W
surface mountYES
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)80 MHz
Base Number Matches1

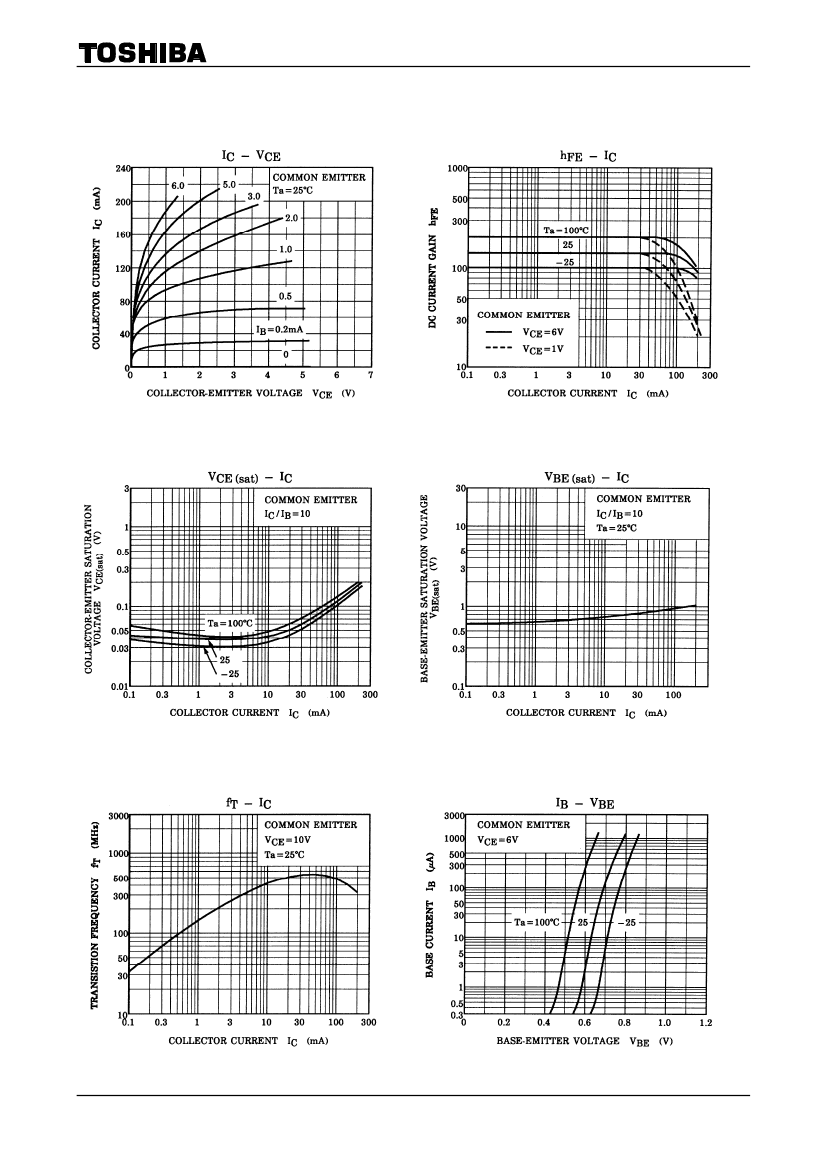

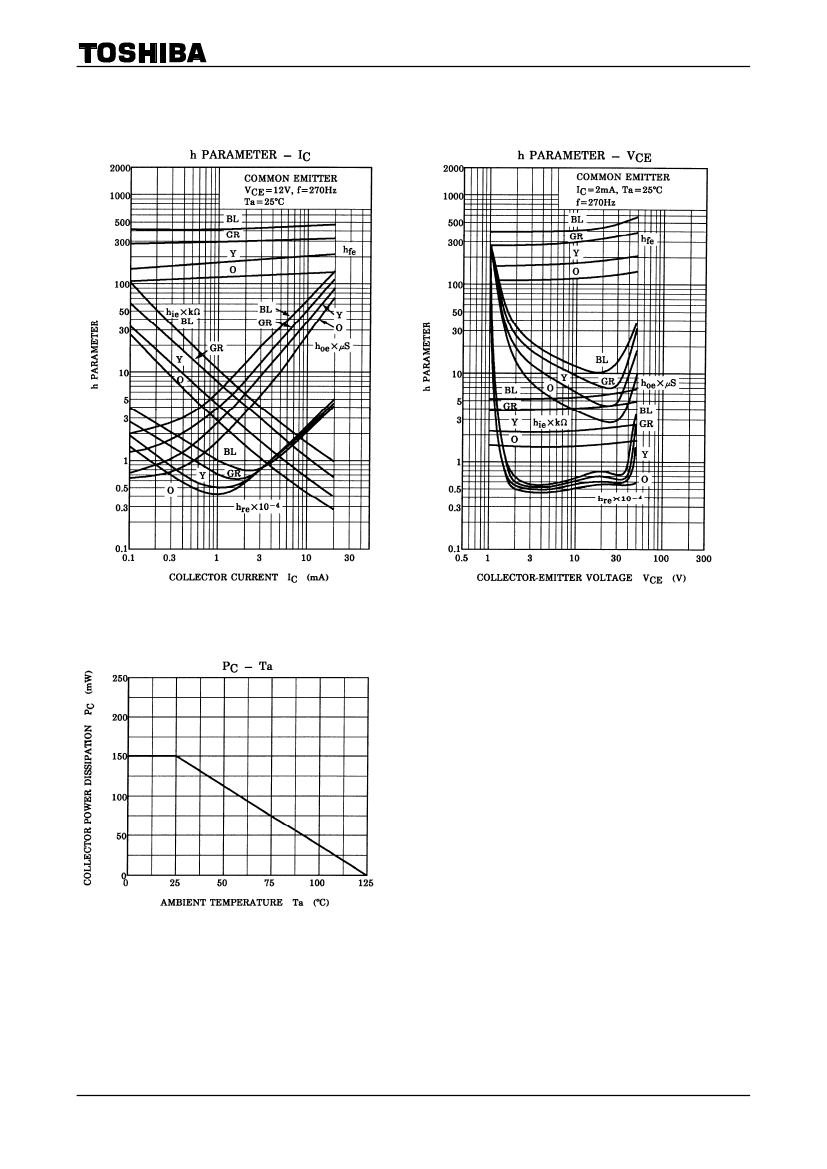

2SC2712
TOSHIBA Transistor
Silicon NPN Epitaxial Type (PCT process)
2SC2712
Audio Frequency General Purpose Amplifier Applications
High voltage and high current: V
CEO
= 50 V, I
C
= 150 mA (max)
Excellent h
FE
linearity : h
FE
(I
C
= 0.1 mA)/ h
FE
(I
C
= 2 mA)
= 0.95 (typ.)
High h
FE:
h
FE
= 70~700
Low noise: NF = 1dB (typ.), 10dB (max)
Complementary to 2SA1162
Small package

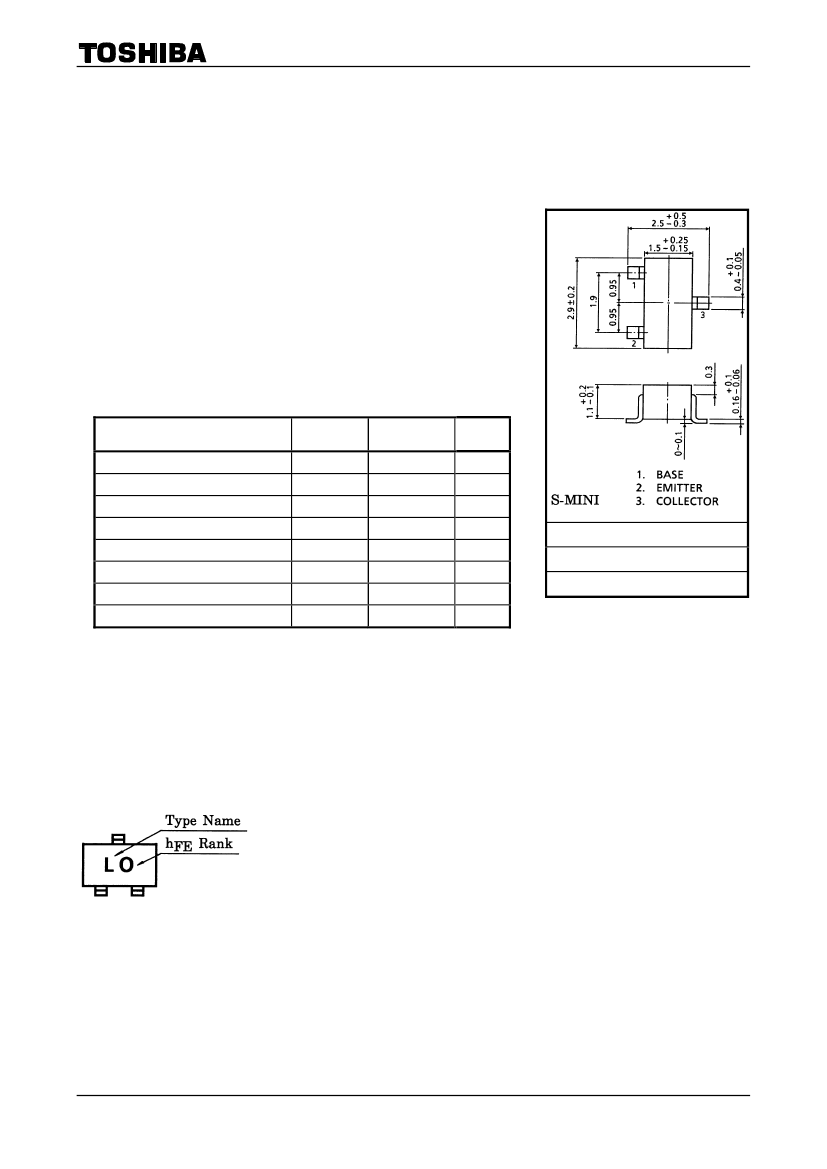

Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
60
50
5
150
30
150
125
−55~125
Unit
V
V
V
mA
mA
mW
°C
°C
JEDEC
JEITA
TOSHIBA
TO-236MOD
SC-59
2-3F1A
Weight: 0.012 g (typ.)
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in temperature, etc.) may cause this product to
decrease in the reliability significantly even if the operating conditions (i.e. operating
temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Marking
1
2007-11-01
