2421P09H000 datasheet, PDF - EEWORLD Datasheet

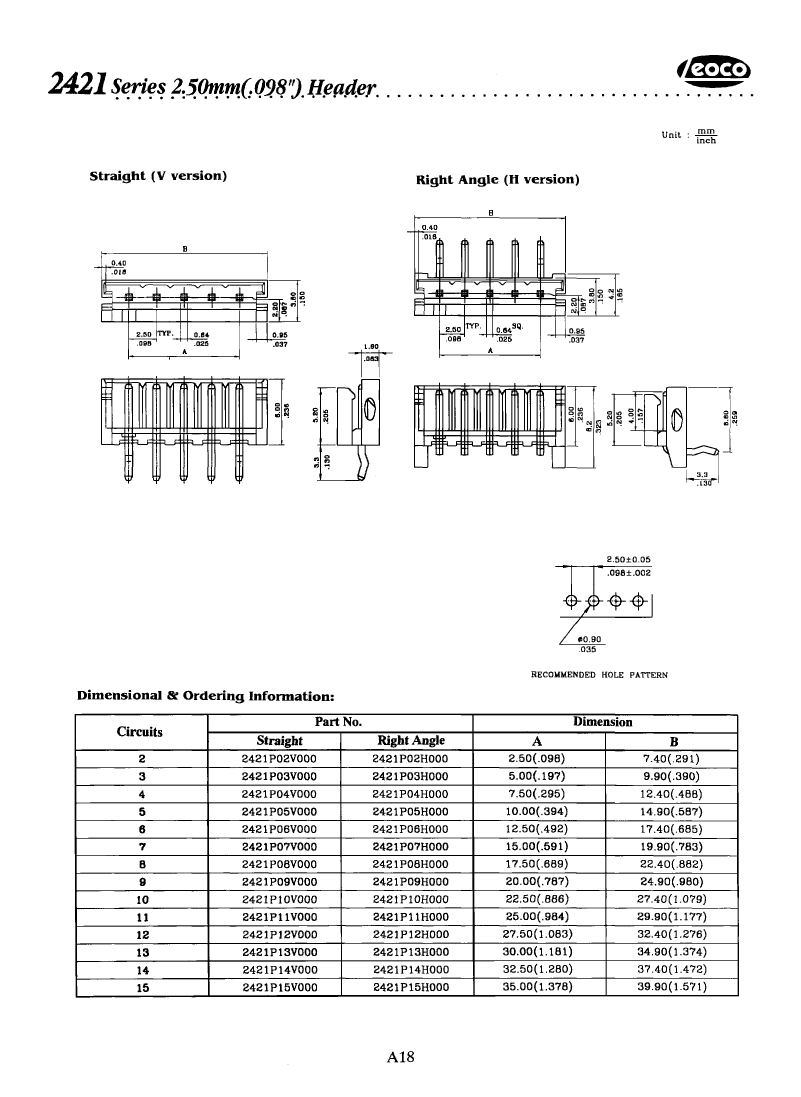

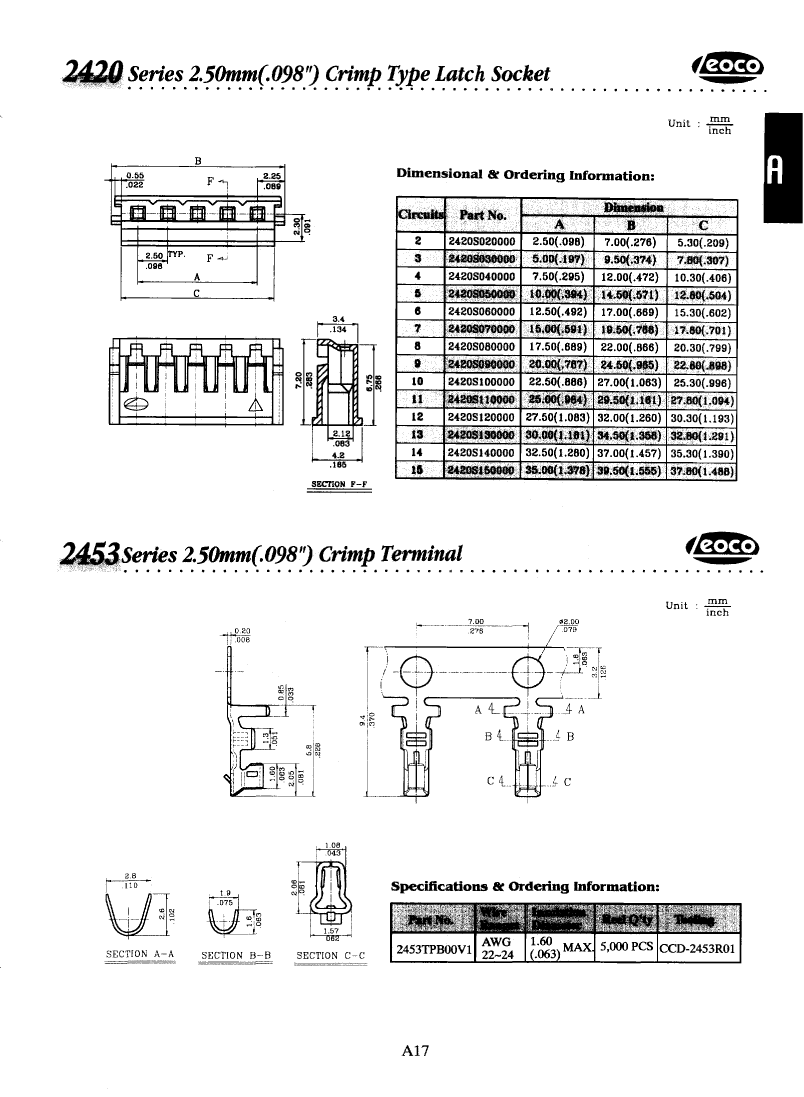

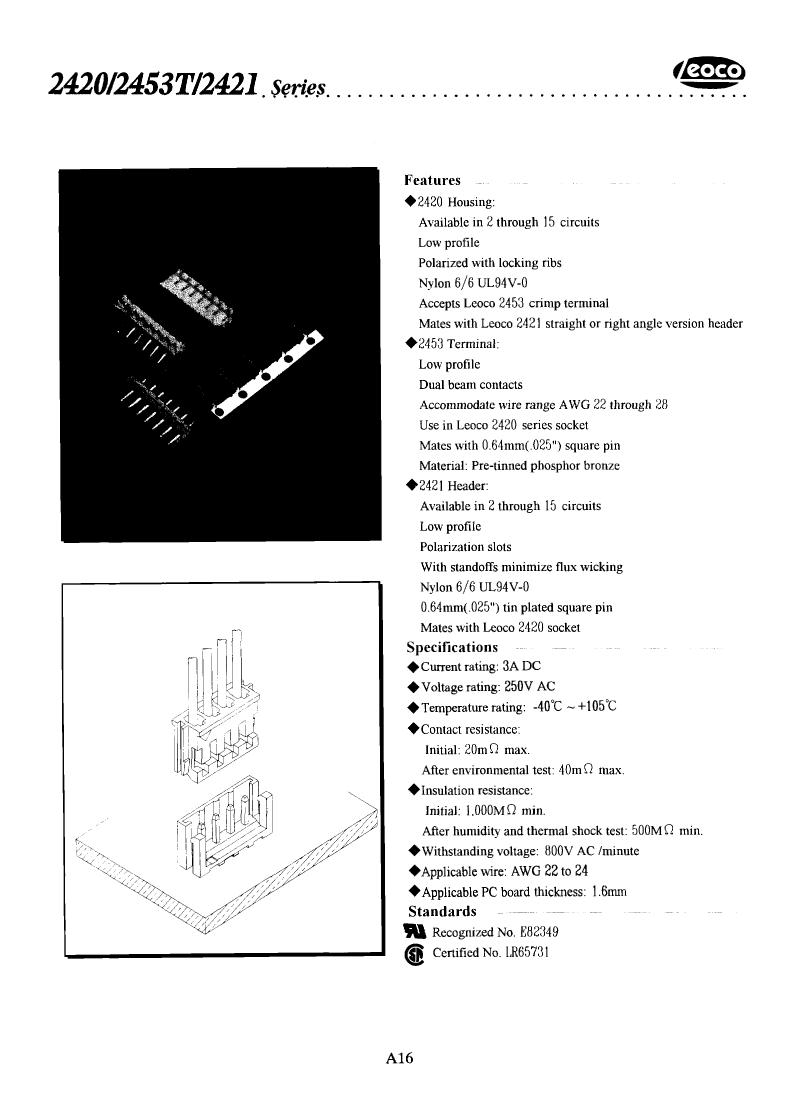

2421P09H000: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle; CategoryThe connector The connector; File Size173KB，3 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

2421P09H000 Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW PROFILE, POLARIZED
body width	0.165 inch
subject depth	0.323 inch
body length	0.982 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	800VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	2421
Plug contact pitch	0.098 inch
Plug information	2420S090000
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	120u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1
