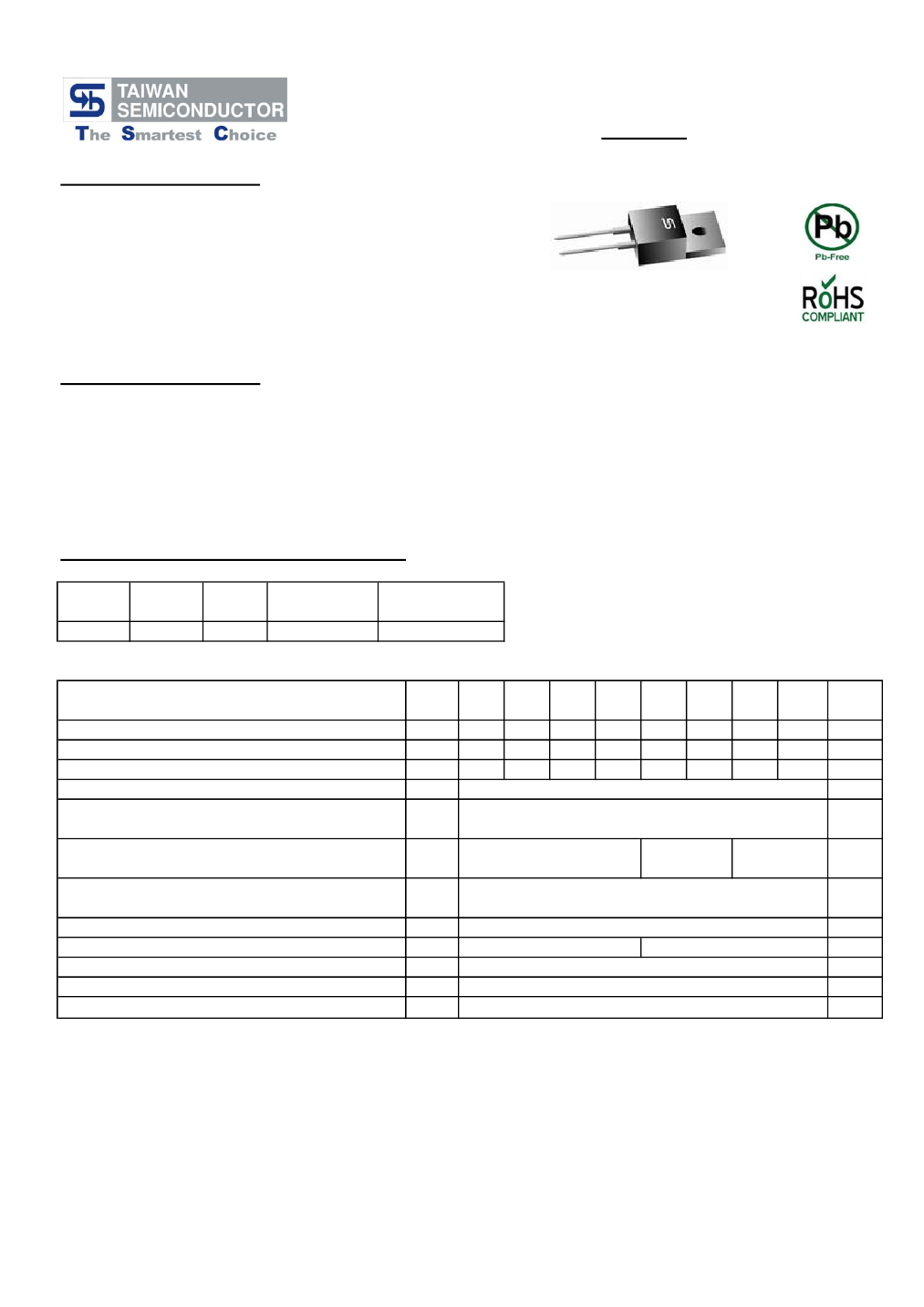

SFA1001G - SFA1008G
10.0AMPS Glass Passivated Super Fast Rectifier
TO-220AC
Features
High efficiency, low VF
High current capability
High reliability
High surge current capability
Low power loss
For use in low voltage, high frequency inverter,
Free wheeling, and polarity protection application
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data

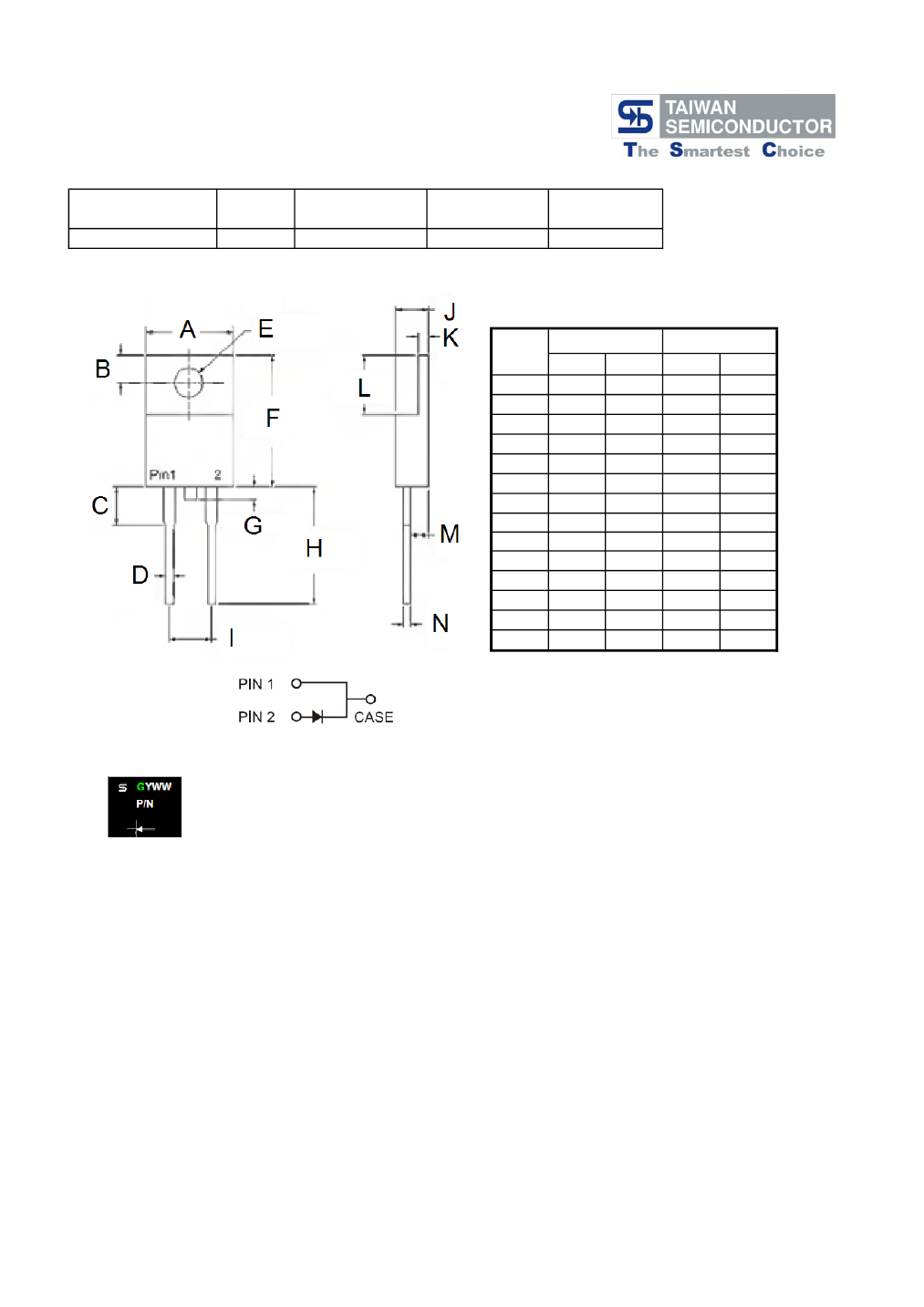

Case: TO-220AC Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Terminals: Pure tin plated, lead free, solderable
per MIL-STD-202, Method 208 guaranteed
Polarity: As marked
High temperature soldering:
260℃/10 seconds/.16",(4.06mm) from case
Weight: 1.9 grams
Ordering Information(example)
Part No.
Package
Packing
Packing code
C0
Packing code
(Green)
C0G
SFA1001G TO-220AC 50 / TUBE
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@ 10 A
Maximum Reverse Current @ Rated VR
T
A
=25
℃
T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θjC
T
J
T
STG
SFA
SFA
SFA
SFA
SFA
SFA
SFA
SFA
1001G 1002G 1003G 1004G 1005G 1006G 1007G 1008G
50
35
50
100
70
100
150
105
150
200
140
200
10
125
0.975
10
400
35
70
3.5
- 65 to + 150
- 65 to + 150
50
1.3
1.7
300
210
300
400
280
400
500
350
500
600
420
600
Unit
V
V
V
A
A
V
uA
nS
pF
O
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
C/W
O
O
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:H13

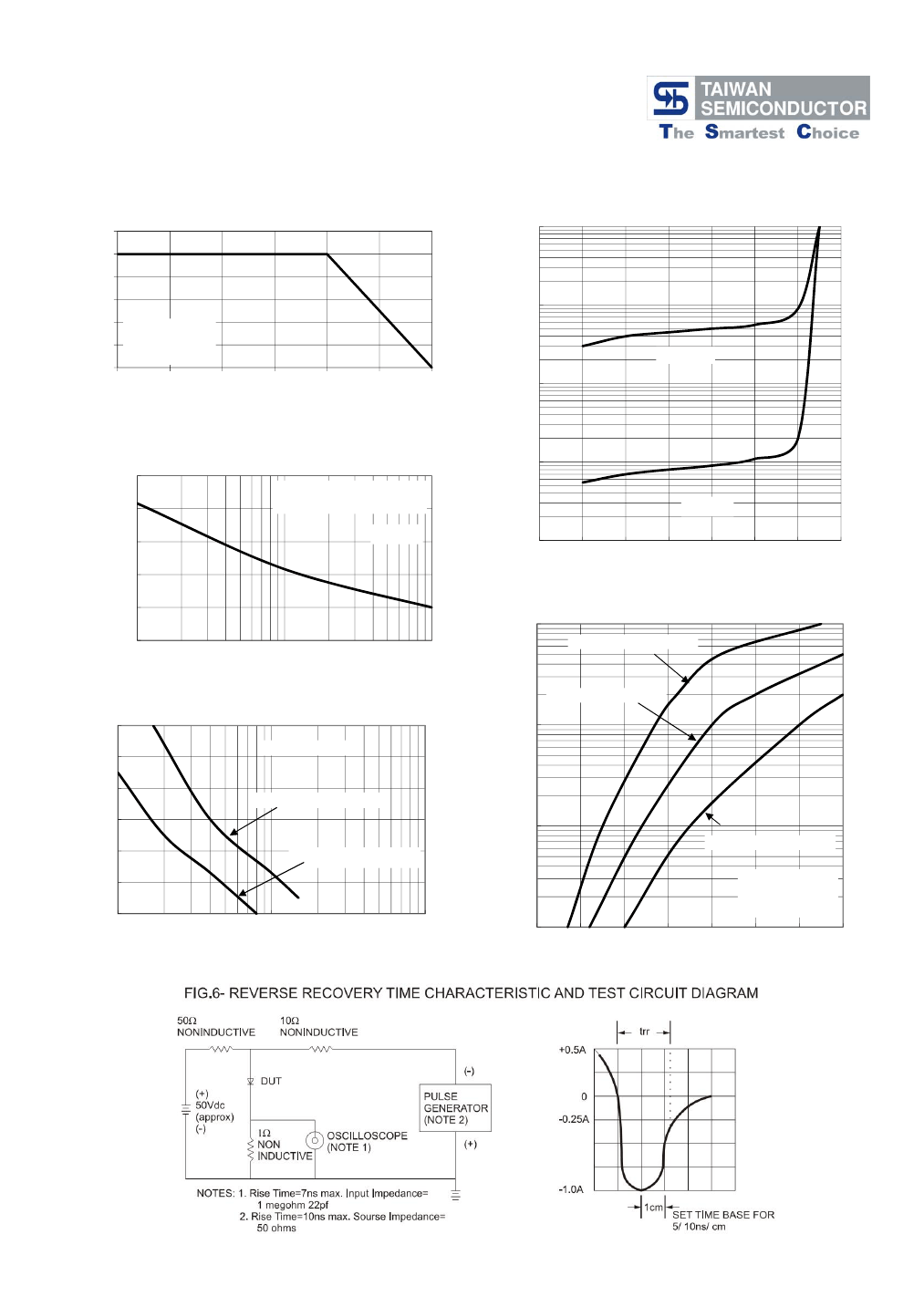

RATINGS AND CHARACTERISTIC CURVES (SFA1001G THRU SFA1008G)
FIG.1 FORWARD CURRENT DERATING CURVE
12
AVERAGE FORWARD
A
CURRENT (A)
10
8
INSTANTANEOUS REVERSE CURRENT(uA)
6
4
2
0
0
25
50
75
100
125
150
RESISTIVE OR
INDUCTIVELOAD
WITH HEATSINK
100
1000
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
TA=100℃
10
CASE TEMPERATURE (
o
C)
PEAK FORWARD SURGE CURRENT
(A)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
150
120
90
60
30
1
8.3mS Single Half Sine Wave
JEDEC Method
TA=25℃
TA=25℃
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 5 TYPICAL FORWARD CHARACTERISTICS
100
SFA1001G-SFA1004G
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4 TYPICAL JUNCTION CAPACITANCE
100
90
CAPACITANCE (pF)
80
SFA1005G-SFA1006G
10
TA=25℃
SFA1001G-SFA1004G
70
60
50
40
1
10
REVERSE VOLTAGE (V)
100
1
SFA1007G-SFA1008G
TA=25℃
Pulse Width=300us
1% Duty Cycle
SFA1005G-SFA1008G
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
