QTCH HIGH TEMPERATURE MINIATURE SMD OSCILLATORS
Description
Q-TECH
CORPORATION
5 x 7mm, 3.2 x 5mm, 2.5 x 3.2mm, SMD UP TO 200ºC
2.5Vdc and 3.3Vdc - 32.768 kHz*

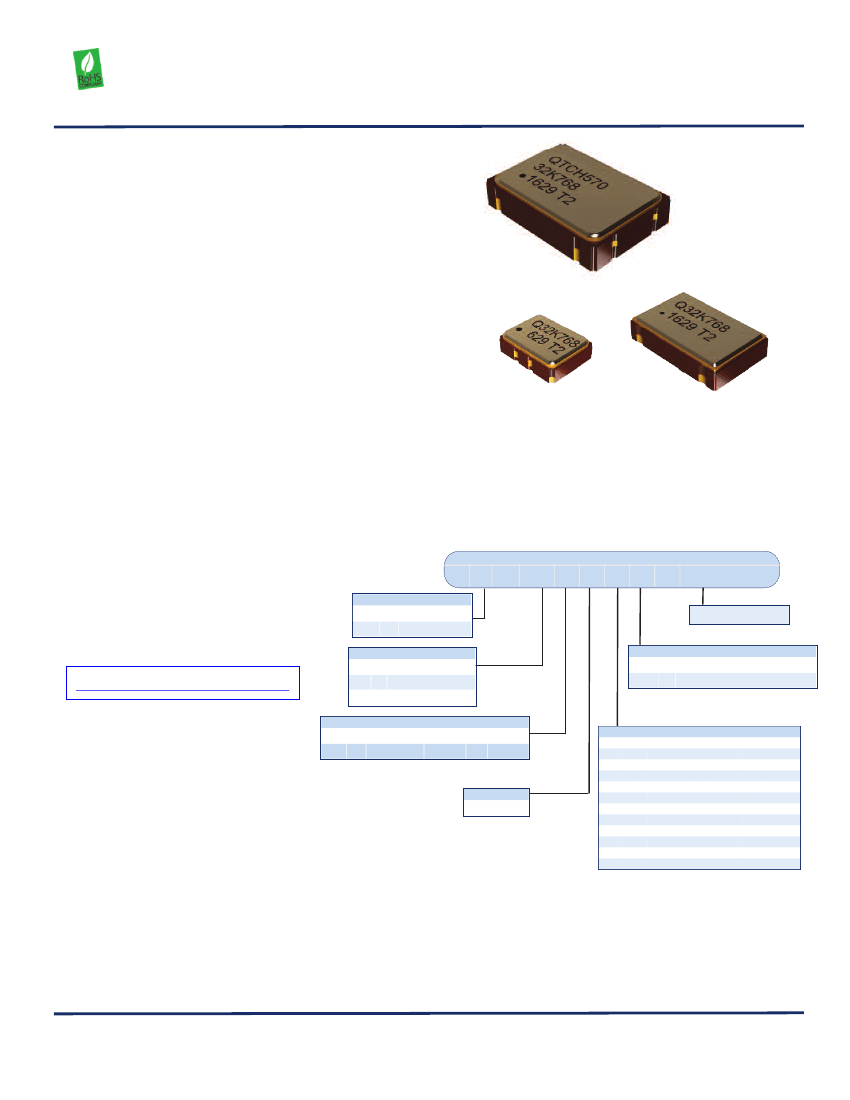

The QTCH series are miniature surface-mount (SMD) crystal
oscillators supporting 32.768kHz* fundamental mode operating
in a wide supply voltage range from 2.5Vdc to 3.3Vdc, very low
power consumption (<3mA) with a temperature range from -
55ºC to +200ºC. Package offerings in three low profile ceramic
packages, 2.5x3.2mm, 3.2x5.0mm and 5.0x7.0mm, which are
hermetically sealed with gold plated contacts or hot solder
dipped.
Features
•
•
•
•
•
•
•
•
•
•
* See separate data sheet for other frequencies.
ECCN: EAR99
Wide operating temperature -55ºC to +200ºC available
V low power consumption
ery
CMOS logic 2.5Vdc and 3.3Vdc
Tri-State Output Standard
Fundamental amode A
T cut crystal
High shock and vibration resistant
Military screening tests per MIL-PRF-55310 available
Tape and reel packaging
Lead Free, RoHS Compliant
Ordering Information
Q
Q TC H 3 5 0LD 9 2- 3 2K 7 6 8H z
T CH 350 L D 92
-
32.768kHz
Output Frequency
Screening
Blank = Unscreened
M = Per MIL-PRF-55310, Level B
15pF
15pF
Frequency vs. Temperature Code:
= ± 150ppm at -20ºC to +185ºC
= ± 200ppm at -20ºC to +175ºC
= ± 250ppm at -40ºC to +175ºC
= ± 200ppm at -40ºC to +185ºC
= ± 250ppm at -40ºC to +185ºC
= ± 250ppm at -55ºC to +185ºC
= ± 200ppm at 0ºC to +200ºC
= ± 250ppm at 0ºC to +200ºC
= ± 250ppm at -20ºC to +200ºC
= ± 250ppm at -40ºC to +200ºC
= ± 250ppm at -55ºC to +200ºC
= ± 250ppm at 0ºC to +185ºC
Sample part number
Applications
• Drilling, data logging tools
• Oil service industry
• High temperature applications
See our Stock List (Updated Monthly)
Logic & Supply Voltage:
L = HCMOS
+3.3V at
N = LVHCMOS +2.5V at
Package
570 = 5.0 x 7.0mm
350 = 3.2 x 5.0mm
230 = 2.5 x 3.2mm
Lead Finish
T = Standard
S = Solder Dip (*)
Tristate
D = Tristate
Other Options Available For An Additional Charge
(*) Hot Solder Dip Sn60/Pb40 per MIL-PRF 55310 is optional for an additional cost
Hot Solder Dip
to your specifications
87
88
89
90
91
92
93
94
95
96
97
98
Specifications subject to change without prior notice.
Frequency stability vs. temperature codes may not be available in all frequencies.
For Non-Standard requirements, contact Q-Tech Corporation at Sales@Q-Tech.com
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0212 (Revision -, January 2017)
1
QTCH HIGH TEMPERATURE MINIATURE SMD OSCILLATORS
Q-TECH
Dimensions are in inches (mm)
4

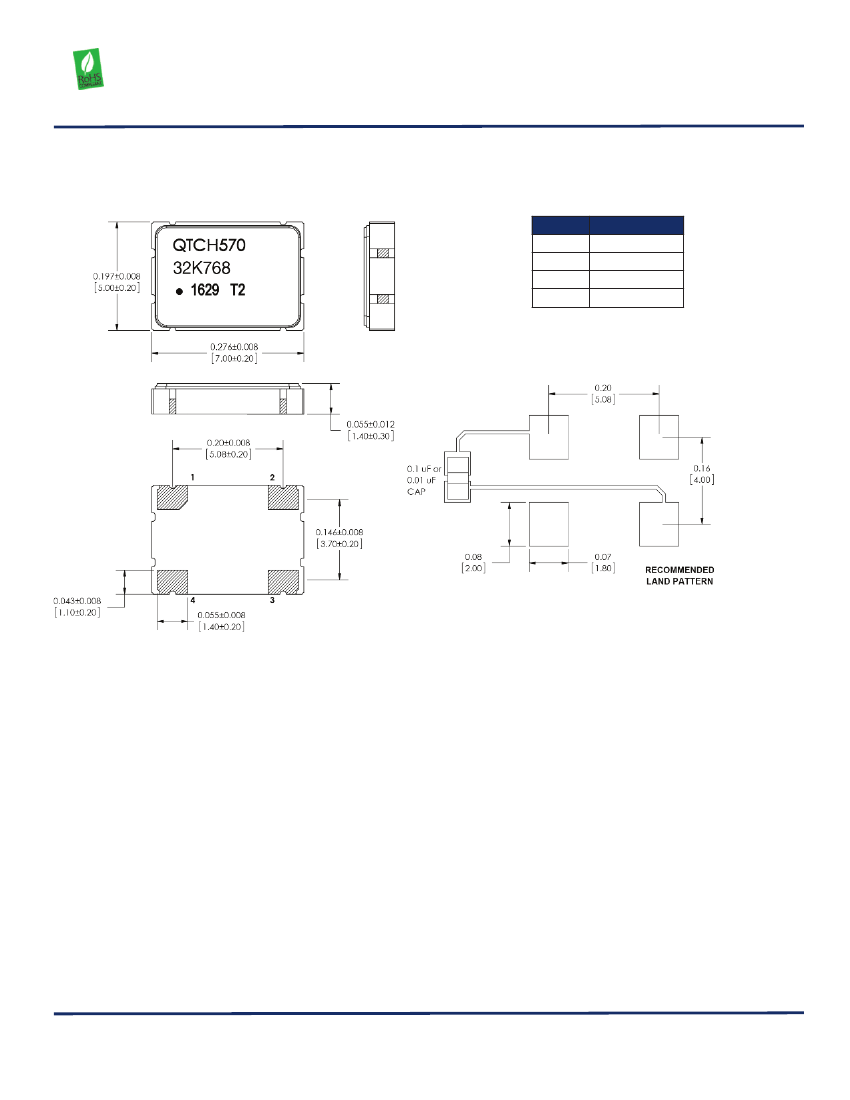

QTCH570 Package
Outline and Pin Connections
3
CORPORATION
5 x 7mm, 3.2 x 5mm, 2.5 x 3.2mm, SMD UP TO 200ºC
2.5Vdc and 3.3Vdc - 32.768 kHz*
Pin No.
1
2
3
4
Function
GND/CASE
OUTPUT
VDD
TRISTATE
1
2
An external bypass capacitor 0.01µF is
required between Vdd and GND
Line 1: QTCH570
(First 7 Characters of Description)
Line 2: XX.XXX
(6 Characters of Frequency)
Line 3: Dot (Pin 1 Indicator) + Date code (YY/WW), Internal Traceability Code
Marking
Package Information
• Termination pads (4x), Electro nickel plating 1.27µm ~ 8.89µm typ.,
with gold 0.3µm ~ 1.0µm flash plate
• Weight: 0.15g typ., 2.0g max.
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0212 (Revision -, January 2017)
2
QTCH HIGH TEMPERATURE MINIATURE SMD OSCILLATORS
Q-TECH
Dimensions are in inches (mm)
4
QTCH350 Package
Outline and Pin Connections
3
CORPORATION
5 x 7mm, 3.2 x 5mm, 2.5 x 3.2mm, SMD UP TO 200ºC
2.5Vdc and 3.3Vdc - 32.768 kHz*
Pin No.
1
2
3
4
Function
GND/CASE
OUTPUT
VDD
TRISTATE
1
2
An external bypass capacitor 0.01µF is
required between Vdd and GND
Line 1: QXX.XXX
(Q for Q-Tech, no space 7 Characters of Frequency)
Line 2: Dot (Pin 1 Indicator) + Date code (YY/WW), Internal Traceability Code
Marking
Package Information
• Termination pads (4x), Electro nickel plating 1.27µm ~ 8.89µm typ.,
with gold 0.3µm ~ 1.0µm flash plate
• Weight: 0.057g typ.
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0212 (Revision -, January 2017)
3
QTCH HIGH TEMPERATURE MINIATURE SMD OSCILLATORS
Q-TECH

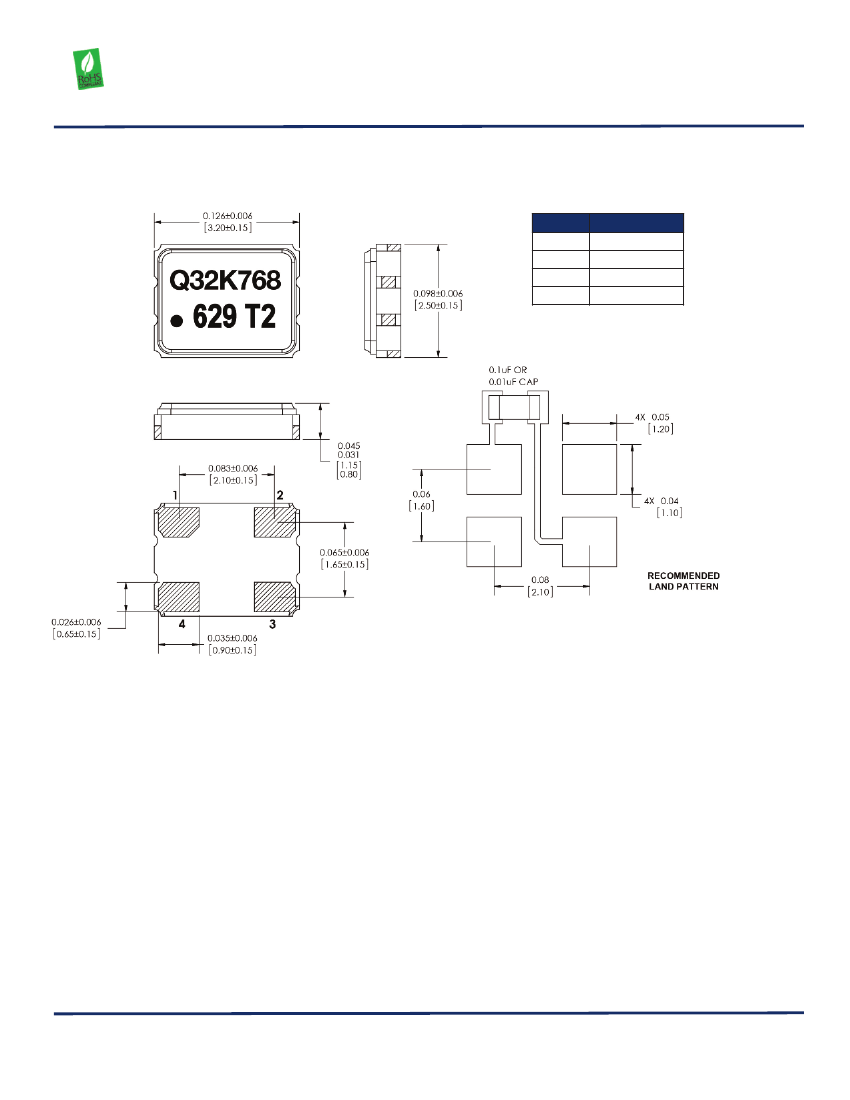

QTCH230 Package
Outline and Pin Connections
Dimensions are in inches (mm)
CORPORATION
5 x 7mm, 3.2 x 5mm, 2.5 x 3.2mm, SMD UP TO 200ºC
2.5Vdc and 3.3Vdc - 32.768 kHz*
4
3
Pin No.
1
2
3
4
Function
GND/CASE
OUTPUT
VDD
TRISTATE
1
2
An external bypass capacitor 0.01µF is
required between Vdd and GND
Line 1: QXX.XXX
(Q for Q-Tech, no space 7 Characters of Frequency)
Line 2: Dot (Pin 1 Indicator) + Date code (Y/WW), Internal Traceability Code
Marking
Package Information
• Termination pads (4x), Electro nickel plating 1.27µm ~ 8.89µm typ.,
with gold 0.3µm ~ 1.0µm flash plate
• Weight: 0.025g typ.
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0212 (Revision -, January 2017)
4
QTCH HIGH TEMPERATURE MINIATURE SMD OSCILLATORS
Q-TECH
Electrical Characteristics
Parameters
Output frequency range (Fo)
1/
Supply voltage (Vdd)
Maximum Applied Voltage
(Vdd max.)
Operating temperature
(Topr)
QTCH-ND
2.5Vdc ± 10%
CORPORATION
5 x 7mm, 3.2 x 5mm, 2.5 x 3.2mm, SMD UP TO 200ºC
2.5Vdc and 3.3Vdc - 32.768 kHz*
32.768kHz
-0.3 to +7.0Vdc
QTCH-LD
3.3Vdc ± 10%
Frequency stability (∆F/∆T)
Storage temperature (Tsto)
Operating supply current
(No Load)
Rise and Fall times
Output Load
Symmetry
(50% of ouput waveform )
See Part Number on Page 1
See Part Number on Page 1
-62ºC to + 150ºC
70μA typ. | 120μA max.
45% min | 50% typ. | 55% max.
50ns typ. | 200ns max.
10ms max.
15pF max.
Start-up time (Tstup)
High Output Voltage (Voh)
Low Output Voltage (Vol)
Enable VIH Pin 1
Disable VIL Pin 1
Aging
VIL ≤ 0.3*Vdd High Impedance
±5ppm/first year
VIH ≥ 0.7*Vdd Active
0V min. | 0.4V max.
Vdd - 0.4 min.
Notes
1/ See separate data sheet for other frequencies.
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0212 (Revision -, January 2017)
5
