23-0518-0TL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 23-0518-0TL

23-0518-0TL: DescriptionIC Socket, SIP33, 23 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size197KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric View All

23-0518-0TL Overview

IC Socket, SIP33, 23 Contact(s), ROHS COMPLIANT

23-0518-0TL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Device slot type	IC SOCKET
Type of equipment used	SIP33
Shell material	NYLON46
JESD-609 code	e4
Number of contacts	23
Base Number Matches	1

Preview

Download Datasheet

View All

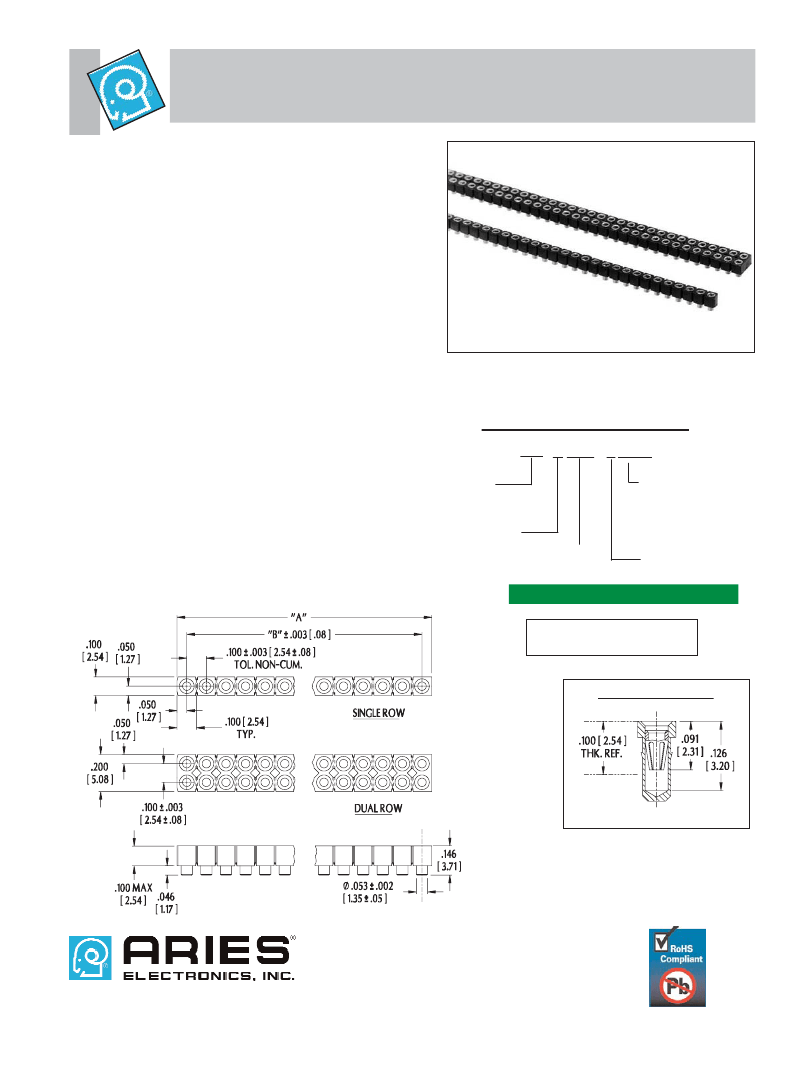

Series X518 Surface Mount

Single and Dual Row Collet Sockets

FEATURES:

• Surface mount collet sockets are available in single and

dual row.

• ”Break” feature allows strips to be cut to the number of

positions desired.

• Compatible with automatic insertion equipment.

• Side-to-side and end-to-end stackable.

SPECIFICATIONS:

• Body material is black UL 94V-0 Glass-filled 4/6 Nylon.

• Pin body is Brass Alloy 360 1/2 hard per UNS C36000

ASTM-B16-00.

• Pin body plating is either 10μ [.25μm] min. Gold per MIL-G-

45204 or 200μ [5.08μm] min. 93/7 Tin/Lead per ASTM

B545 or 200μ [5.08μm] min. Tin per ASTM B545 Type 1

over 100μ [2.54μm] min. Nickel per SAE-AMS-QQ-N-290.

• 4-fingered collet contact is Beryllium Copper Alloy per UNS

Note: Aries specializes in custom design and production. In addition to the

C17200 ASTM-B194-01.

standard products shown on this page, special materials, platings, sizes, and

• Contact plating is 10μ [.25μm] Gold per MIL-G-45204 over

configurations can be furnished, depending on quantities. Aries reserves the

right to change product specifications without notice.

50μ min. [1.27μm] Nickel per SAE-AMS-QQ-N-290.

• Contact current rating=3 Amps.

ORDERING INFORMATION

• Operating temperature=221°F [105°C].

• Insertion Force=180 grams/pin; Withdrawal Force=90

XX-X518-0XXX

grams/pin; Normal Force=140 grams/pin; based on a .018

Plating Options:

[.46] dia. test lead.

No. of pins:

0=Gold collet/Tin

• Accepts leads .015-.025 [.38-.64] in diameter, .100-.125

1-40 single row

shell

[2.54-3.18] long.

2-40 dual row

MOUNTING CONSIDERATIONS:

0TL=Gold collet/

• Suggested PCB pad size=.063 [1.60] dia.

Tin/Lead shell

0=single row

1=dual row

“A”=NO. OF PINS PER ROW X .100 [2.54]

“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]

Series

LL DIMENSIONS

0=surface mount

INCHES

[

MILLIMETERS

]

All tolerances ± .005 [.13]

unless otherwise specified

CONTACT DETAIL

http://www.arieselec.com • info@arieselec.com

Frenchtown, NJ USA

TEL: (908) 996-6841

FAX: (908) 996-3891

abc

12019

REV.F

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
