PT-15-LH2.5471A2020 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> PT-15-LH2.5471A2020

PT-15-LH2.5471A2020: DescriptionPotentiometer, Carbon, 0.25W, 470ohm, 250V, 20% +/-Tol, -300,300ppm/Cel, 5924,; CategoryPassive components The resistor; File Size215KB，3 Pages; ManufacturerSong Huei Electric Co., Ltd.; Websitehttp://www.song-huei.com.tw

Download Datasheet Parametric View All

PT-15-LH2.5471A2020 Overview

Potentiometer, Carbon, 0.25W, 470ohm, 250V, 20% +/-Tol, -300,300ppm/Cel, 5924,

PT-15-LH2.5471A2020 Parametric

Parameter Name	Attribute value
Objectid	819017908
Reach Compliance Code	unknown
structure	Rotary
Lead length	4 mm
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Package height	17.5 mm
Package length	15 mm
Package form	3 Terminals
Package width	6 mm
Rated power dissipation(P)	0.25 W
resistance	470 Ω
Resistor type	POTENTIOMETER
rotation angle	265 deg
series	PT-15(H2.5)
size code	5924
technology	CARBON
Temperature Coefficient	300 ppm/°C
Tolerance	20%
Operating Voltage	250 V

PT-15-LH2.5471A2020 Preview

PT-15 Carbon Potentiometer

(15 mm

電木

半固定電½器)

PT-15

Part Number

PT-15 -

Model No.

型號

孔型

H2.5

Method

孔距

101

Value

阻值

線性

2020

誤差值

Rotors Mounting Resistance Taper Tolerance

Horizontal Type

ROTORS

孔型

http://www.song-huei.com.tw

9mm Metal Shaft Rotary Potentiometer

電木

半固定電½器)

½ 電 ½ 器)

PT-15 Carbon Potentiometer

(15 mm

(9mm

金屬軸旋

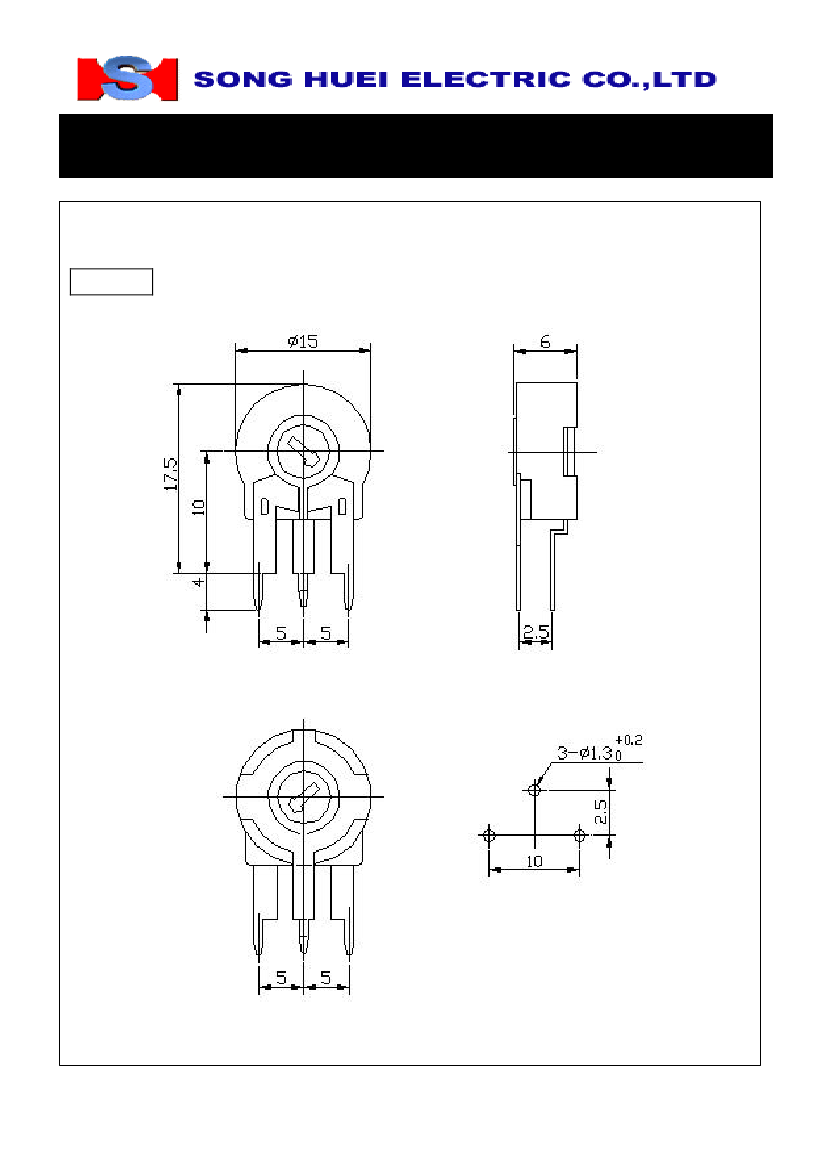

MOUNTING METHODS

H 2.5

H = VERTICAL MOUNT-HORIZONTAL ADJUST

http://www.song-huei.com.tw

9mm Metal Shaft Rotary Potentiometer

電木

半固定電½器)

½ 電 ½ 器)

PT-15 Carbon Potentiometer

(15 mm

(9mm

金屬軸旋

Electrical Characteristics

電氣特性

Range Of Resistance Values

阻值範圍

Tolerances

阻值允差

Resistance Taper

線性

Residual Resistance

殘留阻值

Contact Resistance Variation

接觸阻值變化

Contact Resistance

接觸阻值

Maximum Power (At40℃)

最大電功率

Maximum Voltage

最大電壓

Operating Temperature

操½溫度

Temperature Coefficient

溫度係數

100Ω~5MΩ

100Ω-1MΩ±20%

＞1MΩ-5MΩ±30%

A, B ,C

Lin.≦5

×10

-3

Lin. 2Ω

Log. Lnic.

≦1×10

-3

Log. Fin.

≦2×10

-2

≦3%Rn

≦5%Rn

0.25W

0.13W

250V

200V

-25℃~+70℃

100Ω~100KΩ±300ppm/℃

Mechanical Characteristics

機械特性

Wiper Torque

刷子力矩

Angie Of Rotation (Mechanical)

旋½角度(機械)

Torque

扭力

0.4~2Ncm 0.5~2.5Ncm

265°

0.5 to2.5Ncm

http://www.song-huei.com.tw

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Why do you have to choose streaking?: Many people like to use a high-end gadget as a single-chip microcomputer, calling it "naked running"; but they don't know that it is a waste of time and money!Take S3C6410 for example, what are you go...; chenzhufly Embedded System

The board I designed uses the LM4F232H5QC main chip, and the program cannot be downloaded using the 20-pin JTAG: Hello everyone: Our company is developing a new project recently. The board is designed by ourselves. The main chip used is TI's LM4F232H5QC. The 20-pin JTAG interface has been unable to download the ...; long914320054 Microcontroller MCU

Why do my projects always have errors?: Why do I always get the error Fatal Error[Pe1696]: cannot open source file "stm32f10x_lib.h" in the project I wrote? I beg for help:Cry:...; tigerno5 ARM Technology

DOGLCD: What is DOGLCD and what is it used for? I saw this when I was looking at the program today, but I don’t know how to use it?...; qrnuyangfu Embedded System

About uc/os-ii task switching and clock beat issues!: When a high-priority task is found in the ready list, OS_TASK_SW() is called to switch the task level. If a high-priority task suddenly appears while a low-priority task is running, when will the high...; 0442323 Embedded System

High score help: flash driver problem: Flash changed from 28F128J3 to S29GL128P without NAND flash. What should I change specifically? Thank you. If I just change the flash, I may only need to adjust the physical layer parameters, or even ...; thoams117 Embedded System
