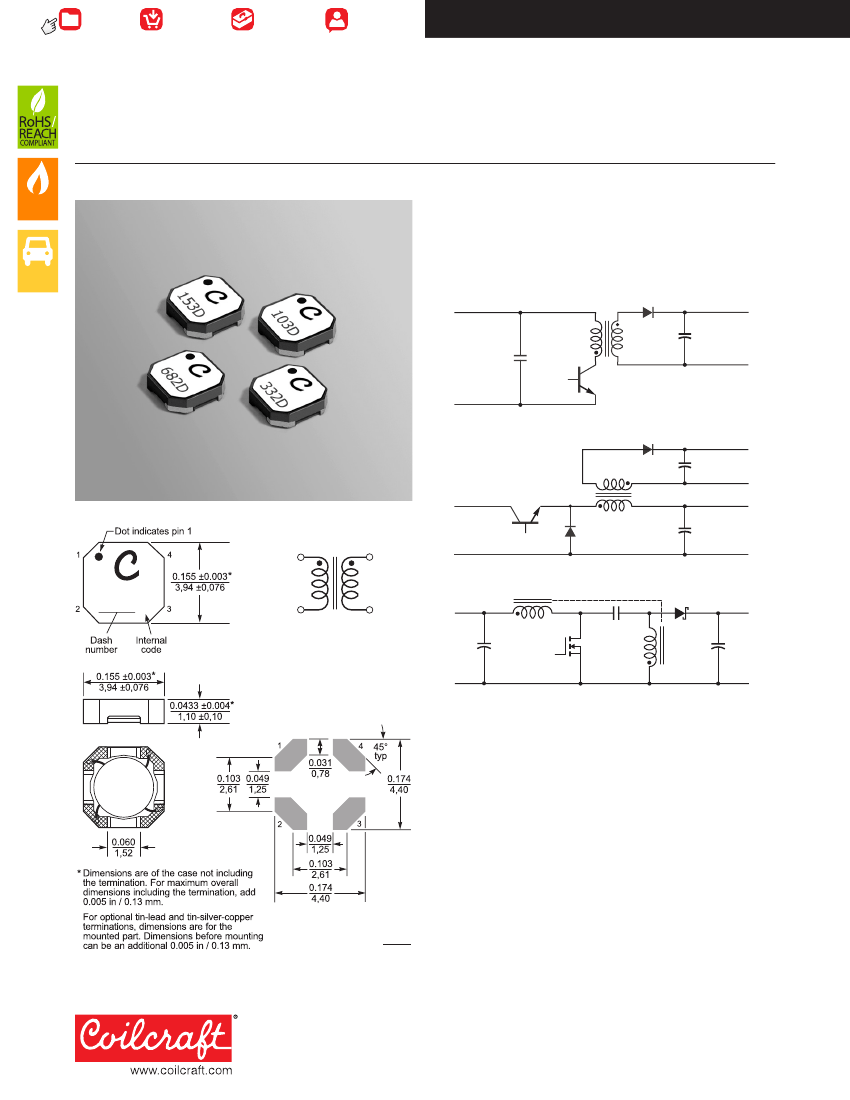

Document 580-1
Shielded Coupled Inductors
LPD4012
Halogen
Free
Q200
+
125°C
AEC
• Only 1.1 mm high and 4 mm square
• Ideal for use in flyback, multi-output buck and SEPIC
applications.
• High inductance, high efficiency and excellent current handling
• Can also be used as two single inductors connected in
series or parallel or as a common mode choke.
• AEC-Q200 Grade 1 (–40°C to +125°C)
+
D
+
L1
V
IN
C
SW
L2
C
V
OUT
–
–
Typical Flyback Converter
+
C
V
OUT
AUX
L2
+
V
IN
SW
D
D
–
+
L1
C
V
OUT
1
L1
L2
4
–
–
Typical Buck Converter with auxiliary output
+
L1
V
IN
XXXY
2
3
D
C1
Q
+
C
V
OUT
C
L2
–
Recommended
Land Pattern
Typical SEPIC schematic
–
Dimensions are in
inches
mm
Core material
Ferrite
Core and winding loss
Go to online calculator
+
+
L2
Weight
54 – 64 mg
C1
Q
Environmental
RoHS compliant, halogen free
V
OUT
D
C
C
V
IN
L1
Terminations
RoHS compliant matte tin over nickel over silver.
Other terminations available at additional cost.
–
–
Ambient temperature
–40°C to +125°C with (40°C rise)
Irms
current.
Typical Zeta schematic
Maximum part temperature
+165°C (ambient + temp rise).
Storage temperature
Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C
Winding to winding isolation
100 Vrms, one minute
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Packaging
1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,
0.25 mm thick, 8 mm pocket spacing, 1.45 mm pocket depth
Recommended pick and place nozzle
OD: 4 mm; ID:
≤
2 mm
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Document 580-1
Revised 09/15/21
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
© Coilcraft Inc. 2021
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 580-2
Coupled Inductors for SEPIC Applications – LPD4012 Series
Part number
1
Inductance DCR max SRF typ
(µH)
(Ohms)
(MHz)
2
3
4
Coupling Leakage
coefficient
L typ
5
typ
(µH)
0.94
0.95
0.97
0.97
0.98
0.98
0.98
0.99
0.99
0.99
0.99
0.99
0.99
>0.99
>0.99
>0.99
>0.99
>0.99
>0.99
>0.99
>0.99
>0.99
>0.99
0.06
0.08
0.09
0.11
0.14
0.16
0.18
0.20
0.22
0.24
0.26
0.30
0.34
0.41
0.51
0.66
0.75
0.86
0.98
1.19
1.40
1.66
2.45
10%
drop
5.2
3.7
3.2
2.50
2.30
1.80
1.70
1.60
1.20
1.10
0.98
0.90
0.70
0.37
0.33
0.27
0.27
0.22
0.21
0.18
0.16
0.15
0.13
Isat
(A)
6
20%
30%
drop
drop
5.4
3.8
3.3
2.81
2.40
1.90
1.80
1.70
1.52
1.20
1.00
0.92
0.82
0.57
0.39
0.36
0.27
0.28
0.26
0.26
0.21
0.16
0.16
5.6
3.9
3.4
2.91
2.50
2.00
1.90
1.80
1.63
1.30
1.10
0.94
0.84
0.58
0.40
0.37
0.29
0.29
0.27
0.27
0.23
0.17
0.16
Irms
(A)
both
one
windings
7
winding
8
1.87
1.30
1.21
1.15
0.95
0.75
0.65
0.55
0.60
0.55
0.50
0.43
0.34
0.31
0.28
0.25
0.23
0.20
0.19
0.17
0.14
0.12
0.10
2.65
1.84
1.72
1.62
1.35
1.06
0.92
0.78
0.86
0.78
0.71
0.60
0.48
0.44
0.39
0.36
0.31
0.27
0.27
0.23
0.18
0.17
0.14
Halogen
Free
LPD4012-331NR_
LPD4012-561NR_
LPD4012-821NR_
LPD4012-152NR_
LPD4012-222NR_
LPD4012-332NR_
LPD4012-472MR_
LPD4012-562MR_
LPD4012-682MR_
LPD4012-822MR_
LPD4012-103MR_
LPD4012-153MR_
LPD4012-223MR_
LPD4012-333MR_
LPD4012-473MR_
LPD4012-683MR_
LPD4012-823MR_
LPD4012-104MR_
LPD4012-124MR_
LPD4012-154MR_
LPD4012-184MR_
LPD4012-224MR_
LPD4012-334MR_
0.33 ±30%
0.56 ±30%
0.82 ±30%
1.5 ±30%
2.2 ±30%
3.3 ±30%
4.7 ±20%
5.6 ±20%
6.8 ±20%
8.2 ±20%
10 ±20%
15 ±20%
22 ±20%
33 ±20%
47 ±20%
68 ±20%
82 ±20%
100 ±20%
120 ±20%
150 ±20%
180 ±20%
220 ±20%
330 ±20%
0.042
0.087
0.100
0.185
0.235
0.320
0.500
0.620
0.530
0.600
0.750
1.13
1.63
1.83
2.52
3.23
3.66
4.76
5.54
6.90
8.75
11.24
17.00
255
185
130
86
70
48
39
32
31
29
25
21
15
12
8.8
7.8
7.3
6.1
5.3
4.6
4.1
3.3
2.8
Q200
+
125°C
AEC
1. Please specify
termination
and
packaging
codes:
LPD4012-334MRC
Termination: R
= RoHS compliant, matte tin over nickel over silver.
Special order:
Q
= RoHS tin-silver-copper (95.5/4/0.5) or
P
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel). Quantities less than
full reel available: in tape (not machine ready) or with
leader and trailer ($25 charge).
B
= Less than full reel. In an effort to simplify our part
numbering system, Coilcraft is eliminating the need
for multiple packaging codes. When ordering, simply
change the last letter of your part number from B to C.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (3500 parts per
full reel).
2. Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms,
0 Adc on an Agilent/HP 4284A LCR meter or equivalent. When leads
are connected in parallel, inductance is the same value. When leads
are connected in series, inductance is four times the value.
3. DCR is for each winding. When leads are connected in parallel, DCR
is half the value. When leads are connected in series, DCR is twice
the value.
4. SRF measured using an Agilent/HP 4191A or equivalent. When leads
are connected in parallel, SRF is the same value.
5. Leakage Inductance is for L1 and is measured with L2 shorted.
6. DC current at 25°C that causes the specified inductance drop from its
value without current. It is the sum of the current flowing in both windings.
7. Equal current when applied to each winding simultaneously that
causes a 40°C temperature rise from 25°C ambient. This information is
for reference only and does not represent absolute maximum ratings.
8. Maximum current when applied to one winding that causes a 40°C
temperature rise from 25°C ambient. This information is for reference
only and does not represent absolute maximum ratings.
9. Electrical specifications at 25°C.
Refer to Doc 639 “Selecting Coupled Inductors for SEPIC Applications.”
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Coupled Inductor Core and Winding Loss Calculator
This web-based utility allows you to enter frequency, peak-to-peak
(ripple) current, and
Irms
current to predict temperature rise and
overall losses, including core loss.
Go to online calculator.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 580-2
Document 580-2
Revised 09/15/21
Revised 02/15/11
© Coilcraft Inc. 2021
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 580-3
Coupled Inductors for SEPIC Applications – LPD4012 Series
Typical L vs Current
1000
330 µH
Typical L vs Frequency
1000
330 µH
100 µH
33 µH
10 µH
3.3 µH
1.5 µH
Halogen
Free
Inductance (µH)
100
100 µH
33 µH
100
Q200
+
125°C
AEC
10
10 µH
3.3 µH
1.5 µH
Inductance (µH)
10
1
0.33 µH
1
0.33 µH
0.1
0.01
0.1
Current (A)
1
10
0.1
0.1
1
Frequency (MHz)
10
100
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 580-3
Document 580-3
Revised 09/15/21
Revised 02/15/11
© Coilcraft Inc. 2021
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
