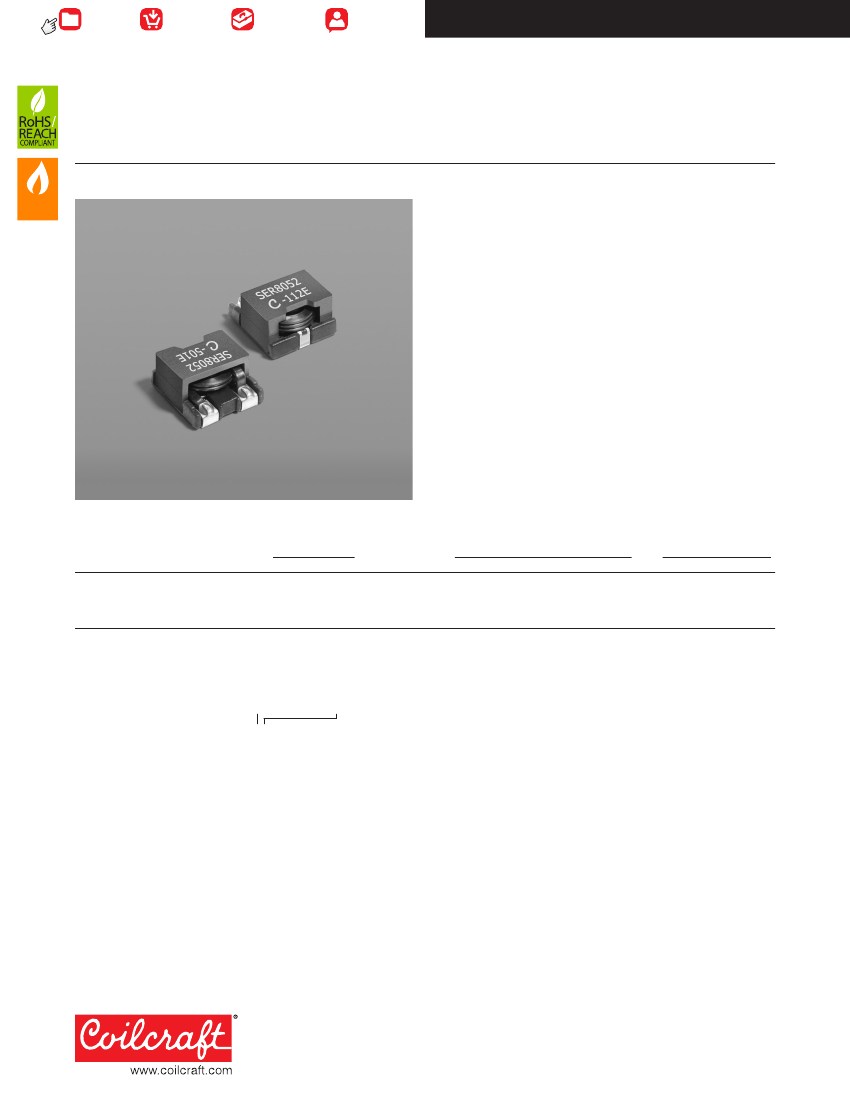

Document 892 -1
Shielded Power Inductors – SER80xx
Halogen
Free
• Two different DCR /
Isat
versions to match the requirements
of a wide variety of applications
• Low DCR; excellent current handling
Core material
Ferrite
Core and winding loss
See
www.coilcraft.com/coreloss
Terminations
RoHS tin-silver over tin over nickel over phos bronze
(pins 1 and 2); Matte tin over nickel over phos bronze (pin 3). Other
terminations available at additional cost.
Weight
0.86 – 1.0 g
Ambient temperature
–40°C to +85°C with (40°C rise)
Irms
current.
Maximum part temperature
+125°C (ambient + temp rise).
Derating.
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
250/7″ reel, 1000/13″ reel; Plastic tape: 16 mm wide,
0.4 mm thick, 12 mm pocket spacing, 5.2 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Q200
+
85°C
AEC
Low DCR version for high average current applications
Part number
1
SER8050-501ME_
SER8050-112ME_
SER8050-202ME_
SER8052-312ME_
SER8052-452ME_
SER8052-612ME_
SER8052-802ME_
SER8052-103ME_
Inductance
2
±20% (µH)
0.50
1.1
2.0
3.1
4.5
6.1
8.0
10
DCR (mOhm)
3
typ
max
2.22
3.19
5.35
6.44
8.64
8.64
13.03
13.03
2.50
3.50
5.88
7.20
9.50
9.50
14.33
14.33
SRF typ
4
(MHz)
234
109
74
63
52
45
43
40
10% drop
19.40
12.22
7.94
6.58
4.76
3.44
2.90
2.24
Isat
(A)
5
20% drop
22.02
13.86
9.22
7.56
5.74
4.22
3.58
2.80
30% drop
22.68
14.50
9.78
8.00
6.14
4.58
3.86
3.10
Irms
(A)
6
20°C rise 40°C rise
9.78
8.05
7.83
6.26
5.37
5.17
4.57
4.61
13.52
11.97
10.79
8.71
7.68
7.31
6.31
6.32
1. When ordering, please specify
termination
and
packaging
code:
SER8052-103MED
Termination: E =
RoHS tin-silver over tin over nickel over phos bronze (pins 1 and 2); Matte tin over nickel over phos bronze (pin 3).
Special order: T
= RoHS tin-silver-copper over copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not
machine ready) or with leader and trailer ($25 charge).
B
= Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes.
When ordering, simply change the last letter of your part number from B to C.
D
= 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked(1000 parts per full reel).
2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A or equivalent.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using an Agilent/HP 8753D network analyzer and an Agilent/HP 16193A test fixture.
5. DC current at 25°C that causes the specified inductance drop from its value without current.
Click for temperature derating information.
6. Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute
maximum ratings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 892-1
Revised 12/02/20
© Coilcraft Inc. 2020
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 892 -2
SER80xx Shielded Power Inductors
High Isat version for high peak current applications
Part number
1
Inductance
2
±20% (µH)
0.45
0.80
1.2
1.8
2.4
3.2
4.0
DCR (mOhm)
3
typ
max
3.19
5.35
6.44
8.64
8.64
13.03
13.03
3.50
5.88
7.20
9.50
9.50
14.33
14.33
SRF typ
4
(MHz)
216
125
110
91
76
72
66
10% drop
29.52
22.48
17.42
13.60
10.36
9.02
7.04
Isat
(A)
5
20% drop
30.32
24.40
18.54
14.56
11.38
9.84
7.84
30% drop
31.12
25.20
19.18
14.88
11.80
10.24
8.24
Irms
(A)
6
20°C rise 40°C rise
7.95
6.48
6.03
5.33
5.40
4.43
4.53
11.72
9.43
8.11
7.94
7.58
6.25
6.30
Halogen
Free
Q200
+
85°C
AEC
SER8050-451ME_
SER8050-811ME_
SER8052-122ME_
SER8052-182ME_
SER8052-242ME_
SER8052-332ME_
SER8052-402ME_
1. When ordering, please specify
termination
and
packaging
code:
SER8052-402MED
Termination: E =
RoHS tin-silver over tin over nickel over phos bronze (pins 1 and 2); Matte tin over nickel over phos bronze (pin 3).
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not
machine ready) or with leader and trailer ($25 charge).
B
= Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes.
When ordering, simply change the last letter of your part number from B to C.
D
= 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked(1000 parts per full reel).
2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A or equivalent.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using an Agilent/HP 8753D network analyzer and an Agilent/HP 16193A test fixture.
5. DC current at 25°C that causes the specified inductance drop from its value without current.
Click for temperature derating information.
6. Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute
maximum ratings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

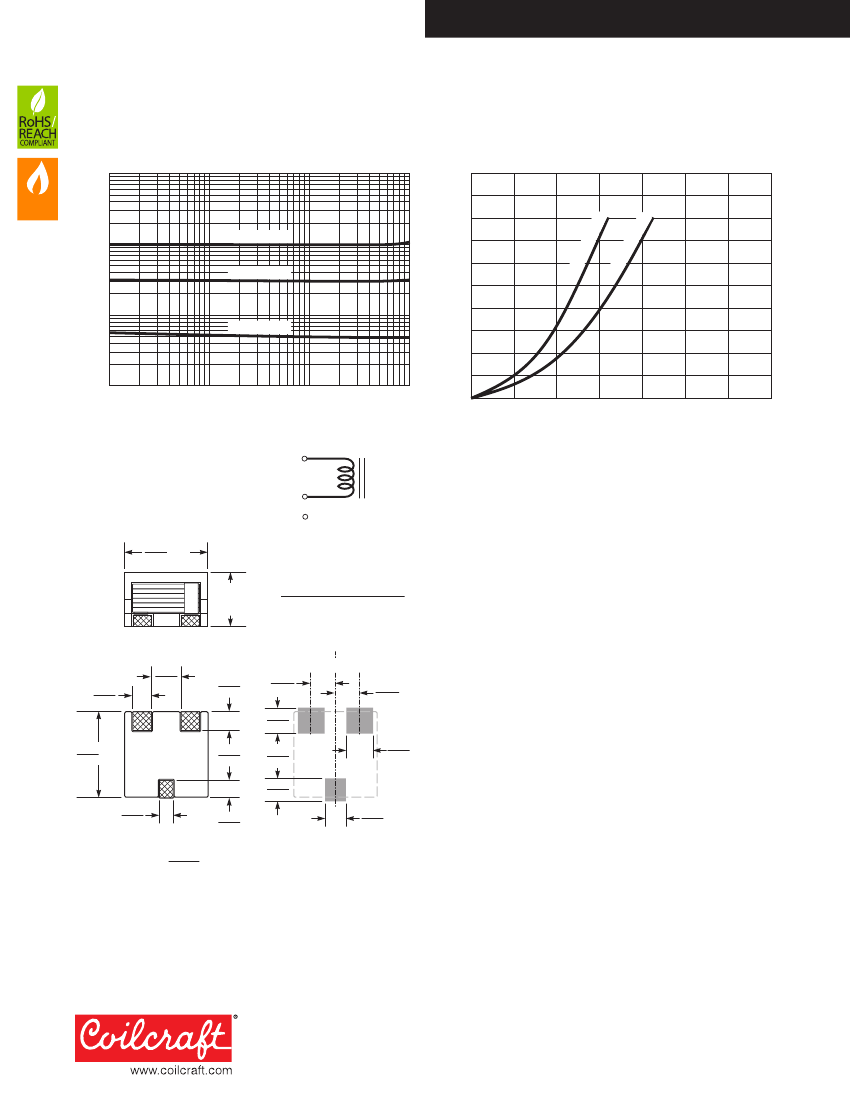

Typical L vs Current
Low DCR version
100
High Isat version
Inductance (µH)
10
SER8052-103
SER8052-312
1
SER8050-501
0.1
0.1
1
10
100
Current (A)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 892-2
Revised 12/02/20
© Coilcraft Inc. 2020
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 892 -3
SER80xx Shielded Power Inductors
Typical L vs Frequency
100
Typical Temperature Rise vs Current
50
45
Temperature rise from 25°C)
SE
R8
052
-10
3
0
6
Inductance (µH)
10
SER8052-103
35
30
25
20
15
10
5
Q200
+
85°C
AEC
SER8052-312
1
SER8050-501
0.1
0.01
0.1
1
10
0
2
4
8
10
12
14
Frequency (MHz)
Current (A rms)
1
2
3
Terminal 3 is for
mounting stability only.
Height max
(in / mm)
SER8050
SER8052
0.197 / 5,0
0.205 / 5,2
0.335
max
8,50
Height
(See
table)
1
2
0.071
1,80
0.110
2,80
0.071
1,80
0.091
2,30
0.098
2,50
C
L
0.091
2,30
0.346
max
8,80
0.187
4,75
0.169
4,30
0.087
2,20
0.098
2,55
0.051
1,30
0.065
1,65
0.079
2,00
inches
Dimensions are in mm
Recommended
Land Pattern
