4526.SN.2812.025 datasheet, PDF

4526.SN.2812.025: DescriptionRF N Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size2MB，13 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric View All

4526.SN.2812.025 Overview

RF N Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack, ROHS COMPLIANT

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	COPPER TIN/GOLD SILVER
Contact completed and terminated	GOLD SILVER
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.17 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	N
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.58
Base Number Matches	1

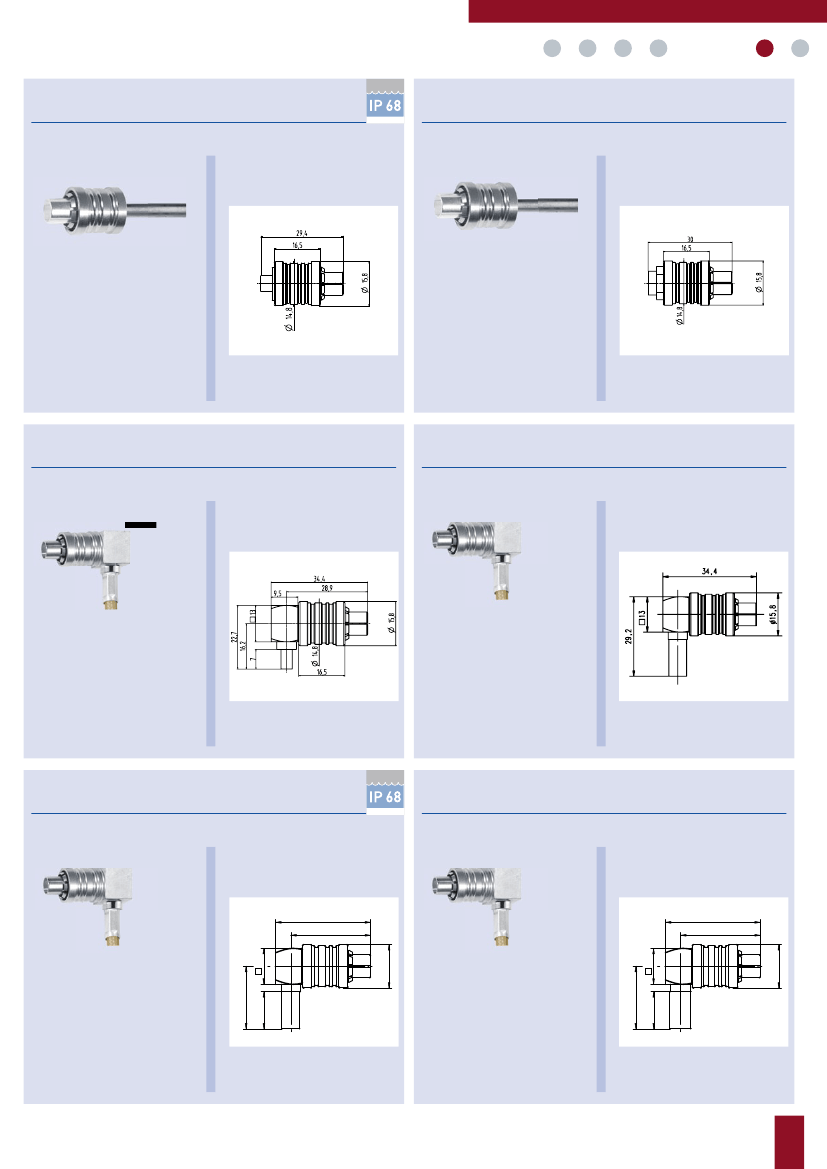

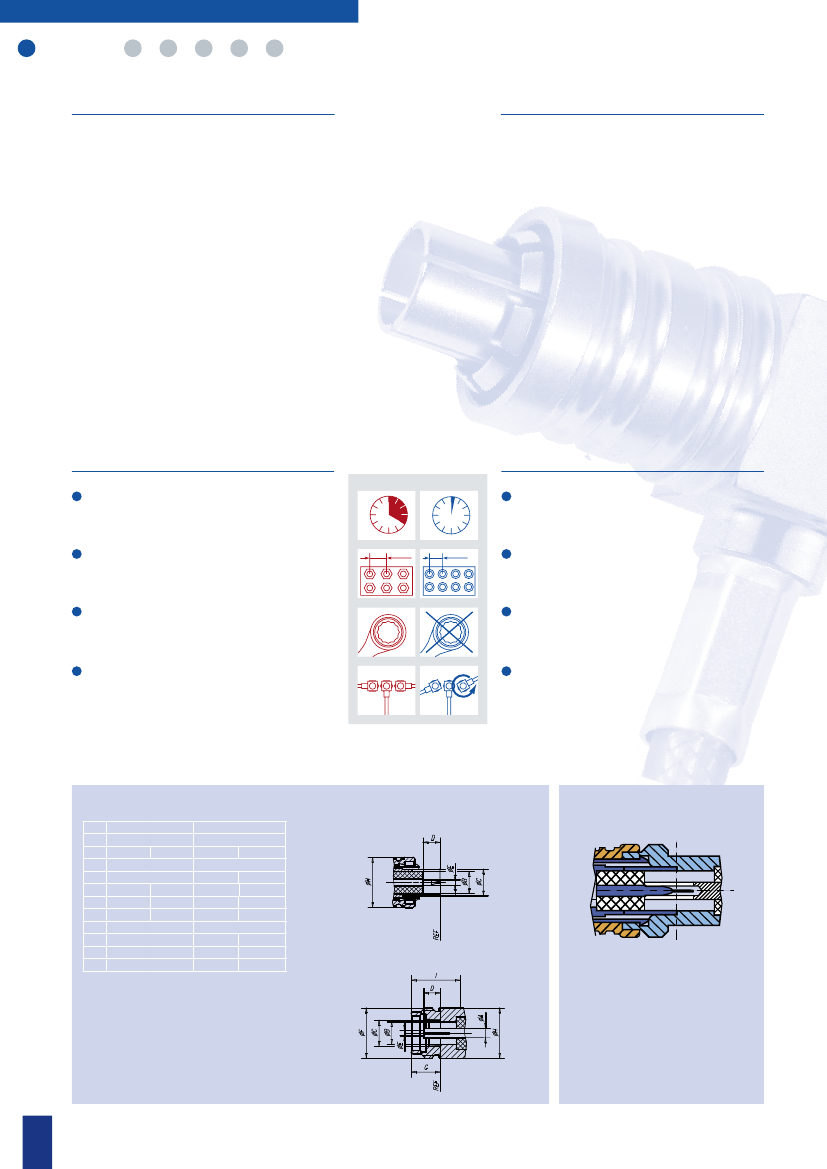

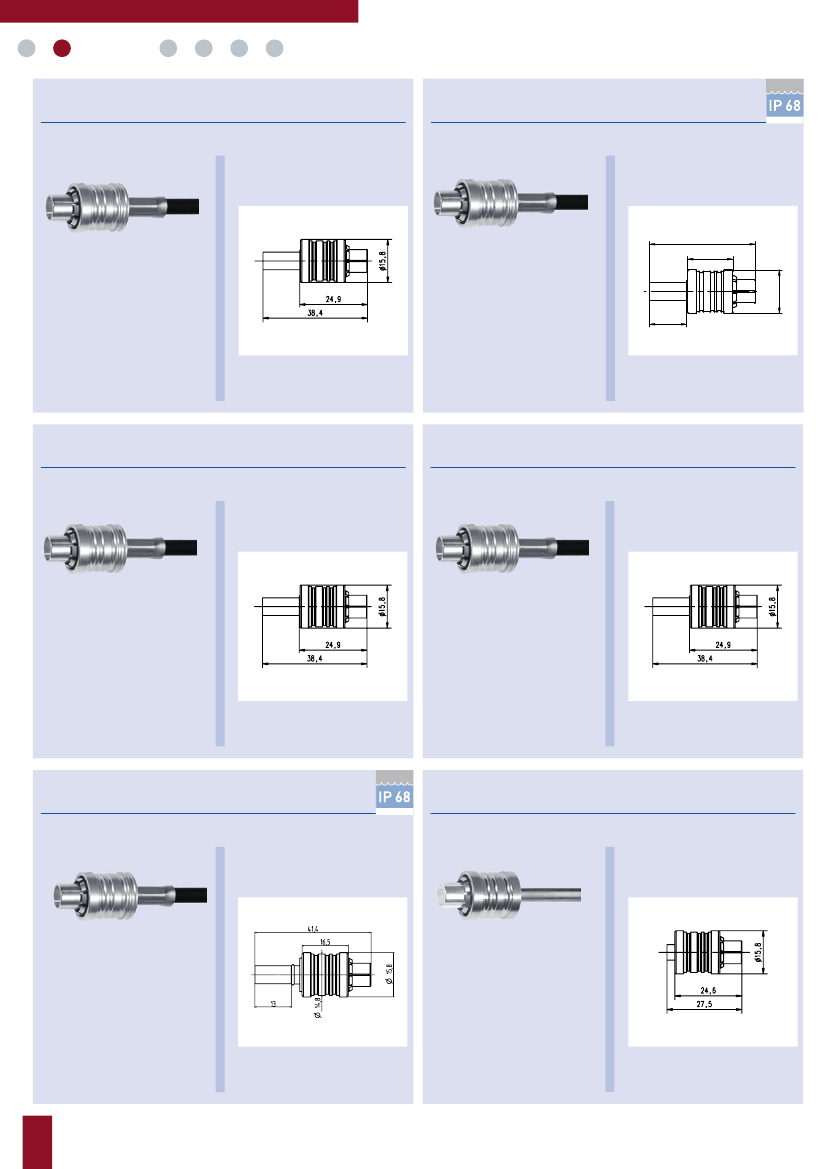

SnapN

RF-coaxial connectors /

HF-Koaxialsteckverbinder

++ Backwards compatible with N connectors ++
