Low Voltage
LVMOS
Clock Oscillator
Description:
2111 Comprehensive Drive
2111 Comprehensive Drive
Aurora, Illinois 60505
Aurora, Illinois 60505
Phone: 630- 851- 4722
Phone: 630- 851- 4722
Fax: 630- 851- 5040
Fax: 630- 851- 5040
www.conwin.com
www.conwin.com
US Headquarters:
630-851-4722
European Headquarters:
+353-61-472221
The Connor Winfield 5xxx Series are
5.0x7.0mm Surface Mount, LVCMOS, Fixed
Frequency Crystal Controlled Oscillator (XO)
designed for applications requiring tight
frequency stability, wide temperature range and
low jitter. Operating at 1.8V, 2.5V or 2.8V supply
voltage, the 5xxx Series provides a LVCMOS
Output with a Tri-state enable / disable function.
The surface mount package is designed for
high-density mounting and is optimum for mass
production.
Features:
Model 5xxx - Series
5.0 x7.0mm Surface Mount Package
1.8V, 2.5V or 2.8V Operation
LVCMOS Output
Frequency Stabilities Available:
+/-25ppm, +/-50ppm or +/-100ppm
Temperature Ranges Available:
-10 to 70°C or -40 to 85°C,
Low Jitter <1.0 ps RMS
Tri-State Enable/Disable
with Power Saving Stand-by Mode
Tape and Reel Packaging
RoHS Compliant / Lead Free
Absolute Maximum Ratings
Storage Temperature
Supply Voltage (Vcc)
Input Voltage
Parameter
Minimum
-55
-0.5
-0.5
Nominal
-
-
-
Maximum
125
3.6
Vcc + 0.5
Units
°C
Vdc
Vdc
Notes
Operating Specifications
Output Frequency (Fo)
1.8
-
160
Total Frequency Tolerance
(See Ordering Information for full part number)
Model 5x1x
-25
-
25
Model 5x2x
-50
-
50
Model 5x3x
-100
-
100
Operating Temperature Range
Model 51xx
-10
-
70
Model 52xx
-40
-
85
Supply Voltage (Vcc)
Model 5xx0
1.710
1.8
1.890
Model 5xx2
2.375
2.5
2.625
Model 5xx6
2.660
2.8
2.940
Supply Current (Icc)
-
15
30
Jitter:
Period Jitter
-
3.0
5.0
Integrated Phase Jitter
-
0.5
1.0
(BW = 12 KHz to 20 MHz)
Start-Up Time
-
-
10
Parameter
Minimum
Nominal
Maximum
Units
MHz
ppm
ppm
ppm
°C
°C
Vdc
Vdc
Vdc
mA
ps RMS
ps RMS
ms
Notes
1
1
1
Enable Input Voltage - (High) -(Vih)
Disable Input Voltage - (Low) - (Vil)
Enable Time
Disable Time
Stand-by Current (Icc)
Parameter
Minimum
70%Vcc
-
-
-
-
Input Characteristics
Nominal
-
-
-
-
-
Maximum
-
30%Vcc
10
100
10
Units
Vdc
Vdc
ms
ns
uA
Notes
2
2
3
LVCMOS Output Characteristics
Load
Voltage High (Voh)
Low (Vol)
Duty Cycle at 50% Level
Rise / Fall Time: 10% to 90%
1.8 to 10 MHz
>10 to 50 MHz
>50 MHz
5
Type
Bulletin
Page
Revision
Date
LVCMOS
Low Voltage
Clock Series
5x7 mm
Parameter
Minimum
-
90%Vcc
-
45
-
-
-
1
1
Frequency
Stability
Nominal
15
-
-
50
-
-
-
2
Maximum
-
-
10%Vcc
55
10
7
5
Units
pF
Vdc
Vdc
%
ns
ns
ns
- 156.25M
Notes

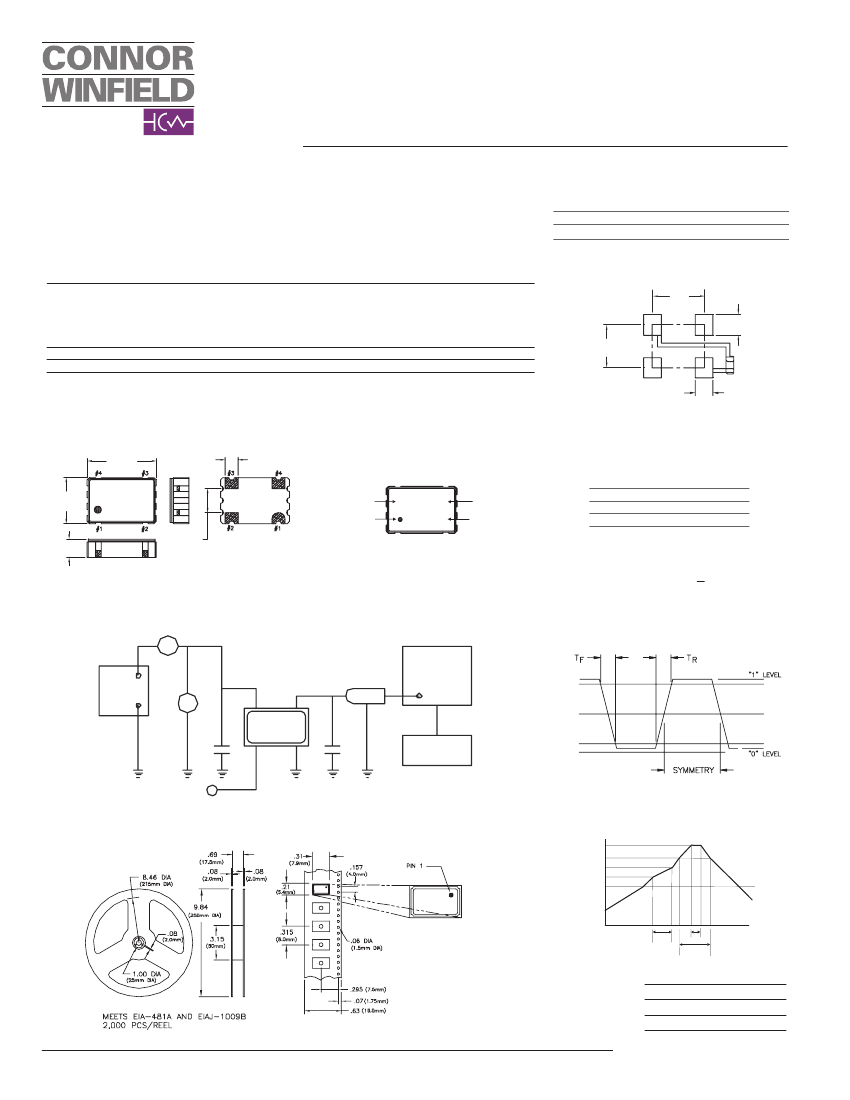

Ordering Information
Temperature
Range
1 =-10 to 70°C
2 = -40 to 85°C
Supply Voltage
0 = 1.8 Vdc
2 = 2.5 Vdc
6 = 2.8 Vdc
Output Frequency
Frequency Format
-xxx.xM Min
-xxx.xxxxxxM Max
*Amount of numbers
after the decimal
point. M = MHz
SM138
1 of 2
02
16 Feb 2012
1 = ±25 ppm
2 = ±50 ppm
3 = ±100 ppm
Example: Part Number: 5112-156.25M = 5x7mm package, LVCMOS Output,
-10 to 70, +/-25 ppm, 2.5 Vdc, E/D Pad 1, Output Frequency 156.25 MHz
Specifications subject to change without notice. All dimensions in inches. © Copyright 2011 The Connor-Winfield Corporation
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Notes:
1. Includes calibration @ 25°C, frequency stability vs. change in temperature, supply voltage and load variations, shock and
vibration and 20 years aging.
2. When the oscillator is disabled the output is at high impedance. Output is enabled with no connection on E/D pad.
3. The internal oscillator circuit is turned off when the part is disabled.
Enable / Disable Function
Function:
Output
Low:
Disabled (High Impedance)
High or Open: Enabled
Package Characteristics
Package
Hermetically sealed ceramic package and metal cover
Suggested Pad Layout
Vcc
0.200
(5.08mm)
0.079
(2.0mm)
0.165
(4.2mm)
Top View
C–by
Bypass capacitor, C–by, should be
ceramic capacitor
≥
.01uf.
Ground
0.070
(1.8mm)
Environmental Characteristics
Vibration:
Vibration per Mil Std 883E Method 2007.3 Test Condition A.
Shock:
Mechanical Shock per Mil Std 883E Method 2002.4 Test Condition B.
Soldering Process; RoHS compliant lead free. See soldering profile on page 2.
Package Outline
0.275
(7.0mm)
0.055
(1.4mm)
Marking Information
Pad Connections
0.197
(5.0mm)
5112 1M
156.25
0.102
(2.6mm)
Dimensional Tolerance
+/-0.008 (+/-0.2mm)
Part
Number
Pad 1
5112 1M
156.25
Date Code
(YM)
Frequency
1:
2:
3:
4:
Enable / Disable
Ground
Output Q
Supply Voltage (Vcc)
.059
(1.50mm)
Test Circuit
Vcc
POWER
SUPPL
Y
Output Waveform
OSCILLOSCOPE
PROBE
A
90%
50%
V
.01uf
4
3
OSC
1
2
CL
10%
INPUT for E/D
FREQ
COUNTER
Tape and Reel Dimensions
Solder Profile
Temperature
260°C
220°C
180°C
150°C
120°C
260°C
0
10 s
Up to 120 s
60 to 90 s
Typical
Typical
Meets IPC/JEDEC J-STD-020C
Bulletin
Dimensional Tolerance: ±.02” (.508mm)
±.005” (.127mm)
Page
Revision
Date
SM138
2 of 2
02
16 Feb 2012
Specifications subject to change without notice. All dimensions in inches. © Copyright 2011 The Connor-Winfield Corporation
