Transient Voltage Suppression Diodes
Surface Mount – 5000W > 5.0SMDJ series
5.0SMDJ Series
Uni-directional
Bi-directional
Description
RoHS
The 5.0SMDJ series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.
Features
• For surface mounted
applications to optimize
board space
• Low profile package
• Typical failure mode is
short from over-specified
voltage or current
• Whisker test is conducted
based on JEDEC
JESD201A per its table 4a
and 4c
• IEC-61000-4-2 ESD
15kV(Air), 8kV (Contact)
• ESD protection of data
lines in accordance with
IEC 61000-4-2 (IEC801-2)
• EFT protection of data
lines in accordance with
IEC 61000-4-4 (IEC801-4)
• Built-in strain relief
•
V
BR
@T
J
= V
BR
@25°C × (1+
α
T
x (T
J
- 25))
(αT: Temperature Coefficient)
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E230531
Maximum Ratings and Thermal Characteristics
(T
A
=25°C unless otherwise noted)
Parameter
Peak Pulse Power Dissipation at
T
A
=25°C by 10/1000µs Waveform
(Fig.2)(Note 1), (Note 2)
Power Dissipation on Infinite Heat
Sink at T
A
=50°C
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
Maximum Instantaneous Forward
Voltage at 100A for Unidirectional
Only
Operating Junction and Storage
Temperature Range
Typical Thermal Resistance Junction
to Lead
Typical Thermal Resistance Junction
to Ambient
Symbol
P
PPM
P
M(AV)
I
FSM
V
F
T
J
, T
STG
R
uJL
R
uJA
Value
5000
6.5
300
5.0
-55 to 150
15
75
Unit
W
W
A
V
°C
°C/W
°C/W
• Glass passivated chip
junction
• 5000W peak pulse power
capability at 10/1000μs
waveform, repetition rate
(duty cycles):0.01%
• Fast response time:
typically less than 1.0ps
from 0V to BV min
• Excellent clamping
capability
• Low incremental surge
resistance
• Typical I
R
less than 5µA
above 22V
• High temperature
soldering guaranteed:
260°C/40 seconds at
terminals
• Plastic package has
underwriters laboratory
flammability 94V-O
• Meet MSL level1, per
J-STD-020, LF maximum
peak of 260°C
• Matte tin lead–free plated
• Halogen free and RoHS
compliant
Applications
TVS devices are ideal for the protection of I/O Interfaces,
V
CC
bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
Notes:
1. Non-repetitive current pulse , per Fig. 4 and derated above T
A
= 25°C per Fig. 3.
2. Mounted on copper pad area of 0.31x0.31” (8.0 × 8.0mm) to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
device only,duty cycle=4 per minute maximum.

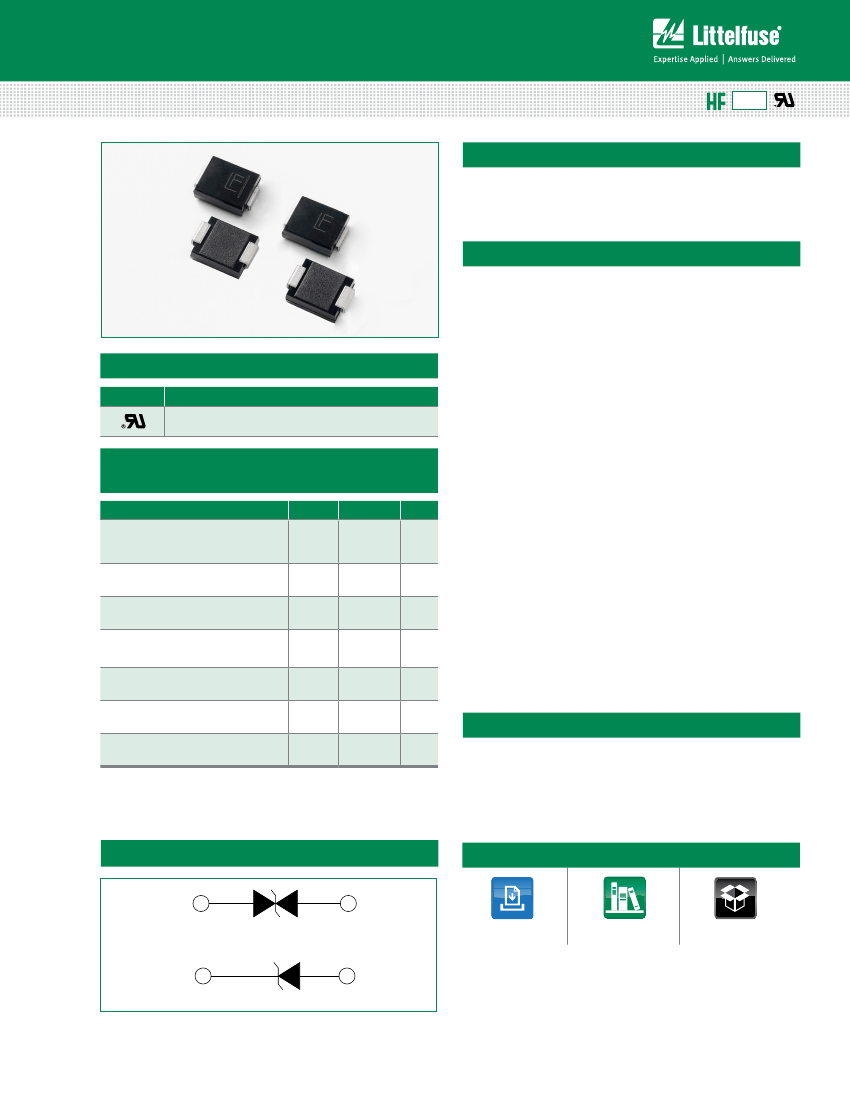

Functional Diagram
Additional Information
Bi-directional
Datasheet
Resources
Samples
Cathode
Uni-directional
Anode
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/24/14
Surface Mount – 5000W > 5.0SMDJ series
Transient Voltage Suppression Diodes
Electrical Characteristics
(T
A
=25°C unless otherwise noted)
Part
Number
(Uni)
5.0SMDJ12A
5.0SMDJ13A
5.0SMDJ14A
5.0SMDJ15A
5.0SMDJ16A
5.0SMDJ17A
5.0SMDJ18A
5.0SMDJ20A
5.0SMDJ22A
5.0SMDJ24A
5.0SMDJ26A
5.0SMDJ28A
5.0SMDJ30A
5.0SMDJ33A
5.0SMDJ36A
5.0SMDJ40A
5.0SMDJ43A
5.0SMDJ45A
5.0SMDJ48A
5.0SMDJ51A
5.0SMDJ54A
5.0SMDJ58A
5.0SMDJ60A
5.0SMDJ64A
5.0SMDJ70A
5.0SMDJ75A
5.0SMDJ78A
5.0SMDJ85A
5.0SMDJ90A
5.0SMDJ100A
5.0SMDJ110A
5.0SMDJ120A
5.0SMDJ130A
5.0SMDJ150A
5.0SMDJ160A
5.0SMDJ170A
Part
Number
(Bi)
5.0SMDJ12CA
5.0SMDJ13CA
5.0SMDJ14CA
5.0SMDJ15CA
5.0SMDJ16CA
5.0SMDJ17CA
5.0SMDJ18CA
5.0SMDJ20CA
5.0SMDJ22CA
5.0SMDJ24CA
5.0SMDJ26CA
5.0SMDJ28CA
5.0SMDJ30CA
5.0SMDJ33CA
5.0SMDJ36CA
5.0SMDJ40CA
5.0SMDJ43CA
5.0SMDJ45CA
5.0SMDJ48CA
5.0SMDJ51CA
5.0SMDJ54CA
5.0SMDJ58CA
5.0SMDJ60CA
5.0SMDJ64CA
5.0SMDJ70CA
5.0SMDJ75CA
5.0SMDJ78CA
5.0SMDJ85CA
5.0SMDJ90CA
5.0SMDJ100CA
5.0SMDJ110CA
5.0SMDJ120CA
5.0SMDJ130CA
5.0SMDJ150CA
5.0SMDJ160CA
5.0SMDJ170CA
Marking
UNI
5PEP
5PEQ
5PER
5PES
5PET
5PEU
5PEV
5PEW
5PEX
5PEZ
5PFE
5PFG
5PFK
5PFM
5PFP
5PFR
5PFT
5PFV
5PFX
5PFZ
5PGE
5PGG
5PGK
5PGM
5PGP
5PGR
5PGT
5PGV
5PGX
5PGZ
5PHE
5PHG
5PHK
5PHM
5PHP
5PHR
BI
5BEP
5BEQ
5BER
5BES
5BET
5BEU
5BEV
5BEW
5BEX
5BEZ
5BFE
5BFG
5BFK
5BFM
5BFP
5BFR
5BFT
5BFV
5BFX
5BFZ
5BGE
5BGG
5BGK
5BGM
5BGB
5BGR
5BGT
5BGV
5BGX
5BGZ
5BHE
5BHG
5BHK
5BHM
5BHB
5BHR
Reverse
Stand off
Voltage
V
R
(Volts)
12.0
13.0
14.0
15.0
16.0
17
.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
150.0
160.0
170.0
Breakdown
Voltage V
BR
(Volts) @ I
T
MIN
13.30
14.40
15.60
16.70
17
.80
18.90
20.00
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47
.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77
.80
83.30
86.70
94.40
100.00
111.00
122.00
133.00
144.00
167
.00
178.00
189.00
MAX
14.70
15.90
17
.20
18.50
19.70
20.90
22.10
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
104.00
111.00
123.00
135.00
147
.00
159.00
185.00
197
.00
209.00
Test
Current
I
T
(mA)
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum Maximum Maximum
Agency
Clamping
Peak
Reverse
Approval
Voltage V
C
Pulse
Leakage I
R
@ I
pp
Current I
pp
@ V
R
(V)
(A)
(µA)
19.9
21.5
23.2
24.4
26.0
27
.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77
.4
82.4
87
.1
93.6
96.8
103.0
113.0
121.0
126.0
137
.0
146.0
162.0
177
.0
193.0
209.0
243.0
259.0
275.0
252.00
233.00
216.00
205.00
193.00
181.00
172.00
155.00
141.00
129.00
119.00
110.00
103.00
93.90
86.10
77
.60
72.10
68.80
64.70
60.70
57
.50
53.50
51.70
48.60
44.30
41.40
39.70
36.50
34.30
30.90
28.30
26.00
24.00
20.60
19.30
18.20
800
500
200
100
50
20
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
For Bidirectional type having V
R
of 20 volts and less,the I
R
limit is double.
For parts without A , the V
BR
is + 10%, and V
C
is 5% higher than A parts.
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/24/14
Transient Voltage Suppression Diodes
Surface Mount – 5000W > 5.0SMDJ series

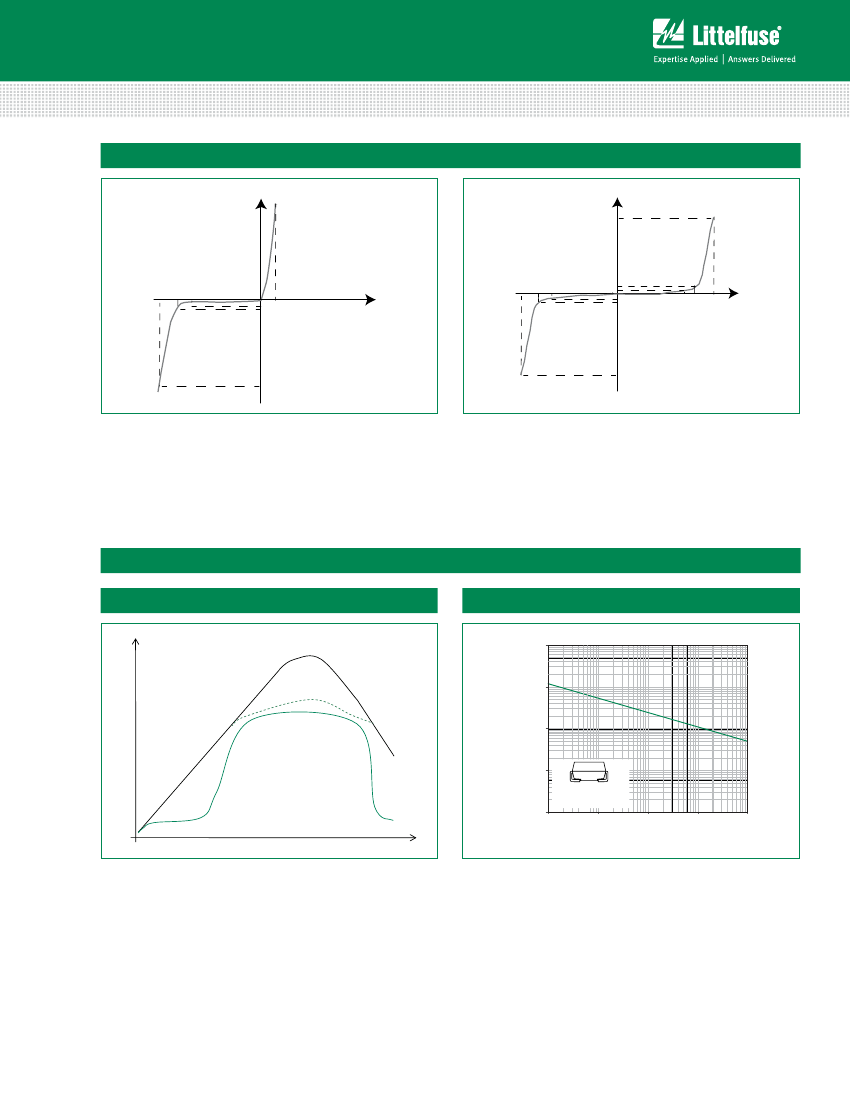

I-V Curve Characteristics
Uni-directional
Bi-directional
I
pp
Vc V
BR
V
R
I
R
V
F
I
T
V
Vc V
BR
V
R
I
T
I
R
I
R
I
T
V
R
V
BR
Vc
V
I
pp
I
pp
P
PPM
V
R
V
BR
V
C
I
R
V
F
Peak Pulse Power Dissipation
-- Max power dissipation
Stand-off Voltage
-- Maximum voltage that can be applied to the TVS without operation
Breakdown Voltage
-- Maximum voltage that flows though the TVS at a specified test current (I
T
)
Clamping Voltage
-- Peak voltage measured across the suppressor at a specified Ippm (peak impulse current)
Reverse Leakage Current
-- Current measured at V
R
Forward Voltage Drop for Uni-directional
Ratings and Characteristic Curves
(T
A
=25°C unless otherwise noted)
Figure 1 - TVS Transients Clamping Waveform
Voltage Transients
Figure 2 - Peak Pulse Power Rating
1000
P
PPM
-Peak Pulse Power (KW)
Voltage Across TVS
Voltage or Current
100
Current Through TVS
10
1
0.31x0.31" (8.0x8.0mm)
Copper Pad Area
0.1
0.0000001
Time
0.000001
0.00001
0.0001
0.001
t
d
-Pulse Width (Sec.)
continues on next page.
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/24/14
Surface Mount – 5000W > 5.0SMDJ series
Transient Voltage Suppression Diodes
Ratings and Characteristic Curves
(T
A
=25°C unless otherwise noted)
(Continued)

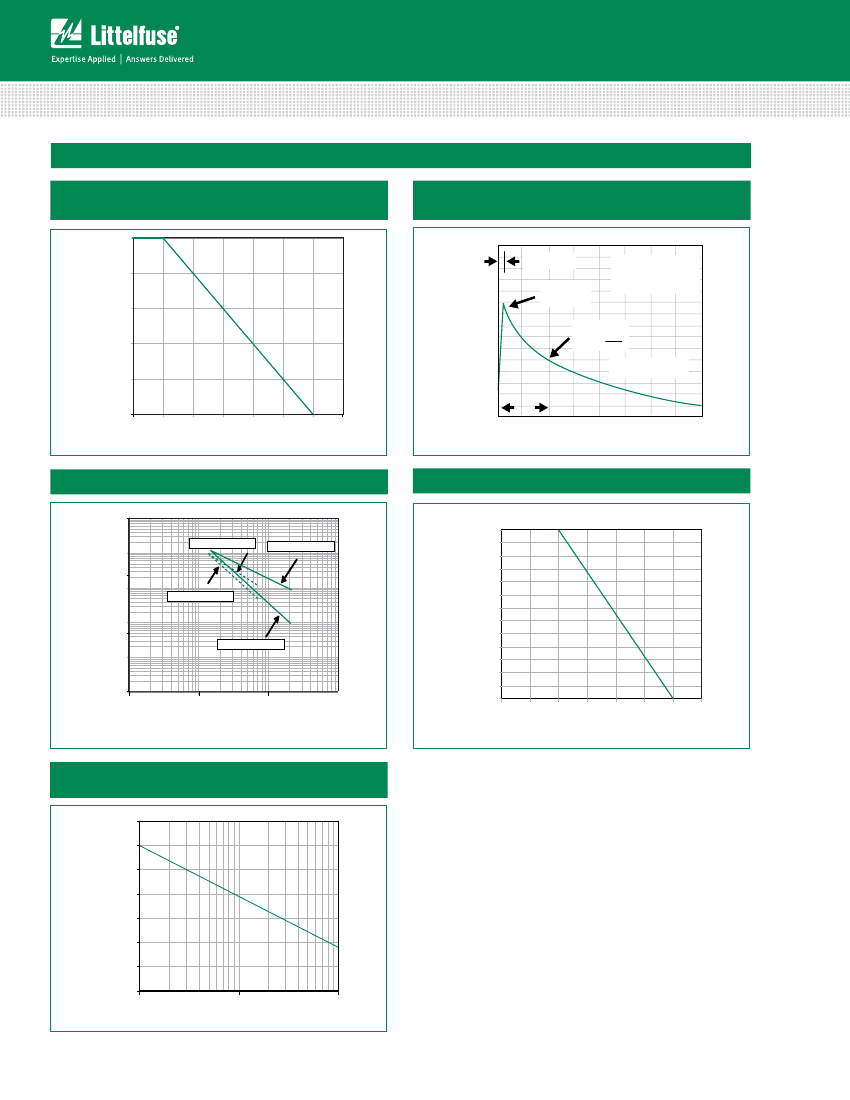

Figure 3 - Peak Pulse Power or Current Derating Curve
vs Initial Junction Temperature
100
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
80
60
40
20
0
I
PPM
- Peak Pulse Current, % I
RSM
Figure 4 - Pulse Waveform
150
tr=10µsec
Peak Value
IPPM
TJ=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to 50% of IPPM
100
Half Value
IPPM
IPPM
2
( )
10/1000µsec. Waveform
as defined by R.E.A
50
0
25
50
75
100
125
150
175
0
td
0
1.0
2.0
t-Time (ms)
3.0
4.0
T
A
-Ambient temperature (ºC)
Figure 5 - Typical Junction Capacitance
100000
10000
1000
100
Bi-directional @ VR
Bi-directional V= OV
Uni-directional V= OV
Figure 6 - Steady State Power Derating Curve
Cj (pF)
Uni-directional @ VR
10
1
1.0
10.0
100.0
1000.0
V
BR
- Reverse Breakdown Voltage (V)
6.5
6
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
P
M(AV)
, Steady State Power Dissipation (W)
0
25
50
75
100
125
150
175
T
A
-Ambient Temperature (ºC)
Figure 7 - Maximum Non-Repetitive Peak Forward
Surge Current Uni-Directional Only
350
I
FSM
- Peak Forward Surge Current (A)
300
250
200
150
100
50
0
1
10
Number of Cycles at 60 Hz
100
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/24/14
Transient Voltage Suppression Diodes
Surface Mount – 5000W > 5.0SMDJ series
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
Average ramp up rate (Liquidus Temp
(T
L
) to peak
T
S(max)
to T
L
- Ramp-up Rate
Reflow
- Temperature (T
L
) (Liquidus)
- Time (min to max) (t
s
)
Lead–free assembly
150°C
200°C
60 – 180 secs
3°C/second max
3°C/second max
217°C
60 – 150 seconds
260
+0/-5
°C
20 – 40 seconds
6°C/second max
8 minutes Max.
280°C
High Temp. Storage
JESD22-A103
JESD22-A108
JESD22-A104
JEDEC-J-STD-020, Level 1
JESD22-A101
JESD22-B106
Temperature (T)
T
P
Ramp-up
t
p
Critical Zone
T
L
to T
P
T
L
T
s(max)
t
L
T
s(min)
Ramp-down
Preheat
t
s
25˚C
t 25˚C to Peak
Time (t)
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
Environmental Specifications
Physical Specifications
Weight
Case
Polarity
Terminal
0.007 ounce, 0.21 grams
JEDEC DO214AB. Molded plastic body
over glass passivated junction
Color band denotes positive end
(cathode) except Bidirectional.
Matte Tin-plated leads, Solderable per
JESD22-B102
HTRB
Temperature Cycling
MSL
H3TRB
RSH
Dimensions
DO-214AB (SMC J-Bend)
Cathode Band
(for Uni-directional products only)
Dimensions
A
B
C
D
Inches
Min
0.114
0.260
0.220
0.079
0.030
-
0.305
0.006
0.129
0.094
-
0.094
Max
0.126
0.280
0.245
0.103
0.060
0.008
0.320
0.012
-
-
0.165
-
Millimeters
Min
2.900
6.600
5.590
2.060
0.760
-
7
.750
0.152
3.300
2.400
-
2.400
Max
3.200
7
.110
6.220
2.620
1.520
0.203
8.130
0.305
-
-
4.200
-
A
B
H
D
F
G
J
K
L
C
E
F
G
H
I
J
K
L
E
I
Solder Pads
(all dimensions in mm)
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/24/14
京公网安备 11010802033920号
EEWORLD
