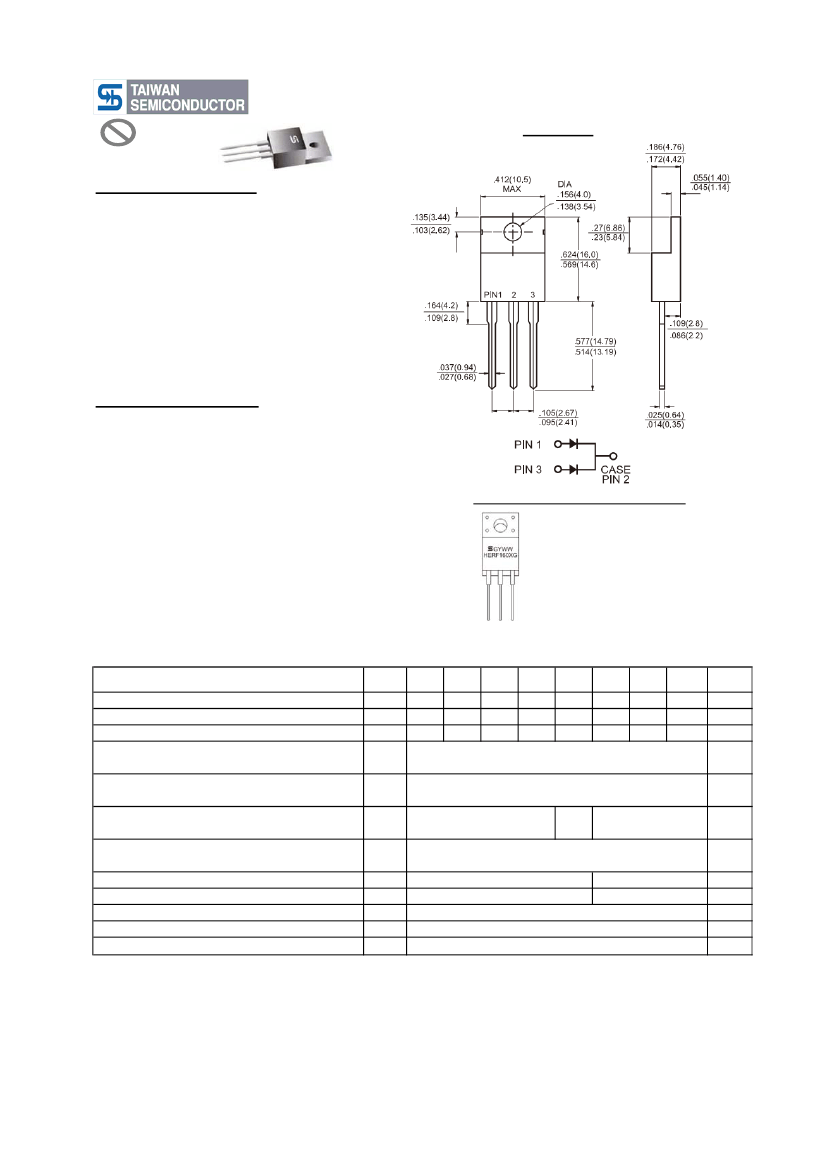

HER1601G - HER1608G
16.0AMPS. Glass Passivated High Efficient Rectifiers
TO-220AB
Pb
RoHS
COMPLIANCE
Features
Glass passivated chip junction
High efficiency, Low VF
High current capability
High reliability
High surge current capability
For use in low voltage, high frequency inventor,
free wheeling, and polarity protection application
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: TO-220AB Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Terminals: Pure tin plated, lead free, solderable
per MIL-STD-202, Method 208 guaranteed
Polarity: As marked
High temperature soldering guaranteed:
260℃/10 seconds .16", (4.06mm) from case
Weight: 2.24 grams
Dimensions in inches and (millimeters)
Marking Diagram
HER160XG
G
Y
WW
= Specific Device Code
= Green Compound
= Year
= Work Week
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-
wave Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@8A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
@ T
A
=25
℃
@ T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJC
T
J
T
STG
HER HER HER HER HER HER HER
HER
1601G 1602G 1603G 1604G 1605G 1606G 1607G 1608G
50
100
200
300
400
600
800
1000
35
50
70
100
140
200
210
300
16
125
1.0
10
400
50
80
1.5
- 65 to + 150
- 65 to + 150
80
50
1.3
1.7
280
400
420
600
560
800
700
1000
Units
V
V
V
A
A
V
uA
nS
pF
O
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
C/W
O
O
C
C
Note 2: Reverse Recovery Test Conditions: IF=0.5A, IR=1.0A, IRR=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:F11

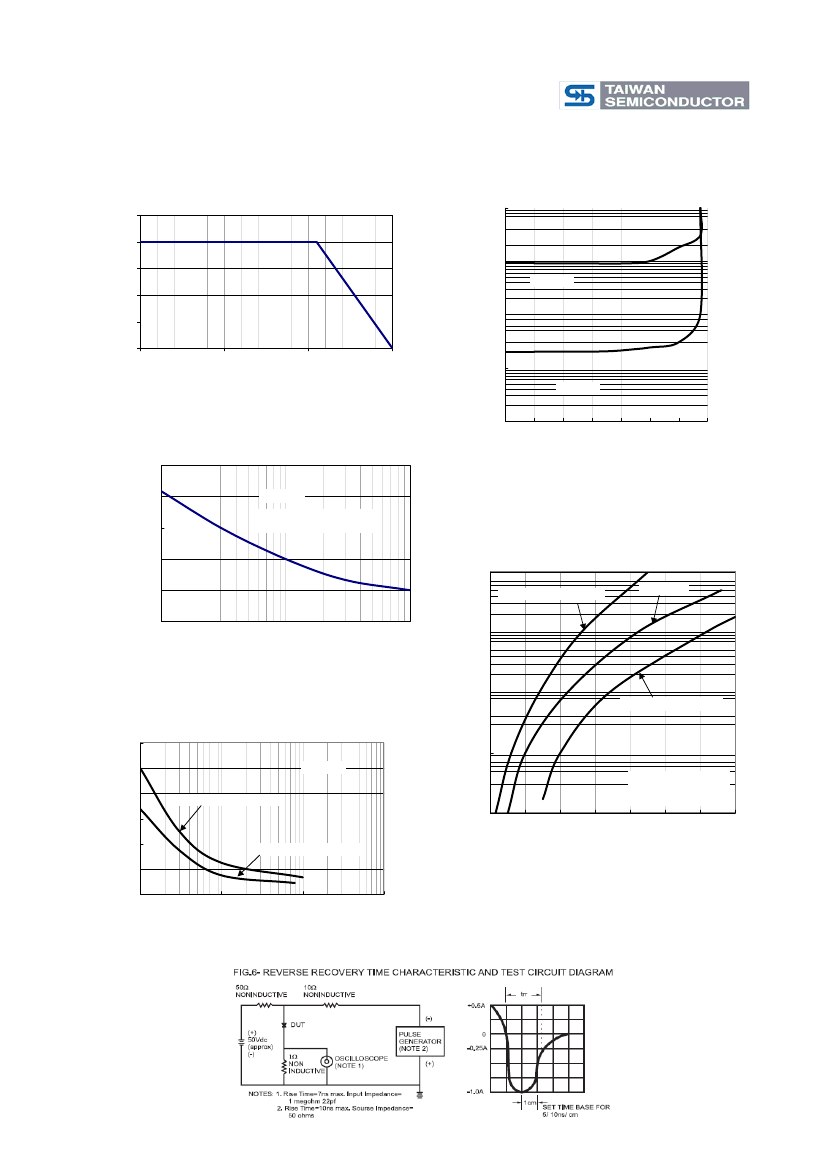

RATINGS AND CHARACTERISTIC CURVES (HER1601G THRU HER1608G)
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
20
AVERAGE FORWARD
A
CURRENT (A)
INSTANTANEOUS REVERSE CURRENT (uA)
1000
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
PER LEG
16
12
8
4
0
0
50
100
o
100
TA=125℃
10
150
1
CASE TEMPERATURE ( C)
TA=25℃
0.1
150
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER LEG
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
PEAK FORWARD SURGE
CURRENT (A)
120
90
60
TA=25℃
8.3mS Single Half Sine Wave
JEDEC Method
100
FIG. 5- TYPICAL FORWARD CHARACTERISRICS
PER LEG
HER1601G-HER1604G
HER1605G
30
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
INSTANTANEOUS FORWARD CURRENT (A)
10
1
HER1606G-HER1608G
FIG. 4- TYPICAL JUNCTION CAPACITANCE PER LEG
240
200
CAPACITANCE (pF)
0.1
TA=25℃
PULSE WIDTH-300us
1% DUTY CYCLE
TA=25℃
160
120
80
40
0
1
HER1601G-HER1605G
0.01
0.4
HER1606G-HER1608G
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
10
100
1000
REVERSE VOLTAGE (V)
Version:F11
