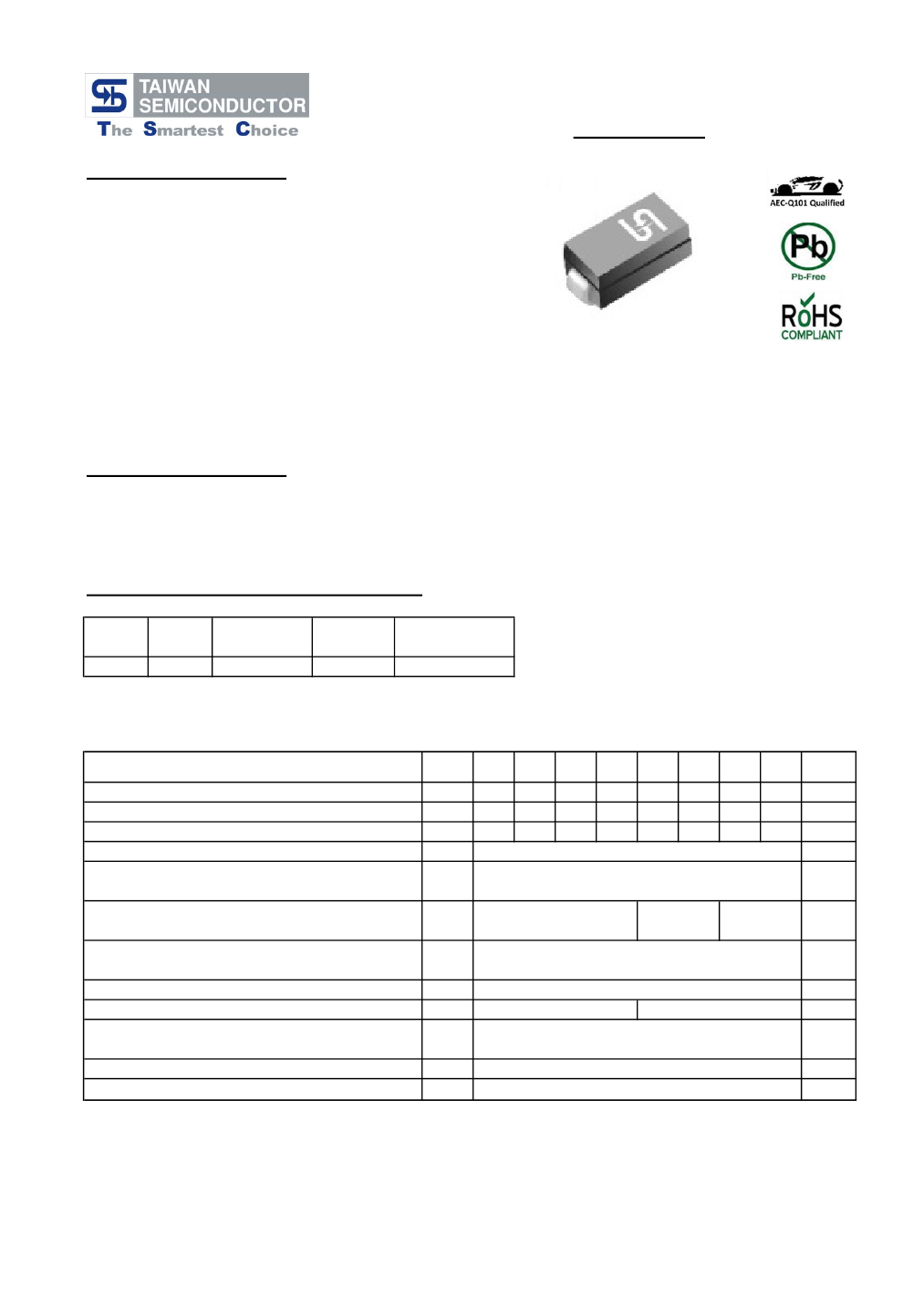

ES1A - ES1J
1.0AMP. Surface Mount Super Fast Rectifiers

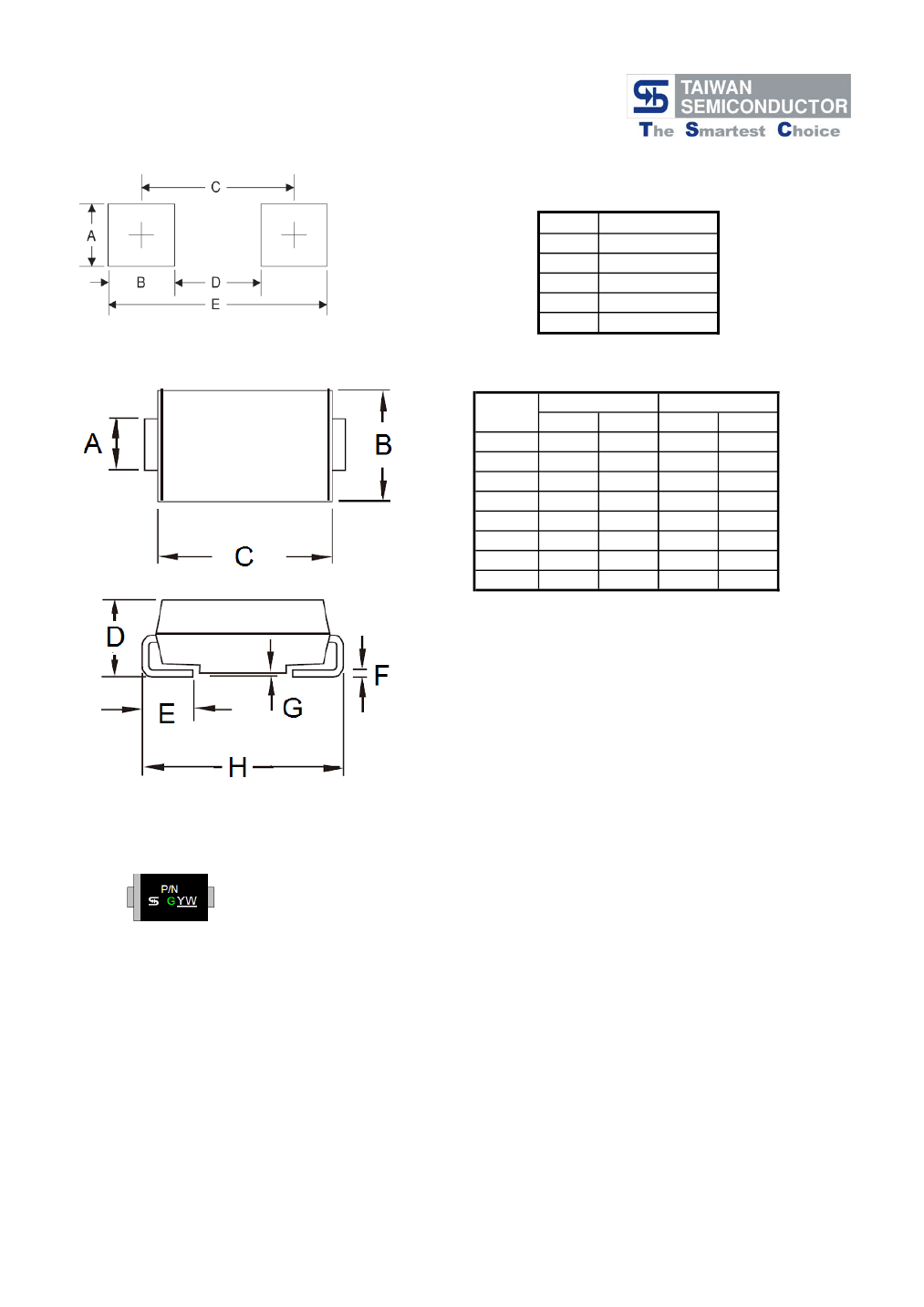

SMA/DO-214AC
Features
Glass passivated junction chip
For surface mounted application
Low profile package
Built-in strain rellef
Ideal for automated placement
Easy pick and place
Super fast recovery time for high efficiency
Glass passivated chip junction
High temperature soldering:
260℃/10 seconds at terminals
Plastic material used carries Underwriters
Laboratory Classification 94V-0
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: Molded plastic
Terminals: Pure tin plated, lead free
Polarity: Indicated by cathode band

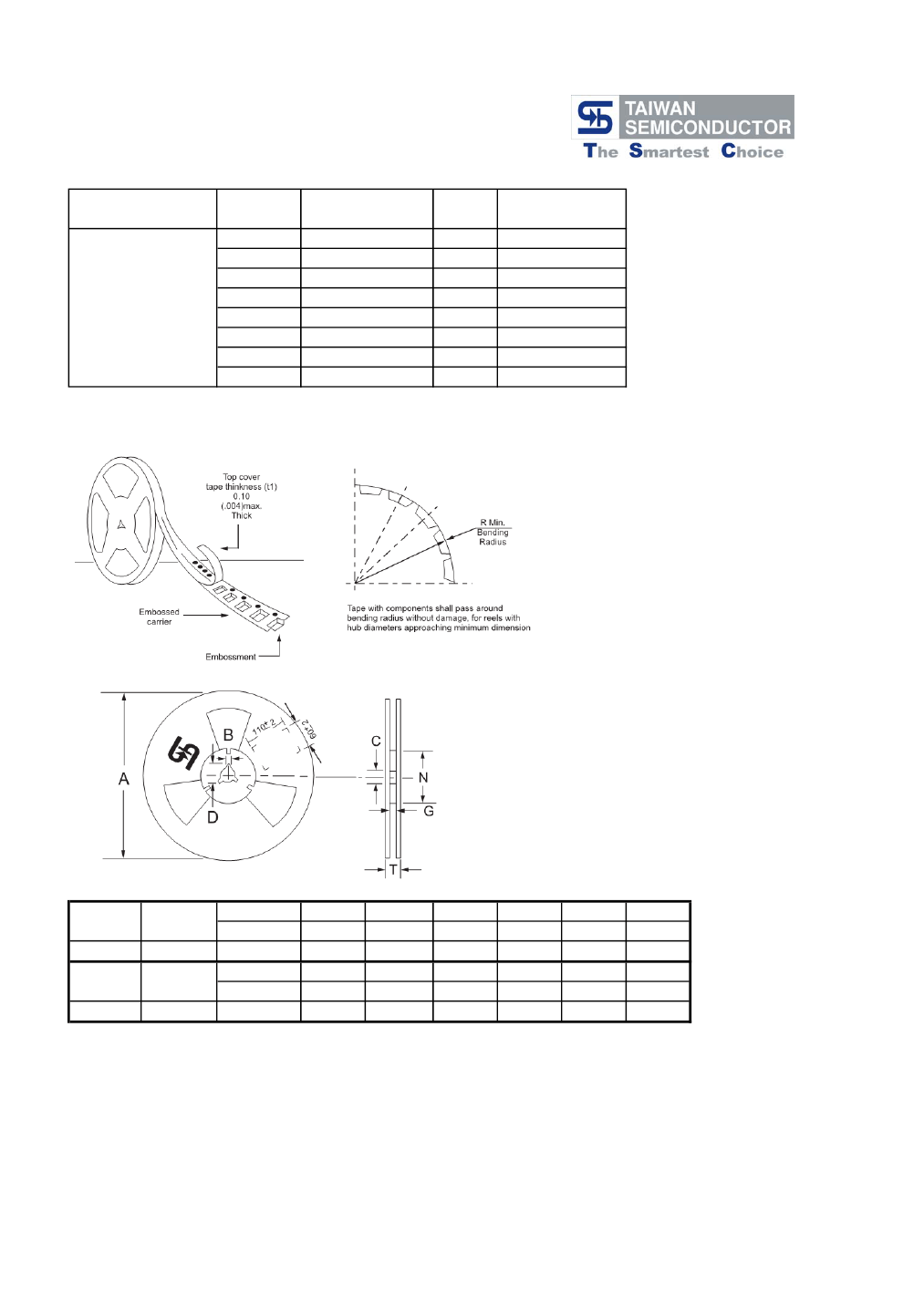

Packing: 12mm tape per EIA STD RS-481
Weight: 0.064 grams
Ordering Information (example)
Part No.
ES1A
Package
SMA
Packing
1.8K / 7" REEL
Packing
code
R3
Green Compound
Packing code
R3G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@1A
Maximum DC Reverse Current at Rated
@ T
A
=25
℃
DC Blocking Voltage
@ T
A
=125
℃
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Maximum Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
R
θJL
T
J
T
STG
ES
1A
50
35
50
ES
1B
100
70
100
ES
1C
150
105
150
ES
1D
200
140
200
1
30
ES
1F
300
210
300
ES
1G
400
280
400
ES
1H
500
350
500
ES
1J
600
420
600
Units
V
V
V
A
A
0.95
5
100
35
16
85
35
1.3
1.7
V
uA
uA
nS
18
O
pF
C/W
O
O
- 55 to + 150
- 55 to + 150
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied V
R
=4.0 Volts
Version:H13

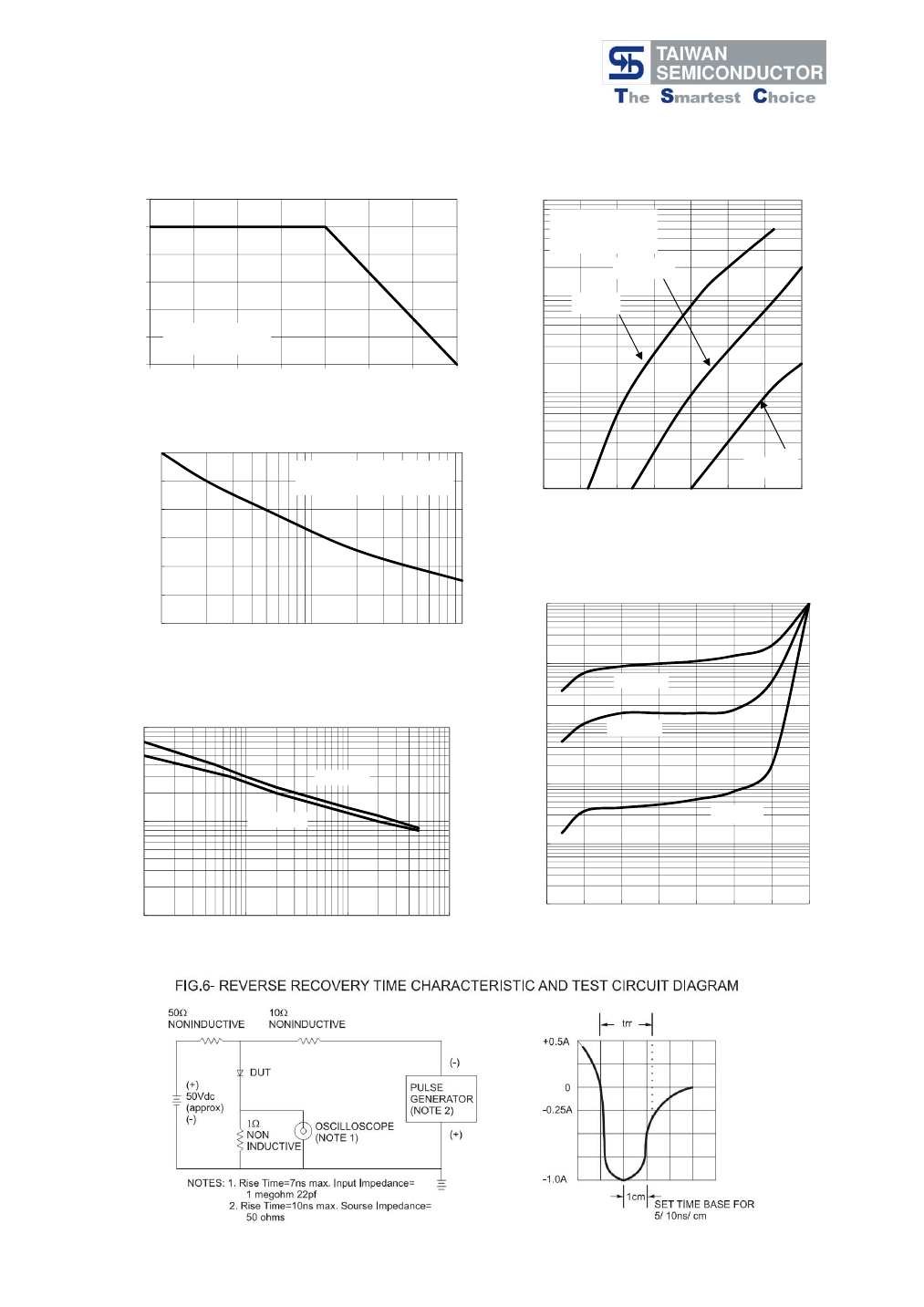

RATINGS AND CHARACTERISTIC CURVES (ES1A THRU ES1J)
FIG.1- MAXIMUM FORWARD CURRENT
DERATING CURVE
1.2
1
0.8
0.6
0.4
0.2
0
80
90
100
110
120
130
140
150
LEAD TEMPERATURE (
o
C)
RESISTER OR
INDUCTIVE LOAD
INSTANTANEOUS FORWARD CURRENT (A)
100
TA=25℃
Pulse Width=300us
1% Duty Cycle
ES1F-1G
10
ES1A-D
FIG. 2- TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
AVERAGE FORWARD
A
CURRENT (A)
1
PEAK FORWARD SURGE CURRENT
(A)
30
25
20
15
10
5
0
1
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD PEAK
SURGE CURRENT
8.3mS Single Half Sine Wave
(JEDEC Method)
ES1H-1J
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
FIG. 5- TYPICAL REVERSE CHARACTERISTICS
1000
10
NUMBER OF CYCLES AT 60 Hz
100
100
TA=125℃
INSTANTANEOUS REVERSE CURRENT (uA)
FIG. 4- TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE (pF)
10
TA=75℃
ES1F-J
1
TA=25℃
0.1
10
ES1A-D
1
0.1
1
10
100
REVERSE VOLTAGE (V)
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Version:H13
