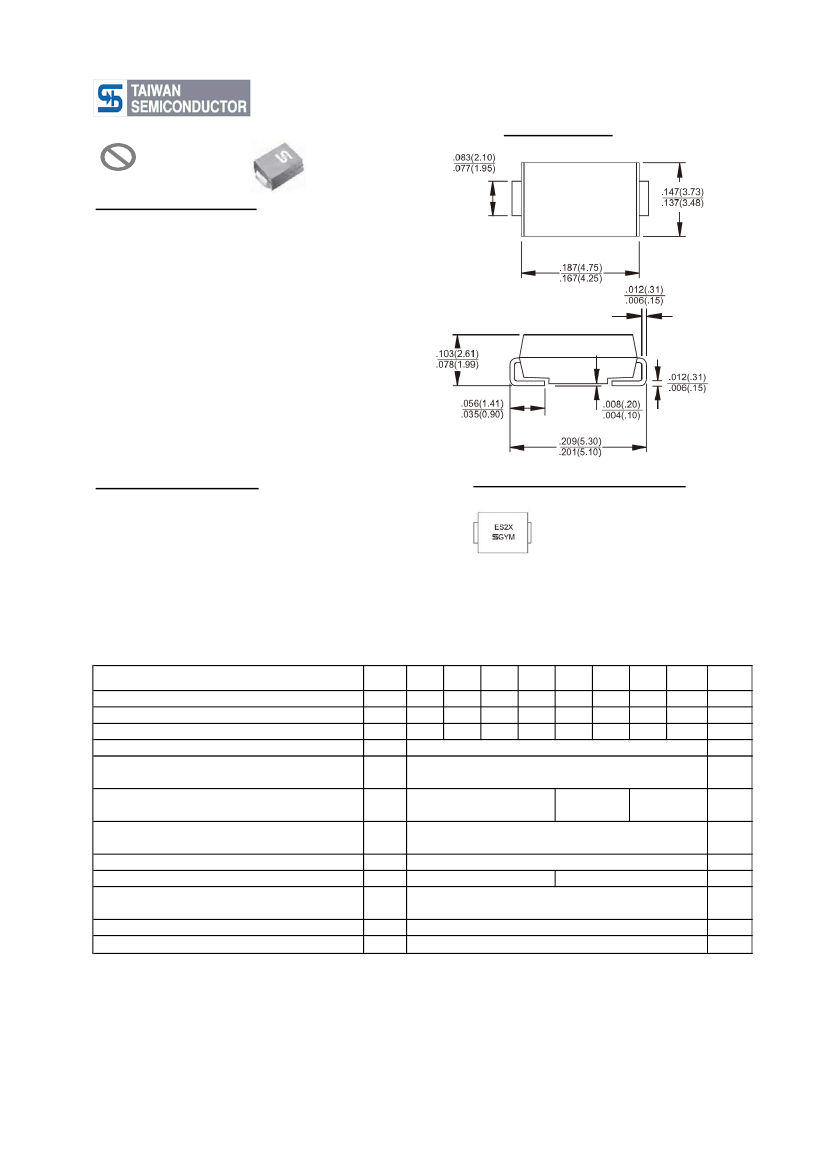

ES2A - ES2J
2.0AMPS. Surface Mount Super Fast Rectifiers
SMB/DO-214AA
Pb
RoHS
COMPLIANCE
Features
Glass passivated junction chip
For surface mounted application
Low profile package
Built-in strain rellef
Ideal for automated placement
Easy pick and place
Super fast recovery time for high efficiency
Glass passivated chip junction
High temperature soldering:
260℃/10 seconds at terminals
Plastic material used carries Underwriters
Laboratory Classification 94V-0
Qualigied as per AEC-Q101
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: Molded plastic
Terminals: Pure tin plated, lead free
Polarity: Indicated by cathode band
Packing: 12mm tape per EIA STD RS-481
Weight: 0.093 grams
Dimensions in inches and (millimeters)
Marking Diagram
ES2X
G
Y
M
= Specific Device Code
= Green Compound
= Year
= Work Month
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-
wave Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@2A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
@ T
A
=25
℃
@ T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
R
θJL
T
J
T
STG
ES
2A
50
35
50
ES
2B
100
70
100
ES
2C
150
105
150
ES
2D
200
140
200
2
50
ES
2F
300
210
300
ES
2G
400
280
400
ES
2H
500
350
500
ES
2J
600
420
600
Units
V
V
V
A
A
0.95
10
350
35
25
75
20
1.3
1.7
V
uA
uA
nS
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Maximum Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
20
O
pF
C/W
O
O
- 55 to + 150
- 55 to + 150
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:E11

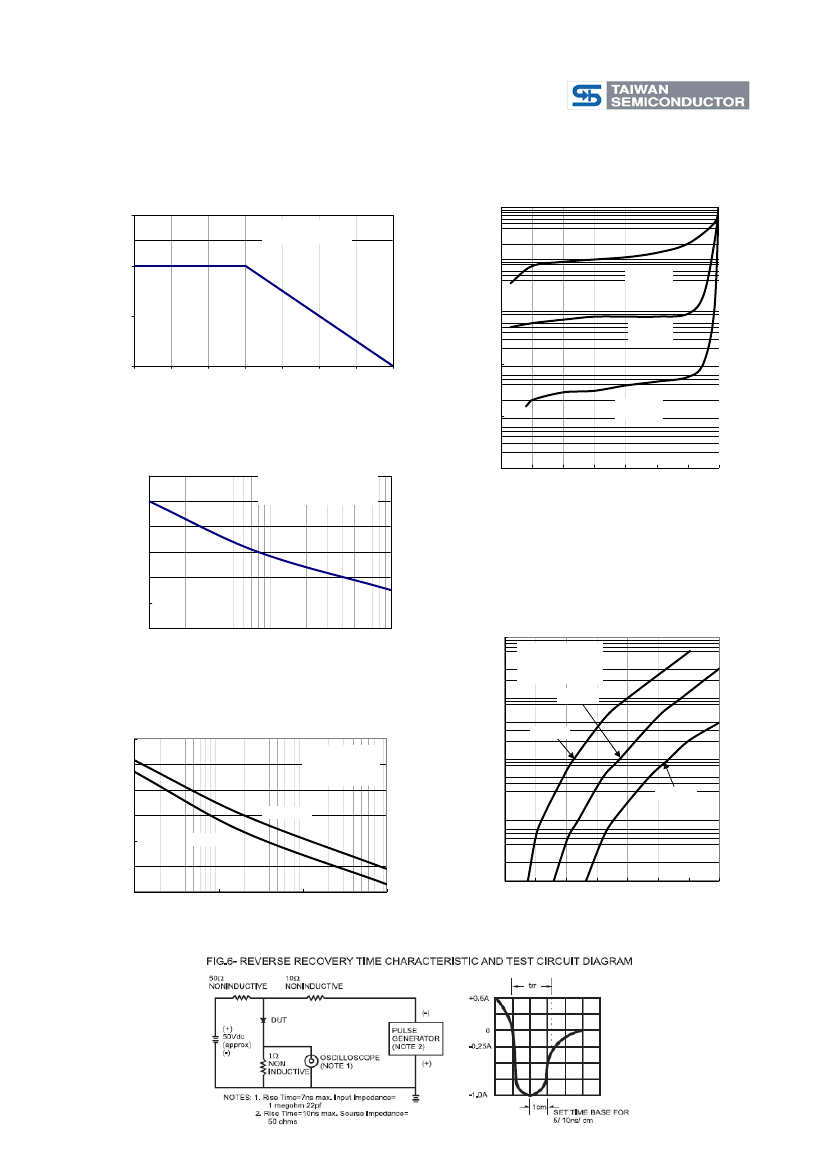

RATINGS AND CHARACTERISTIC CURVES (ES2A THRU ES2J)
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
3
RESISTER OR
INDUCTIVE LOAD
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
1000
AVERAGE FORWARD
CURRENT (A)
2
INSTANTANEOUS REVERSE CURRENT (uA)
100
TA=125℃
1
10
TA=75℃
0
80
90
100
110
120
o
1
130
140
150
LEAD TEMPERATURE ( C)
0.1
TA=25℃
60
FIG. 3- MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
8.3mS Single Half Sine Wave
JEDEC Method
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
PEAK FORWARD SURGE
A
CURRENT (A)
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
100
FIG. 5- TYPICAL INSTANTANEOUS
FORWARD CHARACTERISRICS
TA=25℃
Pulse Width=300us
1% Duty Cycle
INSTANTANEOUS FORWARD CURRENT (A)
10
ES2F-2G
FIG. 4- TYPICAL JUNCTION CAPACITANCE
60
JUNCTION CAPACITANCE (pF)
50
40
30
20
10
ES2F-J
ES2A-D
TA=25 C
f=1.0MHz
Vsig=50mVp-p
o
ES2A-2D
1
ES2H-2J
0.1
0.01
0
0.1
1
10
100
REVERSE VOLTAGE (V)
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE (V)
1.6
1.8
Version:E11
