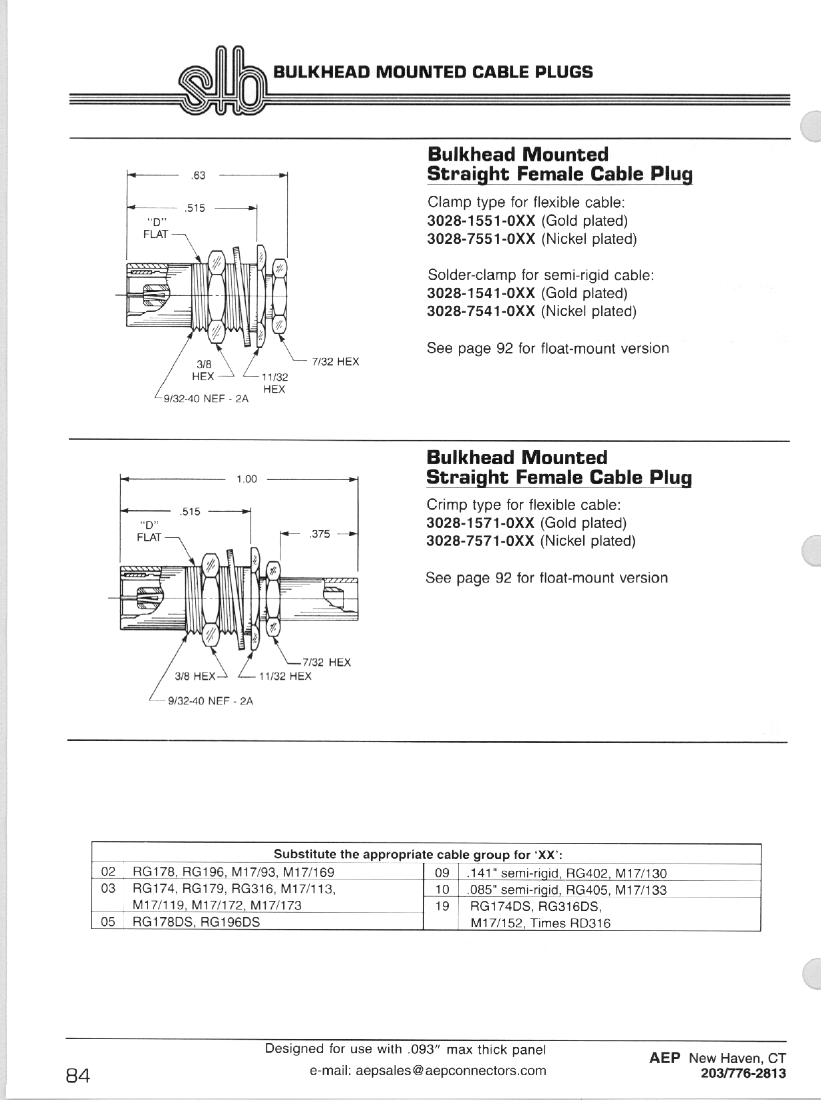

3028-1551-005: DescriptionCONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, RF CONNECTOR, CLAMP, PLUG; CategoryThe connector The connector; File Size266KB，1 Pages; ManufacturerApplied Engineering Products (AEP)

Download Datasheet Parametric View All

3028-1551-005 Overview

CONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, RF CONNECTOR, CLAMP, PLUG

Parameter Name	Attribute value
Objectid	1498486654
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-PRF-39012, APPLICABLE CABLE: RG178DS, INSERTION LOSS MAX AT 1.5 GHZ
subject depth	0.66 inch
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
insulator material	POLYTETRAFLUOROETHYLENE
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE AND PANEL
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CLAMP
Total number of contacts	1
voltage standing wave ratio	1.46
