Zero Insertion Force PGA
Test and Burn-in Sockets
(cont.)
Grid Size
12 x 12*
13 x 13
14 x 14*
15 x 15
16 x 16*
17 x 17
18 x 18*
19 x 19
20 x 20*
21 x 21
No. of Pins
144
169
196
225
256
289
324
361
400
441
Dim. “C”
1.100 [27.94]
1.200 [30.48]
1.300 [33.02]
1.400 [35.56]
1.500 [38.10]
1.600 [40.64]
1.700 [43.18]
1.800 [45.72]
1.900 [48.26]
2.000 [50.80]
Dim. “A”
1.894 [48.10]
2.094 [53.20]
2.294 [58.26]
2.494 [63.34]
2.694 [68.42]
Dim. “B”
1.510 [38.35]
1.710 [43.43]
1.910 [48.51]
2.110 [53.59]
2.310 [58.67]
Dim. “D”
1.675 [42.54]
1.875 [47.62]
2.075 [52.70]
2.275 [57.78]
2.475 [62.86]
Dim. “L”
2.190 [55.11]
2.370 [60.20]
2.570 [65.27]
2.770 [70.35]
2.970 [75.43]
* Top and Right-hand Side Row left out
No. of Pins
Series Designator
PRS = Standard (w/o Mounting Ears)
PRM = w/Mounting Ears
PLS = Handle on Left Side w/o Mouting Ears
PLM = Handle on Left Side w/Mounting Ears
Grid Size
ORDERING INFORMATION
XXX-PXX XX XXX-1X
Plating
2 = Gold Contact/Tin Tail over Nickel
6 = Nickel Boron (Spinodal) Pin Only
CONSULT FACTORY FOR MINIMUM
ORDERING QUANTITIES AS WELL AS
AVAILABILITY OF THIS PIN
Solder Tail Pin
Footprint Number
SPECIAL FOOTPRINT INSTRUCTIONS
1. Make a copy of this sheet
2. Fill-in circles for footprint desired using the key below
3. Fill-in the information below, including Series and Plating
options. See Ordering Information above
4. Send sheet to Aries for prompt quote

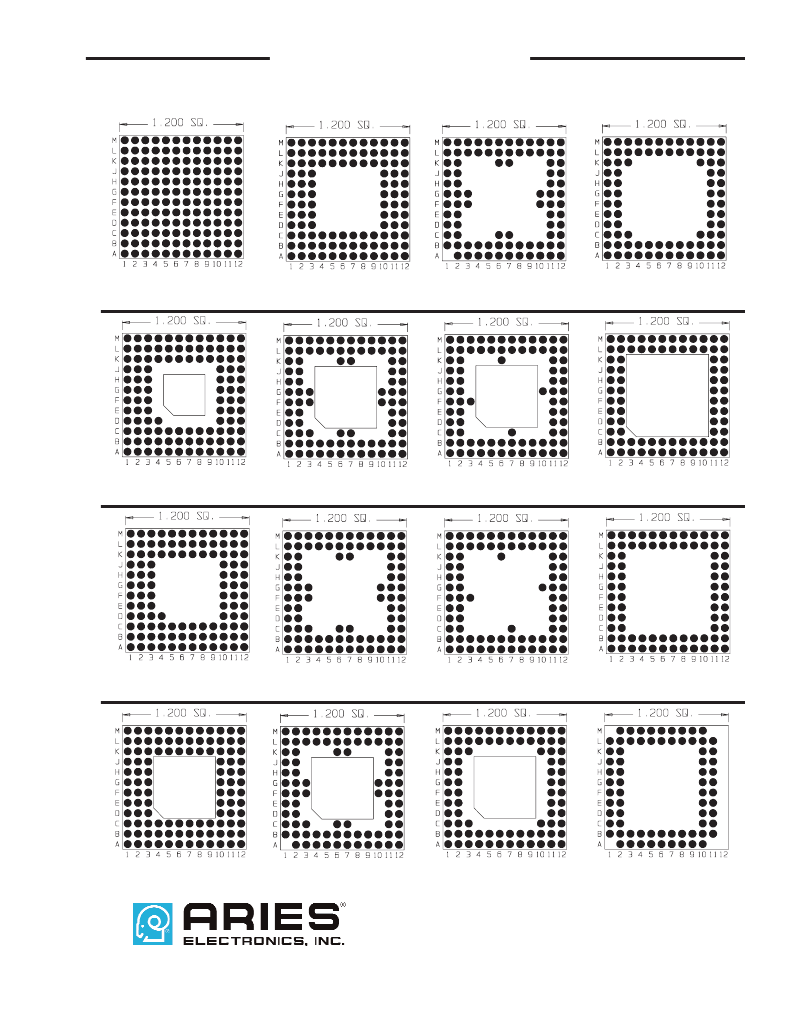

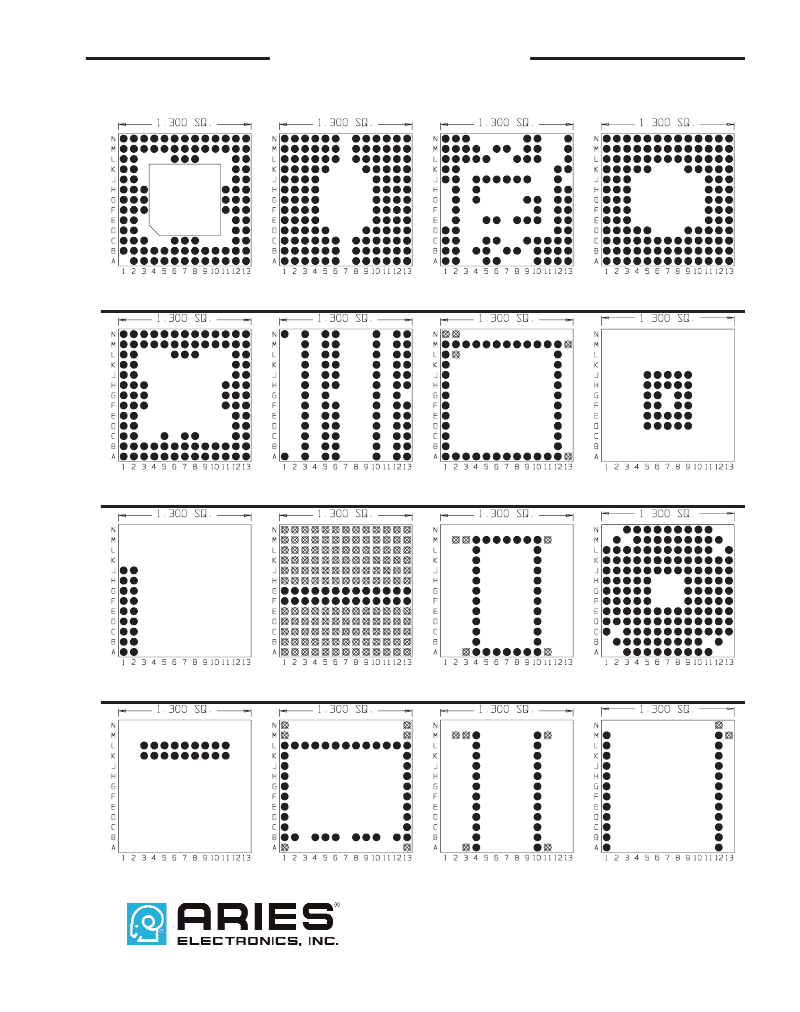

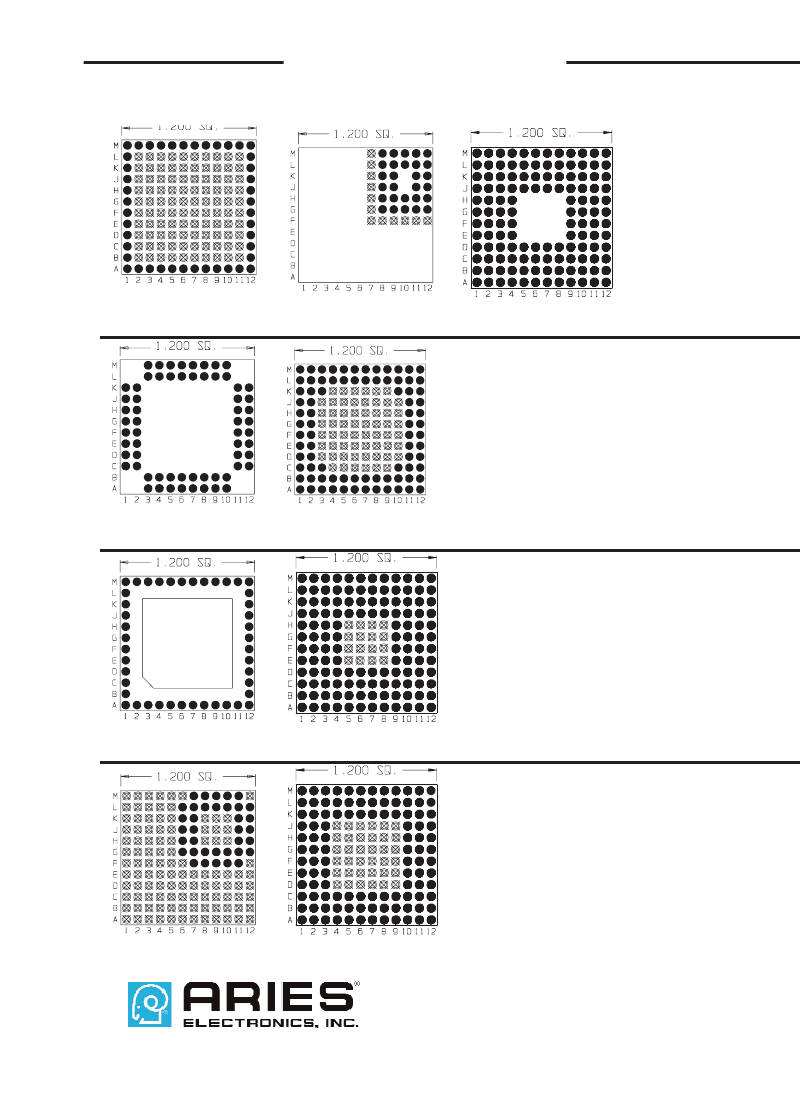

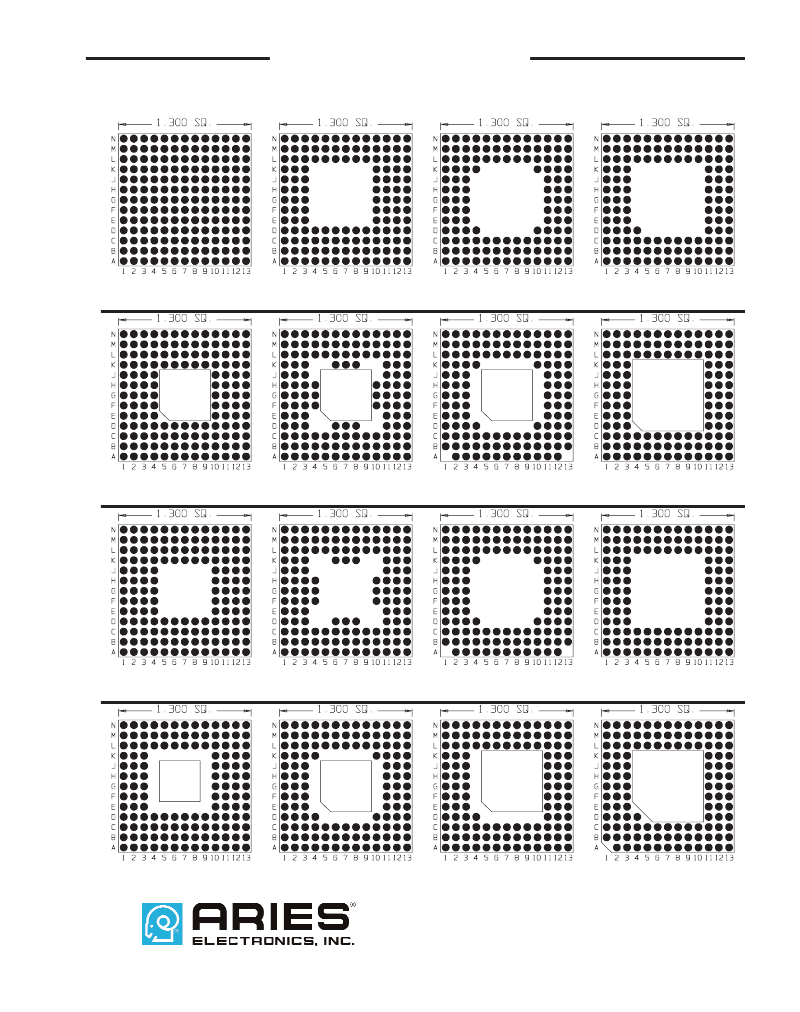

Many PGA Footprints are available and listed by footprint number in a
drop-down menu on
Data Sheet 10004,
In addition, special footprints
can be accommodated. Use the diagram and follow Special Footprint
Instructions.

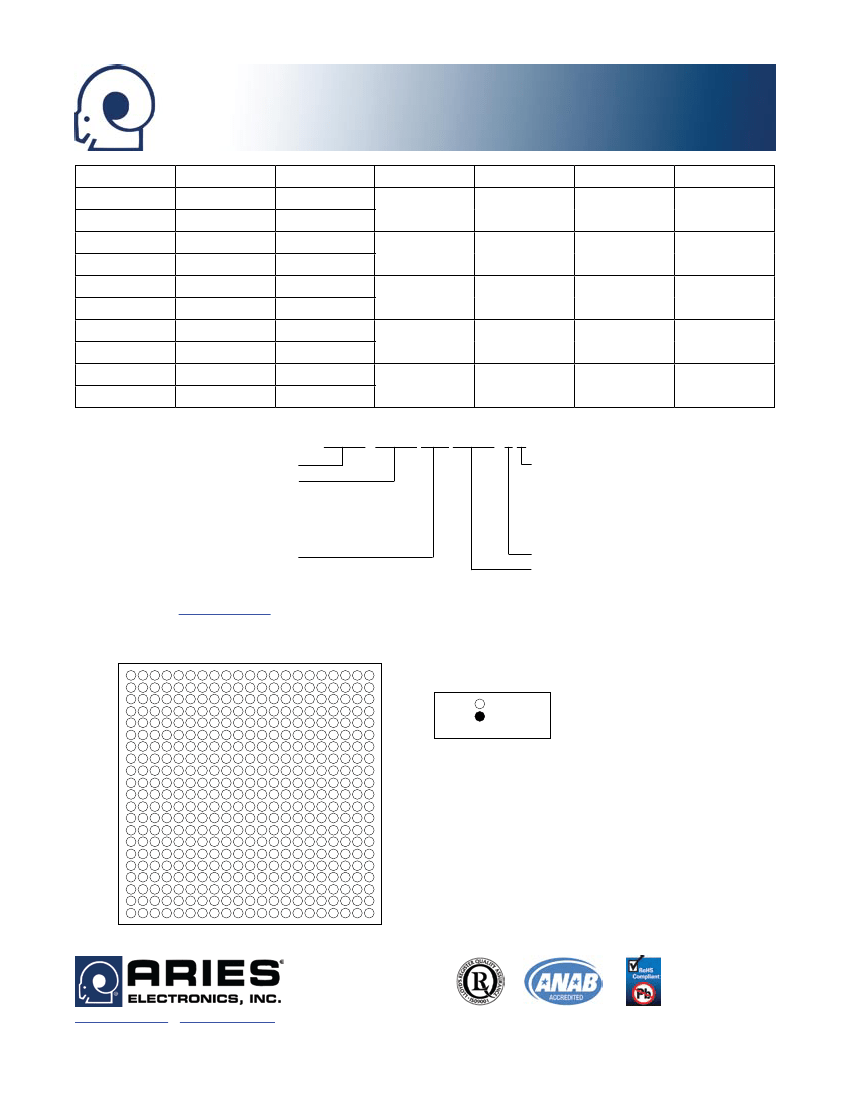

TOP VIEW
X
W
V
U
T
S
R
P
N
M
L
K
J
H
G
F
E
D
C
B
A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
KEY
= no pin
= pin
X
= plug hole
COMPANY NAME ___________________________
ADDRESS ________________________________
CITY ____________________________________
REQUESTED BY ____________________________
PHONE __________________________________
DATE ___________________________________
TOTAL NUMBER OF PINS _____________________
SERIES
(circle one)
PRS
PRM
PLS
PLM
PLATING
(circle one)
2
6
Frenchtown, NJ USA
Tel (908) 996-6841
Fax (908) 996-3891
10005
REV. K
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
