MO2LT631A273J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> MO2LT631A273J

MO2LT631A273J: DescriptionFixed Resistor, Metal Oxide Film, 2W, 27000ohm, 350V, 5% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED; CategoryPassive components The resistor; File Size274KB，2 Pages; ManufacturerKOA

Download Datasheet Parametric View All

MO2LT631A273J Overview

Fixed Resistor, Metal Oxide Film, 2W, 27000ohm, 350V, 5% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED

MO2LT631A273J Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	2143814622
package instruction	AXIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FLAME PROOF
JESD-609 code	e0
Manufacturer's serial number	MO
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	235 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	AMMO PACK
Rated power dissipation(P)	2 W
Rated temperature	70 °C
resistance	27000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL OXIDE FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE
Tolerance	5%
Operating Voltage	350 V

Preview

Download Datasheet

View All

POWER TYPE

(

RSF

)

MOX

(

RSFX

)

塗装絶縁½酸化金属皮膜固定抵抗器

Coat-Insulated Fixed Metal Oxide Film Resistors

塗装絶縁½金属皮膜固定抵抗器

Coat-Insulated Fixed Metal Film Resistors

■構造図 Construction

①

②

③

④

⑤

⑥

⑦

①

②

③

④

表示

難燃性絶縁塗装

トリミングライン

セラミック

Marking

Flame retardant insulation coating

Trimming line

Ceramic core

⑤

⑥

⑦

電極キャップ

リード線

抵抗皮膜

φd

Electrode cap

Lead wire

Resistive film

外装色：ブルーグレー Coating color：Blue gray

表示：カラーコード Marking：Color code

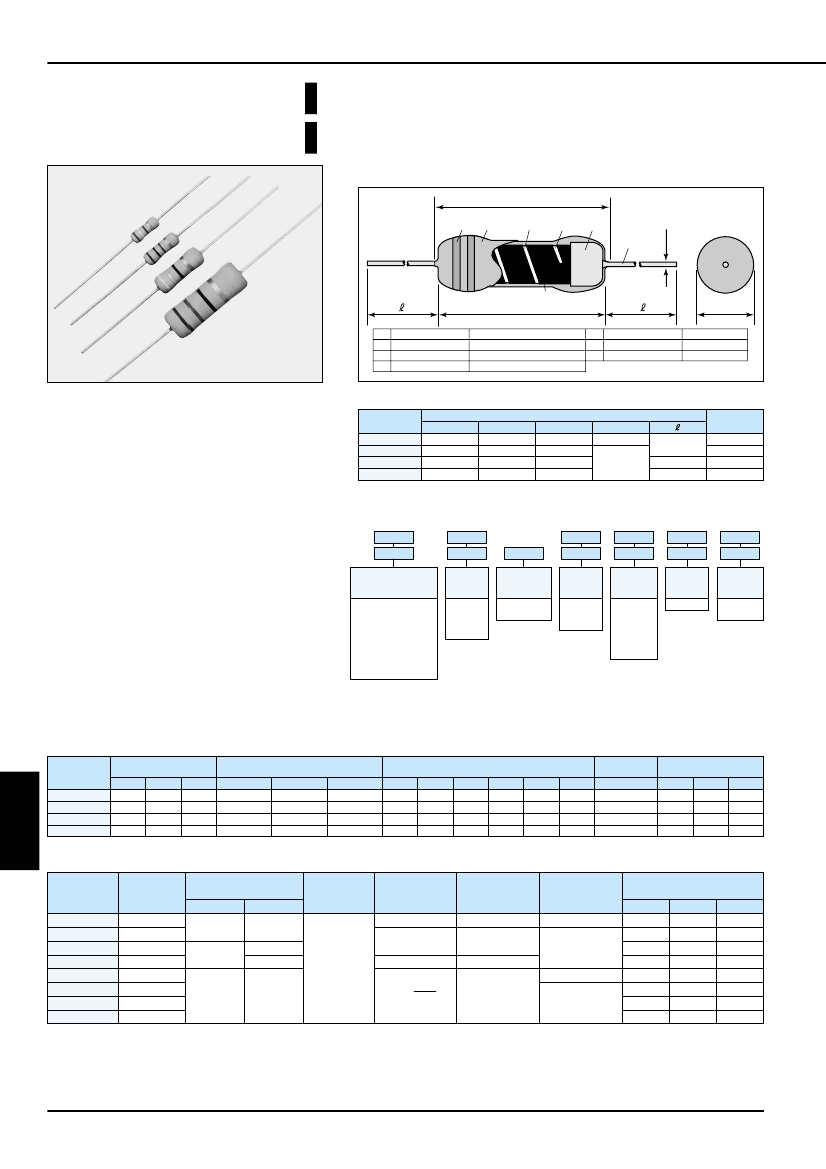

■外½寸法 Dimensions

½ 名

Type

（X）

1/2

（X）

寸法 Dimensions

（mm）

9.0±1.0

12.0±1.0

15.5±1.0

24.5±1.0

C Max.

11.1

15.0

18.0

28.0

3.2±0.5

4.0±0.5

6.0±1.0

9.0±1.0

0.8

（Nominal）

0.7

24Min.

30±3

38±3

Weight

（g）

（1000pcs）

480

800

1,400

4,600

■特長 Features

汎用電力½抵抗器です。

●

難燃性塗装です。 UL94 V-0相½品）

（

●

自動挿入が可½です。

●

各種フォーミングが可½です。

●

高信頼性。

●

端子鉛フリー品は、RoHS対応品です。

●

General purpose power type resistors.

●

Flame retardant coating. (Equivalent to UL94 V-0)

●

Automatic insertion is applicable.

●

Various types of formings are available.

●

High reliability.

●

Products with lead free termination meet RoHS

requirements.

●

■品名構成 Type Designation

例 Example

Old Type

New Type

RSF

定格電力

Power

Rating

1/2 : 0.5W

1 : 1W

2 : 2W

3 : 3W

T631

端子表面材質

Terminal

Surface Material

C : SnCu

L : Sn/Pb

包装

Packaging

A : アモパック

A : AMMO

R : リール

R : REEL

空欄:ボックス

Nil: BOX

10kΩ

103

公称抵抗値

Nominal

Resistance

3 digits

抵抗値許容差

Resistance

Tolerance

G: ±2%

J :±5%

T631

二次加工

Taping &

Forming

下記参照

See table

below

品種

Product Code

MO:塗装絶縁½酸化金属

皮膜固定抵抗器

Coat-insulated Fixed

Metal Oxide Film Resistors

MOX:塗装絶縁½金属

皮膜固定抵抗器

Coat-insulated Fixed

Metal Film Resistors

■参考規格 Reference Standards

IEC 60115-4

JIS C 5201-4

EIAJ RC-2138

端子表面材質は鉛フリーめっき品が標準となります。

テーピング及びフォーミングの詳細については巻末のAPPENDIX Cを参照して下さい。

The terminal surface material lead free is standard.

For further information on taping and forming, please refer to APPENDIX C on the back pages.

■二次加工対応表 Taping & Forming Matrix

電力½抵抗器

High Power Type Resistors

½ 名

Type

（X）

1/2

（X）

アキシャルテーピング

Axial Taping

T52

T521

T631

○

ー

○

ー

○

ー

½しテーピング

Stand-off Axial Taping

L52

L521

L631

○

ー

○

ー

○

ー

L12.5A

○

ー

L15A

○

ー

Lフォーミング

L Forming

L20A

L25A

ー

○

ー

○

ー

L30A

ー

○

L35A

ー

○

Uフォーミング

Mフォーミング

U Forming

M Forming

M15

M20

M25

○

M15F

ー

○

M15S

ー

○

ー

M20T M25C

ー

■定格 Ratings

½名

Type

MO1/2

MO1

MO2

MO3

MOX1/2

MOX1

MOX2

MOX3

定格電力

Power

Rating

0.5W

5.1∼9.1

0.2∼9.1

抵抗値範囲（Ω）

Resistance Range

（E24）

G：±2％

10∼47k

10∼100k

J：±5％

10∼47k

10∼120k

10∼150k

±200

抵抗温度係数

T.C.R.

（×10 /K）

−6

最高½用電圧

Max.Working

Voltage

250V

350V

500V

最高過負荷電圧

Max.Overload

Voltage

400V

600V

800V

耐電圧

Dielectric Withstanding

Voltage

400V

500V

400V

テーピングと包装数/アモ包装

Taping & Q'ty/AMMO (pcs)

T52A

2,000

1,000

―

2,000

1,000

―

T521A

―

1,000

500

―

1,000

500

―

T631A

―

1,000

―

1,000

―

√

P×R

E×2.5

500V

定格周囲温度 Rated Ambient Temperature：＋70℃

½用温度範囲 Operating Temperature Range：−55℃∼＋200℃

定格電圧は

√

定格電力×公称抵抗値による算出値、又は表中の最高½用電圧のいずれか小さい値が定格電圧となります。

￣￣￣￣￣￣￣￣￣

Rated voltage＝

√

Power Rating×Resistance value

￣￣￣￣￣￣￣￣￣￣￣￣

or Max. working voltage, whichever is lower.

本カタログに掲載の仕様は予告なく変更する場合があります。御注文及び御½用前に、納入仕様書などで内容を御確認下さい。

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

www.koanet.co.jp
