SPECIFICATIONS
Current Rating:
Contact Resistance:
Housing Material:
Insulator Resistance:
Withstanding:
Operating Temp:
1 AMP
20mΩ max. at DX 100mA
30% Glass Filled PBT UL94V-0
1000MΩ min. ad DC 500V
AC 1000V for 1 minute
-55ºC ~ +105ºC
B
C
C
D
D
E
E
Series
CFPC
FPC Connector
F
Pitch
100
100=.100"
Type
2032
Type 2032
Contacts
XX
02-26
Style
X
R=Right Angle
V=Vertical
Plating
TN
TN=Tin
RoHS compliant
Rev.
A PNT
Description
Date
Approved
08/28/14 GL
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Options
XX
[blank]=None
TR=Tape & reel
TB=Tube
F
Date
04/17/06
04/17/06
04/17/06 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
CFPC-100-2032-XX-X-TN-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3°
UNIT: mm
5
6

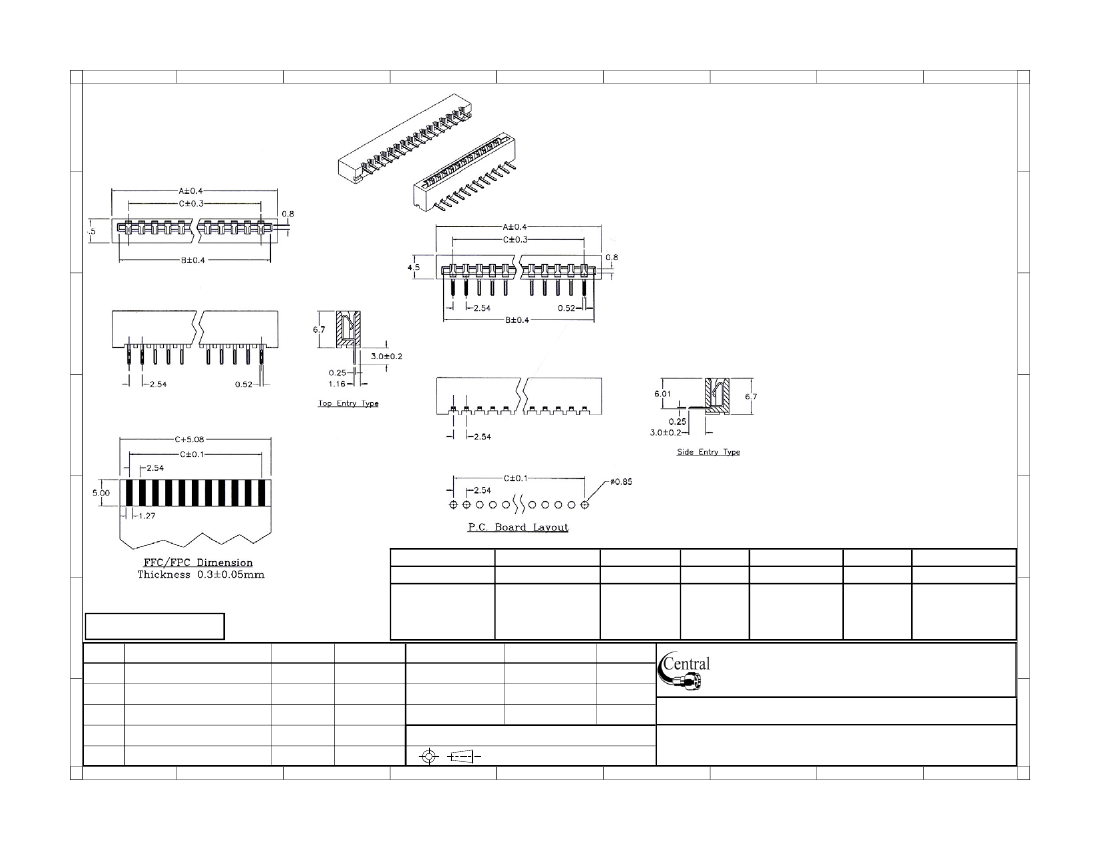

Description: FFC/FPC Connector
.100" (2.54mm)
