MURS340S, MURS360S
www.vishay.com
Vishay General Semiconductor
Surface Mount Ultrafast Plastic Rectifier
FEATURES
• Glass passivated pellet chip junction
• Ideal for automated placement
• Ultrafast reverse recovery time
• Low switching losses, high efficiency
• Meets MSL level 1, per
LF maximum peak of 260 °C
J-STD-020,
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3

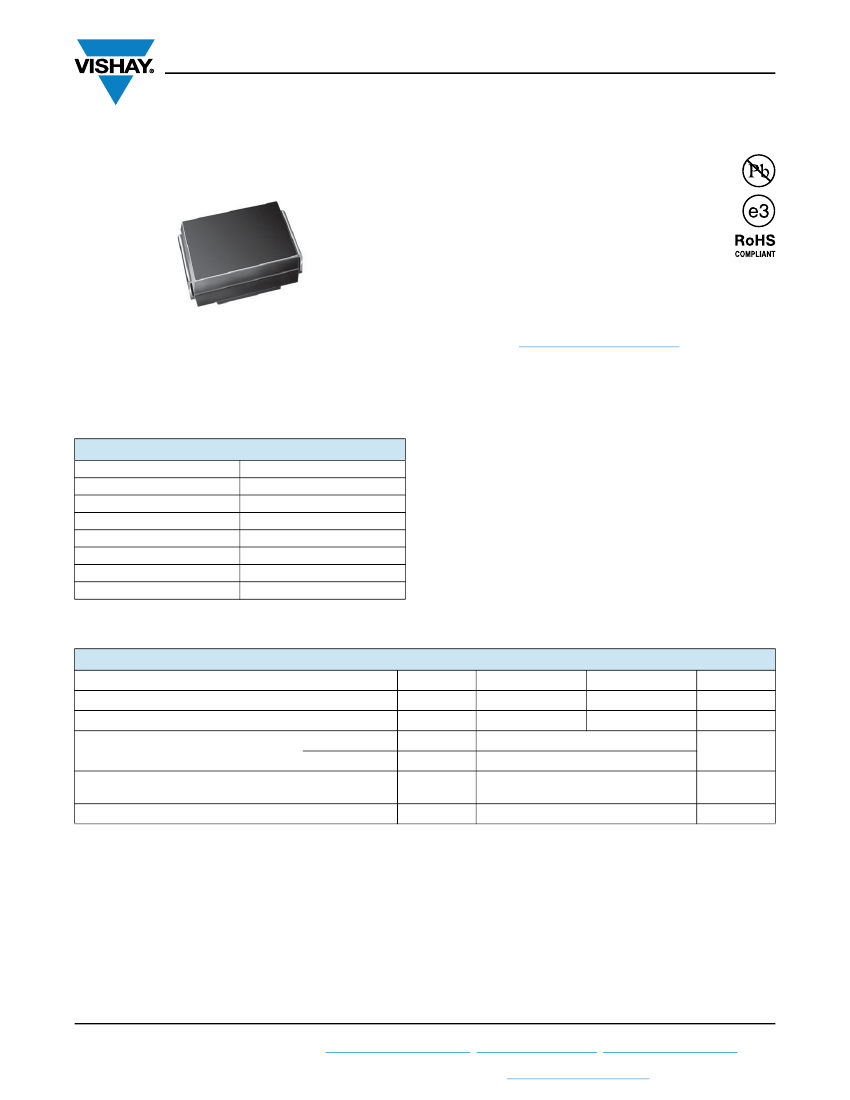

SMB
(DO-214AA)
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in high frequency rectification and freewheeling
application in switching mode converters and inverters for
consumer, computer and telecommunication.
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
at I
F
= 3.0 A
T
J
max.
Package
Circuit configuration
3.0 A
400 V, 600 V
35 A
50 ns
1.20 V
175 °C
SMB (DO-214AA)
Single
MECHANICAL DATA
Case:
SMB (DO-214AA)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3_X - RoHS-compliant, and AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B,.....)
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 and HE3 suffix meet JESD 201 class 2 whisker test
Polarity:
color band denotes cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking codes
Maximum repetitive peak reverse voltage
Maximum average forward rectified current
T
M
= 130 °C
T
A
= 25 °C
V
RRM
I
F(AV) (1)
I
F(AV) (2)
I
FSM
T
J
, T
STG
SYMBOL
MURS340S
3GS
400
3.0
1.5
35
-65 to +175
MURS360S
3JS
600
V
A
A
°C
UNIT
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
Operating junction and storage temperature range
Notes
(1)
Units mounted on PCB with 8 mm x 8 mm, 1 oz. copper pad areas (fig. 1)
(2)
Free air, mounted on recommended copper pad area (fig. 2)
Revision: 22-Mar-18
Document Number: 89110
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MURS340S, MURS360S
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage
Maximum instantaneous
reverse current
Maximum reverse recovery time
Maximum reverse recovery time
TEST CONDITIONS
I
F
= 3.0 A
T
J
= 25 °C
T
J
= 150 °C
T
J
= 25 °C
T
J
= 150 °C
SYMBOL
V
F (1)
I
R (2)
t
rr
t
rr
MURS340S
1.45
1.20
5.0
150
50
75
MURS360S
UNIT
V
Rated V
R
μA
ns
ns
I
F
= 0.5 A, I
R
= 1.0 A, I
rr
= 0.25 A
I
F
= 1.0 A, dI/dt = 50 A/μs,
V
R
= 30 V, I
rr
= 10 % I
RM
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: pulse width
40 ms
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JM
(1)
R
JA
(2)
MURS340S
12
120
MURS360S
UNIT
°C/W
Notes
(1)
Units mounted on PCB with 8 mm x 8 mm, 1 oz. copper pad areas. Thermal resistance R
JM
- junction to mount
(2)
Free air, mounted on recommended copper pad area. Thermal resistance R
JA
- junction to ambient
ORDERING INFORMATION
(Example)
PREFERRED P/N
MURS360S-E3/52T
MURS360S-E3/5BT
MURS360SHE3_A/H
(1)
MURS360SHE3_A/I
(1)
Note
(1)
AEC-Q101 qualified
UNIT WEIGHT (g)
0.093
0.093
0.093
0.093
PREFERRED PACKAGE CODE
52T
5BT
H
I
BASE QUANTITY
750
3200
750
3200
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Revision: 22-Mar-18
Document Number: 89110
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MURS340S, MURS360S
www.vishay.com
Vishay General Semiconductor

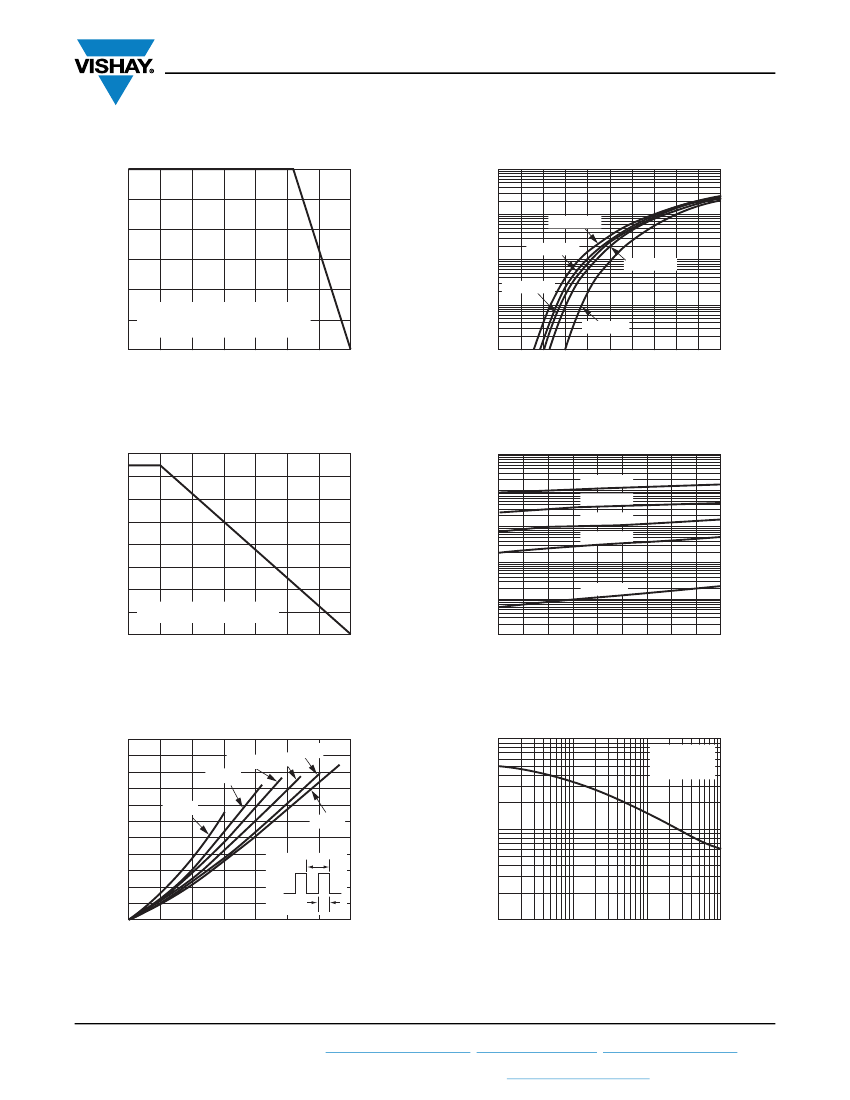

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
3.0
100
Average Forward Rectified Current (A)
Instantaneous Forward Current (A)
10
2.0
T
A
= 175 °C
T
A
= 150 °C
1
T
A
= 125 °C
0.1
T
A
= 25 °C
0.01
T
A
= 100 °C
1.0
Units Mounted on P.C.B. with 8 mm x 8 mm,
1 oz. Copper Pad Areas.
T
M
Measured at Mount of Terminal
0
0
25
50
75
100
125
150
175
0
0.4
0.8
1.2
1.6
2.0
T
M
- Mount Temperature (°C)
Instantaneous Forward Voltage (V)
Fig. 1 - Forward Current Derating Curve
Fig. 4 - Typical Instantaneous Forward Characteristics
1.6
1000
Average Forward Current (A)
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
25
50
75
100
125
150
175
Mounted on P.C.B. with
Recommended Copper Pad Areas
Instantaneous Reverse Current (µA)
T
A
= 175 °C
100
T
A
= 150 °C
T
A
= 125 °C
T
A
= 100 °C
1
T
A
= 25 °C
0.1
10
0.01
10
20
30
40
50
60
70
80
90
100
T
A
- Ambient Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 2 - Forward Current Derating Curve
Fig. 5 - Typical Reverse Characteristics
4.4
4.0
D = 0.8
D = 0.3 D = 0.5
D = 0.2
100
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
3.2
2.8
2.4
2.0
1.6
1.2
0.8
0.4
0
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
D = t
p
/T
t
p
T
D = 0.1
D = 1.0
Junction Capacitance (pF)
Average Power Loss (W)
3.6
10
1
0.1
1
10
100
Average Forward Current (A)
Reverse Voltage (V)
Fig. 3 - Forward Power Loss Characteristics
Fig. 6 - Typical Junction Capacitance
Revision: 22-Mar-18
Document Number: 89110
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MURS340S, MURS360S
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
SMB (DO-214AA)
Cathode Band
Mounting Pad Layout
0.085 (2.159) MAX.
0.086 (2.20)
0.077 (1.95)
0.155 (3.94)
0.130 (3.30)
0.086 (2.18) MIN.
0.180 (4.57)
0.160 (4.06)
0.012 (0.305)
0.006 (0.152)
0.096 (2.44)
0.084 (2.13)
0.060 (1.52)
0.030 (0.76)
0.008 (0.2)
0 (0)
0.220 (5.59)
0.205 (5.21)
Vishay General Semiconductor
0.060 (1.52) MIN.
0.220 (5.59) REF.
Revision: 22-Mar-18
Document Number: 89110
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
