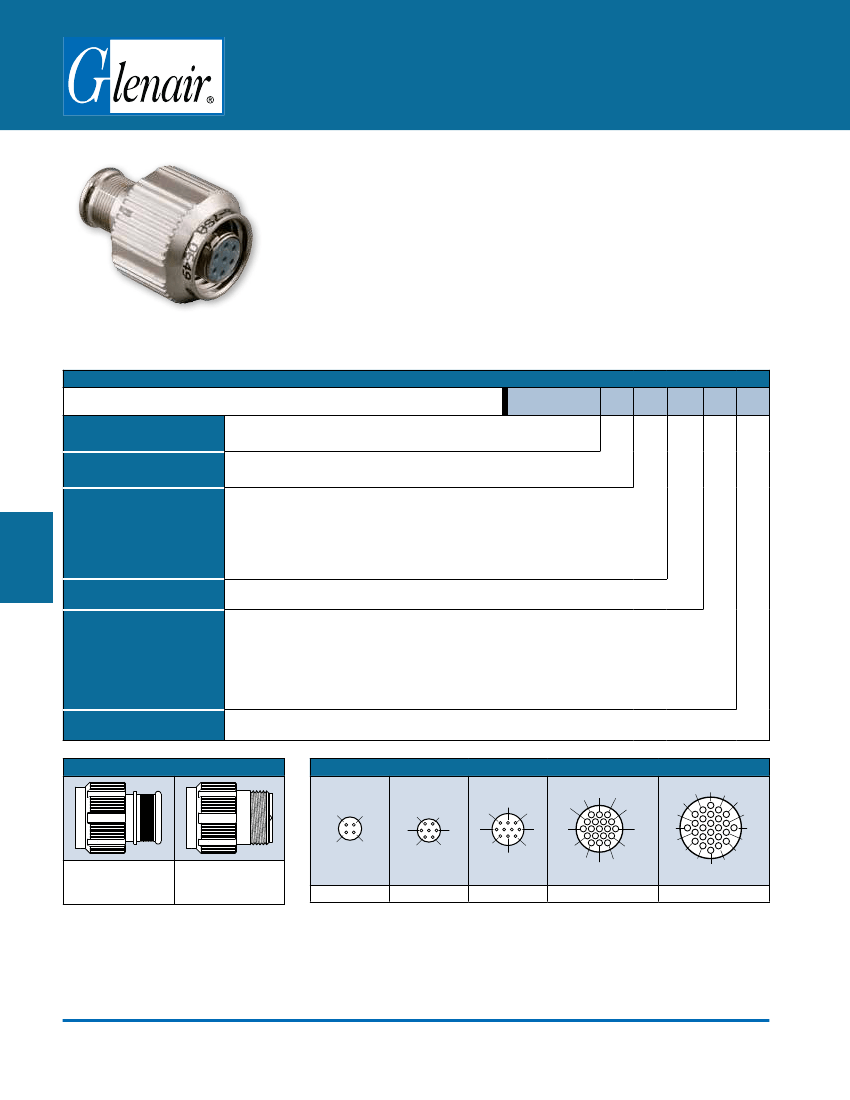

Series 801 Mighty Mouse
High-Speed
Double-Start ACME Threads Plug Connector
801-036 and 801-039 Ordering Information
P
Series 801
High-Speed
Sample Part Number
Series (See Table I)
Shell Style
Shell Material and Finish
Contact Type
Shell Key Positions
(See Table II)
Glenair Series 801 Mighty Mouse
High-Speed
connectors feature double-start
modified stub ACME mating threads for improved protection against cross-mating
and thread damage. Connector shells are machined aluminum or stainless steel. The
connector is equipped with special PFA (Teflon) insulators and is optimized for use
with high-speed differential wire such as our 963-001 cable. Five insert arrangements
are offered with 4, 7, 10, 19 and 26 #23 AWG contacts, packaged separately. Terminate
contacts with standard M22520 tools. Metal clips inside the connector body lock contact
into place. Contacts are removable. Fluorosilicone seals and rear grommet protect
connector from water ingress. Terminate cable shield directly to connector body with
Band-Master™ ATS strap, or choose rear accessory thread to attach optional cable clamp
or backshell.
How To Order
801-036
801-036
= Banding Platform
801-039
= Rear Accessory Thread
-16
= Plug with Anti-Decoupling Spring
-26
= Self-Locking Plug with Ratchet Mechanism
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
Shell Size - Insert Arrangement
6-4, 6-7, 7-10, 9-19, 10-26
(See Table II
Connector supplied with contacts
P
= Pin
S
= Socket
Connector supplied without contacts
A
= Pin Connector, less contacts
B
= Socket Connector, less contacts
-16
M
7-10
P
A
Connectors with contacts are supplied with signal and/or power crimp contacts. These contacts are not
installed.
Coaxial contacts and non-standard signal contacts are ordered separately.
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. F
F
= Pos. F
Table I: Series
1
4
801-036
Plug with Banding
Platform
801-039
Plug with Accessory
Thread
2
6
3
5
1
7
Table II: Shell Size – Insert Arrangement
2
3
4
7
10
9
7-10
8
3
2
1
4
7
12
16
19 18 17
13
3
2
1
4
8
6
11
15
18
23
3
1
2
4
9
12
16
21
25
26
24
6-4
6-7
9-19
10-26
Dimensions in Inches (millimeters) are subject to change without notice.
