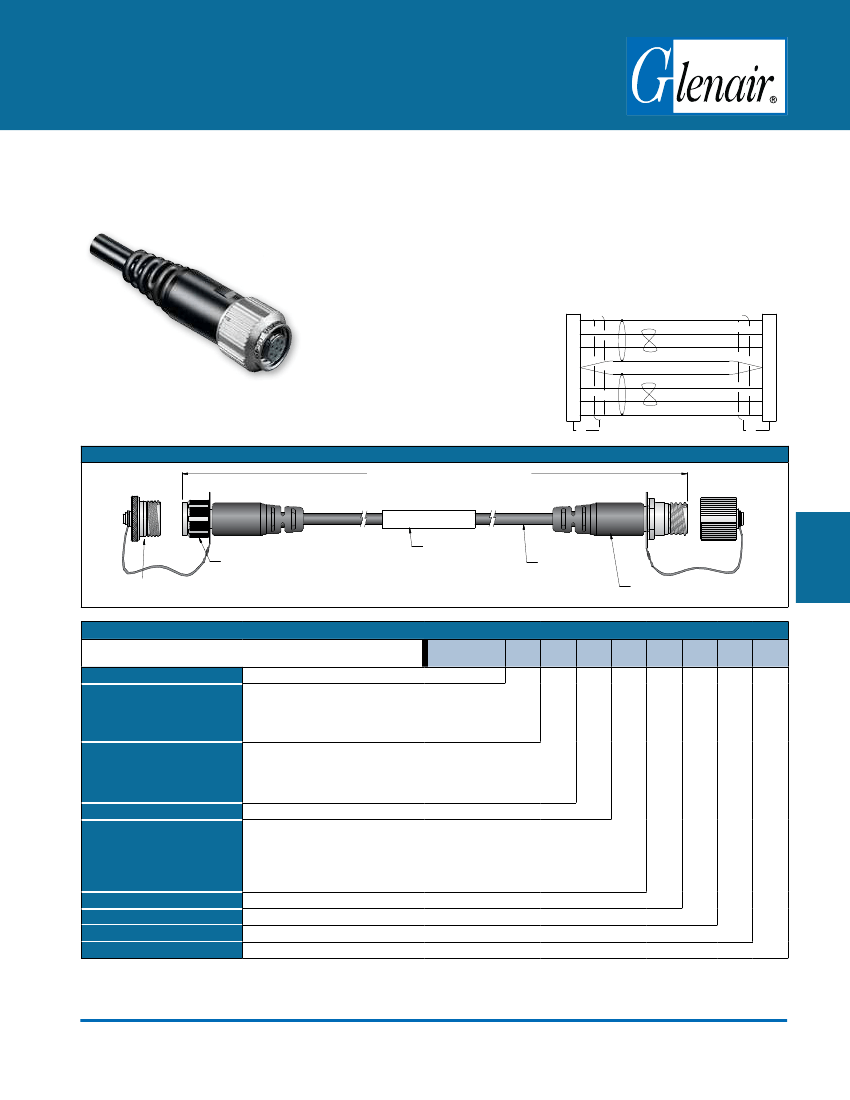

Mighty Mouse
High-Speed
Back-to-Back Connector
with Double-Start ACME Threads
801-045 Ordering Information
Series 801
High-Speed
cordsets
For optimal data transmission performance and environmental sealing, choose
Glenair high-speed cordsets. Factory-terminated connectors have rear grommets
removed to maintain the construction of the matched-impedance pair cable
through the connector for improved high-speed performance. Choose “Back to
Back” versions with Series 80 Mighty Mouse
High-Speed
connectors on both ends,
or cordsets terminated to industry-standard commercial connectors. Order with
or without metal protective covers. All
cordsets are 100% electrically tested.
WIRING DIAGRAM
P1
6
1
2
7
5
4
3
P2
6
1
2
7
5
4
3
DRAIN
WHT 28 AWG
BLU 28 AWG
DRAIN
DRAIN
WHT 28 AWG
ORN 28 AWG
DRAIN
801-045: Series 801 Mighty Mouse
High-Speed
eSATA Overmolded Cordset
"LENGTH" MIN (SEE P/N DEVELOPMENT)
P1
"PART NUMBER"
GLENAIR YYWW 06324
P2
PROTECTIVE COVER,
667-217 OR 667-218
GLENAIR HIGH-SPEED CONNECTOR,
801-036-16 PLUG OR
801-037-01 RECEPTACLE
6-7 INSERT ARRANGEMENT
(GROMMETS REMOVED)
BRADY LABEL,
LAT-18 OR EQ.
APPROX LOCATION:
CENTER OF CABLE
GLENAIR BULK
eSATA CABLE,
963-013
POLYAMIDE OVERMOLD
How To Order
Sample Part Number
Series
P1 Connector
801-045
801-045
= Back-to-Back eSATA Overmolded cordset.
-A
D
4
NF
6-7
N
A
-48
P2 Connector
Wire Size
-A
= Plug with Pin Contacts
-B
= Plug with Socket Contacts
-C
= Receptacle with Pin Contacts
-D
= Receptacle with Socket Contacts
A
= Plug with Pin Contacts
B
= Plug with Socket Contacts
C
= Receptacle with Pin Contacts
D
= Receptacle with Socket
Contacts
N
= No Connector (Single-Ended)
4
= #28 AWG
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE, RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
6-7
P
= Metal Protective Covers Included
N
= No Covers Supplied
A
(Normal),
B, C, D, E, F
Overall Length In Inches 78" Max
Dimensions in Inches (millimeters) are subject to change without notice.
Shell Material / Finish
Insert Arr.
Protective Cover
Shell Key Pos. (See Page N3)
Length
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
P-13
E-Mail: sales@glenair.com
Series 801
High-Speed
Series 801 eSATA Cordsets
