C0805C684K3RAL7025 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> C0805C684K3RAL7025

C0805C684K3RAL7025: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.68uF, 0805,; CategoryPassive components capacitor; File Size52KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C0805C684K3RAL7025 Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.68uF, 0805,

C0805C684K3RAL7025 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	968164740
package instruction	, 0805
Reach Compliance Code	not_compliant
ECCN code	EAR99
capacitance	0.68 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.25 mm
JESD-609 code	e0
length	2 mm
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, 7 Inch
positive tolerance	10%
Rated (DC) voltage (URdc)	25 V
series	C(SIZE)C(X7R)-L TERM
size code	0805
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier
width	1.25 mm

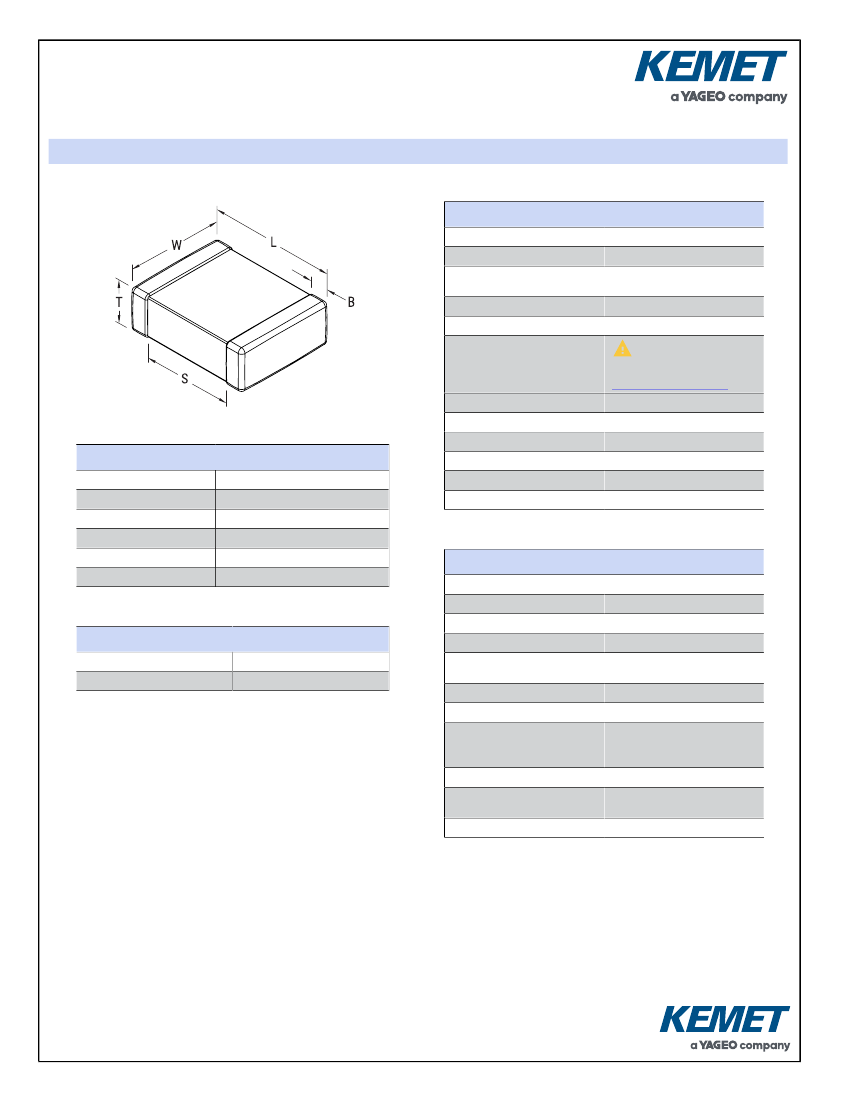

Preview

Download Datasheet

View All

KEMET Part Number: C0805C684K3RALTM

(C0805C684K3RAL7025)

SMD Comm X7R SnPb, Ceramic, 0.68 uF, 10%, 25 VDC, X7R, SMD, MLCC, Temperature Stable, SnPb Termination, 0805

General Information

Series:

Style:

Description:

Features:

RoHS:

Prop 65:

Termination:

Marking:

AEC-Q200:

Component Weight:

0805

2mm +/-0.2mm

1.25mm +/-0.2mm

1.25mm +/-0.15mm

0.75mm MIN

0.5mm +/-0.25mm

Shelf Life:

MSL:

SMD Comm X7R SnPb

SMD Chip

SMD, MLCC, Temperature

Stable, SnPb Termination

SnPb Termination

WARNING:

Cancer

and reproductive harm -

www.p65warnings.ca.gov.

Lead (SnPb)

Yes

21 mg

78 Weeks

Dimensions

Chip Size

Specifications

Capacitance:

Measurement Condition:

Capacitance Tolerance:

Voltage DC:

Dielectric Withstanding

Voltage:

Temperature Range:

Temperature Coefficient:

Capacitance Change with

Reference to +25°C and 0 VDC

Applied (TCC):

Dissipation Factor:

Aging Rate:

Insulation Resistance:

0.68 uF

1 kHz 1.0Vrms

10%

25 VDC

62.5 VDC

-55/+125°C

X7R

15%, 1kHz 1.0Vrms

3.5% 1 kHz 1.0Vrms

3% Loss/Decade Hour: Referee

Time is 1000 Hours

735.3 MOhms

Packaging Specifications

Packaging:

Packaging Quantity:

T&R, 180mm, Plastic Tape

2500

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 7/21/2022 - d9c3690c-fc9c-4054-a5fe-f50e7bf199cd
