B82116S1221L127 datasheet, PDF

B82116S1221L127: DescriptionGeneral Purpose Inductor,; CategoryPassive components inductor; File Size480KB，10 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

B82116S1221L127 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B82116S1221L127	-	-	View	Buy Now

General Purpose Inductor,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	RADIAL LEADED
Reach Compliance Code	unknow
ECCN code	EAR99
structure	Cylindrical
core material	FERRITE
DC Resistance	0.0014 Ω
Nominal inductance(L)	2900000 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	2.5 mm
Lead length	3.75 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	180 °C
Minimum operating temperature	-40 °C
Package diameter	22.5 mm
Package length	21.5 mm
Package form	Radial
method of packing	Tray
Maximum rated current	25 A
Guideline	AEC-Q200
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
special characteristics	INDUCTANCE IS MEASURED AT 1 MILLI AMPERE
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.01 MHz
Tolerance	20%
Base Number Matches	1

Power line chokes

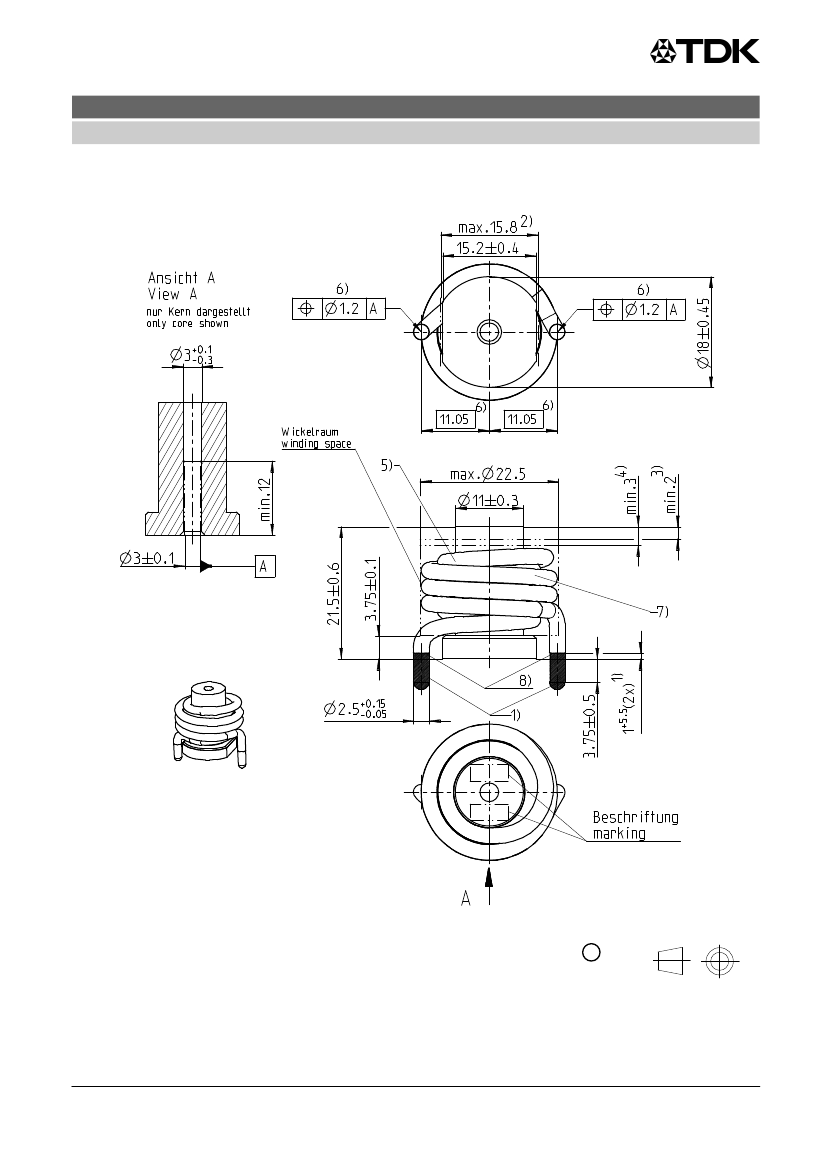

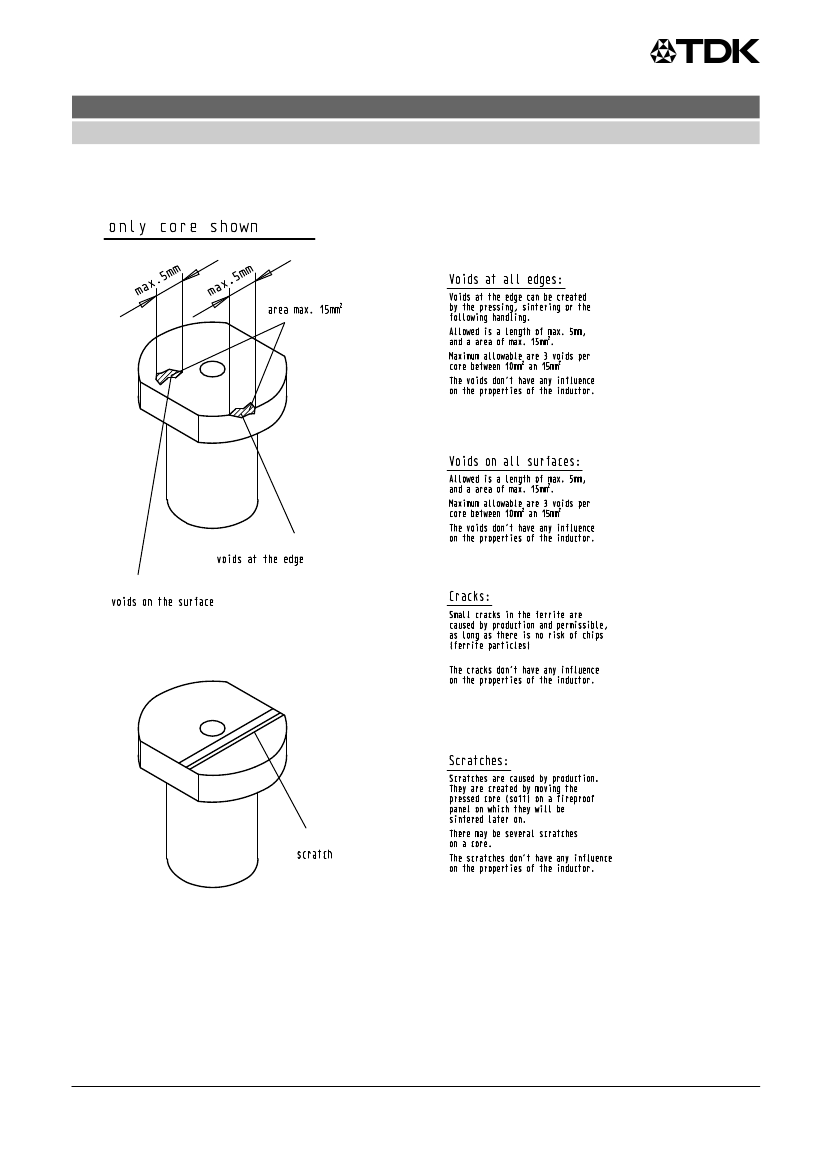

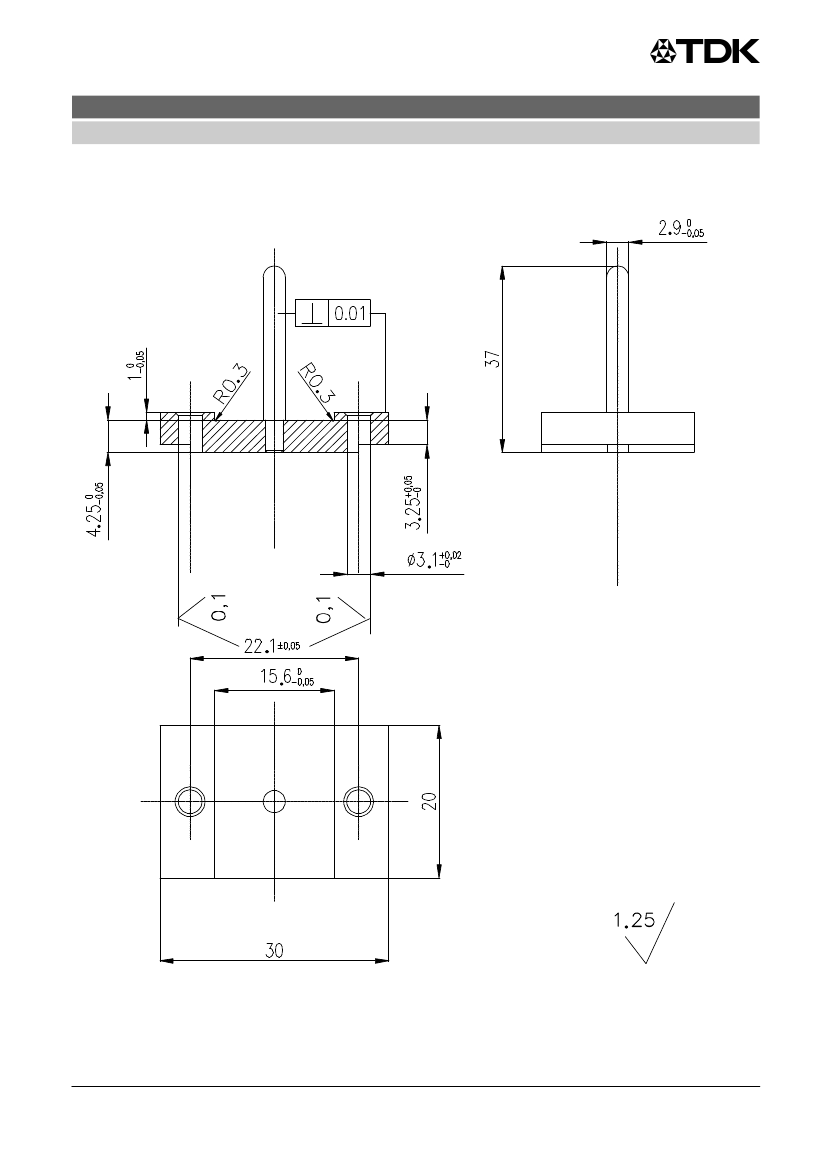

Mushroom core choke

2.9

µH,

25 A / +140

°C

Ordering code:

Date:

Version:

B82116S1221L127

2016−05−11

EPCOS AG 2016. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS’ prior express consent is prohibited.

EPCOS AG is a TDK Group Company.
