F1T1 - F1T7
Pb
RoHS
COMPLIANCE
1.0AMP Fast Recovery Rectifiers
TS-1
Features
High efficiency, Low VF
High current capability
High reliability
High surge current capability
Low power loss
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode end
High temperature soldering guaranteed: 260℃/10s
/.375", (9.5mm) lead lengths at 5 lbs,
(2.3kg) tension
Weight: 0.20 grams
Dimensions in inches and (millimeters)
Marking Diagram
F1TX
G
Y
M
= Specific Device Code
= Green Compound
= Year
= Work Month
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
.375 (9.5mm) Lead Length @ T
A
=55℃
Peak Forward Surge Current, 8.3 ms Single Half Sine-
wave Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@1A
Maximum DC Reverse Current at
Rated DC Blocking Voltage
@ T
A
=25
℃
@ T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
T
J
T
STG
F1T1
50
35
50
F1T2
100
70
100
F1T3
200
140
200
F1T4
400
280
400
1
30
1.2
5
150
F1T5
600
420
600
F1T6
800
560
800
F1T7
1000
700
1000
Units
V
V
V
A
A
V
uA
uA
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance (Note 4)
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
150
10
100
250
500
O
nS
pF
C/W
O
O
- 65 to + 150
- 65 to + 150
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Note 4: Mount on Cu-Pad Size 5mm x 5mm on PCB
Version:C10

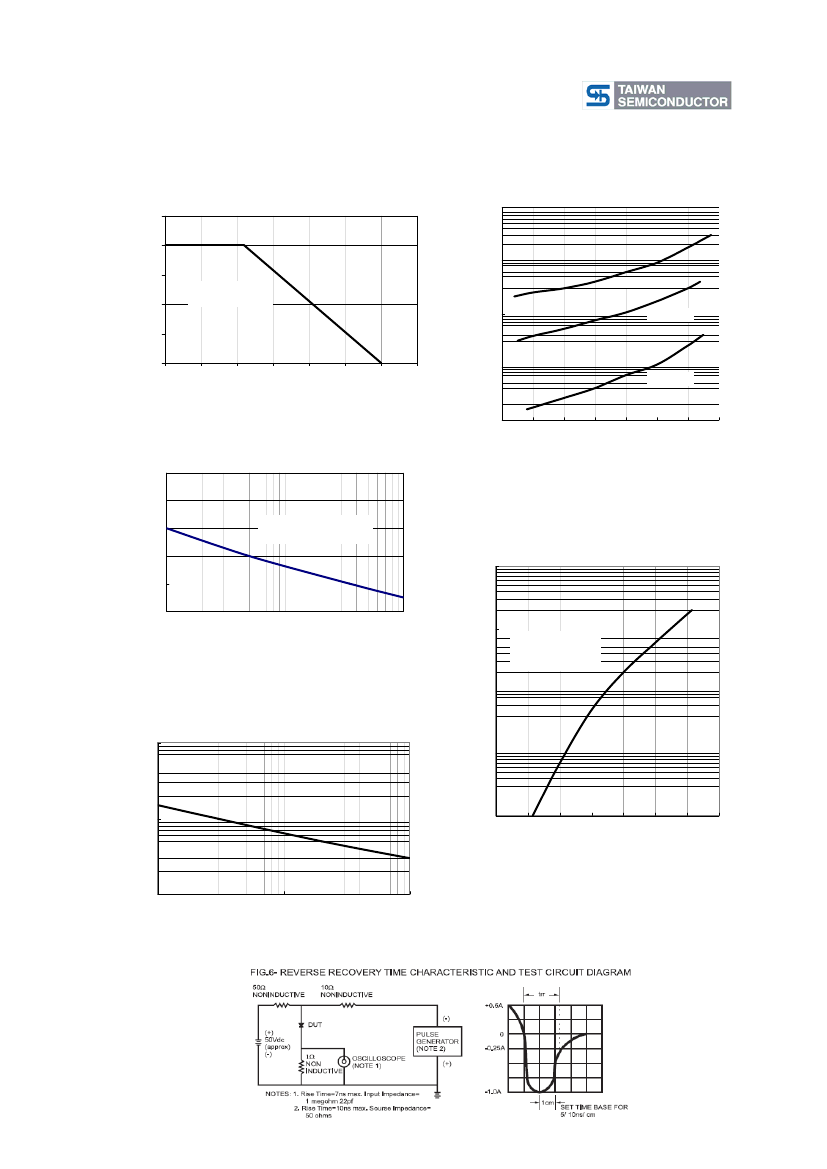

RATINGS AND CHARACTERISTIC CURVES (F1T1 THRU F1T7)
FIG.1- MAXIMUM TYPICAL FORWARD CURRENT
DERATING CURVE
1.25
1
0.75
0.5
0.25
0
0
25
50
75
100
125
150
175
RESISTIVE OR
INDUCTIVE LOAD
INSTANTANEOUS REVERSE CURRENT (uA)
1000
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
PER LEG
AVERAGE FORWARD
CURRENT (A)
100
TA=125℃
10
TA=75℃
1
TA=25℃
AMBIENT TEMPERATURE (
o
C)
0.1
0
20
40
60
80
100
120
140
50
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
PEAK FORWARD SURGE
A
CURRENT (A)
40
30
20
10
INSTANTANEOUS FORWARD CURRENT (A)
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3mS Single Half Sine Wave
JEDEC Method
FIG. 5- TYPICAL FORWARD CHARACTERISRICS
100
10
TA=25℃
Pulse Width=300us
1% Duty Cycle
1
FIG. 4- TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE (pF)
0.1
TA=25℃
10
0.01
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE (V)
1.6
1.8
1
1
10
REVERSE VOLTAGE (V)
100
Version:C10
